In many electronic systems, cables are often considered simple components used to connect different devices. However, for high-speed and high-frequency applications, cable performance directly affects signal quality.
One of the most important electrical characteristics of a cable is impedance.
In applications such as medical imaging equipment, RF systems, industrial drones, and advanced electronics, maintaining stable cable impedance is essential for reliable signal transmission.
Cable impedance matters because a high-frequency signal does not respond to a cable simply as a piece of wire.
For a controlled transmission line, the characteristic impedance is determined by the electrical and physical structure of the cable, including conductor geometry, dielectric properties and the surrounding conductive structure.
When the source, cable, connector and receiving system are not appropriately matched, part of the signal can be reflected at discontinuities.
For OEM cable assembly projects, impedance should therefore be treated as a system-level design and validation parameter, rather than as a number printed on the cable specification.
If → the system requires a controlled-impedance transmission path
Then → define the required nominal impedance and applicable frequency range before selecting the cable structure
Why → impedance performance depends on the physical transmission structure and the frequency at which it is evaluated.
If → the cable is specified as 50Ω or 75Ω
Then → also define the connector, termination, cable length and relevant RF acceptance criteria
Why → the finished assembly includes more than the raw coaxial cable.
If → the measured impedance varies along the cable
Then → investigate conductor geometry, dielectric dimensions and local transitions
Why → a transmission line can contain localized impedance discontinuities even when its average dimensions appear acceptable.
If → the finished assembly shows poor return loss
Then → examine connector transitions and termination geometry as well as the cable itself
Why → reflections can originate from interfaces within the complete signal path.
The current HOTTEN article already identifies conductor size, dielectric structure, shielding and precision extrusion as major impedance-related factors, and describes TDR and network-analyzer testing as validation methods.
For customized RF Cable and RF Coaxial Cable Assembly, impedance requirements can be defined as part of the complete assembly specification.
Cable impedance, also known as characteristic impedance, describes the electrical behavior of a cable when transmitting high-frequency signals.
Unlike DC resistance, impedance includes the combined effects of:
For coaxial cables and high-speed cable assemblies, common impedance values include:
| Impedance Value | Typical Applications |
|---|---|
| 50Ω | RF systems, medical high-frequency signals, testing equipment |
| 75Ω | Video transmission and broadcasting systems |
A properly designed cable system requires the signal source, cable, connector, and receiving device to maintain compatible impedance.
When a signal travels through a cable with inconsistent impedance, part of the signal may be reflected back toward the source.
This is known as signal reflection.
The result can include:
| Problem | Impact |
|---|---|
| Signal reflection | Reduced signal quality |
| Waveform distortion | Data transmission errors |
| Signal attenuation | Lower received signal strength |
| Increased noise | Reduced system reliability |
For sensitive applications such as medical imaging, even small signal losses may affect overall system performance.
Cable impedance is determined by the physical structure and materials of the cable.
The diameter and material of the inner conductor affect electrical characteristics.
In micro coaxial cable designs, small changes in conductor dimensions may influence:
Therefore, precise conductor control is important for maintaining stable performance.
The insulation layer between the conductor and shielding layer plays an important role in impedance control.
Factors include:
Common dielectric materials include:
Stable dielectric properties help maintain consistent signal transmission performance.
The shielding layer affects both electromagnetic protection and impedance characteristics.
Important factors include:
A well-designed shield structure helps reduce:
✓ EMI interference
✓ Signal crosstalk
✓ High-frequency noise
Achieving stable impedance requires both proper design and manufacturing control.
During cable manufacturing, insulation thickness and concentricity must be carefully controlled.
Small variations can affect:
Time Domain Reflectometry (TDR) is commonly used to evaluate impedance performance.
TDR testing can identify:
This helps ensure cable assemblies meet design requirements.
For high-frequency cable assemblies, network analyzers are used to evaluate:
These measurements help verify signal transmission performance.
Medical applications such as:
require stable signal transmission for accurate device performance.
Proper impedance control helps maintain signal integrity and reduce transmission errors.

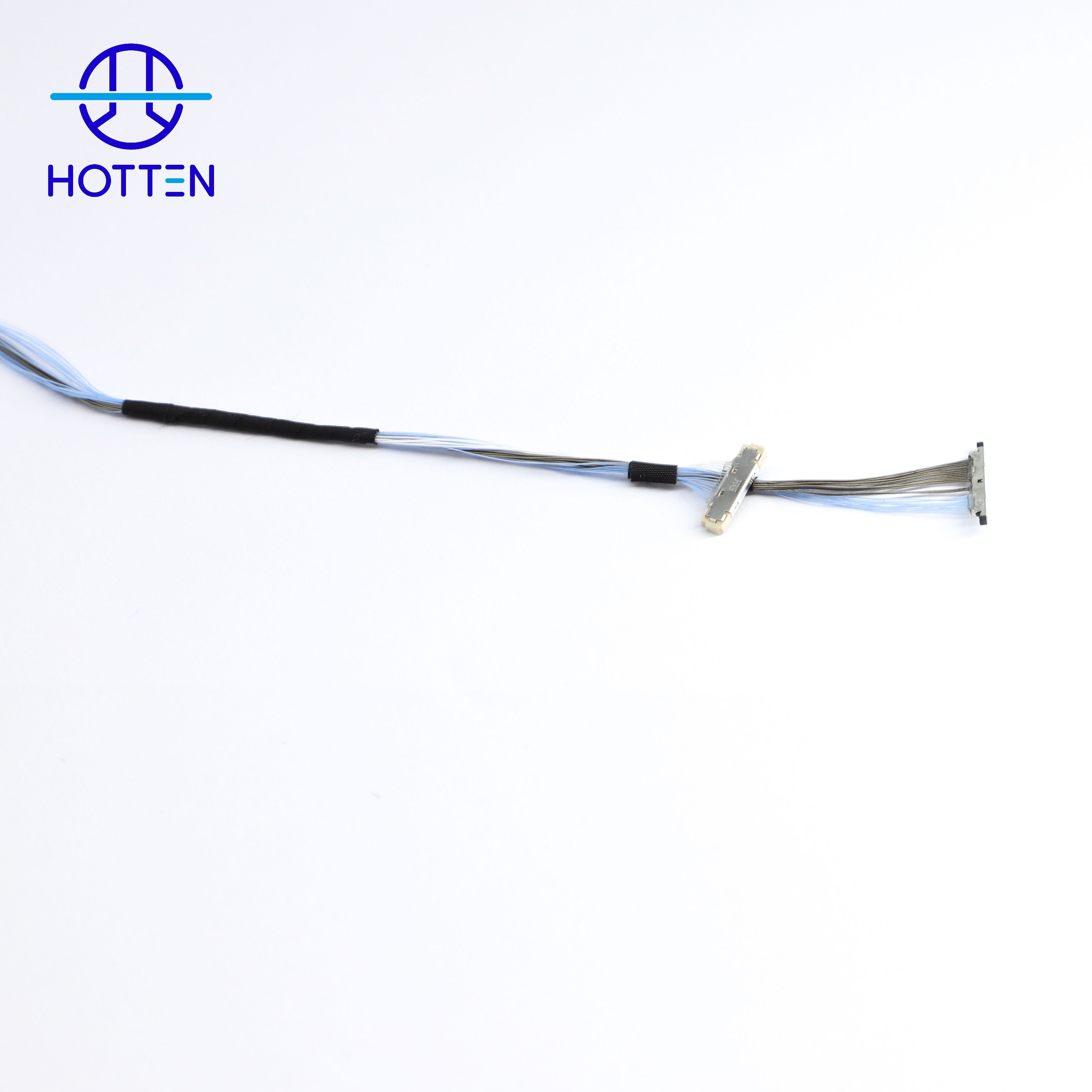

Industrial drones require compact and reliable cable solutions.
Cable assemblies must support:
Stable impedance helps ensure reliable communication between sensors, cameras, and control systems.

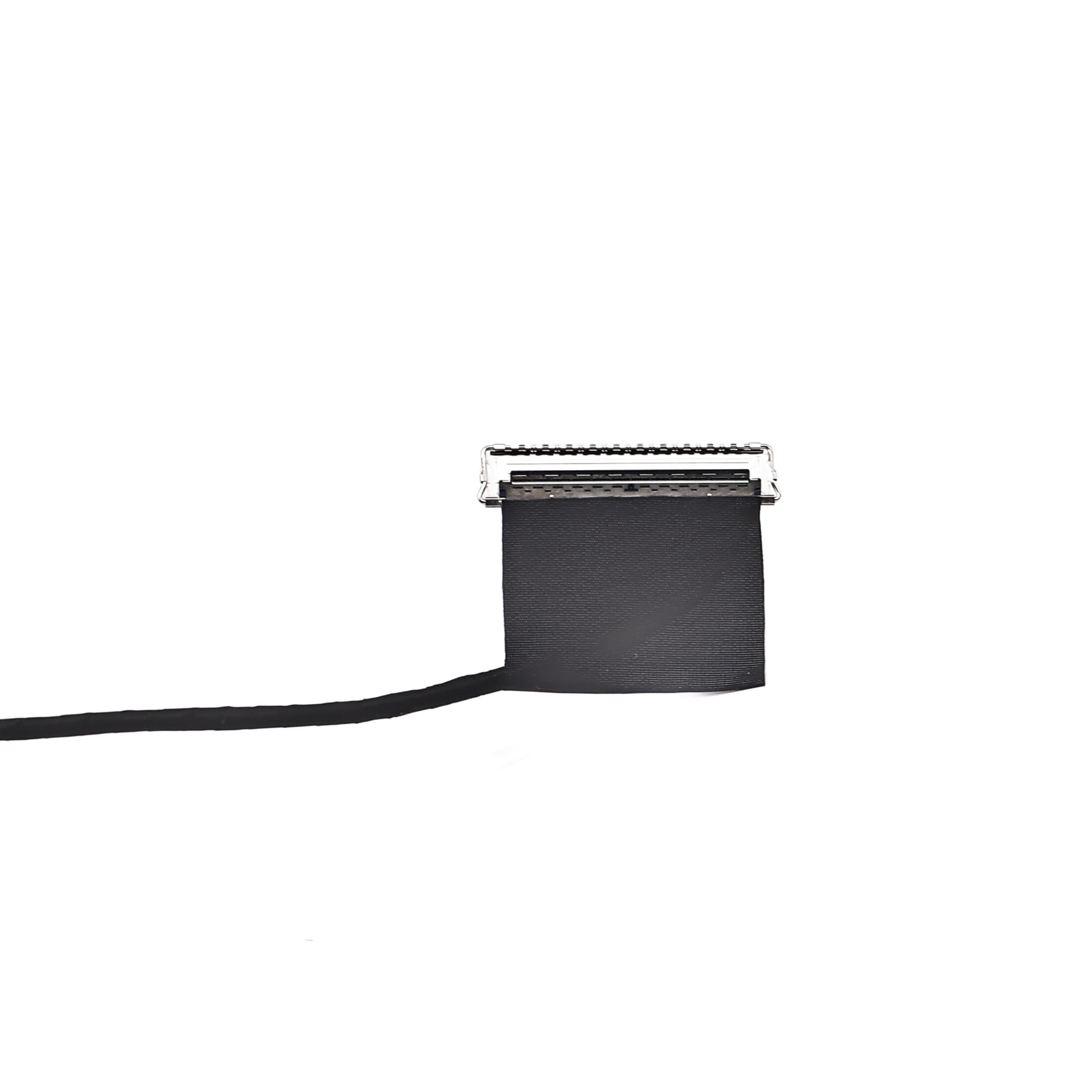

HOTTEN provides customized cable assembly solutions for applications requiring high signal reliability.
Our capabilities include:
✓ Impedance controlled cable design
✓ Micro coaxial cable assembly
✓ Medical cable assembly development
✓ High-frequency cable testing
✓ Prototype to mass production support
By combining engineering design, manufacturing control, and electrical testing, HOTTEN helps OEM customers develop reliable cable solutions for advanced electronic systems.
For an OEM project, stating:
50Ω cable
or
75Ω cable
is only the starting point.
A complete impedance requirement should define the signal environment, physical cable structure, assembly interfaces, frequency range, measurement method and acceptance criteria.
A practical framework is:
Application → Frequency → Nominal Impedance → Cable Geometry → Connector Transition → Test Method → Acceptance Criteria → Production Consistency
The first question should not be:
“Which cable has the correct impedance?”
It should be:
“What impedance does the complete signal path require?”
The signal path may include:
Transmitter → PCB → Connector → Cable → Connector → Receiver
If → the system uses a controlled-impedance RF interface
Then → define the impedance requirement across the relevant interfaces
Why → the cable does not operate independently from the source and receiving circuitry.
For common coaxial systems, 50Ω and 75Ω are widely used nominal impedance values, but the correct value depends on the specific system architecture. The current HOTTEN article also identifies 50Ω applications with RF systems and high-frequency medical signals and 75Ω applications with video/broadcasting systems.
Impedance is associated with a transmission-line structure and should be considered over the frequency range relevant to the application.
A useful specification therefore includes:
| Parameter | Engineering Requirement |
|---|---|
| Nominal Impedance | 50Ω / 75Ω / Other |
| Frequency Range | Minimum and maximum operating frequency |
| Impedance Tolerance | Allowed deviation if specified |
| Return Loss | Required limit if applicable |
| VSWR | Required limit if applicable |
| Cable Length | Finished nominal length |
| Connector | Exact connector/interface |
| Test Method | TDR / VNA / other |
| Acceptance Criteria | Defined pass/fail limit |
If → the same cable must operate from low MHz through higher-frequency bands
Then → evaluate impedance behavior over the complete relevant frequency range
Why → one-point verification does not describe the full RF behavior of an assembly.
The current HOTTEN article already correctly identifies conductor size and dielectric thickness as major physical factors affecting impedance.
For a coaxial transmission structure, important dimensional variables include:
If → conductor-to-dielectric geometry remains stable
Then → the cable structure is easier to maintain within its impedance target
Why → characteristic impedance depends on the physical relationship between the conductive and dielectric regions.
If → a dimensional change occurs along a short section of cable
Then → evaluate whether that local region creates an impedance discontinuity
Why → RF performance is influenced by local transmission-line geometry, not only by average cable dimensions.
This is why the fourth article should connect directly to your previously optimized:
Key Design Controls for Consistent RF Performance in High-Frequency Coaxial Cable
For high-density and micro coaxial cable designs, impedance is not the only electrical parameter that matters.
OEM engineers may also need to specify:
If → the application is sensitive to cable capacitance
Then → evaluate conductor geometry, dielectric structure and cable length together
Why → cable capacitance is distributed along the transmission path and can affect system behavior.
If → the application uses high-density micro coaxial channels
Then → evaluate impedance and capacitance together instead of optimizing only one parameter
Why → changing conductor or dielectric geometry to improve one characteristic can affect another.
This creates a natural connection to:
How Micro Coaxial Cable Design Ensures Signal Integrity in Medical Devices
The shield does more than reduce electromagnetic interference.
Its physical construction can also affect the geometry surrounding the signal conductor.
Relevant factors may include:
| Shielding Factor | Engineering Consideration |
|---|---|
| Shield Material | Conductivity and mechanical properties |
| Coverage | Electrical shielding requirement |
| Braid Density | Mechanical and electrical behavior |
| Foil Structure | High-frequency shielding |
| Shield Position | Relationship to dielectric geometry |
| Shield Termination | Finished assembly continuity |
| Flexibility | Impact of mechanical movement |
If → the cable requires both impedance control and high shielding performance
Then → select shielding construction together with cable geometry
Why → shielding cannot always be optimized independently from the transmission-line structure.
The current article already discusses shield coverage, braid density and shielding material, so this section should extend that existing content rather than repeat it.
A common OEM mistake is to specify the cable impedance but not specify what happens at the cable ends.
The actual transmission path is:
Cable → Termination → Connector → PCB / Equipment
The transition region may contain changes in:
If → the cable meets the required impedance but the finished assembly does not
Then → investigate termination and connector transition geometry
Why → the connector becomes part of the RF transmission path.
If → the cable is assembled with multiple connector types
Then → validate each cable/connector combination separately
Why → two connectors with the same nominal impedance can have different physical transition structures.
This point should link directly to:
How RF Coaxial Cable Assemblies Control Impedance and Loss for Reliable High-Frequency Signals
The current article already introduces both methods.
The stronger engineering distinction is:
| Test Method | Main Question |
|---|---|
| TDR | Where is the impedance discontinuity? |
| VNA | How does the assembly behave across frequency? |
| Return Loss | How much signal is reflected? |
| Insertion Loss | How much signal is transmitted with loss? |
| VSWR | How severe is the impedance mismatch? |
If → the purpose is to locate a physical discontinuity
Then → TDR can be useful for identifying where along the transmission path the discontinuity occurs
Why → TDR provides distance-related information about reflections.
If → the purpose is to characterize return loss or insertion loss across frequency
Then → use an appropriate VNA-based measurement setup
Why → the frequency-domain behavior is relevant to RF system performance.
A cable impedance measurement is not only about the cable.
The measurement system can include:
VNA / TDR → Test Cable → Adapter → Connector → DUT
Therefore, the test method should define:
If → repeated measurements of the same assembly show significant variation
Then → investigate both the assembly and the measurement setup
Why → fixture repeatability and connector interface conditions can contribute to measurement variation.
If → a supplier provides an impedance report
Then → confirm the test frequency range, test method and relevant setup information
Why → an impedance number without measurement conditions may not be directly comparable.
For some applications, the initial impedance result is not enough.
Potential stress conditions include:
If → the cable is used in a dynamic medical or robotic application
Then → compare impedance and other relevant RF parameters before and after representative mechanical testing
Why → deformation of the transmission structure can affect electrical performance.
If → the cable operates over a wide temperature range
Then → evaluate RF performance under representative temperature conditions
Why → material and dimensional behavior can change with environmental conditions.
This creates the connection to:
How Flex-Life Testing Helps Medical Cable Assemblies Maintain Performance After Repeated Bending
The same generic “impedance control” statement is not enough for every application.
If → the cable is used in ultrasound or another medical imaging system
Then → define impedance together with capacitance, attenuation, channel count, cable length and mechanical constraints
Why → high-density medical cables may have simultaneous electrical and mechanical requirements.
See Medical Equipment.
If → the cable is used in a high-frequency RF signal chain
Then → define impedance, operating frequency, return loss and insertion loss together
Why → nominal impedance alone does not describe high-frequency transmission performance.
See High Frequency & RF Systems.
If → the assembly operates under vibration and repeated movement
Then → combine impedance verification with mechanical validation
Why → the cable must maintain signal performance while exposed to the actual mechanical environment.
See UAV & Robotics.
For procurement and engineering evaluation, the RFQ should contain enough information for different suppliers to interpret the requirement consistently.
| Category | Recommended Information |
|---|---|
| Application | Medical / RF / UAV / Other |
| Signal Type | RF / High-Speed / Imaging / Other |
| Frequency | Operating frequency range |
| Impedance | Nominal value |
| Tolerance | Allowed deviation if specified |
| Capacitance | Target / maximum if applicable |
| Attenuation | Maximum acceptable loss |
| Return Loss | Required limit |
| VSWR | Required limit |
| Cable Length | Nominal + tolerance |
| Cable OD | Maximum allowable dimension |
| Conductor | Material / size / construction |
| Dielectric | Material / structure |
| Shielding | Structure / coverage |
| Connector | Part number / manufacturer |
| Termination | Solder / crimp / other |
| Test Method | TDR / VNA / other |
| Test Range | Frequency range for validation |
| Reporting | Test report / S-parameters if required |
| Production | Prototype / pilot / mass production |
If → an RFQ only states “50Ω low-loss cable”
Then → add frequency, attenuation, connector, cable length, test method and acceptance criteria
Why → otherwise suppliers may use different construction assumptions while still claiming to meet the same nominal specification.
For an OEM project, a useful sequence is:
System Requirement
→ Operating Frequency
→ Nominal Impedance
→ Attenuation / Return Loss
→ Conductor Geometry
→ Dielectric Structure
→ Shielding
→ Cable Length
→ Connector / Termination
→ TDR / VNA Measurement
→ Mechanical / Environmental Validation
→ Production Verification
For a medical high-frequency cable:
Medical Imaging Signal
→ define frequency range
→ establish required impedance
→ define capacitance and attenuation limits
→ determine channel count and cable length
→ select conductor geometry
→ define dielectric structure
→ select shielding
→ define connector and termination
→ measure finished assembly
→ validate under representative conditions
→ establish production acceptance criteria.
This is a more complete engineering definition than:
50Ω Cable
because the actual requirement is:
50Ω transmission structure + defined frequency range + controlled geometry + controlled transitions + measurable acceptance criteria
Key Design Controls for Consistent RF Performance in High-Frequency Coaxial Cable
How RF Coaxial Cable Assemblies Control Impedance and Loss for Reliable High-Frequency Signals
How Micro Coaxial Cable Design Ensures Signal Integrity in Medical Devices
Design Factors in Medical Cable Assemblies That Protect Signal Integrity in Clinical Devices
How Flex-Life Testing Helps Medical Cable Assemblies Maintain Performance After Repeated Bending
Resistance describes the opposition to direct current flow, while impedance considers resistance, capacitance, and inductance effects in AC and high-frequency signal transmission.
Common coaxial cable impedance values are 50Ω and 75Ω. The correct value depends on the application requirements.
Impedance control reduces signal reflection and helps maintain signal integrity during high-speed transmission.
Manufacturers typically use testing methods such as TDR and network analyzer measurements to verify impedance stability and signal performance.
Cable impedance is a critical factor in high-frequency cable assembly design.
From conductor dimensions and dielectric materials to shielding structures and manufacturing precision, every part of the cable affects impedance performance.
For applications such as medical devices, UAV systems, and advanced electronics, choosing a cable assembly manufacturer with impedance control capability can help ensure stable and reliable signal transmission.
Hot News2026-09-17
2026-09-04
2025-12-17
2025-12-11
2025-12-05
