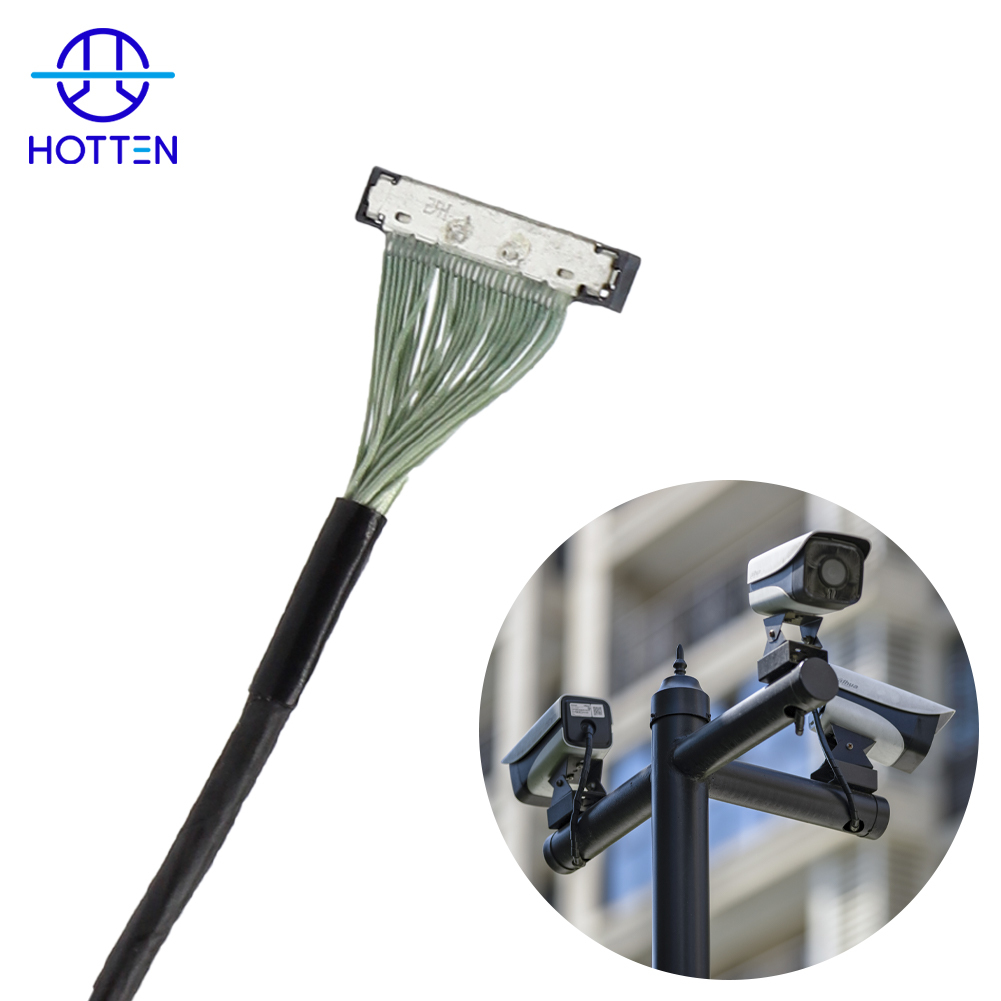

Micro Coaxial Cable Assembly for Camera Systems

High-Speed Imaging Cable Solutions for Compact Camera Systems

Modern camera and imaging devices require compact cable structures capable of transmitting high-speed signals while fitting into increasingly limited installation spaces.

Hotten provides customized micro coaxial cable assemblies for camera systems, combining ultra-fine conductors, high-density cable construction, signal shielding, and flexible routing.

Our solutions are designed for OEM manufacturers of camera modules, imaging equipment, smart electronics, and other compact electronic systems requiring reliable high-speed signal transmission.

📷 Camera & Imaging Applications

Hotten micro coaxial cable assemblies can be used in:

Camera Modules · IP Cameras · Machine Vision Systems · Industrial Cameras · Imaging Equipment · Smart Devices · UAV Cameras · Robotic Vision Systems

For applications where multiple high-speed signal channels must fit into a small space, micro coaxial cable assemblies provide a compact alternative to conventional cable structures.

🔬 42AWG Micro Coaxial Cable Technology

This cable solution uses an ultra-fine 42AWG micro coaxial cable structure for compact, high-density signal routing.

Key advantages include:

• Ultra-fine cable construction
• High-density signal transmission
• Individual signal shielding
• Reduced electromagnetic interference
• Compact installation dimensions
• Flexible cable routing
• Customized connector integration

Individual coaxial structures can help maintain signal separation and shielding between channels, making micro coaxial cable assemblies suitable for high-density camera and imaging applications.

⚙️ Customized Camera Cable Assembly

Hotten supports customized micro coaxial cable assemblies according to customer drawings, samples, connector requirements, and electrical specifications.

Cable Structure

• 42AWG micro coaxial cable
• Multi-channel cable assemblies
• High-density cable harnesses
• Custom coaxial configurations

Electrical Performance

• High-speed signal transmission
• Controlled impedance
• Low signal loss
• EMI shielding
• Crosstalk control

Mechanical Design

• Ultra-small cable diameter
• Flexible routing
• Custom cable length
• Compact connector arrangement
• Space-constrained installation

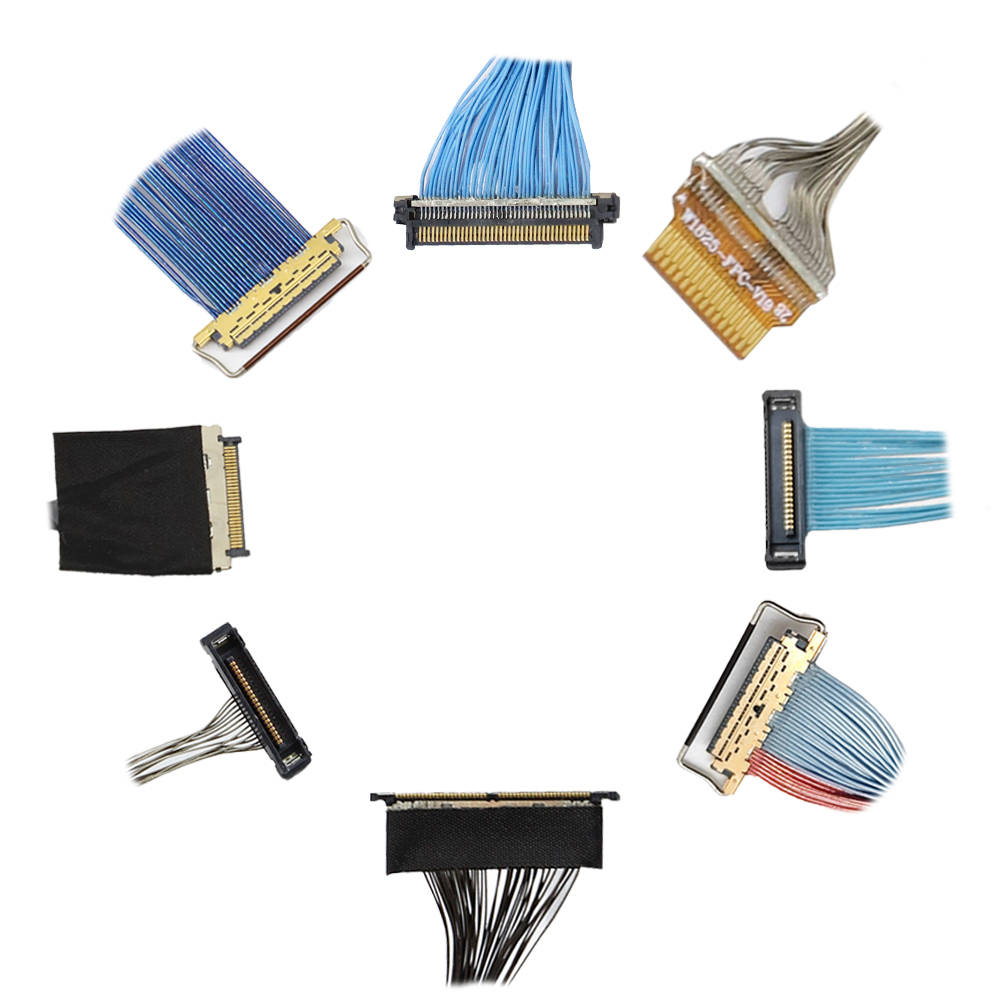

Connector & Assembly

• Customer-specified connectors
• HRS and similar micro connectors
• Custom termination
• PCB integration
• Complete OEM cable assembly

🧩 High-Density Camera Cable Assembly

Typical manufacturing process:

42AWG Micro Coaxial Cable → Cable Processing → Multi-Channel Assembly → Connector Termination → Electrical Testing → Finished Camera Cable Assembly

Hotten can customize the cable structure, channel configuration, connector, cable length, and assembly according to the customer's application.

📋 Typical Technical Specifications

⭐ Why

Engineering & Procurement Considerations for Micro Coaxial Camera Cables

Why are micro coaxial cables used in camera systems?

Micro coaxial cables are commonly considered for compact camera systems where multiple signal paths must be routed through a limited space while maintaining controlled electrical characteristics.

Compared with a conventional multi-core cable, a micro coaxial construction provides an individually structured signal path that can help reduce electrical coupling between adjacent signals. This makes micro coaxial cable assemblies useful for compact camera modules and high-speed imaging applications where cable size, signal routing, and electrical performance need to be considered together.

The appropriate cable construction depends on the camera interface, signal requirements, cable length, connector configuration, and mechanical design of the equipment.

What are the advantages of micro coaxial cable for high-speed camera applications?

A micro coaxial cable assembly can combine multiple compact signal paths with individual shielding or coaxial structures within a relatively small cable footprint.

For camera applications, this can be beneficial when the cable must:

• Carry multiple signal paths in a compact space

• Connect a camera module to a main board or processing system

• Fit within restricted internal routing space

• Support high-density connector interfaces

• Reduce unwanted coupling between adjacent signal paths

• Accommodate customized cable lengths and connector configurations

Micro coaxial construction is not automatically required for every camera application. Engineers should select the cable structure according to the actual interface and electrical and mechanical requirements of the system.

How does cable construction affect camera signal integrity?

The physical construction of a camera cable can influence the behavior of high-speed signals. Conductor geometry, dielectric structure, shielding, spacing between signal paths, cable length, connector termination, and routing can all affect the overall interconnect performance.

A micro coaxial structure separates individual signal paths within the cable, which can help control electrical coupling and interference. However, signal integrity is determined by the complete interconnect system rather than the cable structure alone.

For high-speed imaging equipment, engineers should therefore evaluate the cable, connectors, pin assignment, termination, and routing conditions together during the design stage.

When should engineers consider a micro coaxial cable instead of a conventional camera cable?

A micro coaxial cable assembly may be appropriate when a camera system combines high-density signal connections with limited installation space or specific signal-isolation requirements.

Typical design considerations include:

• Compact camera module dimensions

• High-density signal interfaces

• Multiple high-speed signal paths

• Limited internal cable routing space

• Requirements for individual signal-path separation

• Fine-pitch connectors

• Flexible or constrained cable routing

• Customized connector and pin configurations

For simpler camera interfaces with fewer mechanical or electrical constraints, another cable construction may be sufficient. The correct solution should be determined from the complete camera system requirements.

What specifications should be defined for a custom micro coaxial camera cable?

Before developing a custom camera cable assembly, engineers should define the electrical, mechanical, and interface requirements as clearly as possible.

Important specifications may include:

• Cable construction

• Number of coaxial signal paths

• Conductor size

• Characteristic impedance, when required by the interface

• Capacitance, when relevant to the system

• Shielding requirements

• Cable length

• Overall cable diameter

• Connector manufacturer and part number

• Connector pitch and pin count

• Pin assignment

• Connector orientation

• Termination requirements

• Minimum bending or flexing requirements

• Operating environment

• Camera module and mating PCB information

An existing cable sample, engineering drawing, connector part number, or interface specification can help the cable manufacturer evaluate the required construction and provide a more accurate quotation.

What should buyers evaluate when sourcing a custom camera cable assembly?

When sourcing a custom micro coaxial camera cable, buyers should evaluate both the cable manufacturing capability and the supplier's ability to control the complete cable assembly process.

Important factors include:

• Experience with fine-gauge and micro coaxial cable assemblies

• Capability to process compact high-density cable structures

• Connector termination capability

• Pin assignment and connector orientation control

• Prototype and sample development

• Electrical and dimensional inspection

• Consistent assembly quality

• Engineering support during customization

• Ability to work from drawings or customer samples

• Capability to support both prototype development and volume production

For OEM and ODM camera projects, early communication of the camera interface, connector, cable length, routing requirements, and available drawings or samples can help reduce development uncertainty and improve the efficiency of supplier evaluation and quotation.

Choose Hotten

Micro & Ultra-Fine Cable Expertise

Hotten specializes in micro coaxial cables and ultra-fine electronic wires for compact and high-density electronic applications.

High-Density Signal Solutions

Multiple micro coaxial channels can be integrated into compact cable assemblies for camera and imaging systems.

Application-Specific Customization

Cable diameter, conductor size, shielding, connectors, length, and assembly structure can be customized according to the application.

Prototype to Mass Production

Hotten supports prototype development, engineering validation, customized production, and volume manufacturing.

Engineering & Procurement Considerations

A Micro Coaxial Cable Assembly for Camera Systems is a compact interconnect solution for camera and imaging equipment where limited installation space and high-speed signal transmission are important. Engineering selection should consider the cable structure, signal requirements, connector interface, mechanical routing, shielding, and the requirements of the complete camera system.

Engineering Considerations

Compact Micro Coaxial Structure
Micro coaxial cable construction is suitable for camera systems where the available cable space is limited. The cable configuration should be selected according to the required cable diameter, conductor arrangement, flexibility, and installation space of the imaging system.

High-Speed Imaging Signals
Camera systems can require reliable transmission of high-speed image signals between the camera module and the processing or display electronics. Engineers should evaluate the cable construction, signal requirements, shielding, connector interface, and cable length as part of the complete signal path.

Camera Module Compatibility
The cable assembly should match the electrical and mechanical interface of the target camera module. Connector series, connector part number, pin assignment, contact orientation, and termination method should be confirmed before production.

Shielding and Signal Integrity
For sensitive camera and imaging signals, shielding and cable construction should be considered together with the signal environment and connector termination. The required shielding structure should be defined according to the specific application.

Flexibility and Routing
Camera modules are often installed in compact housings with constrained cable paths. Cable length, bend direction, exit orientation, flexibility, and mechanical clearance should therefore be considered during system integration.

Cable Assembly Configuration
The final assembly should be designed around the complete interface rather than the cable alone. Engineers should consider the camera interface, mating electronics, connector configuration, pinout, cable routing, and required mechanical dimensions together.

Procurement Considerations

When sourcing a Micro Coaxial Cable Assembly for Camera Systems, OEM buyers should provide the available technical information whenever possible:

OEM Customization

HOTTEN supports customized micro coaxial cable assemblies for camera and high-speed imaging applications based on cable construction, connector requirements, pinout, cable length, mechanical dimensions, shielding requirements, drawings, samples, and application conditions.

For camera system micro coaxial cable assembly projects, customers can provide the camera interface, connector part number, cable dimensions, signal requirements, routing conditions, and production quantity for engineering evaluation and prototype-to-production sourcing.
