Product Overview

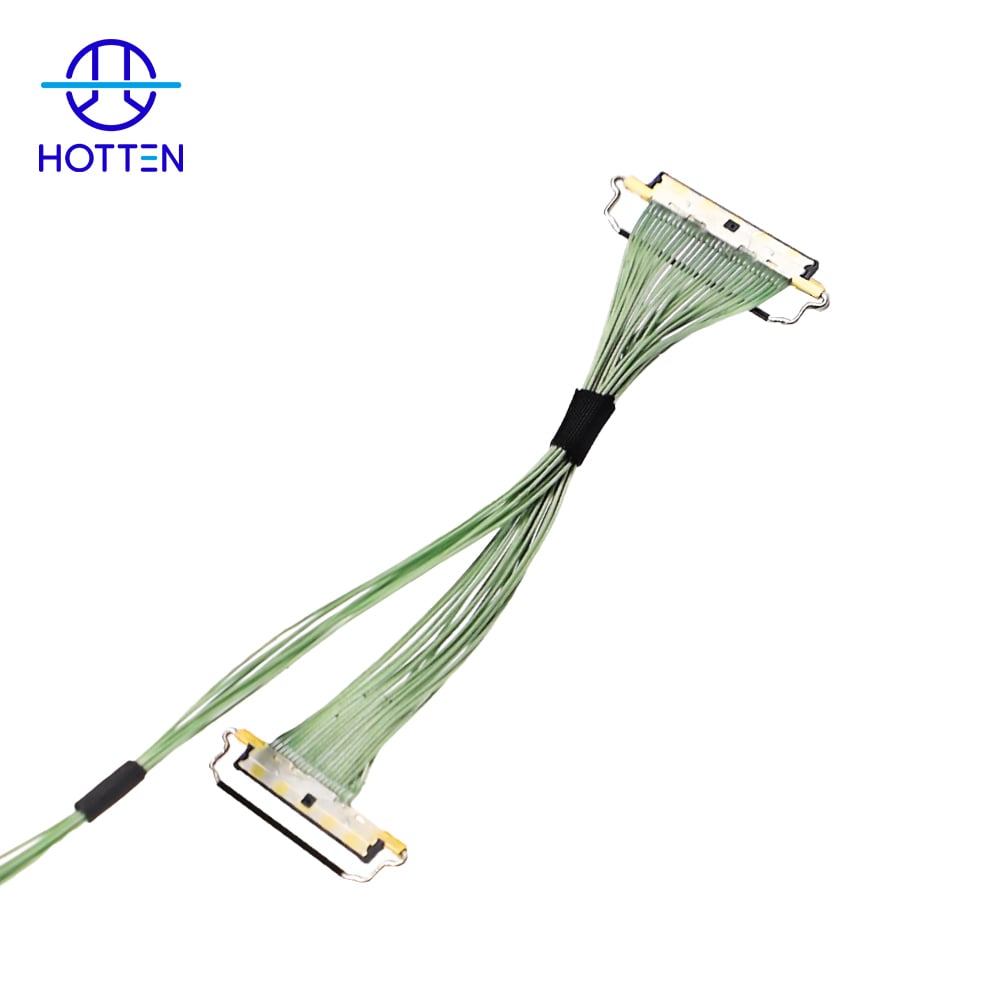

The HOTTEN 42AWG HRS DF81 30-Pin Micro Coaxial Drone Cable Assembly is a compact multi-pin cable solution designed for space-constrained electronic systems such as drones, camera modules and gimbal assemblies.
The assembly combines 42AWG micro coaxial conductors with an HRS DF81 30-pin connector configuration, providing a compact interconnection option for applications where cable size, routing space and connector compatibility are important design considerations.
Cable length, connector configuration and routing requirements can be customized according to the customer's equipment design, drawing or sample.
Key Specifications
| Item | Specification |
|---|---|
| Product Type | Micro Coaxial Cable Assembly |
| Conductor Size | 42AWG |
| Connector | HRS DF81 |
| Pin Configuration | 30 Pin |
| Application | Drone, Camera and Gimbal Systems |
| Cable Length | Customized |
| Connector Configuration | Customized |
| Cable Routing | Customized according to application |
| Manufacturing | OEM / Custom |
| Prototype Support | Available for project evaluation |
Key Features
42AWG Micro Coaxial Construction
The 42AWG configuration is suited to compact electronic layouts where limited routing space requires a fine-gauge cable structure.
HRS DF81 30-Pin Interface
The 30-pin HRS DF81 connector configuration provides a defined multi-pin interface for compatible compact electronic assemblies.
Compact Cable Routing
The cable assembly can be configured around the available routing path inside the equipment, helping accommodate space-constrained system layouts.
Customized Cable Configuration
Cable length, connector configuration and other assembly requirements can be customized according to the customer's application and technical documentation.
Suitable for Prototype and Production Projects
HOTTEN supports custom cable assembly projects from initial technical evaluation and prototype development through production requirements.
Applications
The 42AWG HRS DF81 cable assembly can be considered for compact electronic systems requiring a fine-gauge multi-pin interconnection.
Typical applications include:
Customization & Engineering Requirements
For a custom HRS DF81 cable assembly, customers can provide the following information for engineering evaluation:
| Requirement | Example Information |
|---|---|
| Connector | HRS DF81 or specified connector part number |
| Pin Configuration | 30-pin or customer-specified configuration |
| Cable Length | Required finished length |
| Wire Gauge | 42AWG or specified wire size |
| Routing | Required cable routing or assembly orientation |
| Drawing | 2D drawing, 3D model or technical specification |
| Sample | Existing cable or connector sample, if available |
| Quantity | Prototype or production quantity |
Providing a drawing, connector part number, pinout and required cable length can help accelerate technical evaluation and quotation.
Engineering & Procurement Considerations
When sourcing a custom DF81 cable assembly, several parameters should be confirmed before production:
For new projects, providing the connector specification, pinout, cable length and application requirements can help the supplier determine the appropriate cable configuration before quotation and prototype production.
Frequently Asked Questions
What is an HRS DF81 cable assembly?
An HRS DF81 cable assembly is a custom cable assembly using an HRS DF81 connector configuration for compatible compact electronic systems. The cable structure and finished configuration can be customized according to the application.
What wire gauge is used for this DF81 cable?
This product is configured with 42AWG micro coaxial conductors.
Can the DF81 cable length be customized?
Yes. The finished cable length can be customized according to the equipment layout and customer requirements.
Is this cable suitable for drone camera systems?
The 42AWG DF81 cable assembly is designed for compatible compact drone, camera and gimbal applications where a fine-gauge multi-pin interconnection is required.
Can HOTTEN manufacture the cable according to a drawing?
Yes. Customers can provide a 2D drawing, 3D model, connector part number, pinout or sample for technical evaluation.
Can HOTTEN support prototype quantities?
Yes. Prototype requirements can be evaluated before production quantities are confirmed.
What information is needed for a DF81 cable quotation?
The most useful information includes the connector part number, pinout, cable length, wire gauge, routing requirements, drawing or sample, and estimated quantity.
