What Determines the Cost of a Custom Cable Assembly?

What Determines the Cost of a Custom Cable Assembly?

When purchasing a custom cable assembly, OEM buyers often start with one question:

How much will it cost?

However, the price of a custom cable assembly is not determined by cable length or material alone. Connector selection, assembly complexity, testing requirements, tooling, order quantity and production requirements can all affect the final cost.

Understanding these factors can help buyers compare quotations more accurately and avoid unexpected costs during production.

What Determines the Cost of a Custom Cable Assembly?

Direct Answer

The cost of a custom cable assembly is determined by more than the cable itself. The major cost factors are cable construction, conductor size, insulation and shielding materials, connector type, assembly complexity, tooling, testing requirements, order quantity, and production lead time.

For OEM projects, the lowest unit price is not always the lowest overall procurement cost. A cable that requires extensive redesign, repeated samples, additional tooling, or unstable production control can increase the total project cost.

The most useful way to evaluate a quotation is therefore to separate material cost, engineering/tooling cost, testing cost, and recurring production cost rather than comparing only the quoted unit price.

1. Cable Type and Construction

The cable itself is one of the main cost factors.

A simple electronic wire may have a relatively straightforward construction, while a high-performance cable assembly may include:

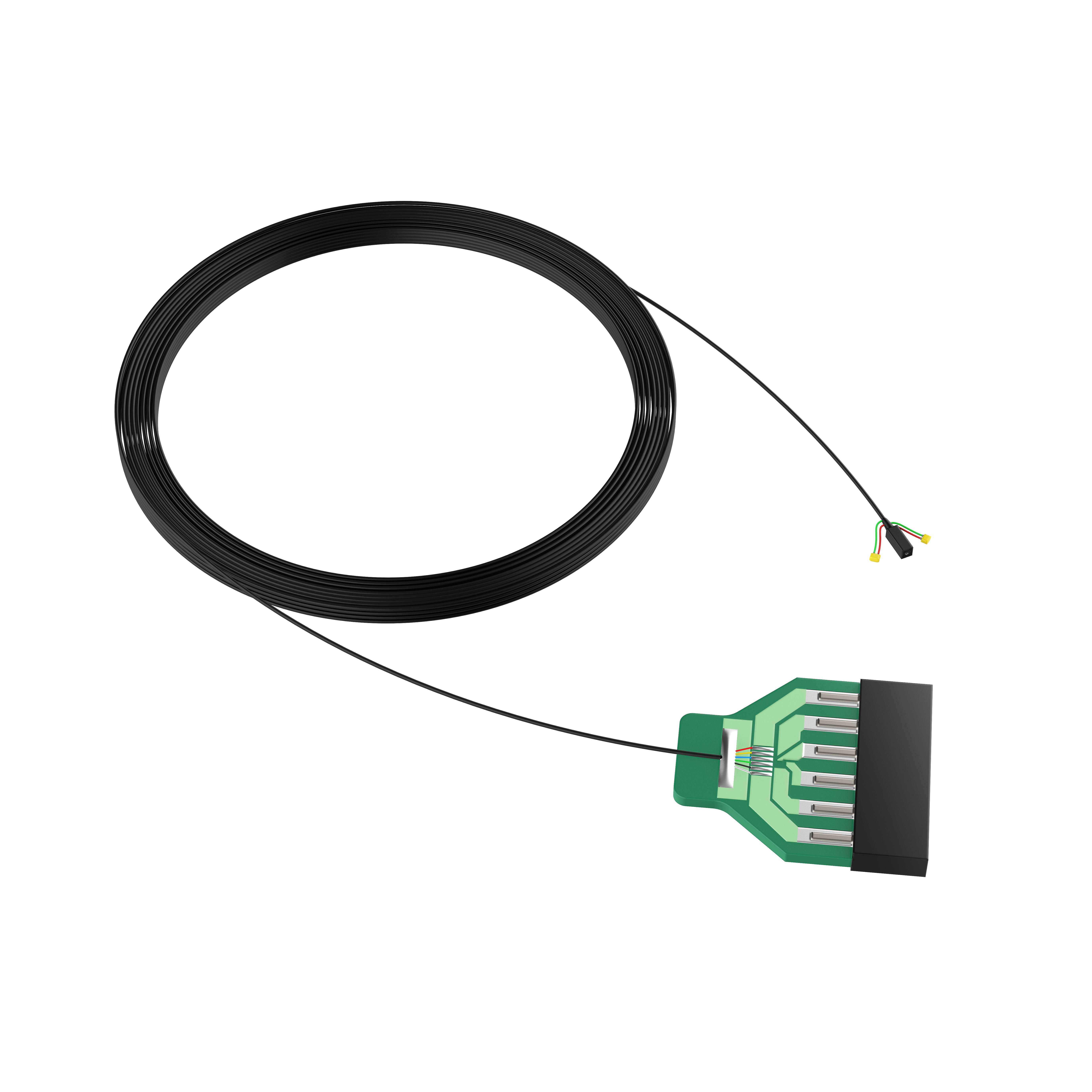

• Micro coaxial cables

• Shielded cables

• Multi-conductor cables

• High-speed cables

• Ultra-flexible cables

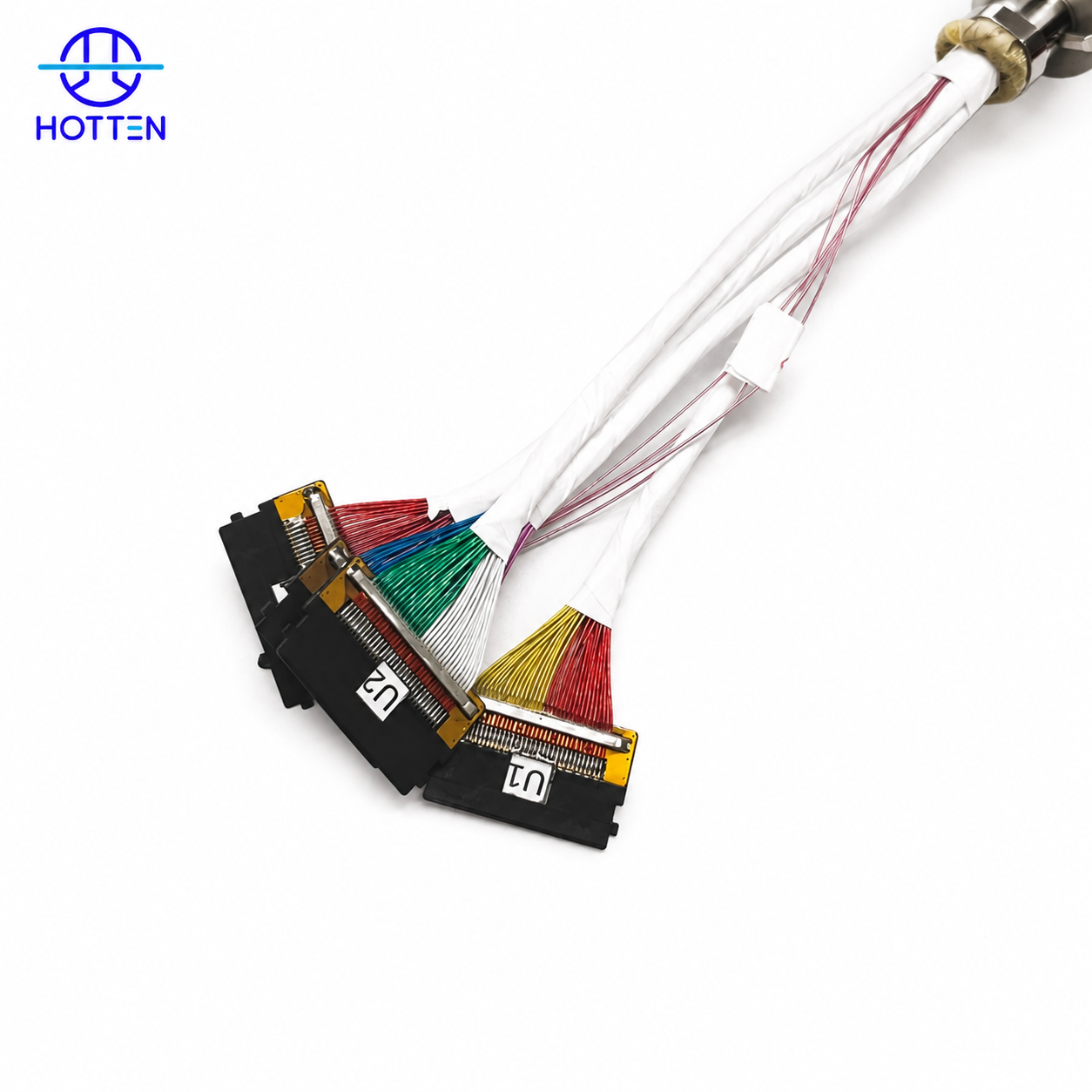

• Multi-coax cable assemblies

Smaller cable diameters and more complex internal structures may also require tighter manufacturing control.

For high-frequency applications, conductor materials, dielectric materials, shielding structures and impedance requirements can further affect cost.

2. Connector Selection

Connectors can represent a significant part of the total cable assembly cost.

The price may vary depending on:

• Connector type

• Manufacturer

• Number of contacts

• Pitch

• Plating

• Locking mechanism

• Mating requirements

• Availability

A custom cable assembly using specialized or difficult-to-source connectors will normally have a different cost structure from one using standard connectors.

OEM buyers should therefore provide the exact connector part number whenever possible.

3. Cable Length and Assembly Complexity

Cable length directly affects material consumption, but it is not the only factor.

Assembly cost can also increase when the design requires:

• Multiple branches

• Complex pinouts

• Tight dimensional tolerances

• Custom stripping

• Special crimping

• Soldering

• Overmolding

• Additional strain relief

A short cable with a complicated assembly process may cost more than a longer cable with a simple structure.

4. Materials and Shielding

Material selection can have a noticeable effect on cable assembly price.

For example, different applications may require:

The most expensive material is not always the best solution. The correct material should match the actual operating environment and performance requirements.

5. Tooling and Development Cost

Custom cable assemblies may require special tooling or fixtures.

Examples include:

• Crimping tools

• Assembly fixtures

• Molding tools

• Stripping tools

• Testing fixtures

• Connector-specific equipment

For prototype projects, tooling costs may represent a relatively large percentage of the initial order.

OEM buyers should ask whether tooling is:

One-time → Reusable → Included in production pricing

This makes supplier quotations easier to compare.

Engineering and Procurement Considerations

1. Cable Specification Is One of the First Major Cost Drivers

The cable itself can vary significantly depending on the required electrical and mechanical performance.

For example, a basic multi-core electronic cable and an ultra-fine micro coaxial cable assembly may both be described simply as “custom cable assemblies,” but their manufacturing processes, materials, termination methods, and inspection requirements can be very different.

Important specifications include:

• Conductor material and AWG
• Number of cores
• Coaxial or multi-core construction
• Characteristic impedance
• Capacitance
• Shielding structure
• Insulation material
• Jacket material
• Outer diameter
• Finished length
• Flexibility and bend requirements

If the application requires ultra-fine conductors, high-density coaxial structures, or controlled electrical performance, then the cable cost will generally be higher, because these constructions require more specialized materials and manufacturing processes.

2. Connectors Can Significantly Change the Assembly Cost

The connector is often one of the most visible differences between two cable assembly quotations.

Cost depends on:

• Connector brand and series
• Number of contacts
• Pitch
• Contact structure
• Plating
• Locking mechanism
• Straight or right-angle configuration
• Mating requirements
• Availability
• Required termination process

A low-cost connector may reduce the component price but may not necessarily be suitable for the mechanical or electrical requirements of the final device.

If the connector uses a fine pitch or requires specialized termination, then assembly cost may increase substantially, because the production process can require dedicated tooling, fixtures, or more precise inspection.

For OEM RFQ projects, providing the exact connector part number, drawing, or mating interface can make supplier quotations much more accurate.

3. Tooling Is Often a Separate Cost From the Cable Price

Custom cable assemblies may require dedicated tooling before production can begin.

Common tooling includes:

For prototypes or small quantities, tooling can make the initial project cost appear relatively high even when the recurring unit cost is reasonable.

If the same design will be produced at higher volume, then the one-time tooling cost can often be distributed over more units, because the tooling investment is no longer carried by a small prototype quantity.

4. Order Quantity Has a Direct Effect on Unit Cost

Custom cable pricing should always be evaluated together with quantity.

A supplier may quote substantially different unit prices for:

10 prototype pieces → 100 pilot pieces → 1,000 pieces → 10,000+ production pieces

At low quantities, engineering setup, material preparation, tooling, and inspection may represent a larger percentage of the total cost.

At higher volumes, suppliers can improve efficiency through:

• Batch material preparation
• Standardized production processes
• Dedicated fixtures
• Improved workstation efficiency
• Better production planning
• Reduced setup cost per unit

This means a prototype quotation should not automatically be used to estimate the final mass-production price.

5. Testing Requirements Also Affect the Total Cost

A custom cable assembly that only requires continuity testing has a different cost structure from one requiring RF characterization, mechanical testing, or application-specific validation.

Possible testing requirements include:

If the customer requires detailed testing records for every production batch, then the quotation should include the associated inspection and documentation workload, because testing is part of the delivered product quality system rather than an invisible free service.

6. Lead Time Can Affect Cost as Well as Delivery

A standard production schedule and an urgent production request can have different cost implications.

Short lead times may require:

• Priority production scheduling
• Expedited material procurement
• Additional production coordination
• Accelerated sample approval
• Special logistics arrangements

Therefore, an OEM RFQ should clearly identify:

prototype deadline → pilot production date → mass-production target → annual demand

This allows the manufacturer to determine whether the requested delivery schedule is compatible with material availability, tooling, testing, and production capacity.

7. The Lowest Unit Price May Not Mean the Lowest Project Cost

For OEM procurement, a useful comparison is Total Project Cost, not only unit price.

A simplified evaluation can be viewed as:

Total Project Cost = Unit Cost × Quantity + Tooling + Engineering + Testing + Logistics + Rework/Qualification Costs

For example, a supplier with a slightly higher unit price may still produce a lower overall project cost when it provides more complete engineering support and reduces:

• Prototype iterations
• Connector mismatch
• Rework
• Testing failures
• Production variation
• Qualification delays

If two quotations have similar unit prices, then compare the engineering scope, testing scope, tooling ownership, documentation, MOQ, lead time, and change-control process, because these factors can have a much larger impact over the full OEM development cycle.

8. What Should OEM Buyers Include in a Cable Assembly RFQ?

To receive a meaningful and comparable quotation, provide as much of the following information as possible:

A detailed RFQ reduces assumptions and makes quotations easier to compare across suppliers.

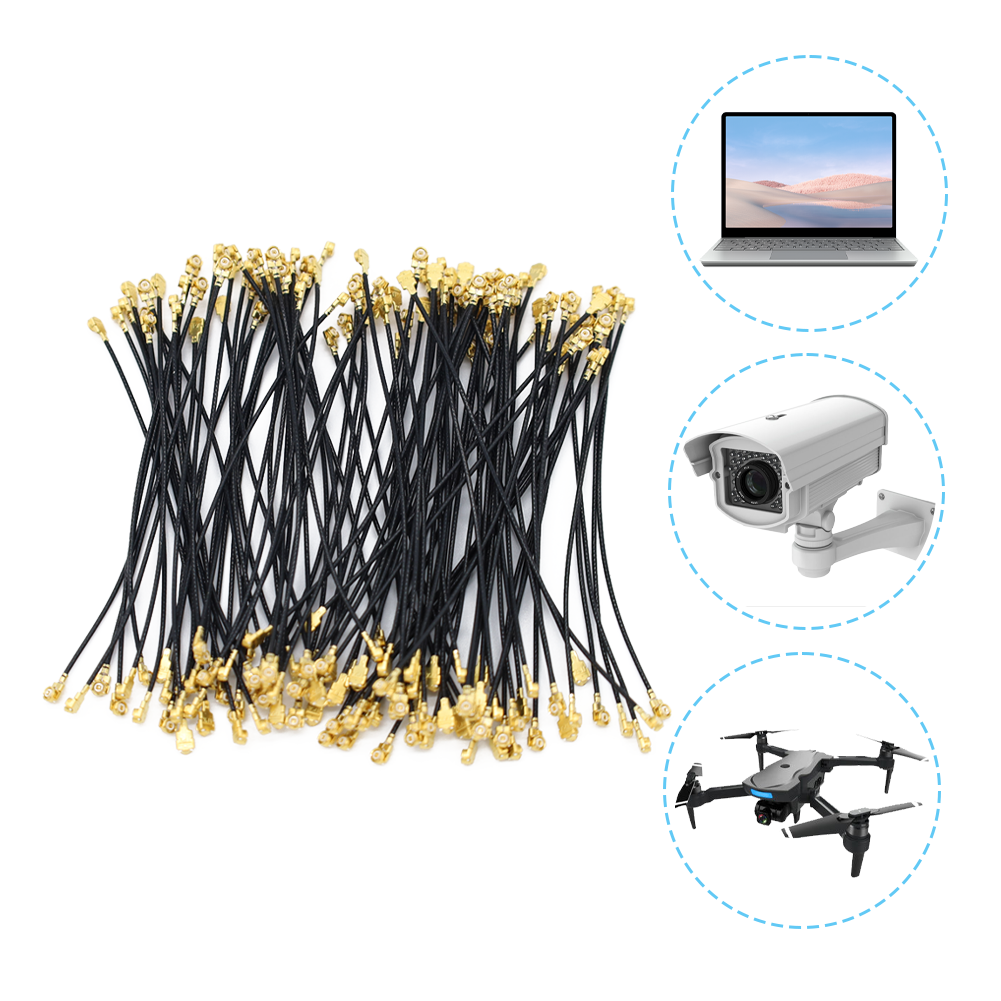

For engineering teams still defining their specifications, HOTTEN's custom cable assembly guidance can be used together with its RF Cable, Micro Coaxial Cable, and Medical Cable Assembly solutions.

6. Testing Requirements

Testing is another factor that can affect the total cost.

Basic cable assemblies may only require continuity and electrical testing.

More demanding applications may require:

• Resistance testing

• Hi-Pot testing

• Insulation testing

• Impedance testing

• TDR testing

• Network analyzer testing

• Pull-force testing

• Mechanical flex testing

Testing requirements should be defined according to the application.

For example, a high-frequency coaxial cable may require impedance and insertion-loss verification that would not be necessary for a simple power cable.

7. MOQ and Production Volume

Production quantity has a direct impact on unit cost.

A typical project may move through:

Prototype → Pilot Production → Mass Production

The unit price for 100 prototype assemblies will usually be different from the price for 10,000 or 100,000 assemblies.

When requesting a quotation, it is useful to provide expected quantities such as:

• Prototype quantity

• Initial production quantity

• Annual volume

• Expected monthly demand

This allows the manufacturer to evaluate material purchasing and production efficiency more accurately.

8. Quality and Documentation Requirements

Different OEM projects have different quality requirements.

Some projects may require only standard inspection, while others may require:

• First Article Inspection

• Material certificates

• Test reports

• Traceability

• Process documentation

• Inspection records

• Specific industry standards

Higher documentation and inspection requirements can increase the overall manufacturing cost, but they may also reduce production and supply risks.

9. How to Compare Cable Assembly Quotes

When comparing two suppliers, do not look only at the unit price.

A useful comparison should include:

Two quotations that look similar may have very different inclusions.

For example, one supplier may include testing and tooling while another supplier lists them as additional charges.

10. How Can OEM Buyers Reduce Cable Assembly Cost?

Reducing cost does not always mean choosing cheaper materials.

A better approach is to optimize the design before mass production.

Possible methods include:

• Standardizing connectors where possible

• Optimizing cable length

• Reducing unnecessary assembly steps

• Selecting appropriate shielding

• Designing for easier assembly

• Increasing production volume

• Using suitable standard components

• Confirming specifications before tooling

Early engineering communication can often prevent unnecessary manufacturing costs later.

For OEM projects, HOTTEN can review drawings, samples and cable specifications to evaluate the appropriate cable structure, connectors, assembly process and production requirements before quotation.

FAQ

What is the biggest factor affecting custom cable assembly cost?

There is no single factor. Cable construction, connectors, assembly complexity, materials, testing, tooling and production volume can all affect the final price.

Is a custom cable assembly more expensive than a standard cable?

Usually, customization can increase development and assembly costs. However, larger production volumes and optimized designs can reduce the unit cost.

Does MOQ affect cable assembly price?

Yes. Larger production quantities can improve material purchasing and manufacturing efficiency, which may reduce the unit price.

Does tooling cost affect the final cable assembly price?

It can. Custom molds, fixtures, crimping tools and testing fixtures may create additional development costs, especially for low-volume projects.

How can I get an accurate cable assembly quotation?

Provide as much technical information as possible, including drawings, BOM, connector part numbers, cable specifications, dimensions, quantity and testing requirements.

Need a Custom Cable Assembly Quote?

The most accurate cable assembly quotation starts with a clear understanding of the technical requirements.

Whether you are developing a medical device, UAV system, robotics platform or high-speed electronic product, HOTTEN can support customized cable assembly development from prototype requirements to production.

Send us your drawing, sample or cable specification to discuss your custom cable assembly project.
