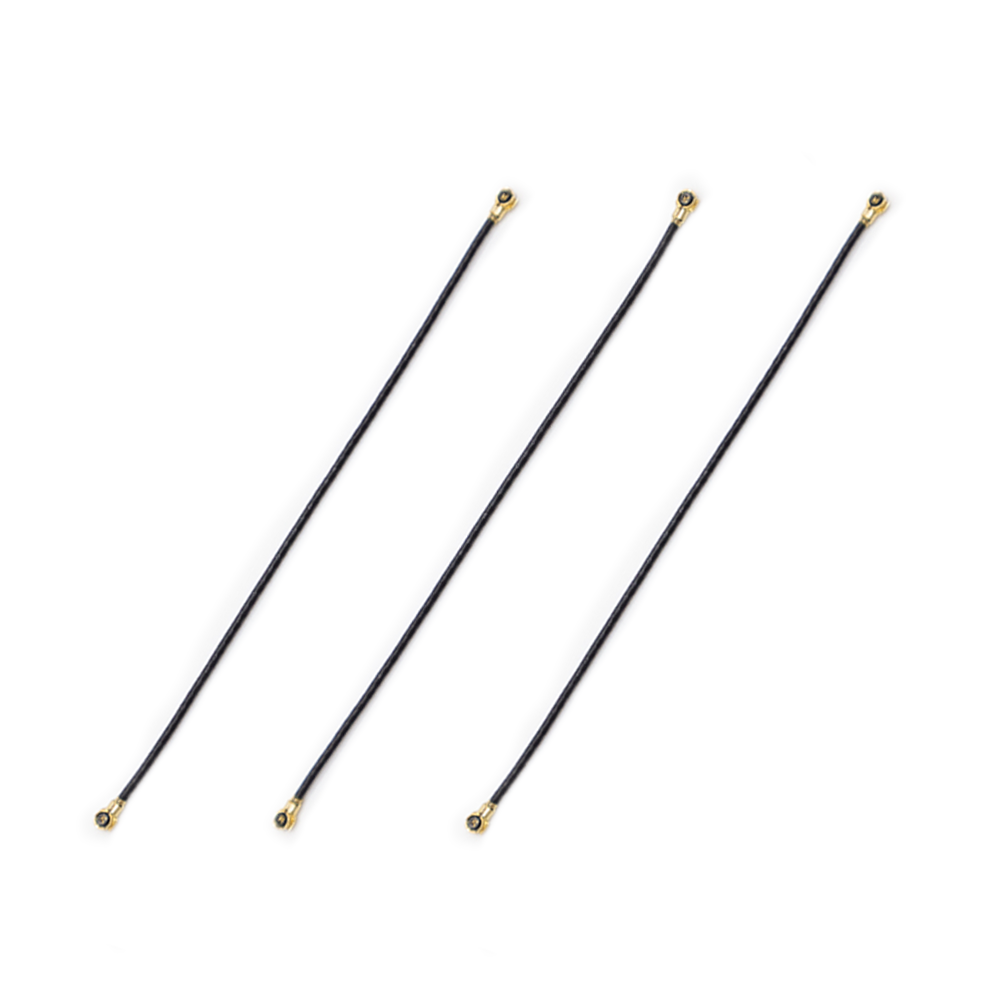

MHF3 0.81mm Micro Coaxial RF Cable Assembly for UAV

MHF3 0.81mm Micro Coaxial RF Cable Assembly for UAV and Compact RF Systems

HOTTEN manufactures MHF3 0.81mm micro coaxial RF cable assemblies for compact wireless, UAV, drone and high-frequency electronic systems where limited installation space and reliable RF signal transmission are critical.

This miniature RF cable assembly combines a 0.81mm micro coaxial cable structure with an MHF3-type micro RF connector interface, providing a compact interconnect solution for antennas, RF modules and high-density electronic assemblies.

The small cable diameter makes this type of RF assembly suitable for applications where conventional coaxial cables may be too large or difficult to route, especially inside lightweight UAV equipment, compact wireless devices and space-constrained electronic systems.

HOTTEN supports customized cable assemblies according to cable length, connector configuration, electrical characteristics, routing requirements and application environment.

Key Features

🔹 0.81mm ultra-compact coaxial cable for space-constrained applications
🔹 MHF3 micro RF connector configuration for compact electronic systems
🔹 Designed for RF and wireless signal transmission
🔹 50Ω impedance configuration for RF interconnect applications
🔹 FEP-insulated micro coaxial structure for compact and flexible routing
🔹 Suitable for UAV, drone, antenna and wireless electronics
🔹 Lightweight construction for miniaturized electronic equipment
🔹 Custom cable length and connector configuration
🔹 Suitable for OEM and volume-production requirements

Technical Specifications

Note: Final electrical, mechanical and connector specifications should be confirmed according to the customer's equipment and RF requirements.

Why Choose HOTTEN for MHF3 Micro RF Cable Assemblies?

📡 Micro RF Cable Engineering

HOTTEN focuses on micro coaxial cables and compact cable assemblies for applications where cable diameter, signal integrity and installation space are important design factors.

The 0.81mm micro coaxial format provides a compact alternative for equipment requiring miniature RF interconnects.

⚙️ Compact High-Frequency Interconnects

Miniature RF cable assemblies are increasingly used in compact electronic architectures. A small-diameter coaxial structure helps engineers route RF signals through dense internal spaces without using larger conventional coaxial cables.

🔬 50Ω RF Cable Configuration

The 50Ω configuration is widely used for RF interconnection between antennas, wireless modules and RF electronic circuits.

For OEM projects, HOTTEN can develop the cable assembly around the customer's required electrical and mechanical specifications.

🏭 Custom RF Cable Assembly Manufacturing

HOTTEN supports customization of:

• Cable length
• Connector type
• Connector orientation
• Cable routing
• Connector configuration
• Pin/contact configuration where applicable
• Cable structure
• Electrical requirements

This allows the cable assembly to be integrated directly into the customer's equipment design.

MHF3 0.81mm RF Cable for UAV and Drone Systems

UAV and drone electronics require highly compact interconnects because internal installation space and system weight are limited.

An MHF3 0.81mm micro coaxial RF cable assembly can be used for RF connections between compact wireless modules, antennas and electronic boards.

Typical requirements include:

Lightweight design → small cable diameter → flexible routing → stable RF transmission → compact connector integration

This makes miniature RF coaxial cable assemblies suitable for applications such as:

🚁 UAV communication systems
📷 Drone camera and wireless modules
📡 Antenna connections
📶 Wireless communication equipment
🛰️ Compact RF electronic systems
🤖 Robotics and autonomous devices
💻 Embedded wireless electronics

Applications

UAV & Drone Electronics

Micro RF cable assemblies can connect antennas and wireless modules inside compact UAV and drone platforms.

Wireless Communication Equipment

The miniature coaxial structure is suitable for internal RF connections where PCB space and mechanical clearance are limited.

Antenna Interconnects

MHF3-style micro RF connections can be used between antennas, RF modules and compact electronic boards.

Compact Consumer Electronics

Small RF cable assemblies can support wireless connectivity inside compact electronic products.

Robotics & Embedded Systems

Miniature RF cables can be integrated into robots and embedded electronic devices where routing space is restricted.

RF Test & Electronic Equipment

Customized micro coaxial assemblies can also be developed for RF modules, laboratory equipment and other high-frequency electronic systems.

Typical Purchasing Requirements

When sourcing an MHF3 RF cable assembly, buyers commonly need to confirm several parameters before production:

Connector: MHF3 / compatible interface
Cable diameter: 0.81mm
Impedance: 50Ω
Cable length: customized
Operating frequency: application dependent
Connector orientation: customized
Shielding: coaxial shield structure
Insulation: FEP
Application: UAV / antenna / wireless / RF electronics

Providing these parameters early allows the supplier to determine the appropriate cable construction and connector assembly.

Custom RF Cable Assembly for OEM Projects

HOTTEN provides customized micro coaxial RF cable assemblies for OEM electronics manufacturers and engineering teams.

From prototype development to volume production, the cable can be configured around the customer's mechanical space, RF requirements and connector interface.

For projects involving MHF3, 0.81mm micro coaxial cable, miniature RF cable or UAV antenna cable assemblies, HOTTEN can provide a customized cable solution rather than only supplying standard cable components.

FAQ

❓ F: What is an MHF3 0.81mm RF cable assembly?
A: It is a miniature RF cable assembly combining a small-diameter micro coaxial cable with an MHF3-type micro RF connector interface for compact RF and wireless applications.

📡 F: What is the impedance of this RF cable?
A: The referenced product is configured for 50Ω RF applications. Final electrical specifications should be confirmed according to the customer's system.

📐 F: Why use a 0.81mm micro coaxial cable?
A: The small 0.81mm diameter helps reduce installation space and supports flexible routing in compact electronic systems.

🚁 F: Can this cable be used in UAV and drone systems?
A: Yes. The referenced Alibaba product is designed for UAV and drone systems, particularly compact RF and wireless electronic applications.

📶 F: Is this suitable for antenna connections?
A: Yes. Micro RF cable assemblies of this type can be used for antenna and wireless-module interconnections when the connector and electrical specifications match the equipment.

🔧 F: Can HOTTEN customize the cable length?
A: Yes. Cable length, connector configuration and other assembly requirements can be customized for OEM applications.

🏭 F: Does HOTTEN manufacture the complete cable assembly?
A: Yes. HOTTEN provides customized micro coaxial cable assemblies rather than only supplying loose cable.

📦 F: Does HOTTEN support prototype and mass production?
A: Yes. Customized RF cable assemblies can be developed for engineering samples and subsequently manufactured for volume production.
