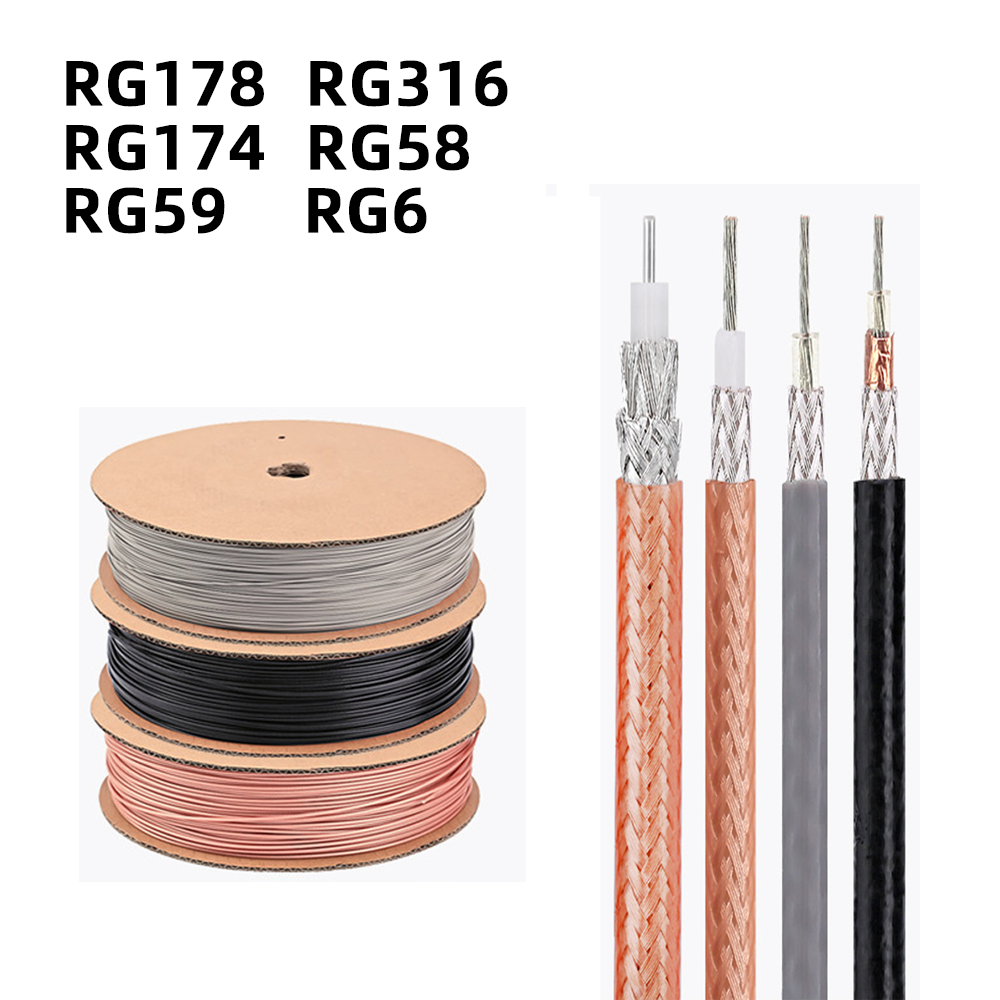

RG178 Coaxial Cable Assembly Ultra Thin Flexible RF Cable
| Item | Specification |
|---|---|
| Cable Type | RG178 Coaxial Cable |
| Impedance | 50Ω ±2Ω |
| Frequency Range | DC ~ 3GHz / up to 6GHz depending on design |
| Outer Diameter | Approx. 1.8mm |
| Center Conductor | Silver Plated Copper |
| Dielectric Material | PTFE |
| Shield Material | Silver Plated Copper Braid |
| Jacket Material | FEP |
| Capacitance | Approx. 96-100 pF/m |
| Velocity of Propagation | Approx. 70% |
| Operating Temperature | -55℃ to +200℃ |
| Minimum Bend Radius | Approx. 10mm |
| Cable Weight | Approx. 8-10g/m |
- Overview
- Recommended Products
- Cable length
- Connector configuration
- Termination method
- Shielding requirements
- Assembly structure
- SMA
- SMB
- MMCX
- MCX
- BNC
- TNC
- N Type
- RF modules
- Antenna connections
- Wireless devices
- Communication equipment
- Drone communication systems
- Navigation modules
- Compact RF connections
- Medical imaging equipment
- Diagnostic devices
- Precision electronic systems
- RF testing instruments
- Laboratory equipment
- Electronic measurement systems
Product Page Content
RG178 Coaxial Cable Assembly | Ultra Thin Flexible RF Cable Solution
🔬 Ultra Thin RG178 Coaxial Cable Assembly for Precision RF Applications
Hotten provides customized RG178 coaxial cable assemblies featuring ultra-thin construction, flexible performance, and reliable RF signal transmission for compact electronic systems.
Designed for applications requiring limited installation space and stable high-frequency performance, RG178 cable assemblies combine a miniature 1.8mm cable diameter with 50Ω impedance characteristics.
Hotten supports OEM customization including:
From prototype development to mass production, Hotten provides customized RF cable assembly solutions for global electronic manufacturers.
⚡ Key Features of RG178 Cable Assembly
◈ Ultra Thin & Space-Saving Design
RG178 coaxial cable features a compact diameter of approximately 1.8mm, making it suitable for electronic systems where installation space is limited.
◈ Stable 50Ω RF Signal Transmission
Designed for RF applications requiring controlled impedance and reliable signal performance.
◈ Flexible Cable Construction
The small diameter structure provides excellent flexibility for compact routing and complex installation environments.
◈ High Temperature Resistance
Using PTFE insulation and FEP jacket materials, RG178 cable assemblies can support demanding temperature environments.
◈ Customized Connector Assembly
Hotten supports various RF connector configurations including:
📡 RG178 Cable Assembly Applications
RG178 coaxial cable assemblies are commonly used in:
Wireless Communication Systems
UAV & Aerospace Electronics
Medical Electronics
Test & Measurement Equipment
⚙️ RG178 Coaxial Cable Specification
| Item | Specification |
|---|---|
| Cable Type | RG178 Coaxial Cable |
| Impedance | 50Ω ±2Ω |
| Frequency Range | DC ~ 3GHz / up to 6GHz depending on design |
| Outer Diameter | Approx. 1.8mm |
| Center Conductor | Silver Plated Copper |
| Dielectric Material | PTFE |
| Shield Material | Silver Plated Copper Braid |
| Jacket Material | FEP |
| Capacitance | Approx. 96-100 pF/m |
| Velocity of Propagation | Approx. 70% |
| Operating Temperature | -55℃ to +200℃ |
| Minimum Bend Radius | Approx. 10mm |
| Cable Weight | Approx. 8-10g/m |
🔧 Custom RG178 Cable Assembly Options
🧩 Cable Structure Customization
Hotten can customize RG178 cable assemblies according to electrical and mechanical requirements.
Customization options include:
◈ Cable Length
Customized lengths according to equipment installation requirements.
◈ Connector Selection
Support different RF connector types and customer-specified interfaces.
◈ Termination Process
Customized soldering, crimping, and assembly methods.
◈ Shielding Requirements
Optimized shielding structures for different RF environments.
◈ Assembly Configuration
Complete cable assembly solutions based on customer drawings or samples.
🏭 From Prototype to Mass Production
Hotten supports the complete RF cable development process:
Prototype Development → Engineering Validation → Sample Production → Mass Manufacturing
Our engineering team works with OEM customers to develop customized RG178 cable assemblies according to application requirements.
⭐ WHY CHOOSE HOTTEN
High Precision Cable Manufacturing
Specialized in miniature cables, micro coaxial cables, RF cables, and customized cable assemblies.
OEM Customization Capability
Support cable design customization based on customer drawings, samples, and technical specifications.
Flexible Production Capability
From prototype samples to volume production for global electronic manufacturers.
Application-Based Cable Solutions
Provide optimized cable solutions for RF communication, UAV, medical electronics, and precision equipment.
🤝 Need a Customized RG178 Cable Assembly?
If your application requires ultra-thin RF cables, flexible coaxial assemblies, or customized connector solutions, contact Hotten for engineering support.
Send your drawings, specifications, or samples for customized RG178 cable assembly development.
