High Density Ultrasound Cable Assembly | Multi-Core Medical Cable Solution

Product Content

High Density Ultrasound Cable Assembly | Multi-Core Medical Cable Solution

Multi-Core Cable Solutions for Advanced Ultrasound Imaging Systems

Modern ultrasound imaging systems require more signal channels, higher image resolution, and smaller probe designs.

Hotten provides customized high-density ultrasound cable assembly solutions with multi-core cable structures, supporting medical OEM manufacturers with reliable signal transmission, compact integration, and excellent flexibility.

Our ultrasound cable assemblies are designed for advanced medical imaging applications requiring high channel density, precise signal transmission, and long-term mechanical reliability.

🩺 Medical Applications

Hotten high-density ultrasound cable assemblies are suitable for:

Diagnostic Ultrasound Systems
Ultrasound Transducer Probes
Medical Imaging Equipment
3D / 4D Ultrasound Systems
Portable Ultrasound Devices
Precision Medical Instruments

High-density multi-core cable structures allow more signal channels to be integrated into compact medical devices while maintaining flexibility and signal integrity.

🔬 High-Density Multi-Core Cable Technology

Ultrasound probes require a large number of signal channels to transmit accurate imaging data.

Hotten develops customized multi-core cable assemblies including:

• 128 core ultrasound cable
• 195 core ultrasound cable
• Multi-channel signal cables
• High-density coaxial cable structures
• Fine wire medical cable assemblies

These cable structures are optimized for:

High Channel Density
Low Signal Loss
Reduced Crosstalk
Compact Cable Diameter
Flexible Operation

Multi-core ultrasound cables are widely used in advanced imaging systems where hundreds of signal lines must be integrated into limited space.

⚙️ Customized Ultrasound Cable Assembly

Hotten supports customized cable assembly development according to customer requirements.

Customization options include:

Cable Structure

• 128 core cable configuration
• 195 core cable configuration
• Multi-core hybrid cable structure
• Coaxial signal cable design

Electrical Performance

• Low capacitance design
• Controlled impedance
• Signal shielding
• Noise reduction

Mechanical Design

• Flexible cable construction
• Small bending radius
• Lightweight structure
• Long-term bending durability

Assembly Requirements

• Connector termination
• PCB termination
• Custom cable length
• OEM assembly integration

🧩 Cable Assembly Manufacturing Process

Typical high-density ultrasound cable assembly structure:

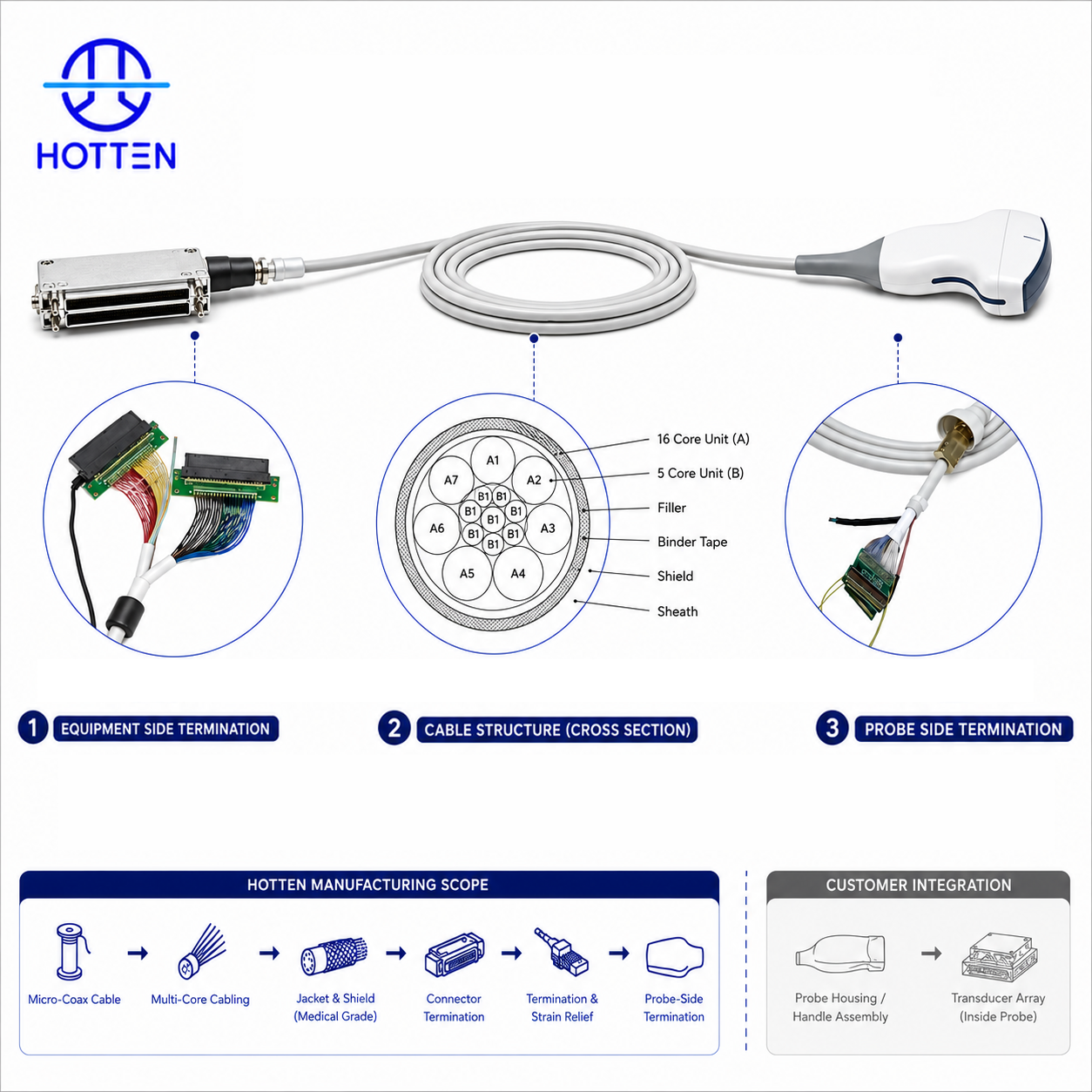

Fine Wire / Micro Coaxial Cable → Multi-Core Cable Bundling → Shielding → Connector Termination → Electrical Testing

Hotten supports complete OEM manufacturing from cable design, prototype validation, sample production to volume manufacturing.

📋 Typical Technical Specifications

⭐ Why Choose Hotten

High-Density Medical Cable Manufacturing

Hotten specializes in high-density cable structures, micro coaxial cables, and ultra-fine wire manufacturing for precision medical applications.

Customized Channel Configuration

Cable structures can be customized according to ultrasound system requirements, including channel quantity, electrical performance, and mechanical dimensions.

Complete OEM Cable Assembly

From cable production to connector termination and final assembly, Hotten provides integrated medical cable solutions.

Prototype to Mass Production

Support prototype samples, engineering validation, customized production, and volume manufacturing.

Related Medical Cable Solutions

Explore Hotten medical cable products:

Need a Customized High Density Ultrasound Cable Assembly?

If your ultrasound system requires 128 core, 195 core, or customized high-density medical cable assemblies, contact Hotten with your drawings, samples, or technical specifications.

Hotten supports medical OEM customers from initial cable design to mass production.

Request a Customized Ultrasound Cable Solution →
