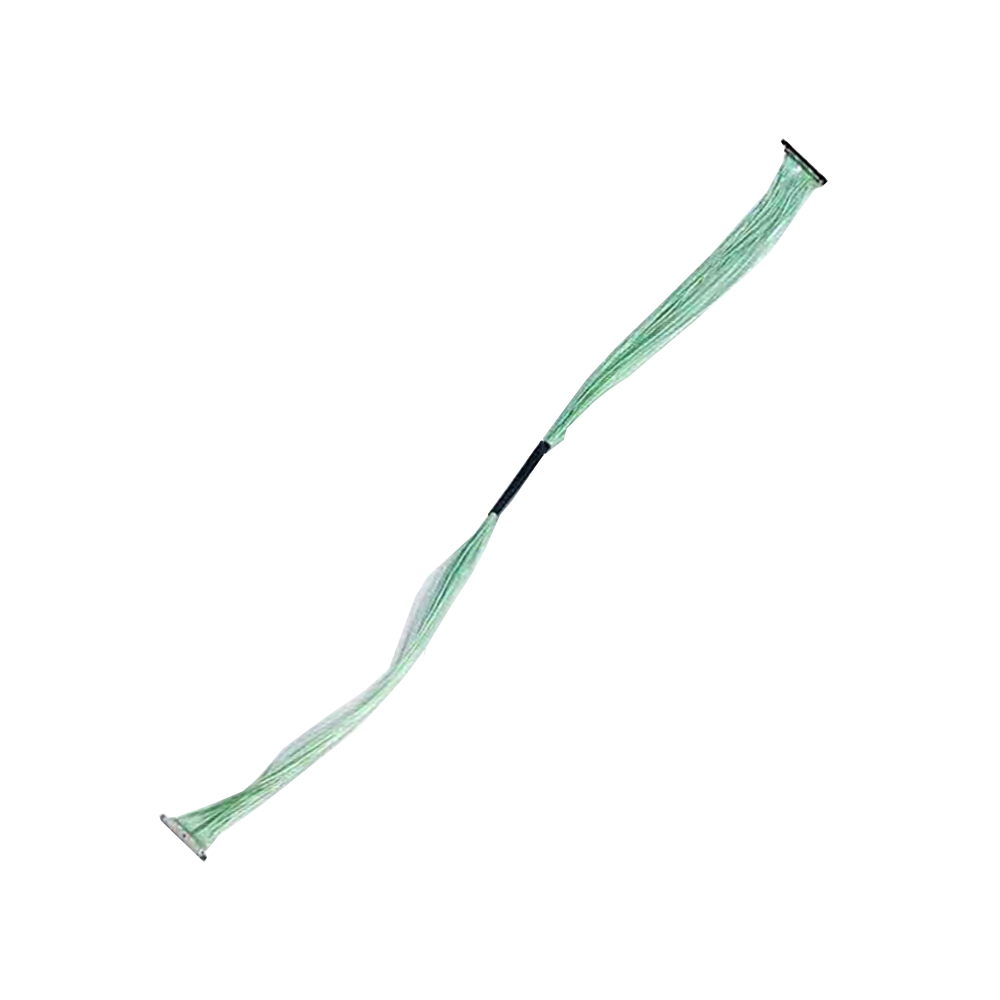

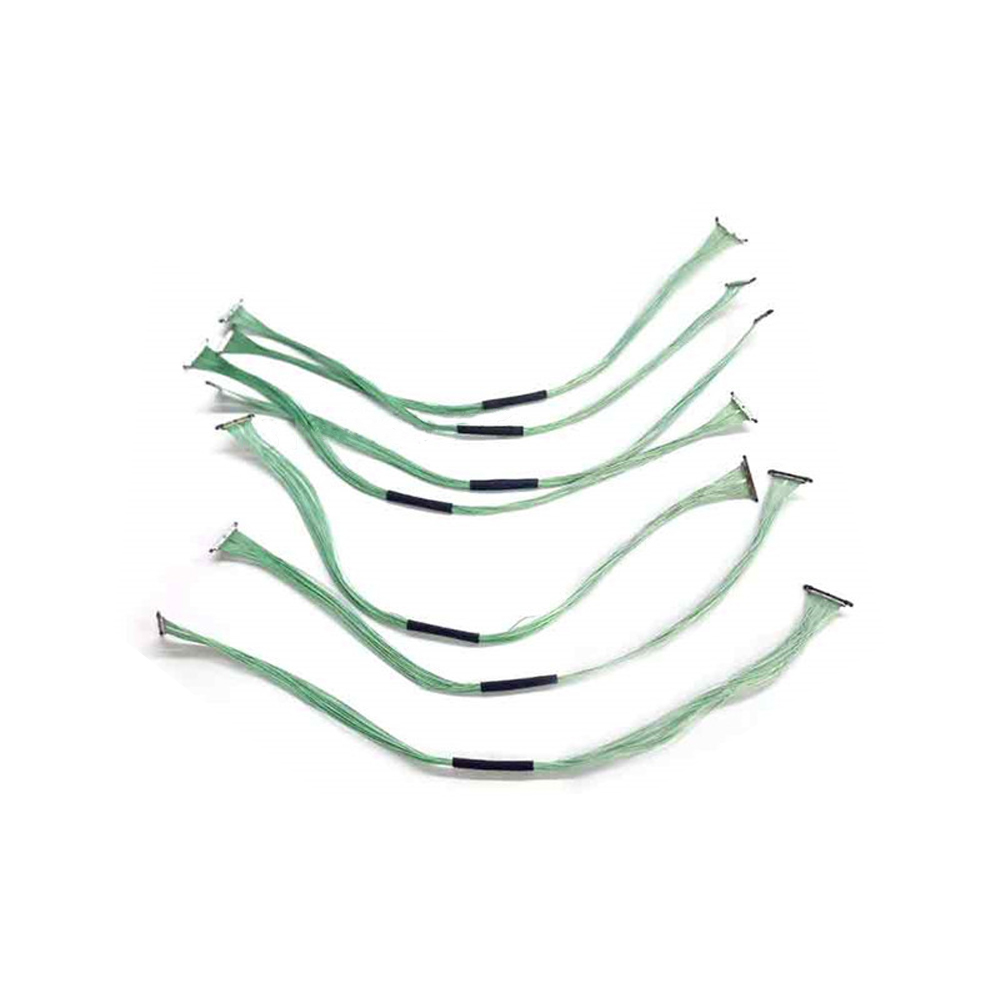

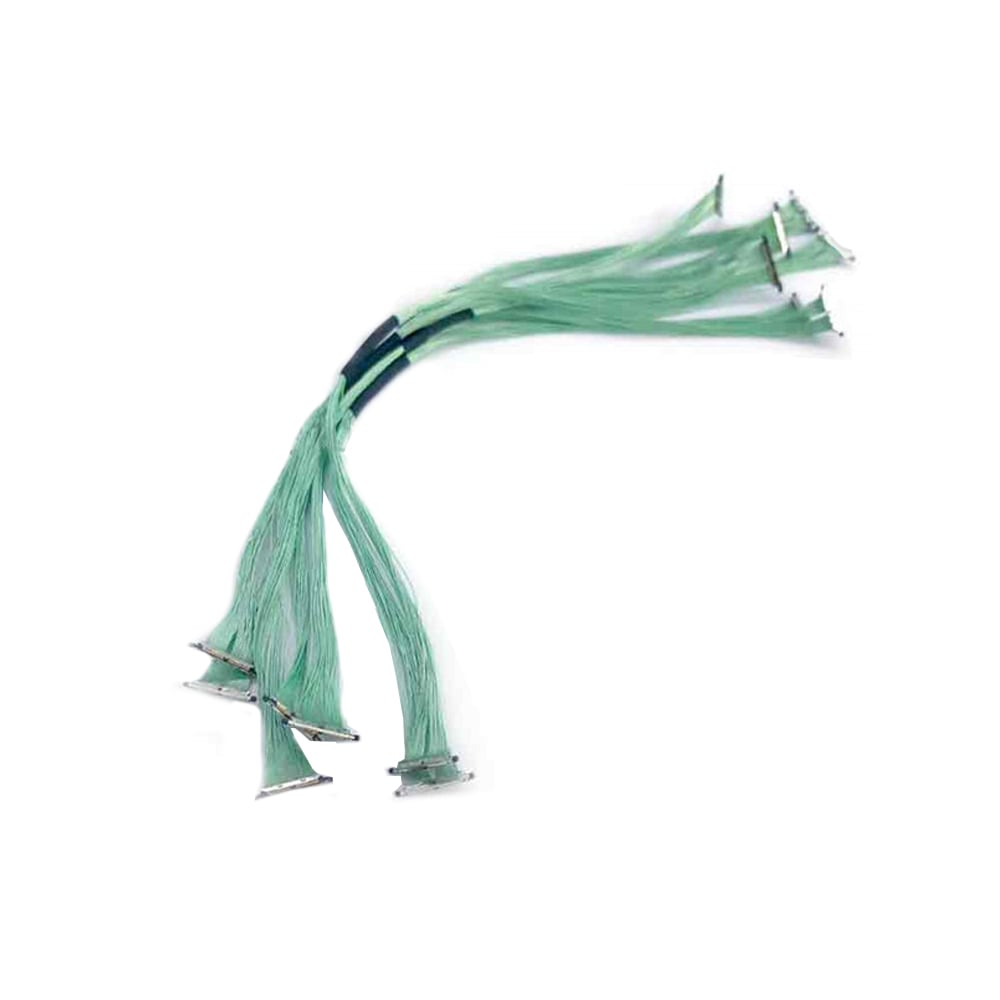

Custom High-grade Micro-coaxial Cables Gimbal Camera Wire Harness

Engineering & Procurement Considerations

A Custom High-Grade Micro-Coaxial Gimbal Camera Wire Harness is a compact cable interconnect solution for gimbal camera and UAV imaging systems where flexible routing, space-efficient construction, and reliable signal transmission are important. Cable selection should consider gimbal movement, micro-coaxial construction, camera interface, cable dimensions, shielding, and termination requirements.

Engineering Considerations

Gimbal Movement and Cable Flexibility
A gimbal camera can continuously change its orientation during operation, requiring the cable harness to accommodate controlled movement. Engineers should evaluate bending direction, movement range, routing path, cable length, and mechanical stress around the gimbal assembly.

Micro-Coaxial Construction
Micro-coaxial cable construction is suitable for compact camera systems where available routing space is limited. The cable structure should be selected according to the required electrical characteristics, shielding, flexibility, cable diameter, and installation conditions.

Camera Signal Requirements
The cable harness should be designed according to the signals transmitted between the camera module and the connected electronics. Engineers should define signal type, conductor configuration, shielding requirements, cable length, and termination method as part of the complete signal path.

Compact UAV Integration
Gimbal camera systems are often installed in space-constrained UAV assemblies. Cable outer diameter, connector position, exit orientation, routing clearance, and cable flexibility should be considered together with the mechanical design of the camera and gimbal.

Weight and Miniaturization
For compact airborne systems, cable dimensions and construction can affect the overall interconnection footprint and weight. The cable should be designed to meet the required electrical and mechanical performance without unnecessary bulk.

Shielding and Signal Integrity
Camera and imaging signals may be sensitive to electromagnetic interference. The required shielding structure, grounding method, connector termination, and cable construction should therefore be evaluated together according to the target system.

Connector and Termination Compatibility
The wire harness must match the camera, gimbal, PCB, or control-unit interface. Connector series, exact part number, mating interface, pinout, contact orientation, and termination method should be confirmed before production.

Mechanical Protection and Routing
The cable should be routed so that it does not interfere with moving gimbal components. Cable exit position, fixation points, bend direction, and clearance from mechanical parts should be defined during the design stage.

Procurement Considerations

When sourcing a custom micro-coaxial gimbal camera wire harness, OEM buyers should provide the available technical information:

OEM Customization

HOTTEN supports customized micro-coaxial wire harnesses for gimbal camera, UAV, drone, and compact imaging applications based on cable structure, conductor configuration, cable length, cable diameter, flexibility requirements, connector interface, pinout, shielding, drawings, and samples.

For custom gimbal camera micro-coaxial wire harness projects, customers can provide the camera or gimbal interface, connector part number, signal configuration, movement requirements, cable routing conditions, and production quantity for engineering evaluation and prototype-to-production sourcing.

Engineering & Procurement Considerations for Gimbal Camera Micro-Coaxial Cable Assemblies

Why are micro-coaxial cables used in gimbal camera systems?

Micro-coaxial cables are often considered for compact gimbal camera systems because they can provide multiple individually structured signal paths within a small cable assembly. This is useful when camera modules have limited internal space and require high-density signal connections.

For gimbal applications, cable selection is not only an electrical consideration. The cable also needs to fit the available routing space and accommodate the mechanical movement of the camera assembly.

What are the advantages of using micro-coaxial cable for a gimbal camera?

A micro-coaxial cable assembly can combine high-density signal routing with a compact cable structure. This can be useful for camera systems where space, signal integrity, connector arrangement, and cable routing all need to be considered together.

Depending on the application, engineers may evaluate conductor size, coaxial construction, shielding, cable diameter, connector configuration, cable length, and bending requirements when developing a custom gimbal camera cable.

How does gimbal movement affect camera cable design?

Unlike a fixed internal cable connection, a gimbal cable may need to accommodate movement of the camera module during operation. Cable routing, bending radius, cable length, connector position, and mechanical strain therefore become important design considerations.

The cable should be integrated with the actual movement and routing path of the gimbal rather than selected only according to electrical specifications. For custom projects, engineers should provide the available routing space and mechanical movement requirements so the cable structure can be evaluated accordingly.

How can micro-coaxial cable construction affect camera signal integrity?

High-speed camera signals can be sensitive to cable construction and electrical characteristics. Conductor dimensions, insulation structure, shielding, cable geometry, connector selection, and cable length can all influence the electrical performance of a cable assembly.

For a custom camera cable, the cable should therefore be considered as part of the complete signal path. The required electrical characteristics and connector configuration should be defined according to the camera interface and system design.

When should engineers consider a custom micro-coaxial cable instead of a standard camera cable?

A custom micro-coaxial cable can be considered when a standard cable cannot adequately match the camera's space, connector, pin assignment, cable length, routing, or mechanical requirements.

Typical situations include compact camera modules, gimbal assemblies with restricted routing space, high-density signal interfaces, customized connector combinations, and OEM camera systems requiring a specific cable configuration.

What specifications should be defined when developing a custom gimbal camera cable?

Before requesting a quotation, engineers should define as much of the following information as possible:

• Cable type and micro-coaxial structure

• Conductor or wire size

• Number of signal paths

• Required electrical characteristics

• Connector type and connector brand

• Connector pin count and pin assignment

• Cable length

• Cable diameter or available routing space

• Bending or movement requirements

• Camera or imaging interface

• Shielding requirements

• Operating environment

• Required samples and production quantity

Providing drawings, connector part numbers, pin assignments, or existing cable samples can also help suppliers evaluate the required cable assembly more accurately.

What should buyers evaluate when sourcing a custom gimbal camera cable assembly?

Buyers should evaluate more than the cable price. Important factors include the supplier's ability to manufacture fine-wire or micro-coaxial cable assemblies, connector termination capability, customization flexibility, quality control, sample development process, production consistency, and ability to support OEM/ODM requirements.

For gimbal camera applications, buyers should also confirm that the supplier understands both the electrical and mechanical requirements of the cable assembly. A suitable supplier should be able to evaluate the complete cable configuration rather than treating the project as a standard off-the-shelf cable purchase.

Why Choose HOTTEN

Professional Micro Coaxial Cable Assembly Manufacturer

HOTTEN specializes in：

• Gimbal Camera Wire Harness
• Drone Wire Harness
• Micro Coaxial Cable Assembly
• LVDS Cable Assembly
• Custom Cable Harness

  FAQ

  What is a gimbal camera wire harness?

  A gimbal camera wire harness is a customized cable assembly used to connect camera modules, control systems and electronic components in drone and robotic platforms.

  ---

  Why use micro coaxial cable for gimbal cameras?

  Micro coaxial cables provide small diameter, lightweight construction and reliable high-frequency signal transmission for compact camera systems.

  ---

  Can HOTTEN customize drone camera cables?

  Yes. HOTTEN supports customized gimbal camera harness solutions including cable structure, connectors, shielding and production requirements.
