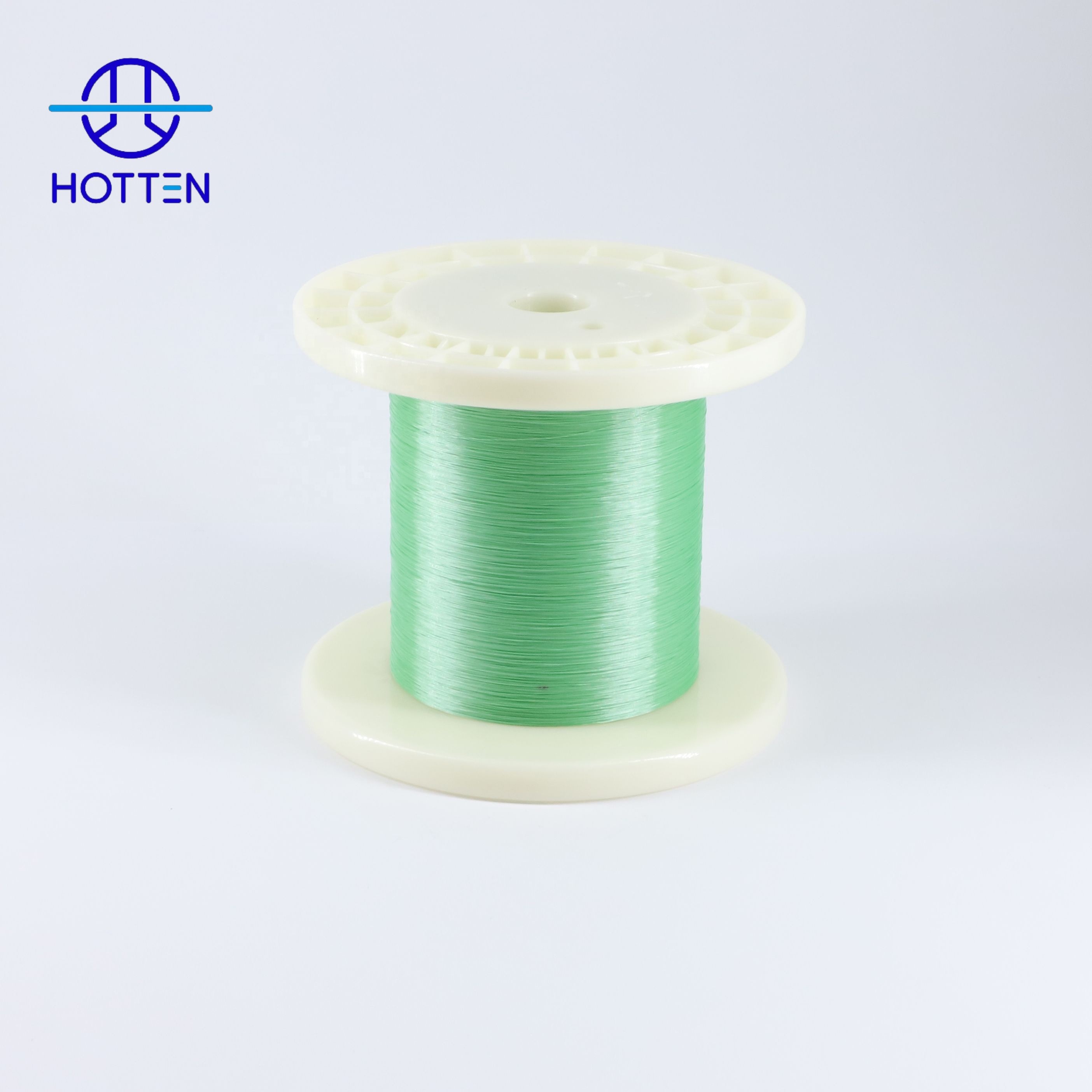

FEP 32AWG 0.39mm Silver-Plated Copper-Alloy Electronic Wire

FEP 32AWG 0.39mm Silver-Plated Copper-Alloy Electronic Wire

Product Overview

The HOTTEN FEP 32AWG Electronic Wire is a fine-gauge insulated wire designed for compact electronic and precision wiring applications.

The wire uses a silver-plated copper-alloy conductor with FEP insulation and an approximately 0.39mm outer diameter, providing a compact construction for applications where limited installation space and fine wire dimensions are important.

HOTTEN supports customized electronic wire requirements based on conductor construction, insulation material, wire dimensions, length and application requirements.

Key Specifications

Key Features

32AWG Fine-Gauge Construction

The 32AWG conductor size provides a compact wire option for electronic equipment and assemblies where smaller wire dimensions are required.

FEP Insulation

FEP insulation is used for the wire construction and can be evaluated for applications requiring a compact insulated electronic wire.

Approximately 0.39mm Outer Diameter

The approximately 0.39mm OD provides a fine wire construction for space-constrained electronic assemblies and dense internal wiring.

Silver-Plated Copper-Alloy Conductor

The silver-plated copper-alloy conductor provides an alternative conductor construction for specialized electronic wire applications.

Custom Fine Electronic Wire Manufacturing

Wire construction, insulation requirements, finished length and other project-specific specifications can be evaluated according to customer requirements.

Applications

• Precision electronic equipment

• Compact electronic assemblies

• Internal equipment wiring

• Fine-pitch electronic systems

• High-density wiring applications

• Miniature electronic modules

• Instrumentation equipment

• Custom electronic wiring

Customization & Engineering Requirements

Engineering & Procurement Considerations

When sourcing fine electronic wire for a new project, the following parameters should be confirmed:

• Wire gauge: Confirm the required AWG and acceptable dimensional tolerance.

• Conductor material: Specify the required conductor material and plating construction.

• Insulation material: Confirm whether FEP or another insulation material is required.

• Finished OD: Define the required outer diameter and dimensional tolerance.

• Wire length: Specify the required supply length and packaging format.

• Electrical requirements: Provide the application's voltage, current and electrical performance requirements where applicable.

• Mechanical requirements: Identify flexibility, routing and installation requirements.

• Processing requirements: If the wire will be stripped, terminated, soldered or assembled, provide the relevant processing requirements.

• Prototype quantity: Sample quantities can be evaluated before production.

• Production quantity: Expected annual or project demand can be discussed during quotation.

• Quality requirements: Define inspection, material documentation and applicable compliance requirements.

• Drawing / sample approval: A technical drawing or physical sample can be used for engineering evaluation.

FAQ

What is a 32AWG FEP electronic wire?

It is a fine-gauge electronic wire using 32AWG silver-plated copper-alloy conductor with FEP insulation.

What is the outer diameter of this wire?

The listed product has an approximately 0.39mm outer diameter. Final dimensions should be confirmed according to the project specification.

What conductor is used?

The listed construction uses a silver-plated copper-alloy conductor.

Why use FEP insulation for fine electronic wire?

FEP can provide a compact insulated wire construction for applications where material, dimensional and installation requirements need to be controlled. The suitability should be evaluated according to the specific application.

Can the wire length be customized?

Yes. Wire length and supply requirements can be customized according to the customer's project.

Can HOTTEN manufacture other fine-gauge electronic wires?

Yes. HOTTEN can evaluate custom fine-wire requirements based on AWG, conductor material, insulation material, OD, electrical requirements and application conditions.

Can this wire be supplied for prototype projects?

Prototype quantities can be evaluated before production according to the project requirements.

What information is needed for quotation?

Customers can provide the required AWG, conductor material, insulation material, OD, wire length, electrical requirements, quantity and application information for an initial evaluation.

Related Solutions

• Fine Electronic Wire Solutions

• Ultra-Fine Wire Solutions

• Custom Wire Manufacturing

• Precision Wire Processing

Related Applications

• Precision Electronics

• Compact Electronic Equipment

• High-Density Wiring

• Miniature Electronic Modules

• Instrumentation Equipment

Related Products

• 42AWG HRS DF81 30-Pin Micro Coaxial Drone Cable Assembly

• 46AWG HRS DF56/DF36 Micro Coaxial UAV Cable Assembly

• MHF 4L 1.37mm Micro Coaxial RF Cable Assembly

Related Case Study

• 42AWG Ultra-Fine Wire: From Processing Challenges to Stable Production

HOTTEN Engineering Capability

HOTTEN specializes in fine electronic wire and micro coaxial cable manufacturing for precision electronic applications.

Engineering evaluation can be based on conductor material, wire gauge, insulation material, outer diameter, electrical requirements, processing requirements and customer drawings or samples.

HOTTEN supports custom wire development from prototype evaluation through production, including application-specific wire construction and processing requirements.

Need a Custom Fine Electronic Wire?

Send us your required AWG, conductor material, insulation material, outer diameter, wire length, drawing or sample and required quantity.

HOTTEN can evaluate the wire construction and manufacturing requirements for your application.
