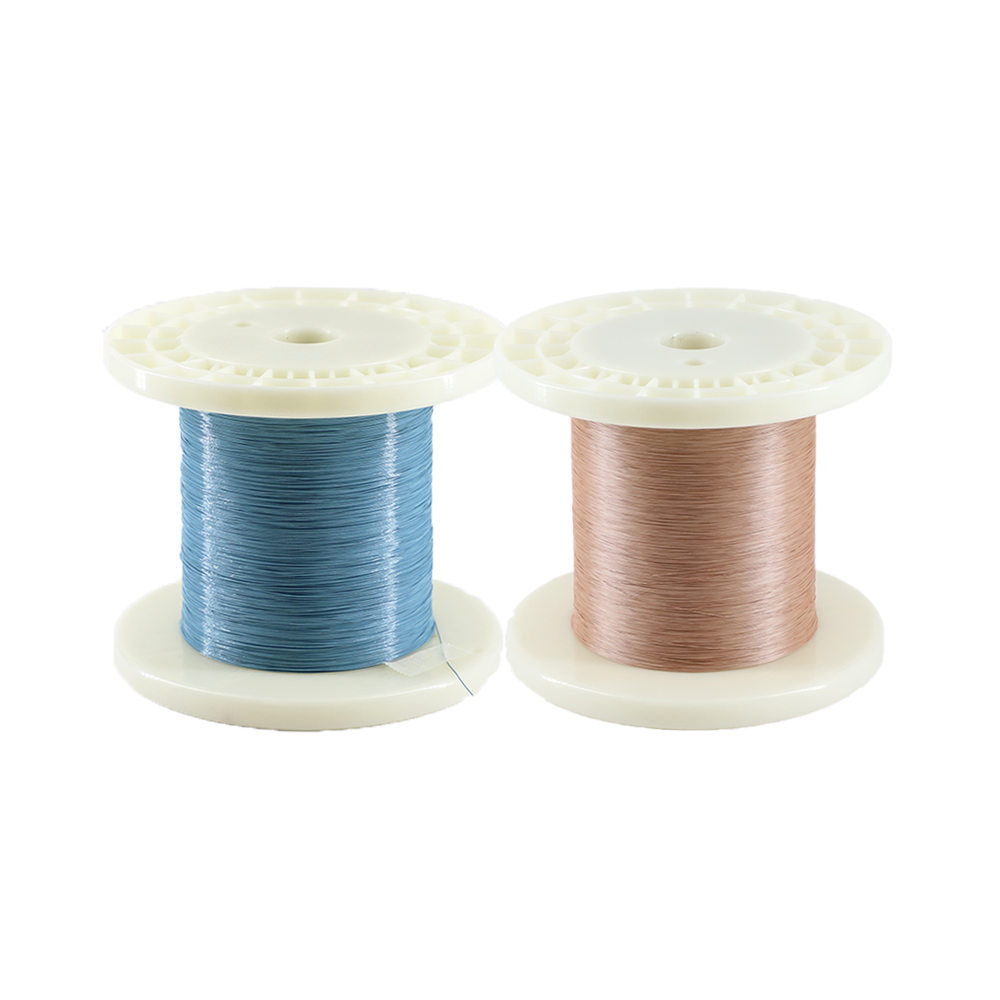

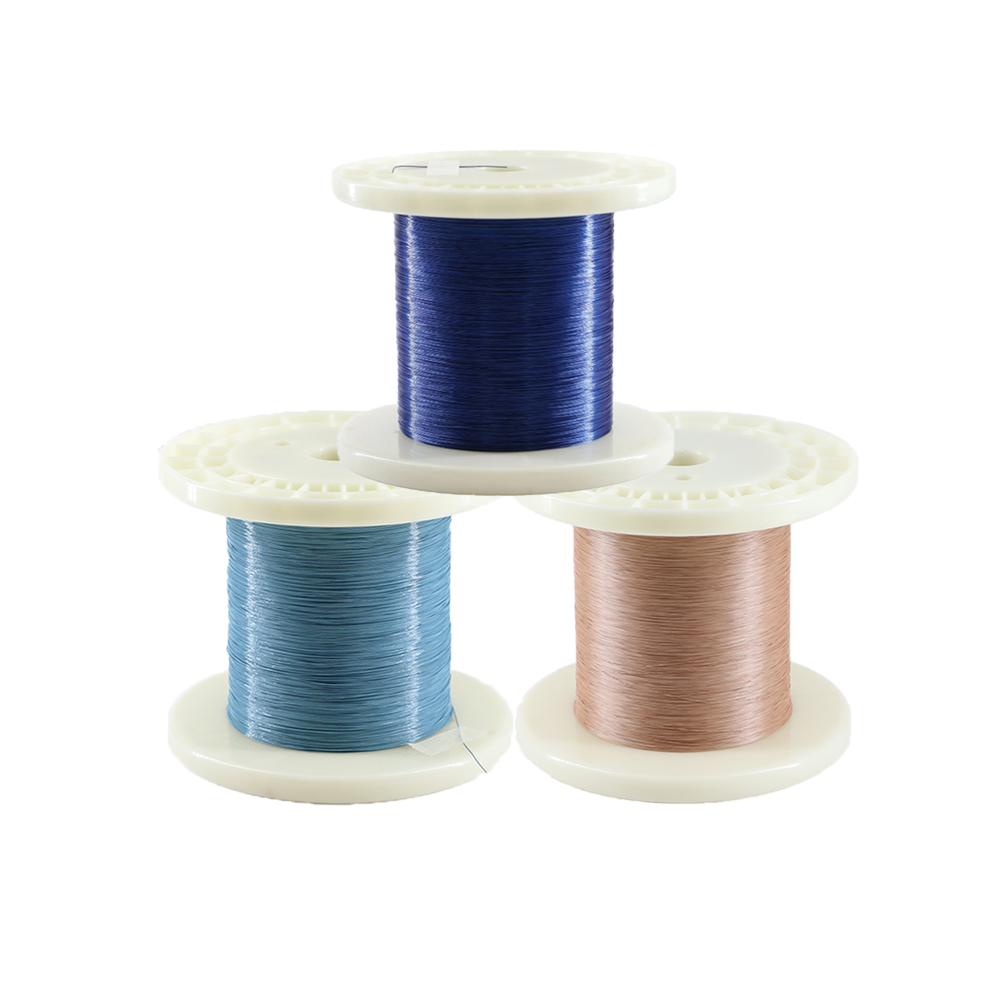

MCC 45Ω 38AWG(PFA)High Temperature Micro Coaxial LVDS Cable for Electronics Automotive & Medical
|
Product name
|
38AWG(26AWG-36AWG -46AWG -50AWG) Micro Coaxial Cable
|
|
Connector
|
for FPC，FPCA,JAE,KEL,HONDAOther Coaxial Cable Connectors
|
|
Conductor material
|
Silver Plated Copper Alloy，Silver Plated Copper
|
|
Insulation
|
PFA
|
|
Shielding
|
Silver Plated Copper (Alloy)，Tinned Copper( Alloy)
|
|
Sheath Color
|
Black, White, Green, Red, Yellow, Orange, Blue, Brown, Purple, Gray...
|
|
Sheath material
|
PFA/FEP/PET TAPE
|
|
OD
|
0.42mm（0.1mm-2.0mm）
|
|
Rating voltage
|
30v
|
|
Rating temperature
|
80℃
|
|
Characteristic Impedance
|
42.5Ω、45Ω、50Ω
|
|
Certification
|
ROHS/REACH/UL/ISO9001
|
|
Cable Advantage
|
Ultra-fine size, High Frequency Transmission, Low Loss, Anti-interference,
High Flexibility, Bending Resistance
|
|
Application
|
Laptop, tablet, foldable phone, surveillance camera, drone,
reverse imaging radar, pylon camera,Medical Endoscope,Ultrasound Prboe
|
- Overview
- Recommended Products
- Silver plated copper alloy
- Silver plated copper
- PFA
- FEP
- PET Tape
- Silver plated copper alloy shielding
- Tinned copper shielding
- PFA
- FEP
- PET Tape
Why Choose HOTTEN
Professional Micro Coaxial Cable Manufacturer
Ultra Fine Cable Manufacturing Capability
HOTTEN specializes in precision micro coaxial cable development for high-density electronic applications.
Engineering Customization Support
Cable structures can be optimized according to signal requirements, mechanical conditions and application environments.
Quality Control
Professional testing equipment ensures stable impedance, insulation reliability and product consistency.
FAQ
Q1: What is a 38AWG micro coaxial cable used for?
38AWG micro coaxial cables are widely used in compact electronic devices, display systems, cameras, drones and medical equipment requiring high-speed signal transmission.
Q2: What are the advantages of PFA insulation?
PFA provides excellent temperature resistance, chemical stability and reliable electrical insulation for demanding applications.
Q3: Can HOTTEN customize impedance?
Yes. HOTTEN supports customized impedance designs including 42.5Ω, 45Ω and 50Ω according to application requirements.
Q4: Can HOTTEN provide cable assembly solutions?
Yes. HOTTEN supports customized micro coaxial cable assemblies with connectors and harness integration.
Product Overview
38AWG High Temperature Micro Coaxial LVDS Cable for Advanced Electronics
HOTTEN 38AWG Micro Coaxial LVDS Cable is designed for high-density electronic applications requiring reliable signal transmission, excellent flexibility and stable electrical performance.
Featuring silver plated copper alloy conductors, PFA insulation and controlled impedance design, this ultra-fine coaxial cable provides excellent high-frequency transmission performance with low signal loss and strong interference resistance.
With customizable impedance, shielding structure and cable dimensions, HOTTEN provides professional micro coaxial cable solutions for demanding electronic applications.
Key Features
High Performance Micro Coaxial Cable Solution
🔹 38AWG ultra-fine conductor structure
🔹 42.5Ω / 45Ω / 50Ω impedance options
🔹 PFA high-temperature insulation
🔹 Silver plated copper alloy conductor
🔹 Excellent EMI shielding capability
🔹 Low transmission loss
🔹 High flexibility and bending resistance
🔹 Customized cable structures available
Cable Structure
Precision Micro Coaxial Construction
Inner Conductor
Options:
Insulation Layer
Materials:
Shielding Layer
Options:
Outer Sheath
Options:
Applications
High Density Electronic Applications
Suitable for:
💻 Laptop Display Systems
📱 Tablet Devices
🚁 UAV / Drone Systems
📷 Camera Modules
🏥 Medical Endoscope Equipment
🩺 Ultrasound Probe Systems
🚗 Automotive Electronic Systems
📡 Communication Equipment
Customization Options
HOTTEN provides customized Micro Coaxial Cable solutions:
✔ AWG Size
✔ Characteristic Impedance
✔ Outer Diameter
✔ Conductor Material
✔ Shielding Structure
✔ Insulation Material
✔ Cable Length
✔ Connector Assembly
