High Quality Support for Customized Intracardiac Ultrasound Cable

Engineering & Procurement Considerations

What Engineers Should Consider When Selecting an Intracardiac Ultrasound Cable

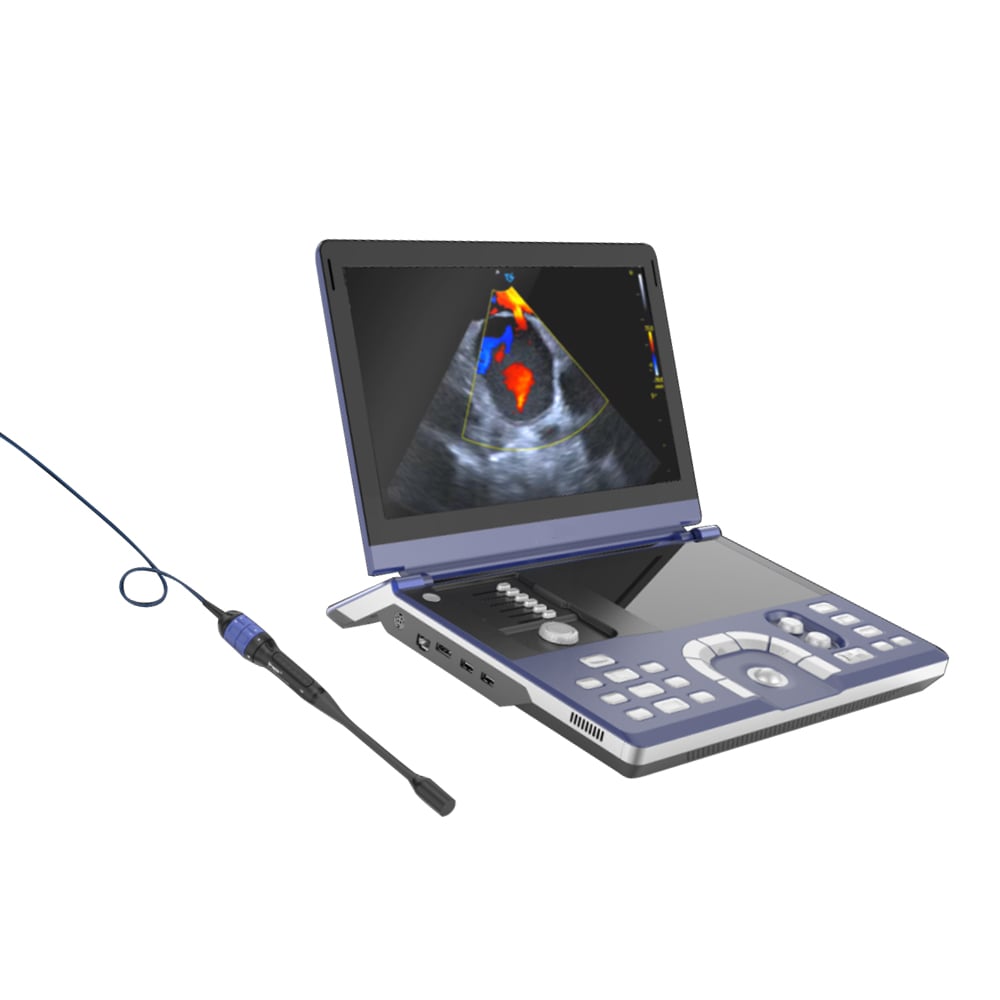

An intracardiac ultrasound cable is used to connect an intracardiac echocardiography (ICE) catheter or related imaging components with the supporting medical imaging system.

For customized ICE cable projects, engineers should evaluate cable diameter, conductor configuration, signal transmission, shielding, flexibility, connector compatibility and catheter integration as a complete system.

Because intracardiac ultrasound devices typically involve compact catheter structures and complex internal routing, the cable should be customized around the actual mechanical and electrical requirements of the device.

Key Engineering Requirements

Key Procurement Parameters

When sourcing a customized intracardiac ultrasound cable, engineering and procurement teams should confirm:

Catheter Integration Considerations

ICE cable design should be evaluated together with the mechanical architecture of the catheter.

Important considerations may include:

• Available installation space

• Maximum cable diameter

• Internal routing path

• Required bending radius

• Cable length

• Connector location

• Termination dimensions

• Interaction with other catheter components

• Required flexibility

The final cable construction should balance electrical performance, compactness and mechanical routing rather than optimizing only one parameter.

Signal and Shielding Considerations

The electrical construction should be matched to the imaging system requirements.

Engineers may need to consider:

• Conductor configuration

• Conductor material

• Insulation structure

• Shielding type

• Cable geometry

• Cable length

• Connector termination

• Signal-transmission requirements

Where shielding is required, the appropriate structure should be selected according to the actual electrical environment and system design.

OEM Customization

HOTTEN supports customized intracardiac ultrasound cable development based on customer drawings, specifications and catheter integration requirements.

Customization may include:

• Core configuration

• AWG selection

• Conductor material

• Insulation material

• Shielding structure

• Cable diameter

• Cable length

• Jacket material

• Connector assembly

• Pin configuration

• Termination method

• Prototype samples

• Mass-production configuration

For OEM projects, the cable can be developed around the customer's catheter architecture rather than being limited to an existing standard cable.

Supplier Evaluation Checklist

When evaluating an intracardiac ultrasound cable supplier, procurement teams should consider:

① Medical Imaging Cable Capability
Can the supplier manufacture customized cables for ultrasound and catheter-based imaging applications?

② Miniature Cable Manufacturing
Can the supplier maintain the required cable dimensions for compact catheter integration?

③ Signal and Shielding Capability
Can the supplier customize conductor and shielding structures according to the imaging system requirements?

④ Flexibility and Mechanical Performance
Can the cable meet the required routing and bending conditions?

⑤ Connector Assembly
Can the supplier provide the required connector, pinout and termination configuration?

⑥ Prototype-to-Mass-Production Support
Can the supplier support engineering samples and subsequent production?

Recommended RFQ Information

For an accurate engineering review and quotation, customers are recommended to provide:

• ICE catheter application

• Cable drawing

• Core configuration

• Conductor material and AWG

• Maximum cable diameter

• Insulation requirements

• Shielding requirements

• Cable length

• Flexibility requirements

• Jacket material

• Connector model / part number

• Pinout or termination drawing

• Prototype quantity

• Expected production volume

• Required testing and inspection

• Applicable quality or compliance requirements

Providing a cable drawing, existing sample or connector specification can help reduce uncertainty during customized cable development.

HOTTEN Intracardiac Ultrasound Cable Engineering Support

HOTTEN provides customized medical cable solutions for intracardiac ultrasound and ICE catheter applications. Cable construction, conductor configuration, insulation, shielding, dimensions and termination can be customized according to the customer's device architecture, with support for prototype development and mass production.
