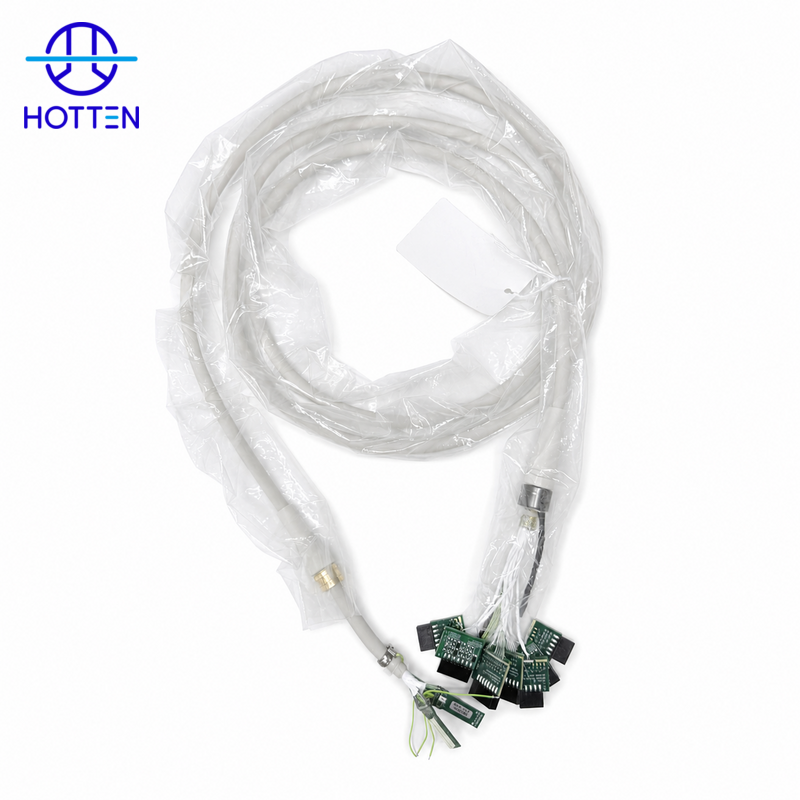

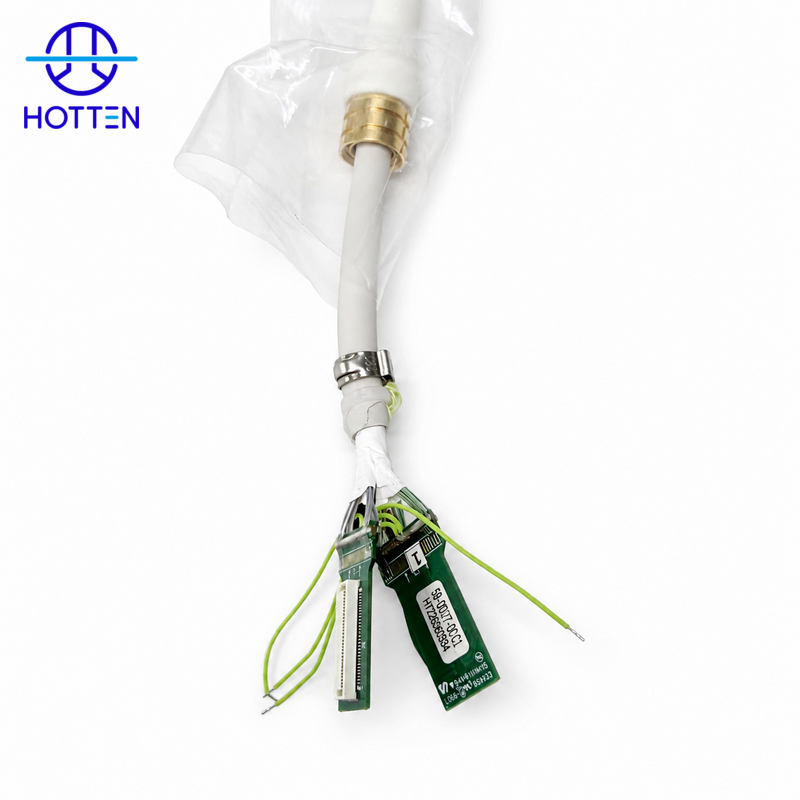

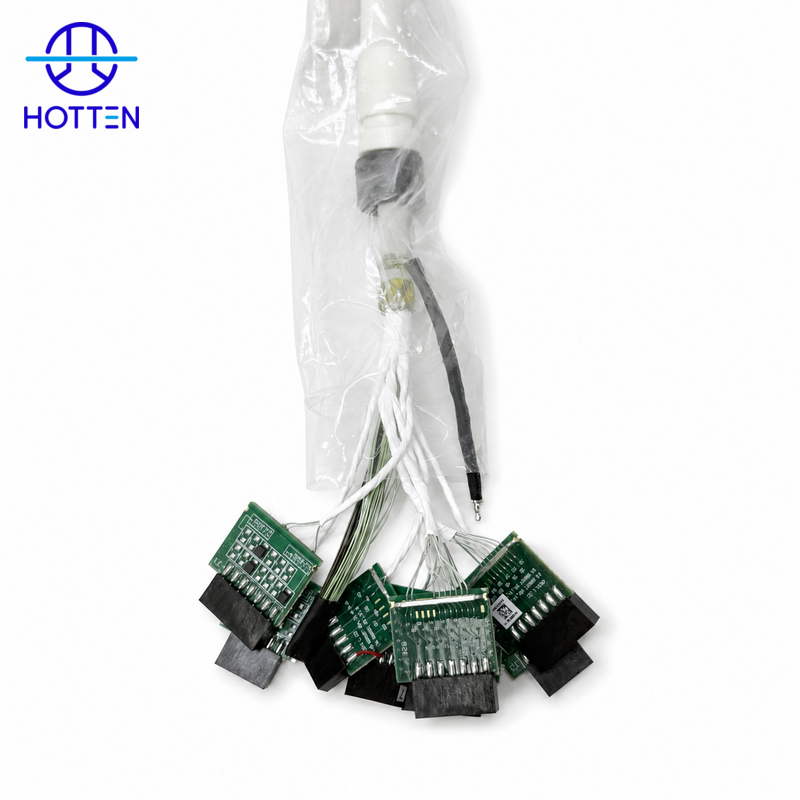

84-Core 38AWG Medical Ultrasound Probe Cable Assembly

Product Overview

The HOTTEN 84-Core 38AWG Medical Ultrasound Probe Cable Assembly is designed for ultrasound probe and medical imaging equipment projects requiring a multi-core cable configuration with fine-gauge conductors.

With 84 cores and 38 AWG conductors, this cable assembly is intended for applications where conductor arrangement, cable routing, electrical performance and connection requirements must be coordinated with the equipment design.

For OEM procurement, the finished assembly should be evaluated against the approved drawing, electrical requirements, mechanical constraints and connector specifications. HOTTEN can review customer drawings, samples and technical documentation to establish the required cable configuration and assembly scope.

Technical Specifications

Cable Configuration and OEM Integration

For an ultrasound probe cable assembly, the conductor count and gauge are only part of the specification. The internal conductor arrangement, insulation system, shielding design, finished cable dimensions and termination details must also match the intended equipment.

If the application requires a defined electrical connection between the probe and imaging system, then the customer should provide the connector part numbers, pin assignment and interface drawing. These details help establish the required assembly configuration and reduce the risk of connection errors during integration.

If the probe design has restricted internal routing space, then the cable outside diameter, flexibility and minimum bend radius should be reviewed against the available installation space before the design is finalized.

The final construction and performance requirements should be confirmed through the approved product drawing and agreed acceptance criteria.

Custom Medical Ultrasound Cable Assembly

HOTTEN supports OEM cable projects based on customer drawings, samples and technical specifications. Depending on the approved design, the project scope may include cable configuration, cut-to-length processing, connector sourcing, soldering and finished cable assembly.

Before production, both parties should confirm the required assembly configuration, connector specifications, pinout, cable length, inspection requirements and acceptance criteria.

Quality Inspection and Acceptance

Inspection requirements should correspond to the approved product specification and actual manufacturing scope. Depending on the assembly design, agreed checks may include visual inspection, dimensional verification, continuity testing, pinout verification and other specified electrical tests.

Any medical-device quality-system requirements, traceability requirements or product-specific validation criteria should be confirmed for the relevant project rather than assumed from the cable description alone.

RFQ Requirements

For an accurate quotation, please provide the following information where available:

• Cable drawing, sample or technical specification

• Required conductor count and wire gauge

• Cable length and dimensional constraints

• Connector part numbers, pinout and termination drawing

• Insulation and shielding requirements

• Required electrical tests and acceptance criteria

• Prototype quantity and expected production demand

HOTTEN can review these inputs to determine the appropriate manufacturing and assembly scope for the medical ultrasound probe cable project.
