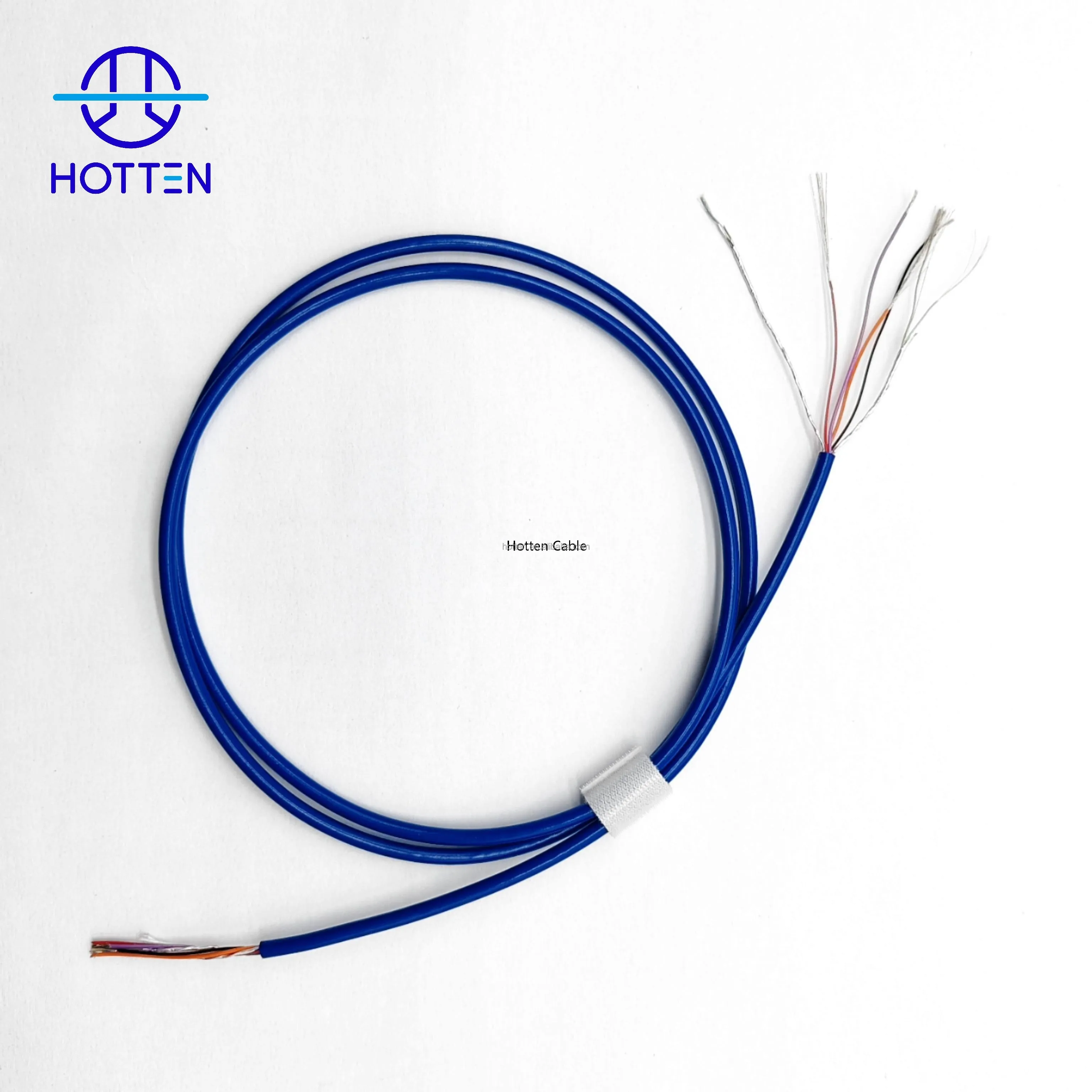

Customizable 8C(2X26AWG+2X28AWG+2PX32AWG) PVC 3.3mm Medical Endoscope HD Screen Handle Connection Cable

Product Overview

The HOTTEN 8-Core 3.3mm Medical Endoscope HD Screen Handle Connection Cable is designed for cable interconnections between the handle and display or imaging components of compatible medical endoscope systems.

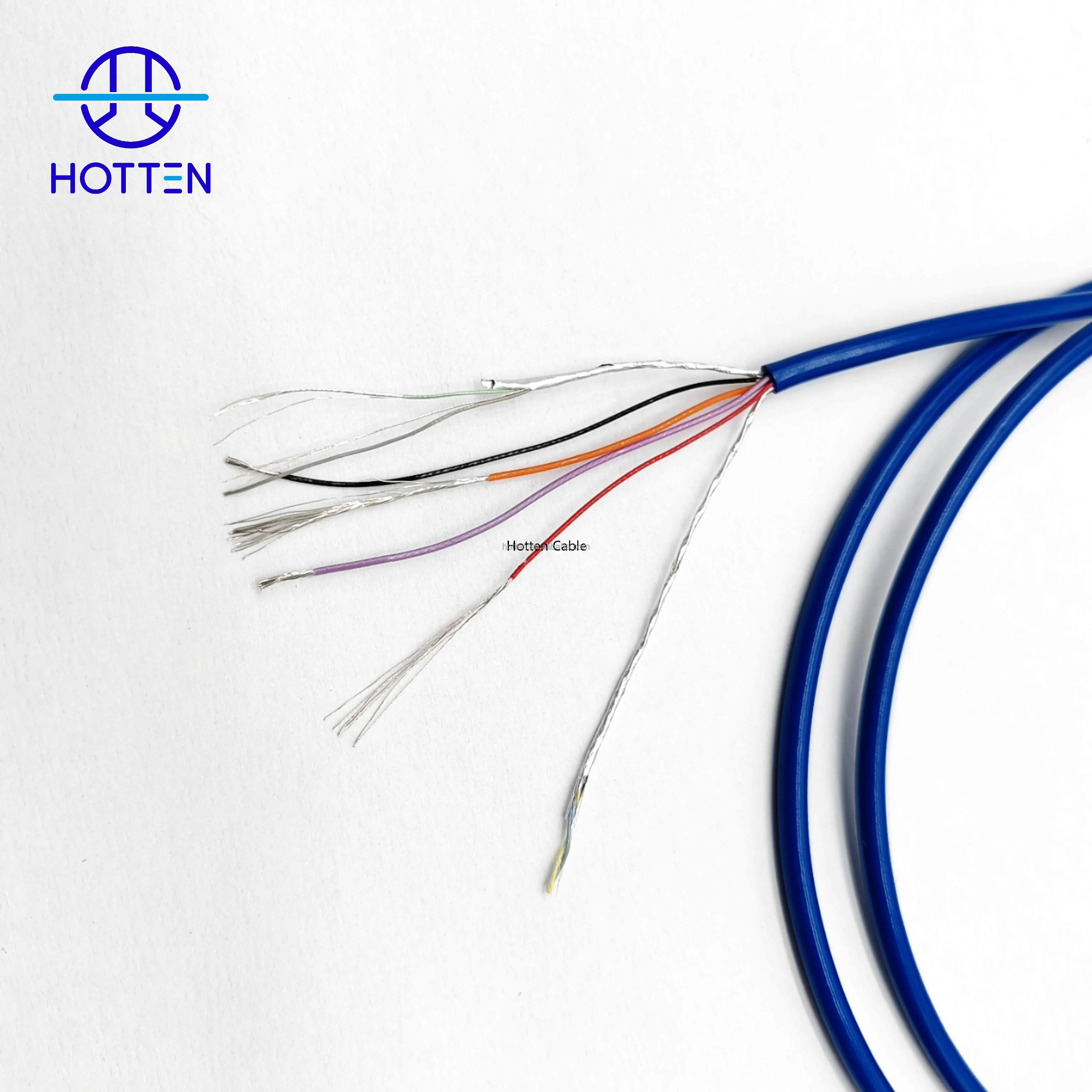

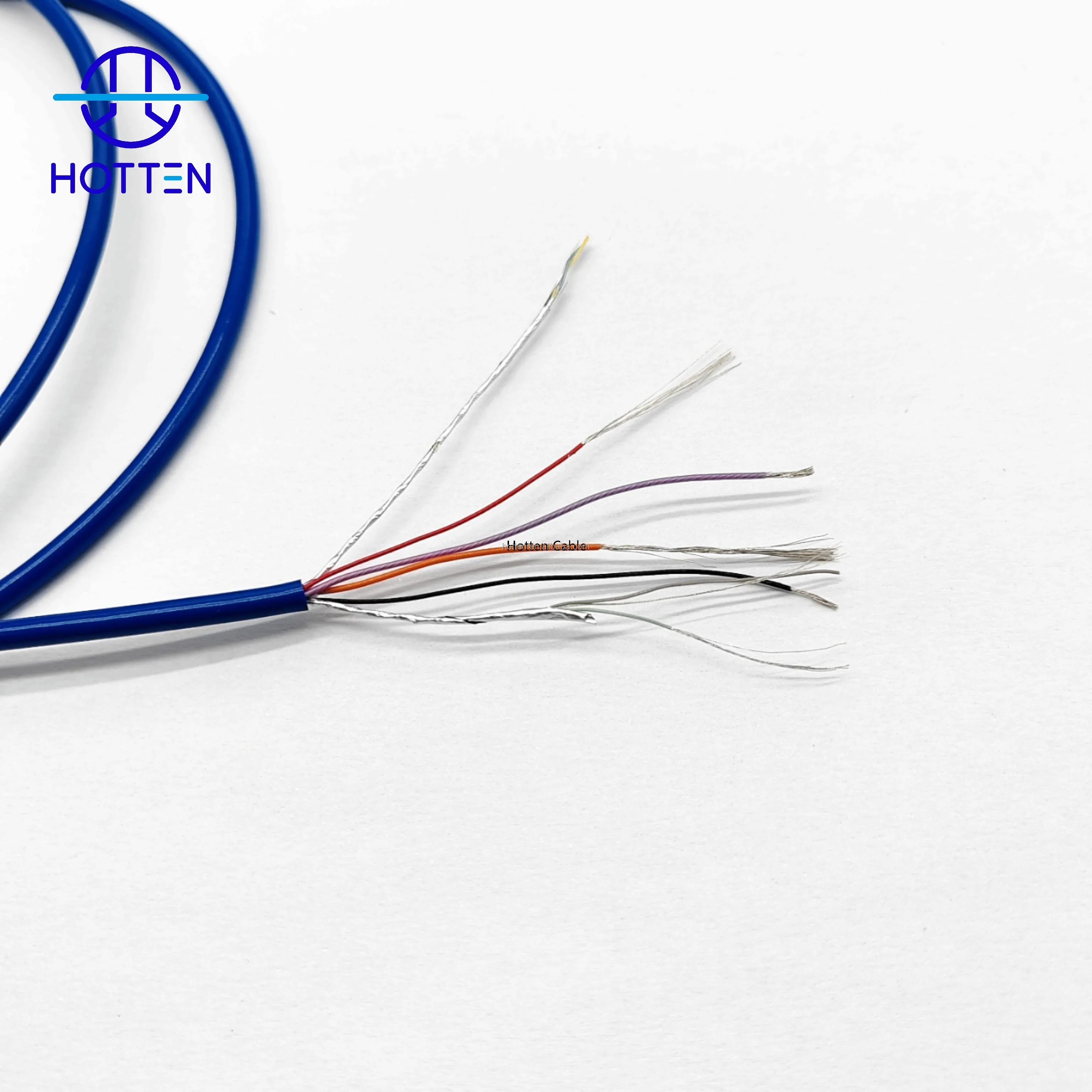

The cable features a mixed-gauge conductor configuration consisting of 2 × 26AWG conductors, 2 × 28AWG conductors and 2 pairs of 32AWG conductors. This configuration provides different conductor sizes within one cable structure to accommodate the electrical and interconnection requirements defined by the equipment design.

A PVC outer jacket and a specified overall diameter of 3.3mm make this cable suitable for applications where cable dimensions, conductor arrangement and routing requirements need to be defined together.

HOTTEN supports customized cable development based on customer drawings, existing cable samples, wiring diagrams and project specifications. Cable length, conductor arrangement, jacket requirements and connector termination can be confirmed according to the target endoscope system.

Key Features

Mixed-Gauge 8-Core Configuration

The cable combines 26AWG, 28AWG and paired 32AWG conductors in one construction. Different conductor sizes can be assigned to different circuits according to the customer's electrical design and wiring diagram.

Compact 3.3mm Outer Diameter

The specified 3.3mm overall diameter provides a dimensional reference for equipment integration. The required OD tolerance and cable routing conditions should be confirmed before sample approval.

PVC Outer Jacket

The PVC jacket provides an outer protective layer for the cable. Jacket flexibility, color, hardness and environmental requirements can be specified according to the intended application.

Medical Endoscope Handle Connection

The cable is intended for handle-to-screen or related interconnections in compatible HD endoscope equipment. The final pin assignment, cable construction and interface details should match the actual equipment design.

Customized OEM Cable Development

HOTTEN supports custom cable manufacturing based on drawings, reference samples and technical requirements. Connector integration and termination can be discussed when the required interface and assembly scope are defined.

Technical Specifications

Final specifications should be confirmed against the approved drawing, reference sample or technical data sheet.

Typical Applications

This cable configuration can be considered for:

• Medical endoscope handle connections

• HD endoscope display or imaging interconnections

• Cable routing within compatible endoscope equipment

• Customized medical imaging equipment

• OEM endoscope cable development projects

The exact application depends on the equipment interface, conductor assignment and electrical requirements. HD video compatibility should be confirmed against the actual signal architecture and cable construction.

Engineering & Procurement Considerations

When specifying an 8-core endoscope handle cable, engineers should evaluate the conductor arrangement, outer diameter, electrical requirements and mechanical routing together.

1. Conductor Assignment and Wiring Diagram

The cable combines three conductor size groups. The customer should provide a wiring diagram identifying the purpose and pin assignment of each conductor or pair.

2. Electrical Requirements

Define the electrical role of each conductor group, including signal type, current requirements where applicable, and any impedance or shielding requirements for high-speed signals. The conductor sizes alone do not establish compatibility with every HD video interface.

3. Outer Diameter and Routing Space

The nominal outer diameter is 3.3mm. Confirm the permissible OD tolerance, bend radius, cable exit direction and available installation space within the handle or equipment enclosure.

4. PVC Jacket Requirements

Specify the required jacket color, flexibility and applicable environmental conditions. Any requirements for cleaning agents, repeated flexing or other exposure should be documented and assessed for the intended equipment.

5. Connector and Termination Details

If the cable requires connector assembly, provide the connector part numbers, mating interface drawings, pin assignment and termination requirements. Similar connector housings do not necessarily share the same pinout or footprint.

6. Sample and Quality Acceptance

Before production, confirm dimensional tolerances, conductor continuity, wiring assignment and relevant electrical test criteria. Define sample acceptance requirements against the approved drawing or reference assembly.

Custom Medical Endoscope Cable Development

HOTTEN supports customized cable development for medical equipment manufacturers based on drawings, cable samples and project specifications.

For engineering review and quotation, please provide:

• Required conductor configuration and AWG sizes

• Cable drawing or reference sample

• Wiring diagram and circuit assignment

• Target outer diameter and tolerance

• Jacket material and flexibility requirements

• Cable length and routing conditions

• Connector part numbers and termination details

• Applicable electrical test requirements

• Estimated order quantity and prototype requirements

HOTTEN can review the specified construction and manufacturing requirements to support customized endoscope handle connection cable projects.

Request a Custom Endoscope Cable Quote

Send your drawing, sample or wiring requirements to discuss a customized 8-core PVC endoscope handle connection cable for your medical imaging equipment.
