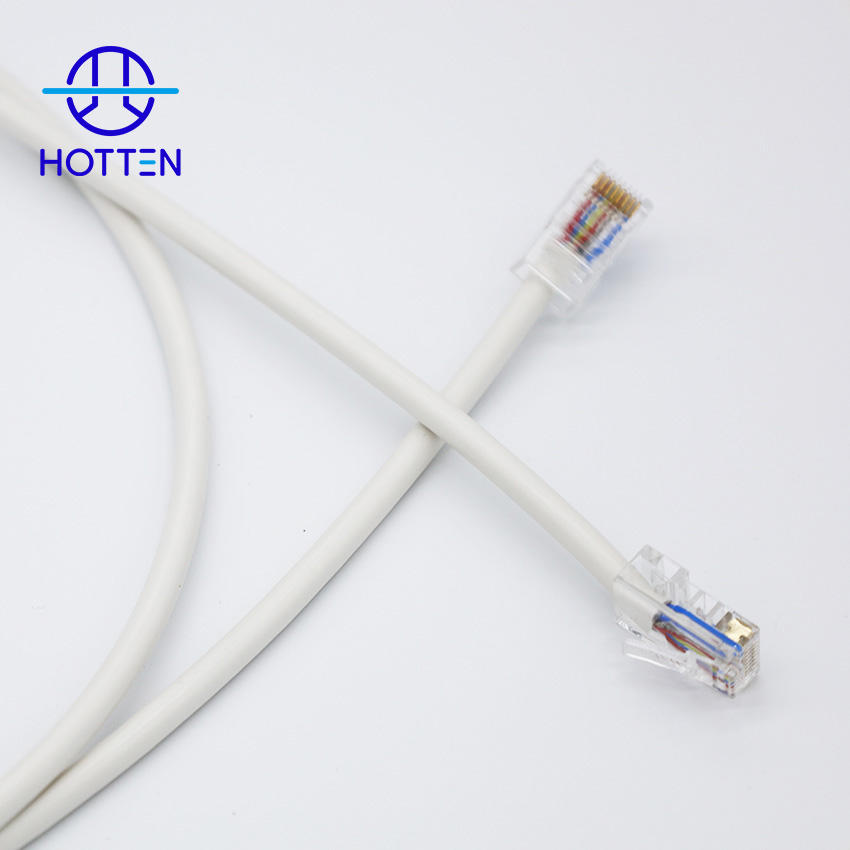

8-Core RJ45 Endoscope Replacement Cable Assembly
The HOTTEN 8-Core RJ45 Endoscope Replacement Cable Assembly is a custom medical cable designed for endoscope equipment and cable replacement applications.
This cable assembly uses an RJ45 connector and an 8-core cable configuration for signal transmission within medical endoscopy equipment. It is intended for equipment manufacturers, medical device companies and engineering teams looking for a replacement or customized endoscope cable assembly.
For OEM and replacement projects, cable construction, connector configuration, cable length and termination requirements can be customized according to the original cable, equipment interface or customer drawings.
Key Features
What Is an RJ45 Endoscope Cable?
An RJ45 endoscope cable is a cable assembly using an RJ45 interface for connection within an endoscopy system.
Although RJ45 connectors are widely recognized in networking applications, an RJ45 connector used in medical equipment does not necessarily mean that the cable is a standard Ethernet cable.
The actual cable assembly must be designed according to the medical equipment's electrical interface, pin assignment, cable construction and mechanical requirements.
For this reason, an RJ45 medical cable should be evaluated according to the complete equipment interface rather than the connector name alone.
8-Core Endoscope Cable for Medical Equipment
An 8-core endoscope cable provides multiple conductors within a single cable assembly.
The conductors can be configured according to the signal and electrical requirements of the target endoscopy equipment. The actual pin assignment and signal definition should be confirmed from the equipment documentation, original cable or customer drawing.
When replacing an existing endoscope cable, the following information is particularly useful:
This information allows the replacement cable to be evaluated against the original equipment interface.
Endoscope Replacement Cable Assembly
Medical endoscope equipment may require cable replacement because of repeated bending, mechanical wear, connector damage or long-term use.
A replacement cable should reproduce the required electrical and mechanical interfaces rather than simply matching the connector appearance.
For example, an endoscope replacement cable may need to match:
| Requirement | Replacement Consideration |
|---|---|
| Connector | Must match the equipment interface |
| Core Count | Must match the required electrical connections |
| Pinout | Must correspond to the original equipment |
| Cable Length | Should match the installation path |
| Cable Diameter | Must fit the equipment structure |
| Flexibility | Important for endoscope movement |
| Shielding | May be required depending on signal type |
| Strain Relief | Helps protect the cable-to-connector transition |
| Connector Orientation | Must match the original assembly |
This is why a custom endoscope cable manufacturer can be more suitable than a standard cable supplier for equipment replacement projects.
Custom RJ45 Medical Cable
An RJ45 connector does not define the complete electrical characteristics of the cable.
For medical equipment, the cable should be specified according to the actual application.
Depending on the equipment design, engineering requirements may include:
HOTTEN provides custom medical cable assemblies for medical equipment and application-specific cable requirements.
Custom Endoscope Cable Replacement
For an existing endoscope cable replacement project, the original cable can be an important engineering reference.
If the customer can provide the original cable, connector information, drawings or samples, the supplier can evaluate the assembly structure and identify the required cable and connector configuration.
A practical replacement workflow can be:
Original Cable → Engineering Evaluation → Cable/Connector Configuration → Sample → Equipment Testing → Production
This approach helps reduce the risk of selecting a replacement cable based only on connector appearance.
Engineering & Procurement Considerations
When sourcing an 8-core RJ45 endoscope replacement cable, procurement teams should confirm the complete interface requirements.
| Requirement | Why It Matters |
|---|---|
| RJ45 connector | Determines mechanical mating compatibility |
| 8-core configuration | Must match the equipment's electrical connections |
| Pinout | Prevents incorrect signal connection |
| Cable length | Must fit the original equipment routing |
| Cable diameter | Affects mechanical installation |
| Flexibility | Important for endoscope movement and repeated routing |
| Shielding | May be required for signal integrity |
| Strain relief | Helps protect the cable assembly during use |
| Connector orientation | Must match the equipment structure |
| Original sample | Useful for reverse engineering and replacement development |
If the original endoscope cable is available
Then: provide the original cable or a cable sample to the manufacturer.
Why: the sample can help confirm connector configuration, cable construction, dimensions and termination details.
If the original cable is no longer available
Then: provide the equipment interface, connector part number, drawings and pinout information.
Why: these details allow the replacement assembly to be developed without relying solely on visual matching.
If the cable is repeatedly bent during endoscope operation
Then: flexibility and mechanical protection should become important design requirements.
Why: repeated bending can place additional stress on the cable and connector termination.
Typical Applications
The 8-Core RJ45 Endoscope Replacement Cable Assembly can be considered for:
The final cable construction should be selected according to the specific equipment interface and application requirements.
Why Choose HOTTEN for Custom Endoscope Cable Assemblies?
HOTTEN provides custom medical cable assemblies for application-specific medical equipment.
For endoscope cable projects, customers can provide an original cable sample, connector information, drawings or equipment interface specifications. This allows the cable assembly to be developed around the actual equipment requirements.
This approach is useful when a standard RJ45 cable cannot satisfy the required cable construction, pinout, flexibility, dimensions or termination requirements.
For projects requiring an RJ45 endoscope cable, 8-core endoscope cable or endoscope replacement cable assembly, HOTTEN can evaluate the required cable and connector configuration for OEM and replacement applications.
Frequently Asked Questions
What is an RJ45 endoscope cable?
An RJ45 endoscope cable is a cable assembly using an RJ45 connector for interconnection within an endoscopy system. Its electrical configuration depends on the medical equipment and should not automatically be treated as a standard Ethernet cable.
How many cores does this endoscope cable have?
This product configuration uses an 8-core cable structure.
Can this cable be used as an endoscope replacement cable?
Yes. The product is designed for medical endoscope equipment and replacement cable applications. The replacement configuration should be matched to the original equipment interface.
Can HOTTEN customize an RJ45 medical cable?
Yes. Cable length, core configuration, connector configuration, termination and other requirements can be customized according to the equipment design.
What information is needed for an endoscope cable replacement?
An original cable sample is highly useful. Other useful information includes connector part number, pinout, cable length, cable diameter, conductor specification, shielding requirements and equipment drawings.
Is an RJ45 medical cable the same as an Ethernet cable?
Not necessarily. The RJ45 connector only describes the connector interface. The cable's electrical configuration, pinout, conductor structure and application must be determined by the medical equipment design.
