High-Density Cable Solutions for Medical Ultrasound Imaging Systems

Modern ultrasound imaging systems require increasingly higher signal density, better image quality, and more compact probe designs.

Hotten provides customized ultrasound probe cable assembly solutions based on advanced micro coaxial cable technology, supporting medical device manufacturers with high-density signal transmission, excellent flexibility, and reliable mechanical performance.

Our ultrasound cable assemblies are designed for OEM applications requiring precise electrical performance, compact cable structures, and long-term durability in demanding medical environments.

🩺 Applications

Hotten ultrasound probe cable assemblies are suitable for various medical imaging applications:

Diagnostic Ultrasound Systems
Ultrasound Transducer Probes
Portable Ultrasound Equipment
3D / 4D Imaging Systems
Medical Imaging Devices
Precision Diagnostic Equipment

For advanced ultrasound systems requiring hundreds of signal channels in limited space, micro coaxial cable structures provide an effective solution for high-density signal transmission.

🔬 Micro Coaxial Cable Technology for Ultrasound Probes

Ultrasound probes require extremely small cable structures while maintaining stable transmission of sensitive high-frequency signals.

Hotten utilizes high-density micro coaxial cable technology to achieve:

• Multiple signal channels in compact structures
• Excellent EMI shielding performance
• Low signal interference
• Controlled electrical characteristics
• Improved cable flexibility
• Reduced cable diameter

Micro coaxial cables are commonly used in advanced ultrasound probe designs because each individual coaxial channel provides shielding protection, helping reduce crosstalk between signal lines.

⚙️ Customized Ultrasound Probe Cable Assembly

Hotten supports customized cable development according to customer drawings, samples, and device requirements.

Customization options include:

Cable Structure Design

• Micro coaxial cable configuration
• Multi-core cable structure
• Hybrid cable design
• Signal and power integration

Electrical Performance

• Impedance control
• Capacitance optimization
• Shielding structure
• Signal integrity requirements

Mechanical Requirements

• Cable diameter
• Flexibility
• Bend radius
• Torsion performance
• Outer jacket material

Assembly Configuration

• Connector termination

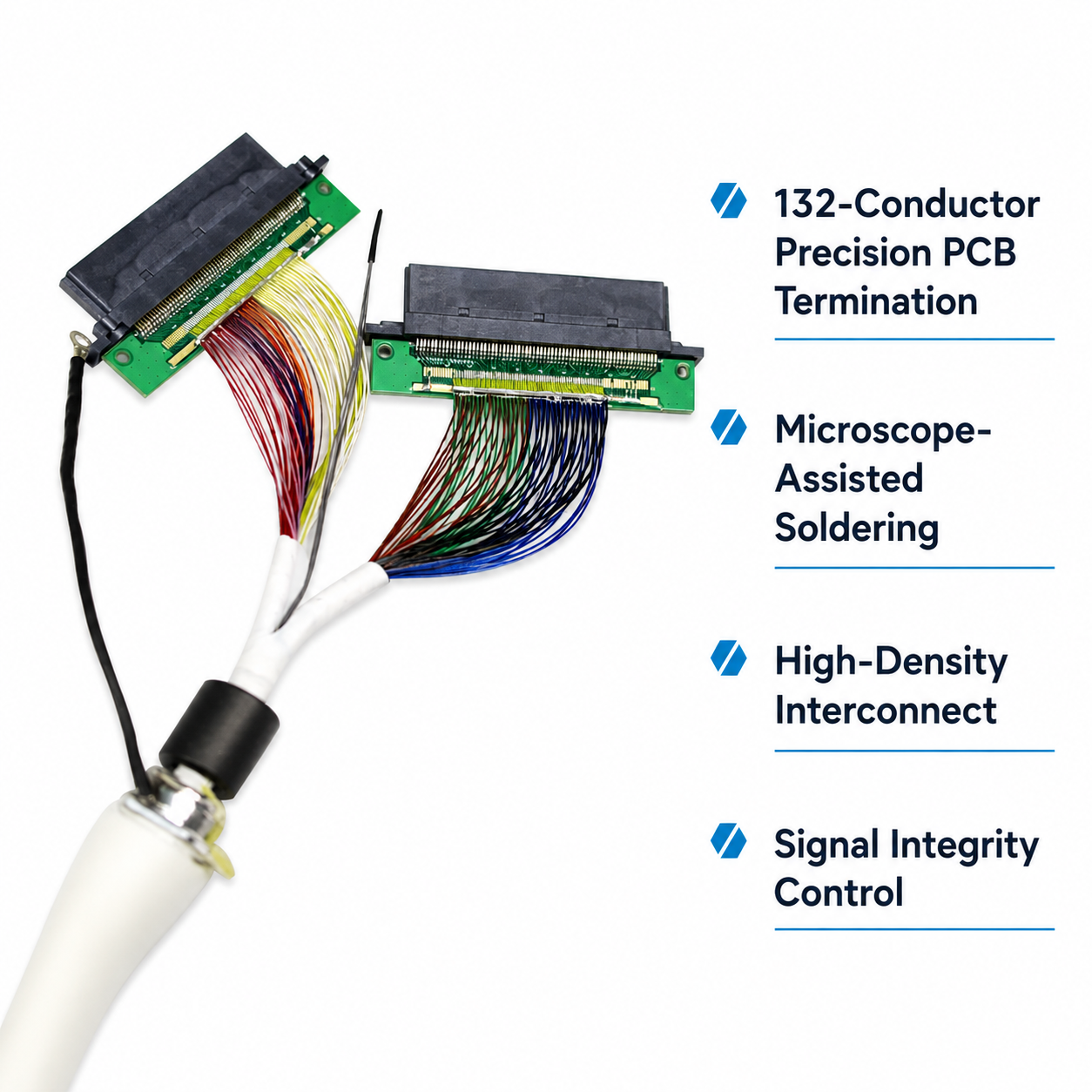

• PCB termination
• Custom cable length
• Strain relief design
• OEM cable assembly

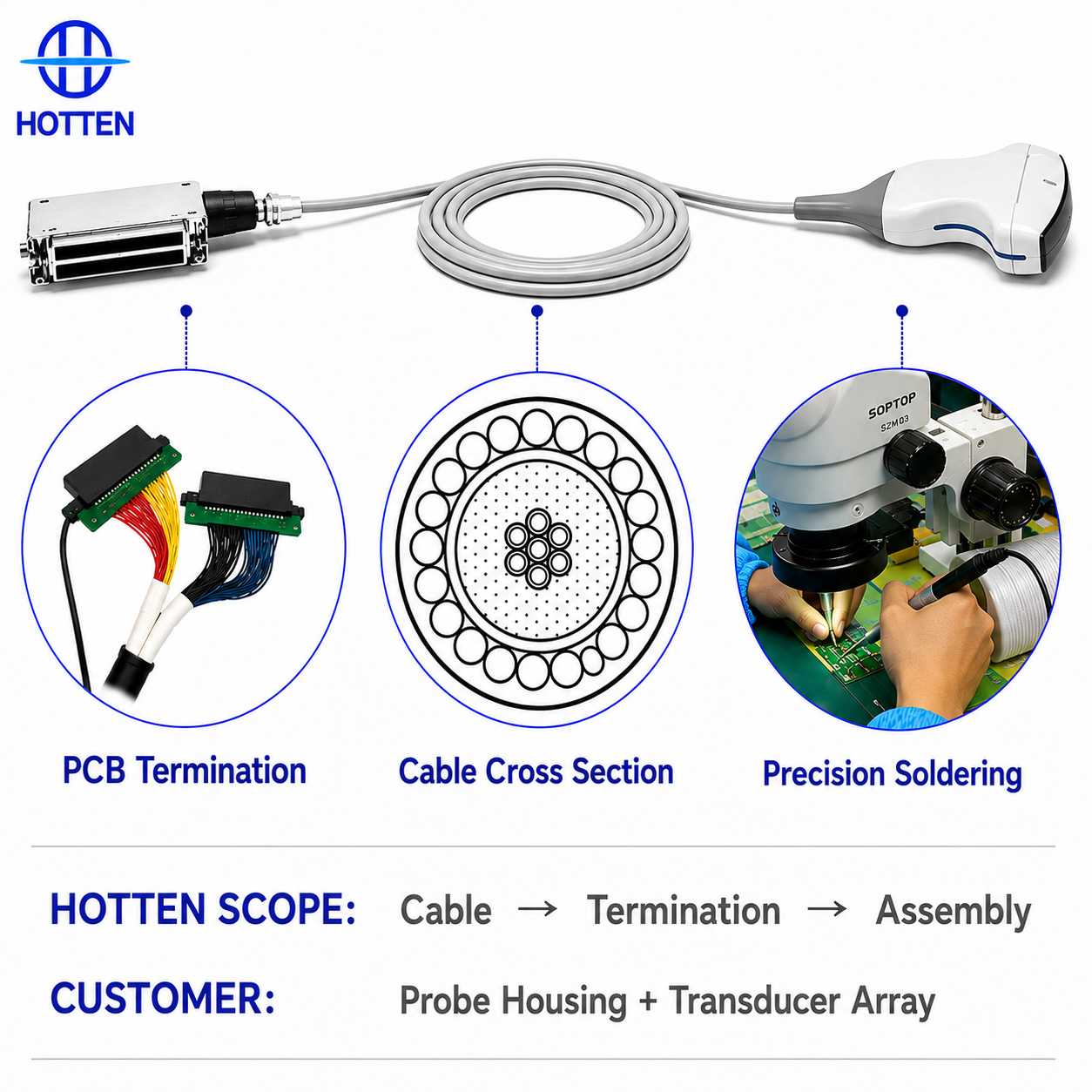

🧩 High-Density Medical Cable Assembly Manufacturing

A complete ultrasound probe cable assembly typically includes:

Micro Coaxial Cable → Cable Bundling → Shielding → Connector Termination → Final Assembly Testing

Hotten provides integrated manufacturing capabilities from cable design and material selection to customized assembly production.

Our engineering team supports prototype development, validation testing, and volume manufacturing for medical OEM customers.

📋 Typical Technical Specifications

⭐ Why Choose Hotten

Micro & Ultra Fine Cable Manufacturing

Hotten specializes in micro coaxial cables, ultra-fine wires, and high-density cable structures for precision electronic applications.

Medical Application Customization

Cable structures can be optimized according to ultrasound system requirements, including electrical performance, mechanical flexibility, and installation space.

Complete Cable Assembly Capability

From cable manufacturing to connector termination and final assembly, Hotten supports customized OEM cable solutions.

Prototype to Mass Production

Support engineering samples, product validation, customized production, and volume manufacturing.

Related Medical Cable Solutions

Explore Hotten medical cable solutions:

Need a Customized Ultrasound Probe Cable Assembly?

If your ultrasound system requires high-density micro coaxial cable assemblies, flexible probe cables, or customized medical cable solutions, contact Hotten with your drawings, samples, or technical requirements.

Hotten supports OEM medical device manufacturers from initial design to mass production.

Request a Customized Ultrasound Probe Cable Solution →
