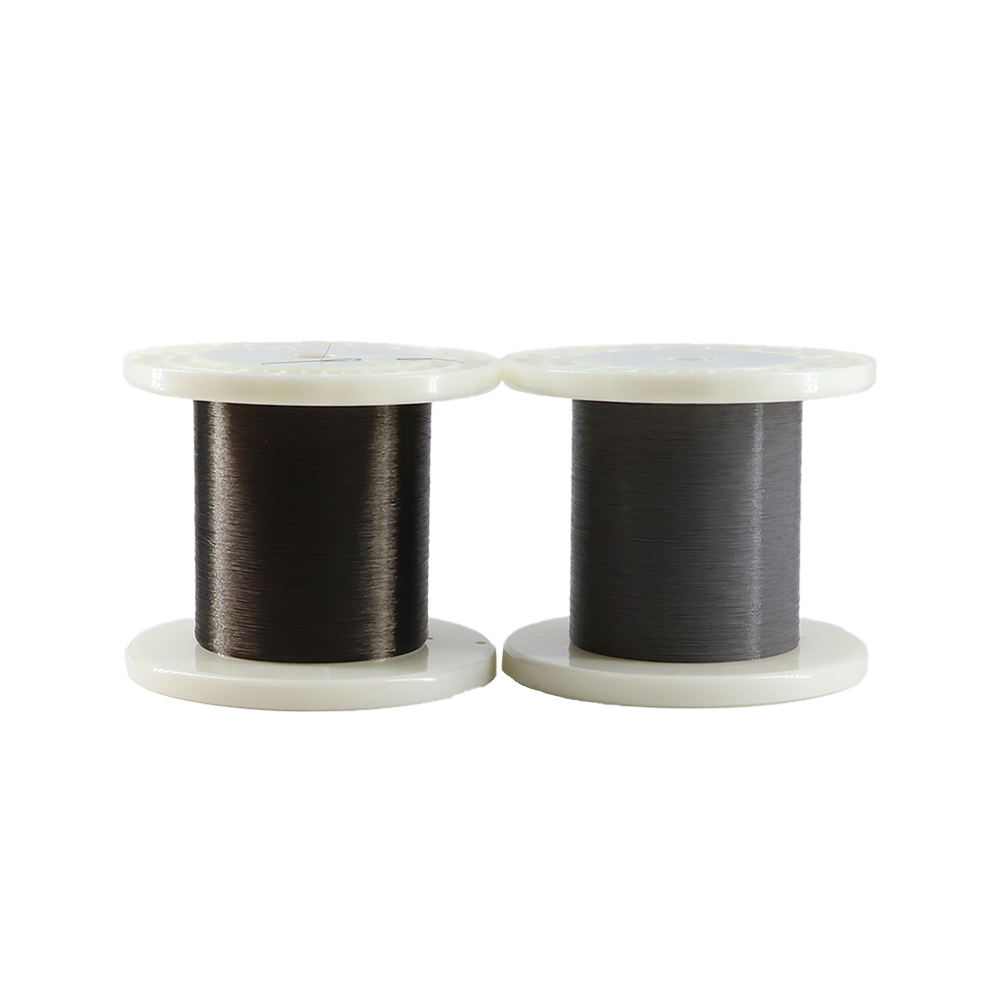

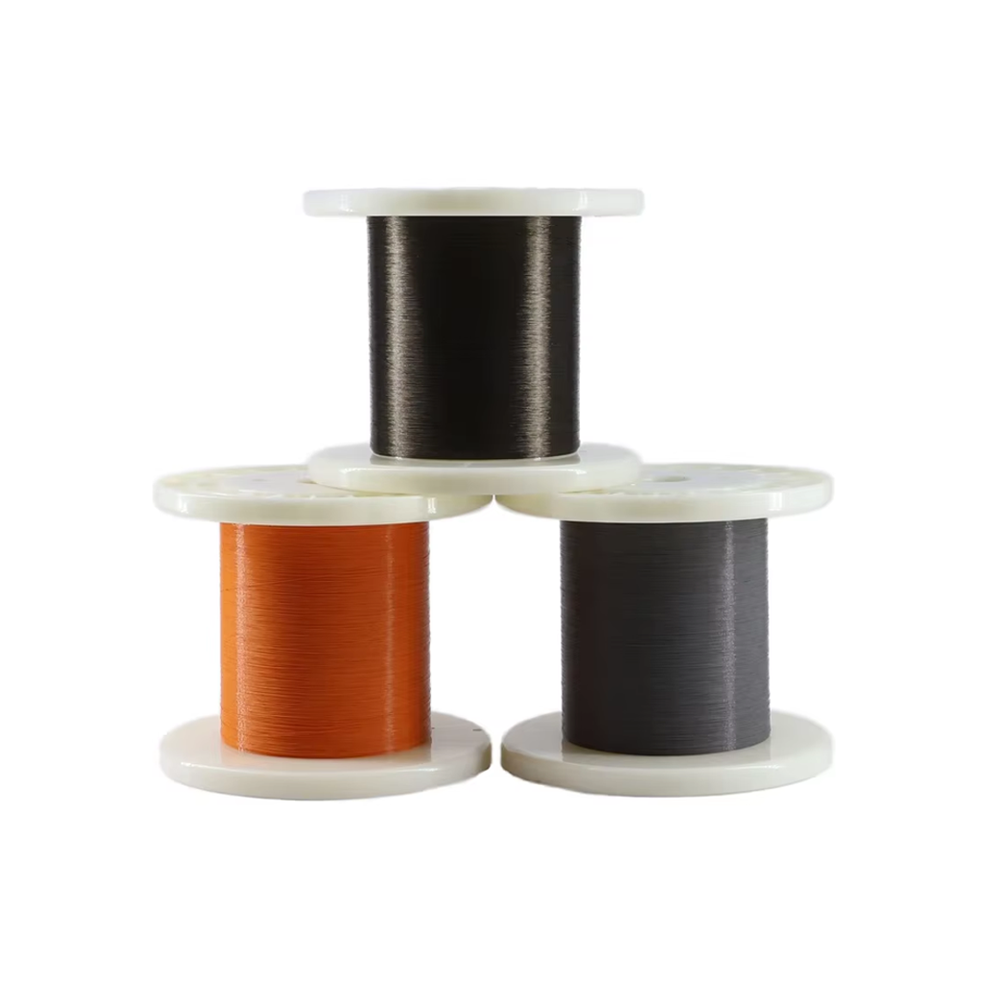

Customized PFA Insulated Micro Coaxial 37AWG Wire for Internal Wiring of Electronic Equipment High Quality Material Controlled

Engineering & Procurement Considerations

What Engineers Should Consider When Selecting a 37AWG PFA-Insulated Micro Coaxial Wire

A micro coaxial wire for internal equipment wiring is a precision interconnection component used inside compact electronic systems where small dimensions, controlled electrical performance, shielding and flexible routing are required.

This configuration is defined by its 37AWG conductor size, PFA insulation and micro coaxial construction, making conductor geometry, dielectric structure, shielding, cable diameter and routing conditions important engineering considerations.

Unlike a complete cable assembly with connectors, this product is primarily positioned as a micro coaxial wire for internal wiring of electronic equipment, allowing customers to integrate the wire into their own assemblies and termination processes.

Key Engineering Requirements

Product Configuration

The key technical entities for this product are 37AWG + PFA + Micro Coaxial + Internal Equipment Wiring.

37AWG Conductor Considerations

The 37AWG conductor provides a fine-gauge solution for compact electronic equipment.

Customers should define:

• Conductor material

• AWG

• Plating

• Stranding structure

• Electrical resistance requirements

• Required flexibility

• Termination method

• Operating environment

When selecting the conductor, engineers should balance electrical performance against the physical constraints of the target equipment.

PFA Insulation Considerations

PFA is the primary insulation material identified for this product.

Engineering teams should evaluate:

• Insulation thickness

• Dielectric characteristics

• Cable OD

• Flexibility

• Operating temperature

• Mechanical routing

• Compatibility with the conductor and shielding structure

The final PFA construction should be specified according to the customer's actual electrical and mechanical requirements rather than by material name alone.

Micro Coaxial Construction

The micro coaxial structure provides a defined transmission path and shielding around the conductor.

When developing the wire, engineers should specify:

• Inner conductor

• Dielectric / insulation

• Shield structure

• Shield material

• Shield coverage

• Shield termination

• Finished OD

For high-frequency or sensitive signal applications, the geometry of the micro coaxial structure can be important to the overall electrical performance.

Signal Integrity Considerations

For internal electronic wiring, the cable should be evaluated based on the complete transmission path.

Important parameters may include:

• Characteristic impedance

• Conductor geometry

• Dielectric structure

• Shielding

• Cable length

• Connector or terminal interface

• Internal routing

• Bending conditions

If the application requires a defined impedance or frequency range, those requirements should be provided in the customer's technical specification.

Shielding and EMI Control

Micro coaxial wire is often selected when the signal requires a shielded transmission structure.

Customers should clarify:

• Shield material

• Shield coverage

• Shield grounding

• Shield termination

• Required EMI performance

• Signal sensitivity

• Proximity to other electronic circuits

The shield should be designed together with the conductor and dielectric because changes in cable geometry can affect the complete electrical structure.

Cable Diameter and Internal Routing

For internal electronic wiring, cable size can be a critical mechanical parameter.

Customers should specify:

• Target OD

• Maximum allowable OD

• OD tolerance

• Minimum bending radius

• Routing clearance

• Connector entry dimensions

• Strain relief

• Static or dynamic bending

A compact cable structure can help simplify routing in densely packed electronic equipment, but the final OD should still be compatible with the required electrical and mechanical performance.

Flexibility Considerations

Internal wiring may need to pass around:

• PCB edges

• Display modules

• Camera modules

• Connectors

• Mechanical housings

• Hinged or movable structures

Engineering teams should therefore define:

Bend Radius + Movement Frequency + Routing Path + Installation Space

Flexibility should be considered together with the 37AWG conductor and PFA insulation because the complete construction determines the final mechanical behavior.

Termination Considerations

Unlike a finished cable assembly, a micro coaxial wire may be supplied for the customer's own termination or integration process.

Customers should specify:

• Terminal type

• Connector type

• Strip length

• Exposure requirements

• Shield termination

• Soldering requirements

• Crimping requirements

• Contact dimensions

• Pin assignment

For miniature coaxial wires, termination must be compatible with the small cable geometry.

Typical Application Considerations

This type of micro coaxial wire can be considered for internal wiring in compact electronic equipment, including:

• Camera modules

• Display systems

• Communication equipment

• Compact electronic devices

• High-frequency electronic modules

• Medical electronic equipment

• Precision electronic assemblies

The actual application should be evaluated according to the required electrical frequency range, mechanical environment and termination method.

Key Procurement Parameters

When sourcing 37AWG PFA-insulated micro coaxial wire, procurement teams should confirm:

OEM Customization

HOTTEN can support customization of micro coaxial wire according to customer requirements.

Customization may include:

• AWG

• Conductor material

• Plating

• PFA insulation

• Shielding structure

• Cable diameter

• Cable length

• Color

• Termination preparation

• Connector assembly

• Prototype samples

• Mass-production supply

The wire can be supplied as a standalone precision cable component or integrated into a customized cable assembly when required.

Supplier Evaluation Checklist

When evaluating a 37AWG micro coaxial wire supplier, procurement teams should consider:

① Fine-Gauge Wire Capability
Can the supplier consistently manufacture and process 37AWG conductors?

② Micro Coaxial Manufacturing Capability
Can the supplier maintain stable coaxial geometry and shielding?

③ PFA Insulation Capability
Can the supplier control PFA insulation thickness and dimensional consistency?

④ Electrical Performance Control
Can the supplier maintain the required impedance, continuity and other electrical characteristics?

⑤ Small-Diameter Processing
Can the supplier maintain the target OD and tolerance?

⑥ Termination Support
Can the supplier provide the required preparation or complete connector termination?

⑦ Prototype-to-Mass-Production Support
Can the supplier support engineering samples and recurring production?

Recommended RFQ Information

For faster engineering evaluation and quotation, customers are recommended to provide:

• Application

• 37AWG conductor requirement

• Conductor material

• PFA insulation requirement

• Micro coaxial construction

• Shielding requirement

• Target impedance, where applicable

• Target cable OD

• OD tolerance

• Cable length

• Minimum bending radius

• Routing conditions

• Terminal / connector specification

• Strip-length requirement

• Drawing

• Prototype quantity

• Expected production volume

• Required electrical and mechanical testing

For this product, the most important RFQ combination is:

37AWG + PFA + Micro Coaxial + Target OD + Shielding + Cable Length + Termination Requirement + Application

HOTTEN Micro Coaxial Wire Engineering Support

HOTTEN provides customized fine-gauge micro coaxial wires for internal electronic equipment wiring, allowing engineers to specify the conductor size, insulation, shielding, dimensions and termination requirements according to the target system.

This product is differentiated by its 37AWG + PFA-insulated + micro coaxial construction, making it suitable for compact internal interconnections where controlled electrical performance and space-efficient routing are required.

For OEM projects, customers can provide the target application, cable drawing, electrical requirements and termination specification for engineering evaluation and customized production.
