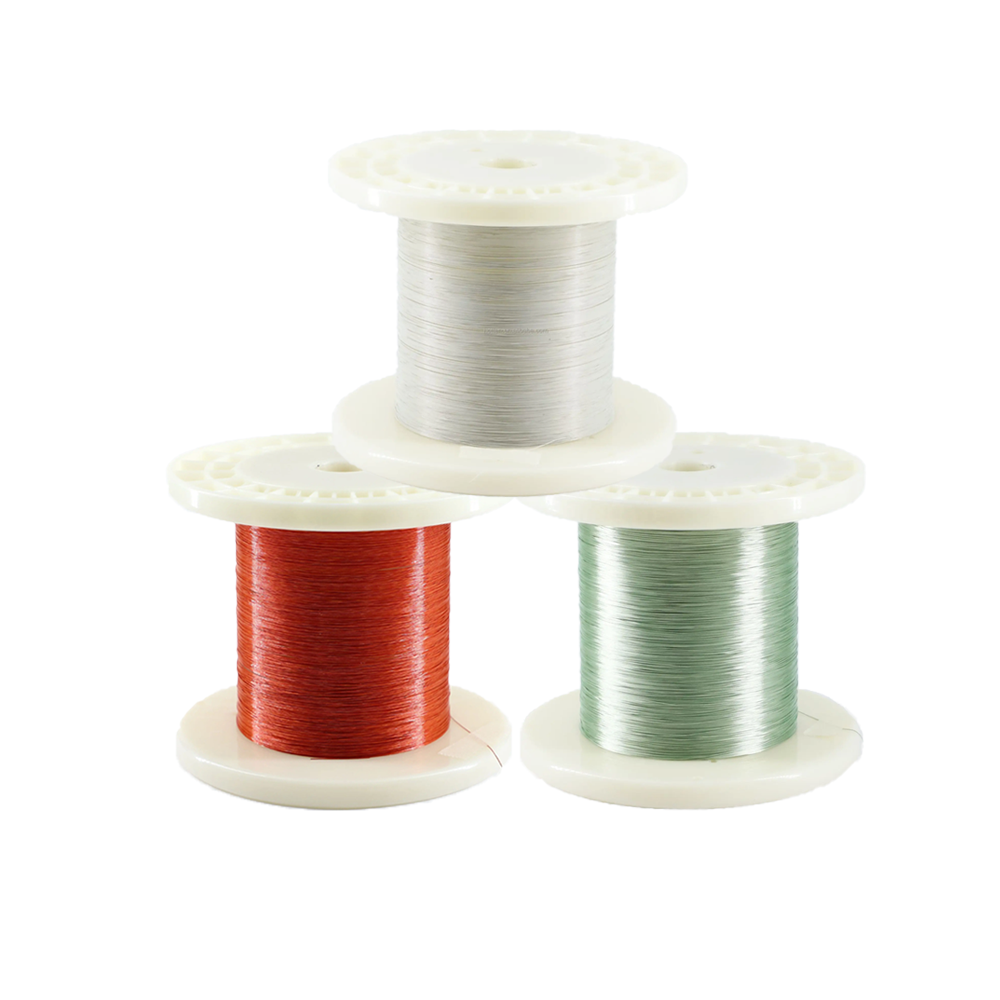

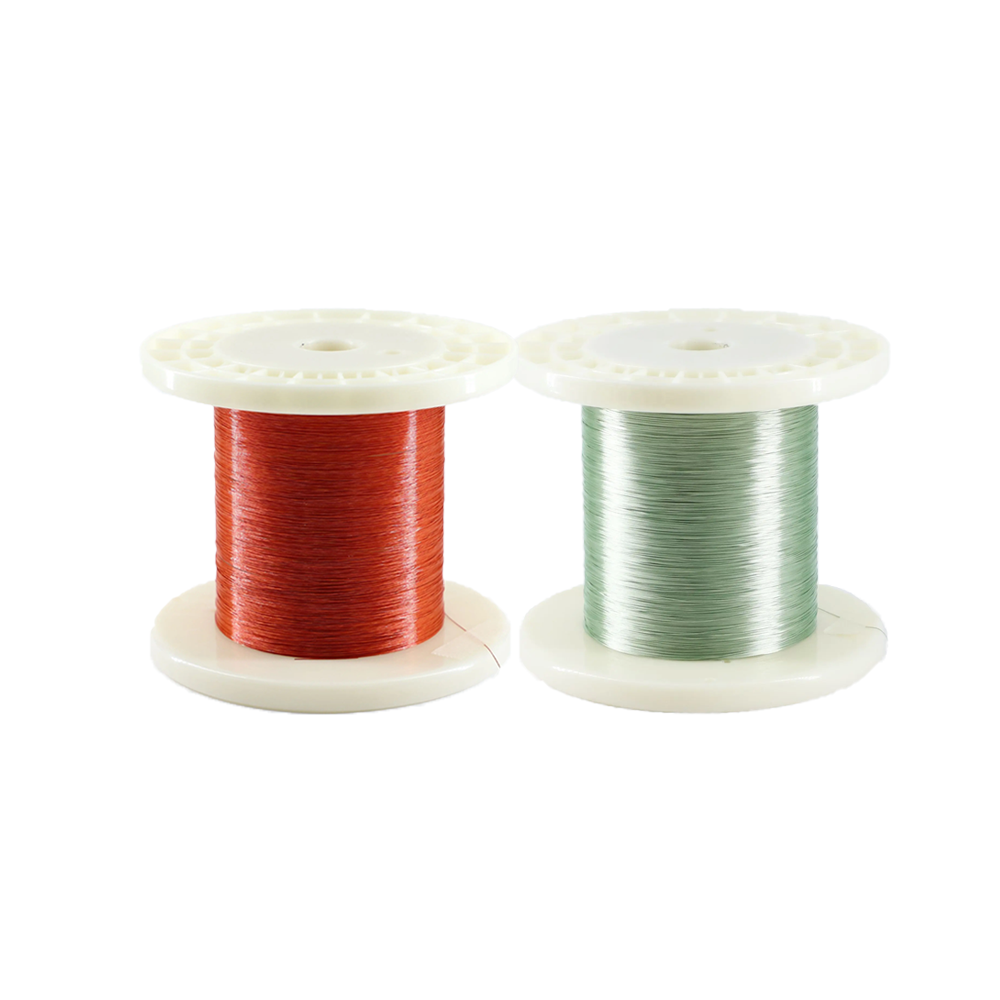

45Ω 46AWG High Temperature Micro Coaxial LVDS Cable for Electronics Automotive & Medical for Communication Applications
|
Item
|
Value
|
|
Model Number
|
32AWG-50AWG Coaxial Cable
|
|
Type
|
COAXIAL
|
|
Place of Origin
|
Jiangsu，China
|
|
Brand Name
|
Hotten Cable
|
|
Conductors
|
Silver Plated Copper Alloy
|
|
Insulation
|
PFA
|
|
Jacket
|
PFA（PET）
|
|
Characteristic Impedance(at 10MHz)
|
50Ω(42.5Ω 、45Ω 、75Ω）
|
|
Temperature Range
|
-55~+200
|
|
Rating voltage
|
30V
|
|
Customize
|
Supported
|
- Overview
- Recommended Products
- Silver plated copper alloy
- Silver plated copper
- PFA
- FEP
- PET Tape
- Silver plated copper alloy shielding
- Tinned copper shielding
- PFA
- PET
- FEP
- Customized materials
Product Overview
46AWG High Temperature Micro Coaxial LVDS Cable for Precision Signal Transmission
HOTTEN 46AWG Micro Coaxial LVDS Cable is designed for high-density electronic applications requiring compact dimensions, stable signal transmission and excellent environmental performance.
Featuring silver plated copper alloy conductors, PFA insulation and controlled impedance design, this ultra-fine coaxial cable provides reliable high-frequency signal transmission with excellent flexibility and temperature resistance.
The cable supports customized solutions including conductor materials, impedance requirements, shielding structures, outer diameter and connector assembly to meet different application requirements.
Key Features
Ultra Fine LVDS Micro Coaxial Cable Solution
🔹 46AWG ultra-fine conductor structure
🔹 45Ω controlled impedance
🔹 Silver plated copper alloy conductor
🔹 PFA high-temperature insulation
🔹 Excellent EMI shielding performance
🔹 Low signal attenuation
🔹 High flexibility and bending resistance
🔹 Customized cable structures available
Cable Structure
Precision Micro Coaxial Construction
Inner Conductor
Options:
Insulation Layer
Materials:
Shielding Layer
Options:
Outer Jacket
Options:
Applications
High Density Electronic Applications
Suitable for:
💻 Laptop Display Systems
📱 Mobile & Tablet Devices
🚁 UAV / Drone Systems
🏥 Medical Endoscope Equipment
🩺 Ultrasound Imaging Systems
📷 Camera Modules
📡 Communication Equipment
🚗 Automotive Electronics
Customization Options
HOTTEN provides customized Micro Coaxial Cable solutions:
✔ AWG Size
✔ Characteristic Impedance
✔ Cable Diameter
✔ Conductor Material
✔ Shielding Structure
✔ Insulation Material
✔ Jacket Material
✔ Connector Assembly
Why Choose HOTTEN
Professional Micro Coaxial Cable Manufacturer
Advanced Fine Wire Technology
HOTTEN specializes in ultra-fine coaxial cable development for high-density electronic applications.
Flexible OEM Customization
Cable structures can be customized according to electrical performance, mechanical requirements and application environments.
Reliable Quality Control
Professional testing equipment ensures stable impedance, insulation reliability and consistent production quality.
FAQ
Q1: What is a 46AWG micro coaxial cable used for?
46AWG micro coaxial cables are commonly used for high-density electronic devices, displays, cameras, drones, medical equipment and communication systems.
Q2: What is the advantage of PFA insulation?
PFA provides excellent temperature resistance, chemical stability and reliable insulation performance for demanding applications.
Q3: Can HOTTEN customize impedance?
Yes. HOTTEN supports customized impedance options including 42.5Ω, 45Ω, 50Ω and other requirements.
Q4: Can HOTTEN provide cable assembly solutions?
Yes. HOTTEN supports customized micro coaxial cable assemblies with connectors and harness solutions.
