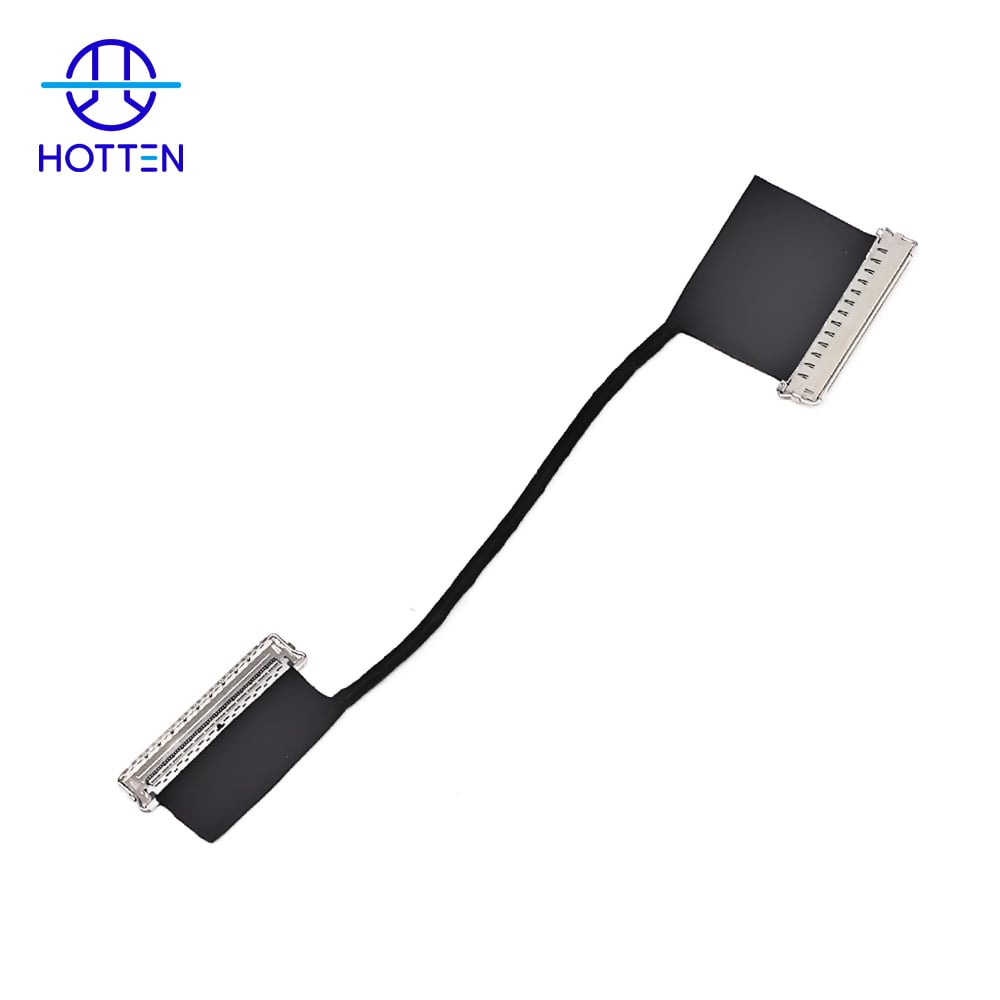

40AWG Micro Coaxial Harness Interface 20680 30/40P Custom Cable Assembly for Displays EDP LVDS

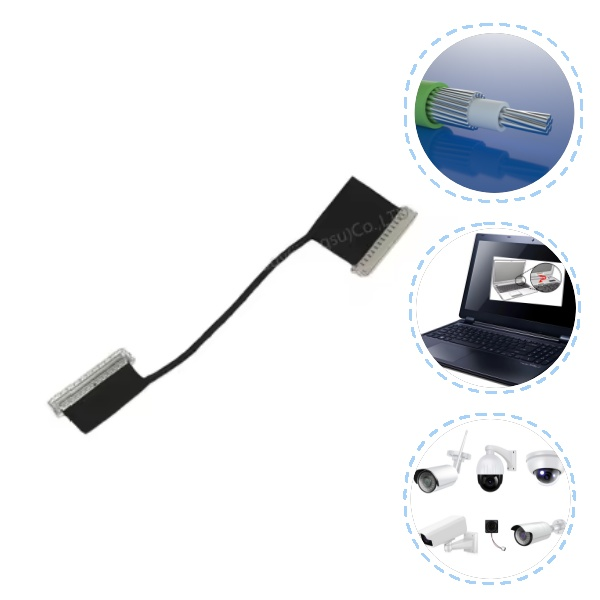

40AWG Micro Coaxial Cable Assembly for eDP LVDS Display Systems

Product Overview

🖥️ HOTTEN 40AWG Micro Coaxial Cable Assembly is designed for high-speed display signal transmission in compact electronic devices requiring thin, flexible and reliable connection solutions.

Using ultra-fine 40AWG micro coaxial cables with precision connectors, this assembly provides excellent signal integrity, EMI shielding performance and mechanical flexibility for eDP and LVDS display applications.

HOTTEN supports customized cable assembly solutions including connector selection, pin configuration, cable length, impedance, shielding structure and cable design according to customer requirements.

✨ Key Features

🔹 Ultra-Fine Micro Coaxial Design

Designed for space-limited applications:

✓ 40AWG micro coaxial cable

✓ Compact diameter structure

✓ Flexible routing capability

✓ Lightweight design

🔹 High-Speed Display Signal Transmission

Provides:

✓ Stable high-frequency transmission

✓ Low signal loss

✓ Excellent EMI protection

✓ Reliable display performance

🔹 Connector Customization

Support:

✓ I-PEX connectors

✓ JAE connectors

✓ HRS connectors

✓ Customized connector solutions

🔹 OEM Cable Assembly Capability

HOTTEN provides:

✓ Custom cable length

✓ Custom pin assignment

✓ Different core numbers

✓ Prototype development

✓ Mass production

Applications

Suitable for:

🔹 Laptop Display

🔹 Notebook PC

🔹 Tablet Devices

🔹 Industrial Display Systems

🔹 VR / AR Equipment

🔹 AI Smart Devices

Manufacturing Capability

HOTTEN provides complete micro coaxial cable solutions:

✓ Micro coaxial extrusion

✓ Shielding processing

✓ Connector assembly

✓ Electrical testing

✓ OEM production

Applications:

Advantages:

Optimized for eDP / LVDS Notebook & TV Panels

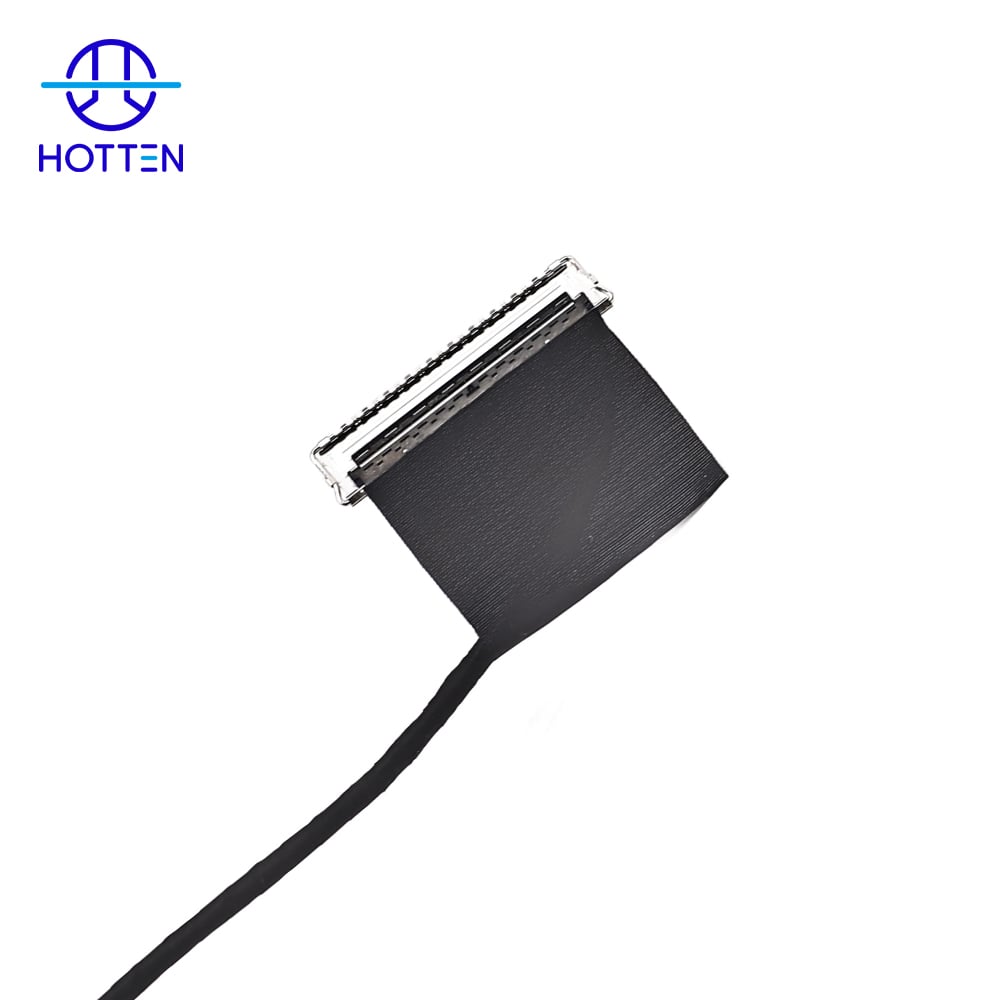

Genuine I-PEX 20680 30/40P Micro-Coax Connector

Ultra-Fine 40AWG Micro Coax for Slim Hinge Routing

Custom Length & Pin Assignment for OEM Projects

Why Choose HOTTEN

✓ Professional micro coaxial cable manufacturer

✓ Custom cable assembly capability

✓ Support from prototype to mass production

✓ ISO9001 / ISO13485 manufacturing system

✓ UL recognized wire production capability

FAQ

Q1: What is a micro coaxial cable assembly?

A micro coaxial cable assembly combines ultra-fine coaxial cables with connectors to provide high-speed signal transmission in compact electronic devices.

Q2: What applications use 40AWG micro coaxial cables?

They are commonly used in display systems, laptops, tablets, VR/AR devices and other high-density electronic equipment.

Q3: Can HOTTEN customize connectors and pin configurations?

Yes. HOTTEN supports customized connectors, pin assignments, cable lengths and structural designs.

Q4: What is the difference between LVDS and eDP cable?

LVDS and eDP are display signal transmission technologies. The suitable cable structure depends on device design, transmission requirements and connector specifications.

Q5: Does HOTTEN provide small batch samples?

Yes. HOTTEN supports prototype samples and customized production before mass manufacturing.
