Medical Cable Assembly Light Grey Jacket Molex & Ipex Connector Wire Harness Customized Service
| Item | Unit |
Specified Value
|
|
|
32AWG UTP(A)
|
32AWG Wire(B)
|
||
|
Rating temperature
|
℃
|
80 | |
|
Rating voltage
|
V
|
300 | |
|
Dielectric strength
|
AC.V/1min
|
500 | |
|
Conductor Resistance (at 20℃)
|
Ω/km
|
Max.580
|
Max.580
|
|
Insulation Resistance (20℃)
|
MΩ-km
|
Min.1,000
|
Min.1,000
|
|
Characteristic Impedance(at 2ns)
|
Ω
|
Nom.100
|
-
|
| Cable Spec. |
24C(1P×32AWG+22×32AWG)
|
| Conductor | Tinned Copper |
| Insulation | FEP |
|
Shielding
|
Tinned Copper |
|
Sheath
|
Silicone |
| Out Diameter |
4.8±0.2 mm
|
| Color |
Light Gray
|
| Customize Solution |
Support
|
- Overview
- Recommended Products
- 24C structure
- 1P × 32AWG + 22 × 32AWG
- Tinned copper
- Silver plated copper
- Copper alloy conductor
- FEP
- PFA
- ETFE
- Tinned copper braid
- Aluminum foil shielding
- Silicone
- PVC
- TPU
- TPE
- Thin & Flexible
- Low MOQ
- Compliance with RoHS/Reach/ISO13485/ Biocompatibility
- 100% Inspection before shipment
- Technical team support cable specification/drawing in 24 hrs
- Endoscopy handle cable
- Brian oximeter equipment cable
- Surgical equipment cable
Cable Electrical Characteristics
Product Overview
Customized Medical Cable Assembly for Medical Equipment
HOTTEN provides customized medical cable assembly solutions designed for medical equipment requiring reliable connection, flexible routing and stable electrical performance.
This medical wire harness integrates multi-core cable structures, shielding design and customized connector options to meet the requirements of medical devices, diagnostic equipment and surgical systems.
With complete cable manufacturing and assembly capabilities, HOTTEN supports OEM customers from cable design and prototype development to mass production.
Key Features
High Reliability Medical Wire Harness Solution
🔹 Customized medical cable assembly design
🔹 Molex and IPEX connector compatibility
🔹 Multi-core cable structure
🔹 Flexible silicone jacket
🔹 Excellent shielding performance
🔹 Stable electrical transmission
🔹 OEM / ODM customization support
🔹 100% inspection before shipment
Cable Structure

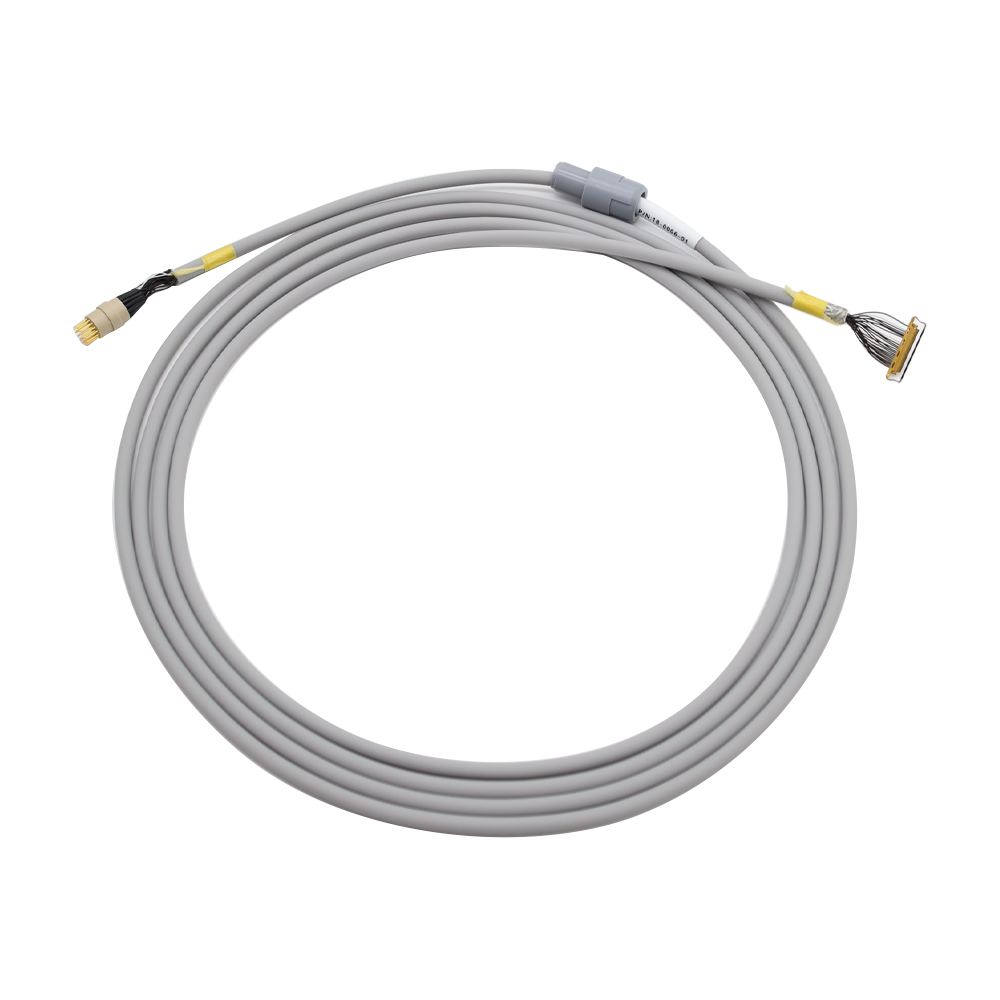

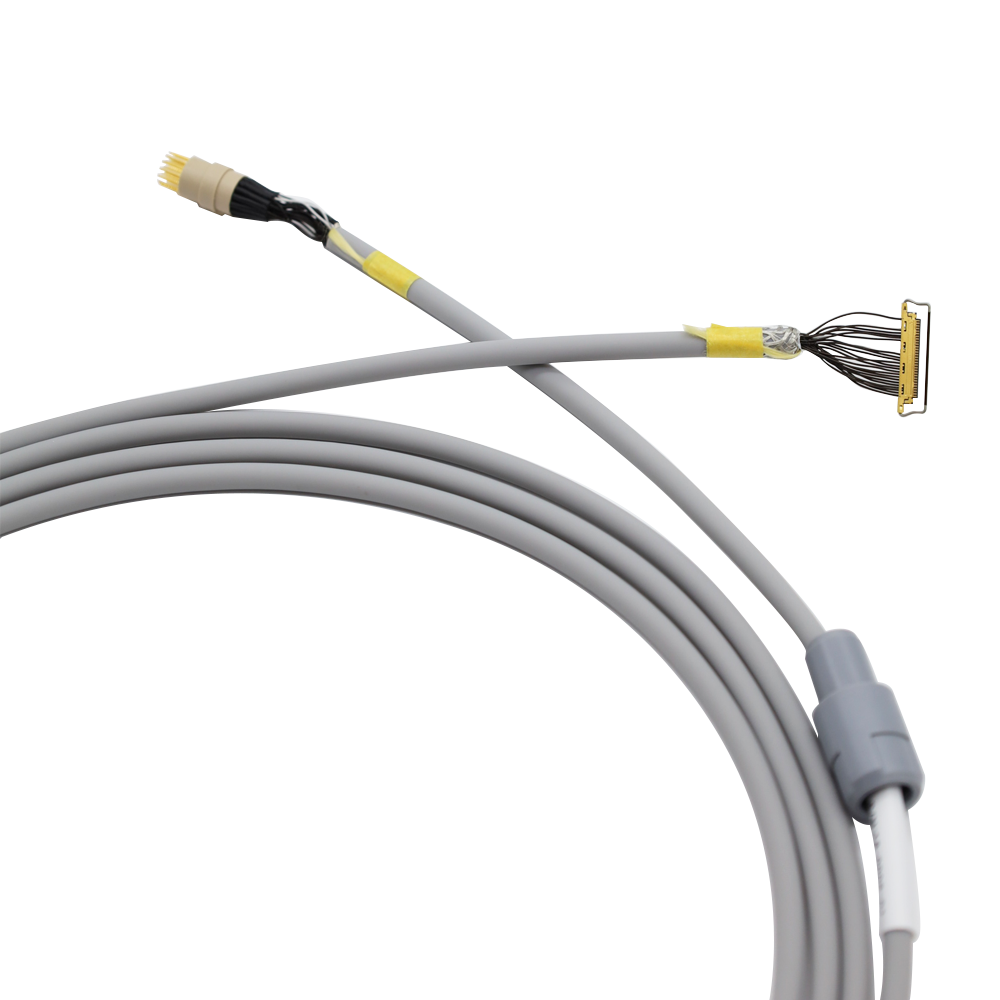

Medical Cable Assembly Configuration
Cable Specification
Example:
Conductor
Options:
Insulation
Options:
Shielding
Options:
Jacket
Options:
Connector Options

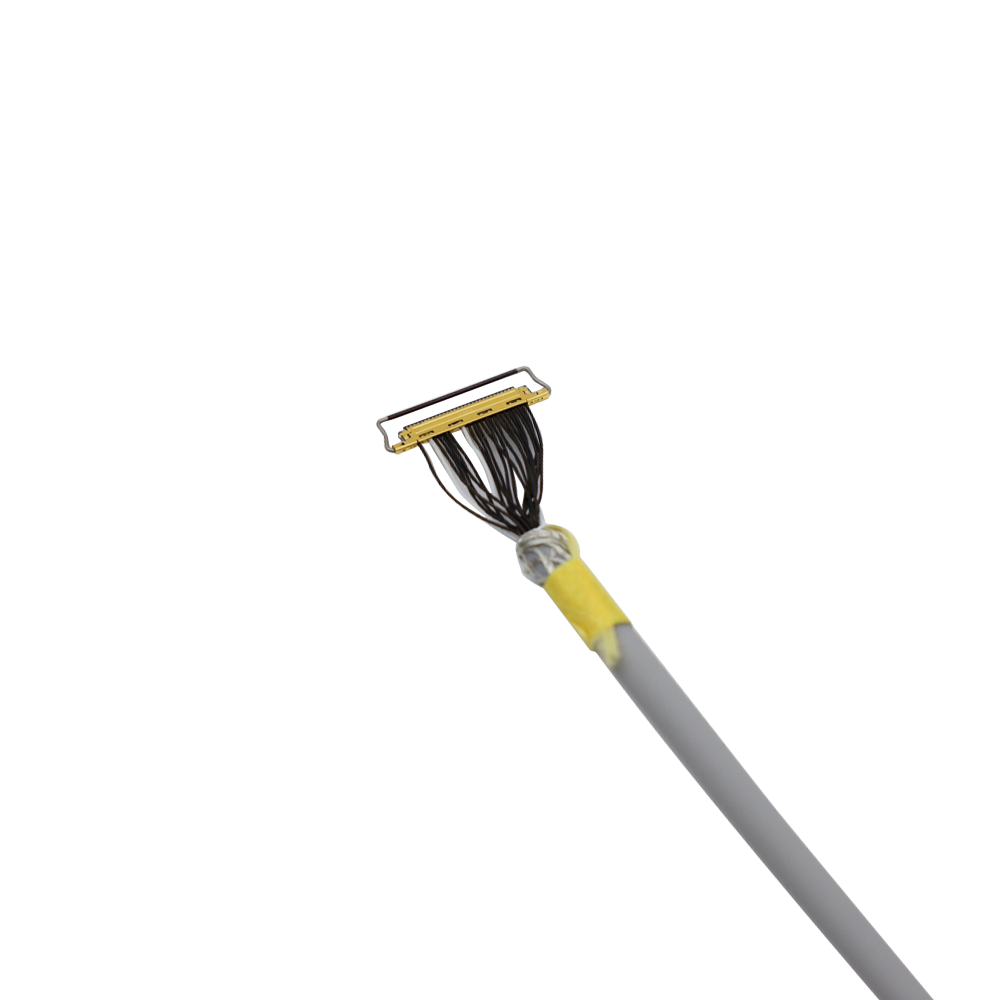

Customized Connector Assembly
Support:
✔ Molex connectors
✔ IPEX connectors
✔ JAE connectors
✔ Hirose connectors
✔ Customized connector solutions
Applications
Medical Equipment Applications
Suitable for:
🏥 Medical Diagnostic Equipment
🔬 Endoscopy Systems
🩺 Surgical Equipment
⚕️ Patient Monitoring Equipment
🧠 Brain Oximeter Equipment
Customization Options
HOTTEN supports:
✔ Cable length
✔ Connector selection
✔ Pin assignment
✔ Core configuration
✔ Jacket color
✔ Shielding structure
✔ Cable diameter
✔ Prototype samples
✔ Mass production

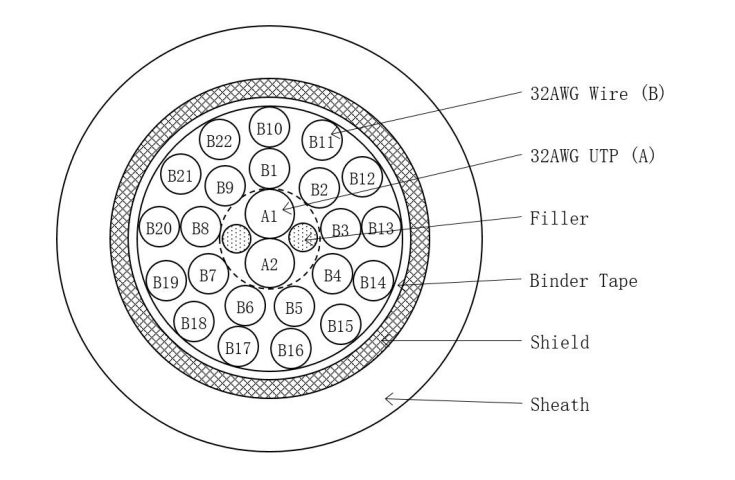

Cable Cross-Section
Advantage
Use
FAQ
What is a medical cable assembly?
A medical cable assembly is an integrated cable solution combining wires, shielding, jackets and connectors for medical equipment connection.
Can HOTTEN customize medical wire harnesses?
Yes. HOTTEN supports customized cable structures, connectors, dimensions and electrical requirements.
Which connectors can be used for medical cable assemblies?
HOTTEN supports Molex, IPEX and other customized connector solutions according to customer requirements.
