42AWG Micro Coaxial Cable Line Assembly FPC30P Wiring Harness for EDP LVDS Screen Panel (Notebook PC/TV)

Product Overview

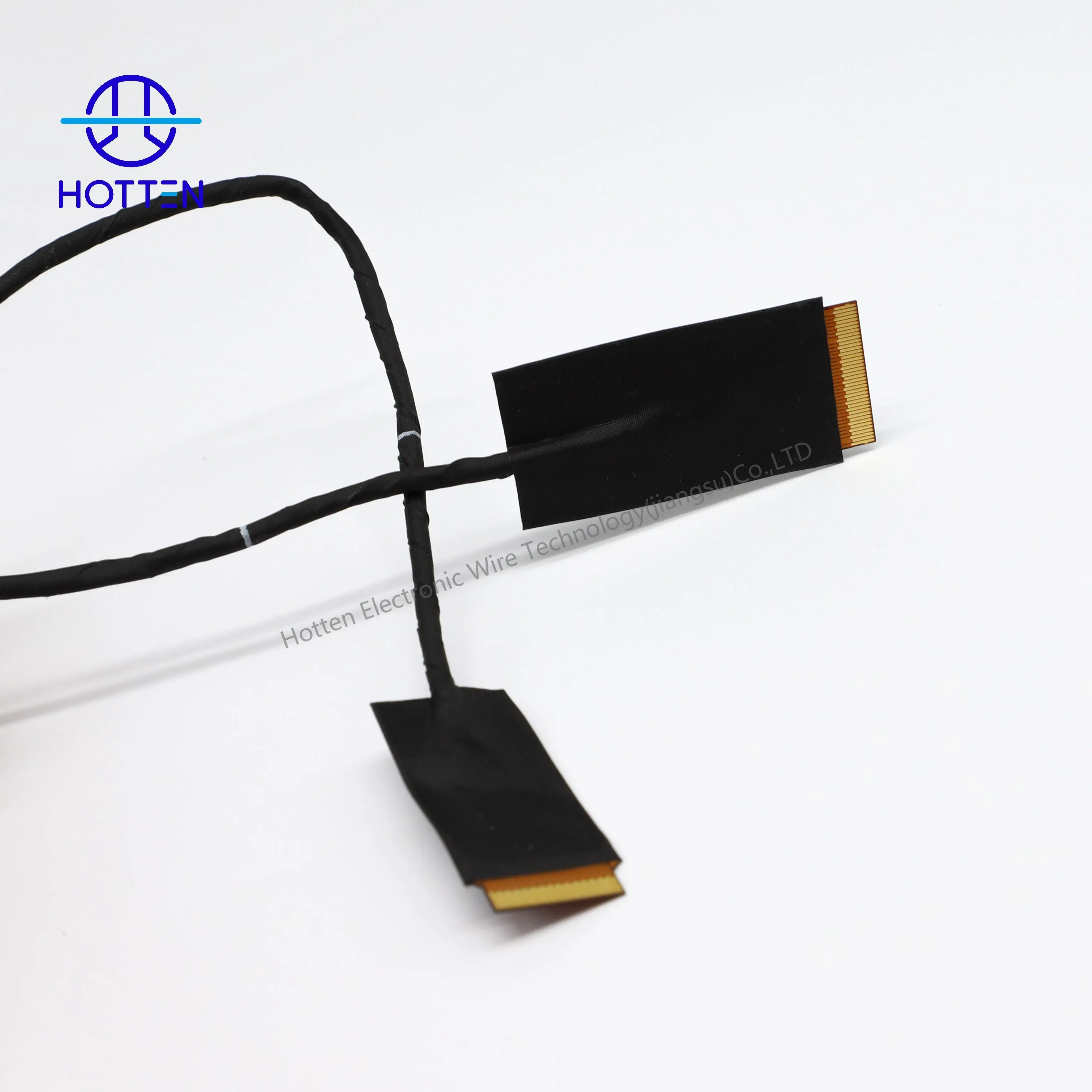

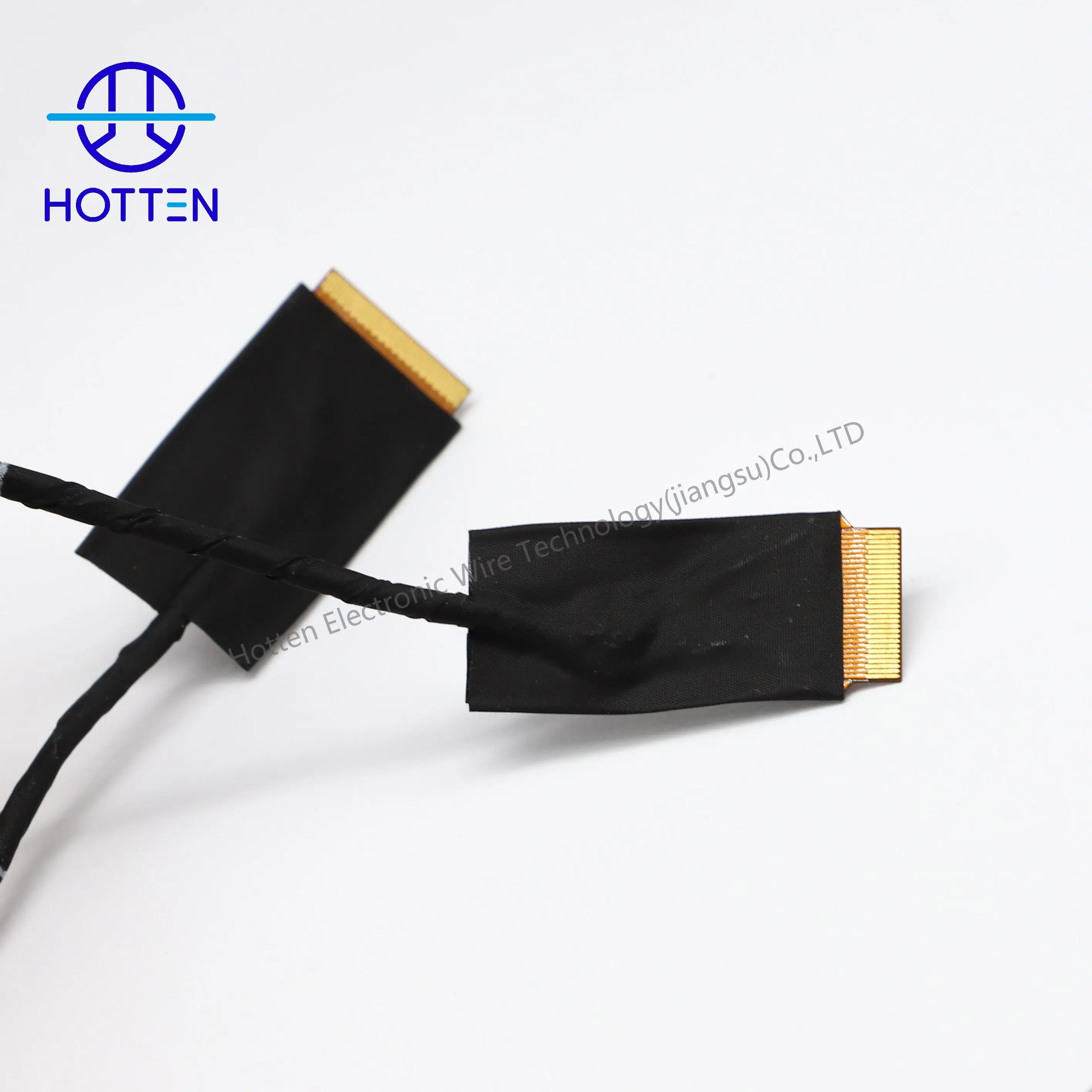

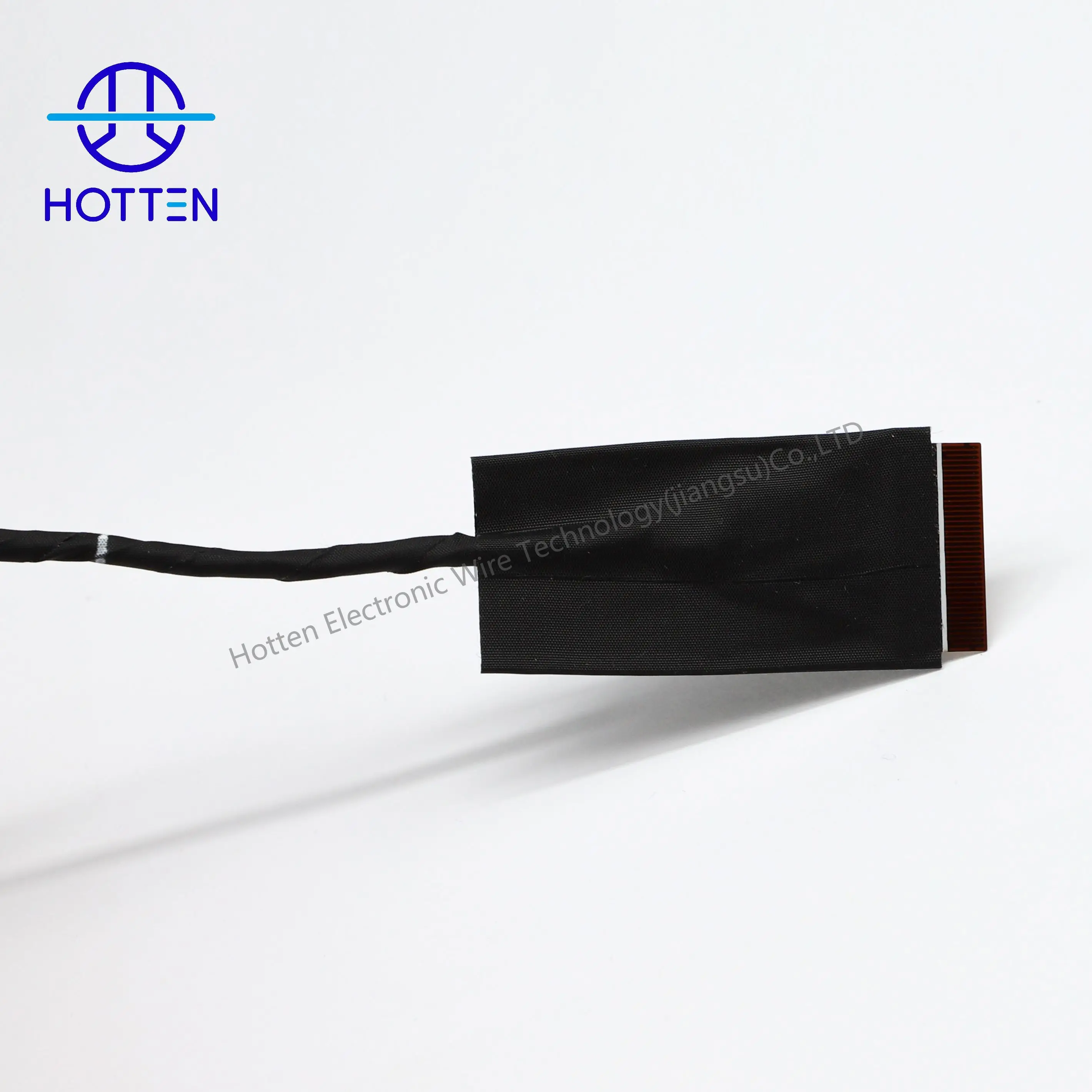

The HOTTEN FPC 30-Pin 42AWG Micro Coaxial Cable Assembly is designed for compact display interconnections in notebook computers, TVs and other electronic equipment using compatible eDP or LVDS display interfaces.

This assembly features 42AWG micro coaxial cables and a 30-pin FPC connection configuration. PFA insulation and configurable shielding constructions support customized cable designs where space constraints, signal integrity and electromagnetic interference control are important considerations.

HOTTEN supports custom micro coaxial cable assemblies based on customer drawings, reference samples, connector part numbers and pin assignments. Cable length, connector configuration, shielding, cable routing and other mechanical requirements can be defined according to the target display system.

The final cable assembly must match the specified display interface, connector footprint, pin mapping and electrical requirements of the equipment.

Key Features

42AWG Micro Coaxial Cables

The 42AWG micro coaxial construction supports compact, high-density interconnection designs for space-constrained electronic equipment. The electrical and mechanical performance depends on the selected cable construction and assembly layout.

FPC 30-Pin Connection Configuration

The 30-pin configuration provides a defined connection interface for compatible display assemblies. The connector model, pitch, contact arrangement and pin assignment should be confirmed against the customer's drawing or original cable sample.

PFA Insulation

PFA insulation is specified for the referenced cable design. The final cable structure and material selection should be confirmed against the approved technical specification.

Configurable Shielding

Silver-plated copper, silver-plated copper alloy, tinned copper or tinned copper alloy shielding options are listed in the product reference. The appropriate construction should be selected according to the electrical, shielding and mechanical requirements of the application.

Custom Connector and Cable Integration

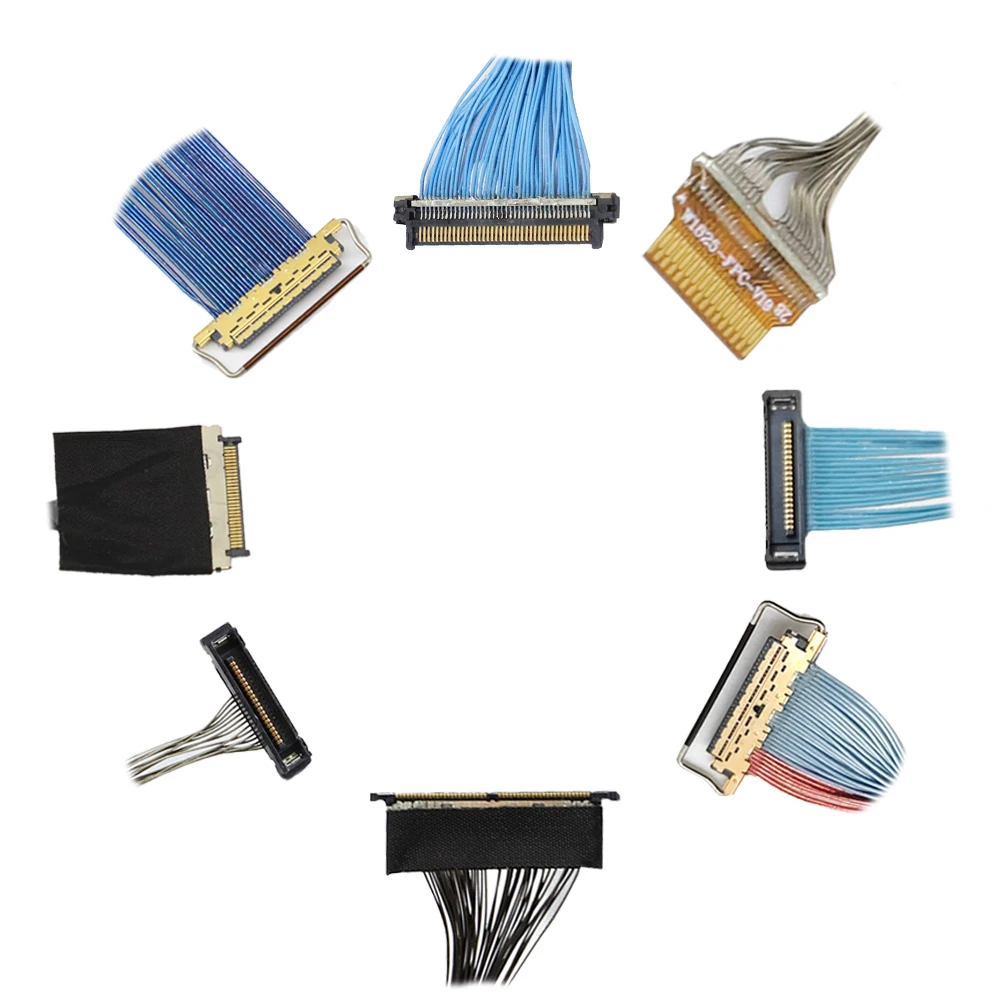

Connector options listed in the product reference include FPC/FPCA and connector types associated with JAE, KEL and Honda. Final connector compatibility must be confirmed by exact part number, footprint and pin assignment.

OEM Cable Assembly Development

HOTTEN supports customized cable assembly development from drawings, samples and BOM requirements, including cable length, connector integration, wiring configuration and assembly requirements.

Technical Specifications

Final specifications depend on the selected cable and connector configuration. Published options should not be interpreted as simultaneously applicable to every assembly.

Typical Applications

The FPC 30-pin 42AWG micro coaxial cable assembly can be customized for:

• Notebook and laptop display panels

• Compatible TV display interconnections

• Compact electronic display modules

• eDP display cable designs

• LVDS display cable designs

• Other electronic equipment requiring fine-pitch micro coaxial connections

eDP and LVDS are different display interface designs. The connector, pin assignment and cable electrical requirements must match the intended interface; one configuration should not be assumed to support both interfaces without verification.

Engineering & Procurement Considerations

When selecting a 30-pin micro coaxial cable assembly, engineers should verify the connector interface, cable electrical characteristics and mechanical routing requirements together.

1. Connector Part Number and Pin Assignment

Provide the exact connector part number, mating interface drawing, contact pitch and pin assignment. Similar-looking 30-pin connectors are not necessarily interchangeable.

2. eDP or LVDS Interface Requirements

Identify the target display interface and provide the panel or system specification. Differential-pair mapping, grounding and any shielding or routing requirements should follow the actual electrical design.

3. Impedance and Signal Integrity

Confirm the required characteristic impedance and applicable tolerance for the selected cable structure. The impedance options listed in the product reference should be treated as configuration options, not as a universal specification for every cable.

4. Cable Length and Mechanical Routing

Define the finished cable length, cable exit direction, bend conditions, routing space and any reinforcement requirements. These details are especially important for compact notebook display assemblies.

5. Shielding and EMI Requirements

Specify the preferred shielding construction and any system-level EMI/EMC acceptance criteria. The final shielding design should be evaluated against the actual product requirements.

6. Sampling and Quality Acceptance

Before mass production, confirm the connector part numbers, pin mapping, cable length, dimensional tolerances, continuity requirements and relevant electrical test criteria. Approve the sample against the drawing before production release.

Custom Micro Coaxial Cable Assembly for OEMs

HOTTEN supports customized micro coaxial cable assembly projects based on drawings, reference samples, BOMs and interface specifications.

For engineering review and quotation, please provide:

• Connector part numbers and mating interface drawings

• Required pin count and pin assignment

• Target display interface: eDP or LVDS

• Cable length and routing requirements

• Required impedance and electrical specifications

• Cable construction and shielding preferences

• Estimated order quantity and prototype requirements

HOTTEN can review the specified cable construction and assembly requirements to support a custom display interconnect solution.

Request a Custom Micro Coaxial Cable Quote

Send your drawing, existing cable sample or connector details to discuss a customized FPC 30-pin 42AWG micro coaxial cable assembly for your display application.
