KEL XSLS 30-Pin to HRS DF36 20-Pin Hybrid Micro Coaxial Cable Assembly 80mm

Product Overview

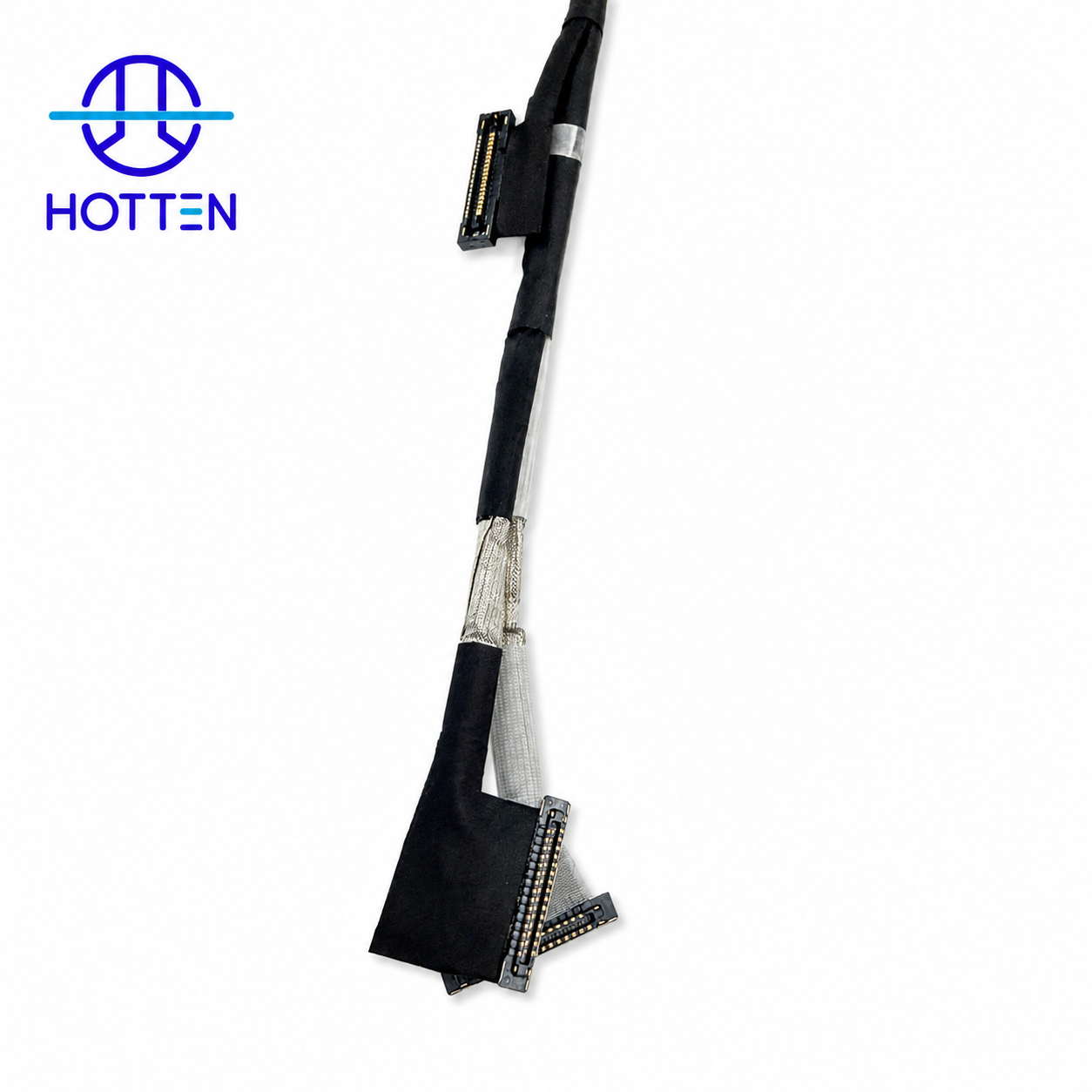

The HOTTEN KEL XSLS 30-Pin to HRS DF36 20-Pin Hybrid Micro Coaxial Cable Assembly is an 80mm interconnect assembly designed for camera and drone vision system integration.

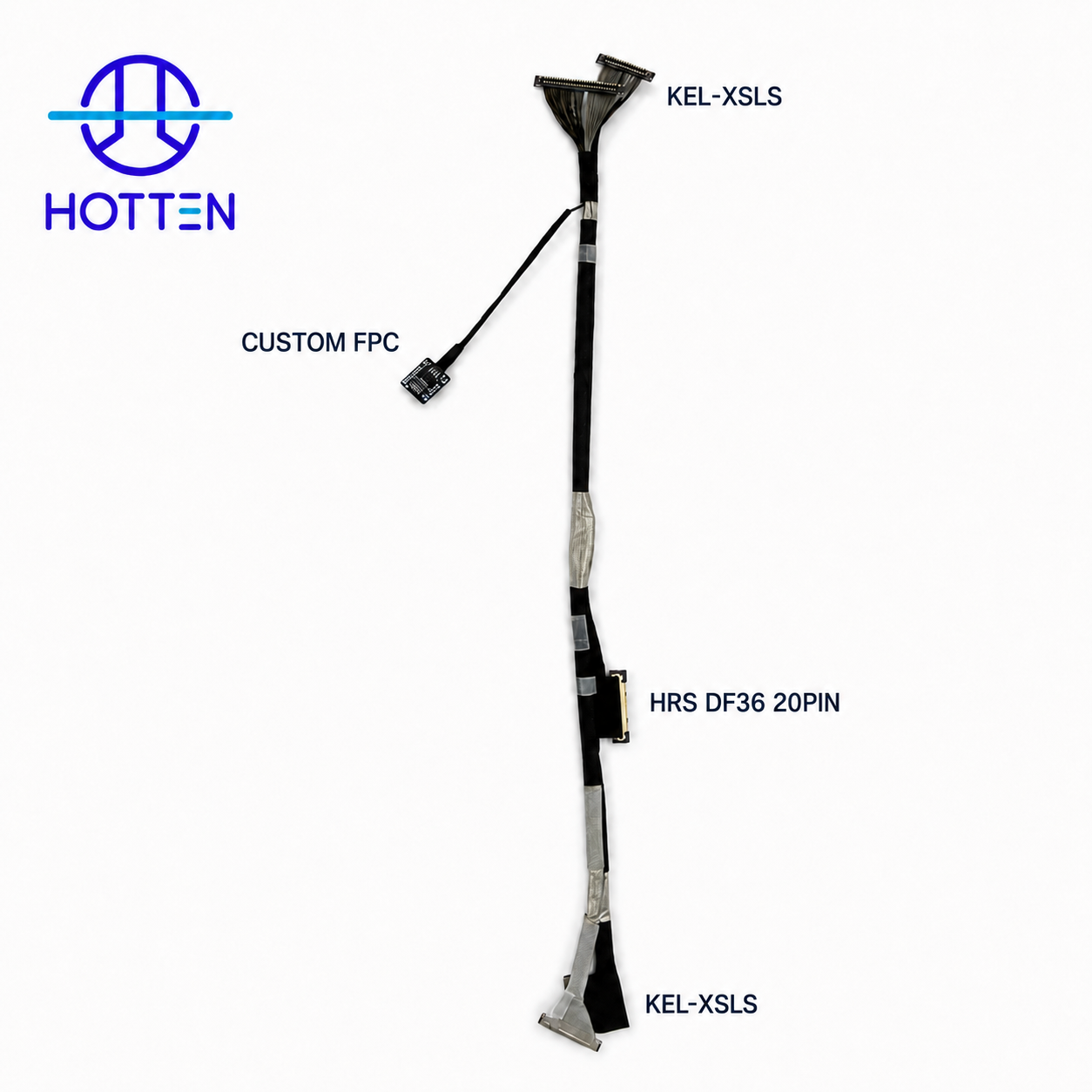

The assembly combines a 30-pin KEL XSLS connector interface with a 20-pin HRS DF36 interface. Its defined connector combination and cable length make it suitable for projects where connector compatibility, compact installation space and cable routing must match the equipment design.

HOTTEN supports OEM cable assembly projects based on customer drawings, samples and connector specifications. The final cable construction, pin assignment and electrical requirements should be confirmed against the approved design before production.

Technical Specifications

Connector Configuration and Cable Integration

This assembly uses different connector interfaces at its two ends. Before manufacturing, the exact connector part numbers, mating interfaces, pin assignments and connector orientations should be verified against the equipment design.

For camera and drone vision systems, a short cable length does not remove the need for mechanical and electrical verification. The assembly must fit the available routing space while meeting the application's connection and signal requirements.

If the design uses multiple coaxial channels or combines coaxial lines with discrete conductors, then the internal cable structure and termination details should be documented in the approved drawing. These details must be confirmed rather than inferred from the connector pin counts alone.

OEM Cable Assembly Manufacturing

HOTTEN can review customer drawings, samples, BOMs and connector part numbers to establish the required manufacturing scope. Depending on the approved design, this may include cable processing, connector sourcing, termination, soldering and finished assembly.

For repeat production, the connector combination, cable length, pinout, orientation and inspection criteria should be standardized to help maintain consistency between batches.

Quality Inspection and Acceptance

Inspection requirements should follow the approved product specification. Depending on the assembly design, agreed checks may include:

• Connector model and orientation verification

• Finished cable length and dimensional inspection

• Visual inspection of termination and assembly workmanship

• Continuity and pin-to-pin verification

• Additional electrical tests when required by the customer

Signal-integrity or high-speed performance claims should only be included when the relevant requirements and supporting test data are available.

RFQ Requirements

For quotation and engineering review, please provide the assembly drawing or sample, exact KEL XSLS and HRS DF36 connector part numbers, pin assignment, required cable length, internal cable configuration and applicable electrical requirements.

HOTTEN can review these inputs to confirm the production configuration and inspection scope for the camera or drone vision system.
