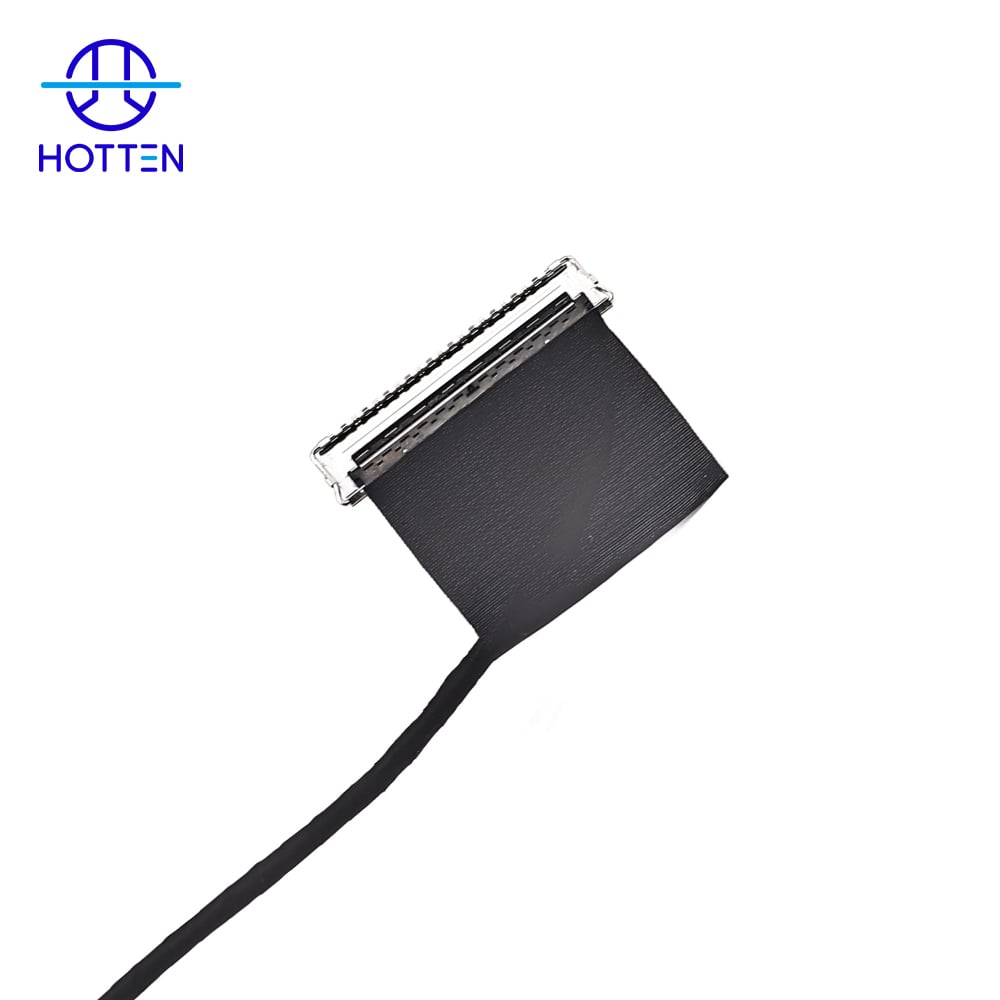

40AWG 20680 30/40P EDP/LVDS Display Cable Assembly

Customization & OEM Capability

HOTTEN supports customized micro coaxial cable assemblies according to customer drawings, samples, connector specifications and electrical requirements.

Available customization options include:

• Cable length

• Cable core count

• Connector type

• Connector manufacturer

• 30P / 40P configuration

• Pin assignment

• Cable diameter

• Shielding structure

• Characteristic impedance

• Insulation material

• Jacket and protective structure

• Panel-side and board-side connector configuration

For new projects, customers can provide a technical drawing, connector part number, pin assignment, sample cable or basic electrical requirements. HOTTEN can evaluate the required cable construction and assembly configuration and develop a customized solution.

Manufacturing & Engineering Support

HOTTEN specializes in fine-wire and micro coaxial cable assemblies for compact electronic applications. We support customized cable assembly projects rather than only supplying standard off-the-shelf cables.

Our engineering and manufacturing process can support projects from:

Sample → Prototype → Engineering Validation → Mass Production

The production process can be adapted to different cable structures, connector configurations, pin assignments and electrical requirements.

For high-density display applications, HOTTEN can provide customized micro coaxial assemblies designed around the customer's available installation space, signal requirements and connector interface.

Why Choose HOTTEN

Fine-Wire & Micro Coaxial Expertise

HOTTEN focuses on fine-wire and micro coaxial cable solutions for compact electronic applications where cable size, flexibility and signal transmission performance are important.

Custom Cable Assembly

We provide customized solutions integrating:

Cable + Connector + Pin Assignment + Length + Cable Structure

This allows the cable assembly to be developed according to the customer's complete system requirements rather than using a standard cable configuration.

High-Density Cable Solutions

The 40AWG micro coaxial construction is suitable for applications where multiple signal channels must be routed through limited installation space.

Flexible Connector Configuration

Connector type, connector manufacturer, pin count and connector-side configuration can be customized according to the customer's design requirements.

Prototype to Mass Production

HOTTEN can support customized cable projects from initial samples and prototypes through engineering validation and volume production.

Quality & Compliance

The product is designed and manufactured according to applicable customer quality requirements. Available compliance and management system information includes RoHS, REACH, ISO 9001 and ISO 13485.

Frequently Asked Questions

What is a 40AWG micro coaxial display cable?

A 40AWG micro coaxial display cable uses ultra-fine coaxial conductors to transmit display signals while maintaining a compact cable structure. It is suitable for high-density electronic devices where internal installation space is limited.

Is this cable suitable for both eDP and LVDS applications?

Yes. The cable assembly can be configured for eDP or LVDS display applications according to the customer's electrical interface, connector configuration, pin assignment and signal requirements.

Can you provide both 30-pin and 40-pin versions?

Yes. HOTTEN can manufacture 30P and 40P cable assemblies according to the customer's connector and pin assignment requirements.

Can the connector be customized?

Yes. The connector can be selected according to the customer's design requirements. Specified connector models and manufacturers can be evaluated for the cable assembly.

Can the cable length be customized?

Yes. Cable length can be customized according to the customer's equipment design, installation space and routing requirements.

Can you customize the pin assignment?

Yes. Pin assignment can be manufactured according to the customer's electrical schematic or cable drawing.

Can you provide samples before mass production?

Yes. HOTTEN supports sample and prototype production for customized cable assembly projects. Samples can be used for mechanical and electrical validation before volume production.

What information is required for a quotation?

For a faster quotation, customers can provide the following information:

• Cable drawing

• Connector part number

• Pin count

• Pin assignment

• Cable length

• AWG requirement

• Application

• Estimated quantity

If some specifications are not available, HOTTEN can evaluate the project based on the available technical information.

What applications use this type of cable?

Typical applications include notebook PCs, laptops, TV display systems, LCD display modules and other compact electronic devices requiring high-density eDP or LVDS signal connections.

Can HOTTEN develop a completely customized cable assembly?

Yes. HOTTEN can customize the cable, connector, cable length, pin assignment, shielding structure and overall assembly configuration according to the customer's technical requirements.

Request a Custom Cable Assembly

If you are looking for a 40AWG 20680 EDP/LVDS display cable assembly, please send us your cable drawing, connector model, pin assignment, required length and estimated quantity.

HOTTEN can evaluate your requirements and provide a customized cable assembly solution for prototype development or volume production.
