42AWG HRS DF36 30P/40P Camera Micro Coax Cable Assembly

Product Overview

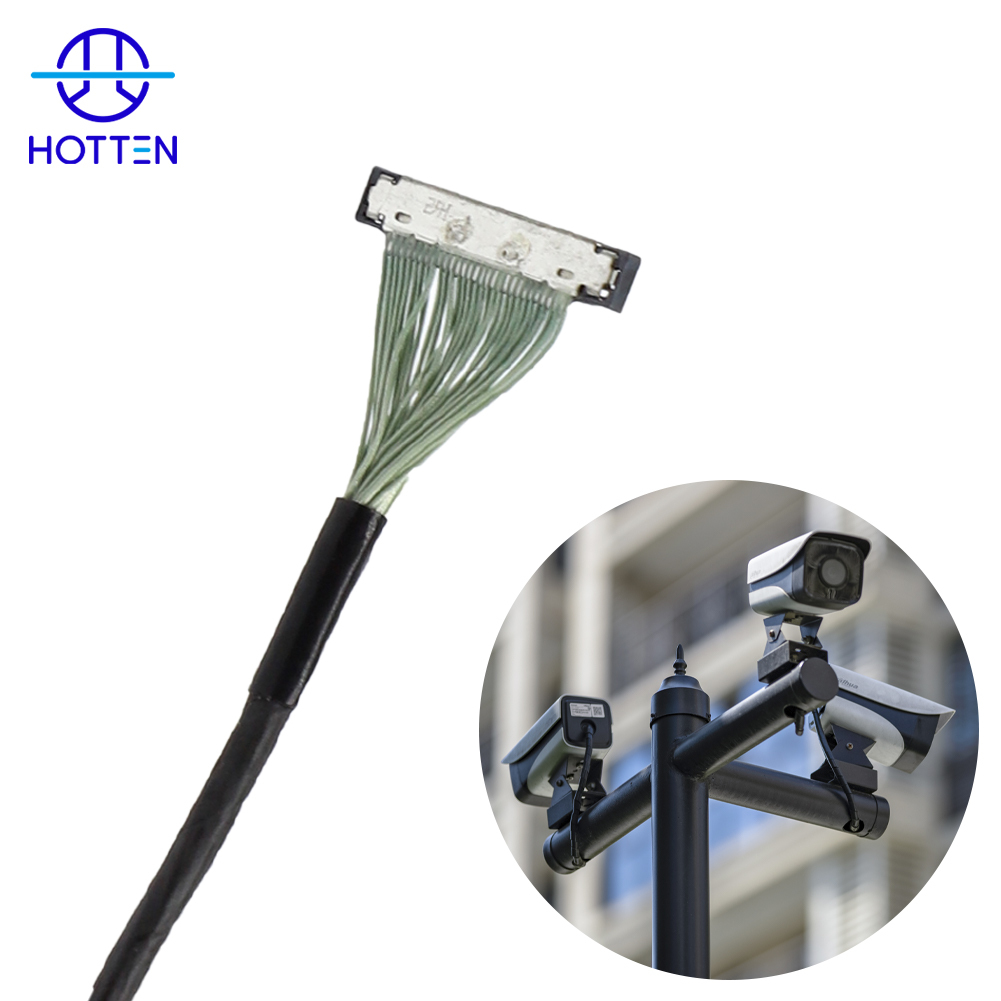

The 42AWG HRS DF36 30P/40P Camera Micro Coax Cable Assembly is a compact high-density cable solution designed for camera, IP camera and other small electronic devices requiring reliable signal transmission within limited installation space.

Using ultra-fine 42AWG micro coaxial cable and a high-density HRS DF36 connector configuration, this cable assembly provides a compact and flexible connection solution for applications where conventional cable assemblies may be too large or difficult to route.

The assembly can be customized according to the customer's connector requirements, cable length, pin assignment, cable structure and application environment. HOTTEN supports both prototype development and volume production for OEM and ODM cable assembly projects.

Key Features

• Ultra-Fine 42AWG Micro Coaxial Cable for compact electronic applications

• HRS DF36 Connector Configuration for high-density cable connections

• Available in 30P / 40P configurations

• Compact cable structure for space-constrained equipment

• Flexible routing for cameras and small electronic devices

• Suitable for high-density signal transmission

• Individual coaxial shielding helps reduce electromagnetic interference

• Custom cable length, connector configuration and pin assignment

• Suitable for prototype and mass-production requirements

• OEM and ODM cable assembly support

Typical Applications

The 42AWG HRS DF36 micro coaxial cable assembly is suitable for applications requiring compact, high-density signal connections, including:

• IP Cameras

• Compact Camera Modules

• Industrial Camera Systems

• Imaging Equipment

• Gimbal Camera Systems

• Robotics Vision Systems

• UAV and Drone Cameras

• Embedded Vision Devices

• Smart Electronics

• Other compact electronic equipment

Technical Specifications

Customization & OEM Capability

HOTTEN supports customized micro coaxial cable assemblies according to customer drawings, samples, connector specifications and electrical requirements.

Available customization options include:

• Cable length

• Cable core count

• Connector model

• Connector manufacturer

• 30P / 40P configuration

• Pin assignment

• Cable diameter

• Shielding structure

• Characteristic impedance

• Insulation material

• Jacket and protective structure

• Connector-side configuration

For new camera and imaging projects, customers can provide a technical drawing, connector part number, pin assignment, sample cable or basic electrical requirements. HOTTEN can evaluate the required cable construction and assembly configuration.

Manufacturing & Engineering Support

HOTTEN specializes in fine-wire and micro coaxial cable assemblies for compact electronic and imaging applications.

Our engineering and manufacturing process can support projects from:

Sample → Prototype → Engineering Validation → Mass Production

For camera and IP camera applications, the cable assembly can be developed according to the customer's available installation space, connector interface, cable routing requirements and signal transmission requirements.

HOTTEN can integrate the micro coaxial cable, connector and assembly configuration into a customized cable solution rather than supplying only a standard cable.

Why Choose HOTTEN

Fine-Wire & Micro Coaxial Expertise

HOTTEN focuses on fine-wire and micro coaxial cable solutions for compact electronic applications where cable size, flexibility and signal transmission performance are important.

High-Density Camera Cable Solutions

The 42AWG micro coaxial construction allows multiple signal channels to be integrated into a compact cable assembly, making it suitable for cameras and other space-constrained electronic devices.

HRS DF36 Connector Integration

HOTTEN can build cable assemblies around HRS DF36 connector configurations and evaluate connector and pin requirements according to the customer's design.

Flexible Customization

Cable length, connector configuration, pin assignment, shielding structure, cable diameter and other assembly parameters can be customized according to the project.

Prototype to Mass Production

HOTTEN supports customized cable projects from initial samples and prototypes through engineering validation and volume production.

Quality & Compliance

The product is manufactured according to applicable customer quality requirements. Available compliance and management system information includes RoHS, REACH, ISO 9001 and ISO 13485.

Frequently Asked Questions

What is a 42AWG micro coaxial cable assembly?

A 42AWG micro coaxial cable assembly uses ultra-fine coaxial conductors to provide signal connections while maintaining a compact cable structure. It is suitable for cameras, imaging equipment and other small electronic devices.

What is the HRS DF36 connector used for?

The HRS DF36 series is a compact connector configuration suitable for high-density electronic connections. When combined with micro coaxial cable, it can provide a compact connection solution for camera and imaging applications.

Can you provide both DF36 30P and 40P versions?

Yes. HOTTEN can manufacture cable assemblies using 30P or 40P configurations according to the customer's connector and pin assignment requirements.

Can the cable length be customized?

Yes. Cable length can be manufactured according to the customer's equipment dimensions, installation space and cable routing requirements.

Can the pin assignment be customized?

Yes. HOTTEN can manufacture the cable assembly according to the customer's electrical schematic, pin assignment table or cable drawing.

Can the connector be customized?

Yes. Customers can specify the connector model and manufacturer. HOTTEN can evaluate the connector configuration according to the project requirements.

Can you provide samples before mass production?

Yes. HOTTEN supports sample and prototype production so customers can verify mechanical fit, electrical performance and installation before volume production.

What applications are suitable for this cable?

Typical applications include IP cameras, compact camera modules, industrial imaging equipment, gimbal cameras, UAV cameras, robotics vision systems and embedded imaging devices.

What information is required for a quotation?

For a faster quotation, customers can provide:

• Connector model

• Pin count

• Pin assignment

• Cable length

• AWG requirement

• Cable drawing

• Application

• Estimated quantity

If some specifications are not available, HOTTEN can evaluate the project based on the information available.

Can HOTTEN develop a completely customized camera cable assembly?

Yes. HOTTEN can customize the cable, connector, cable length, pin assignment, shielding structure and overall assembly configuration according to the customer's technical requirements.

Request a Custom Camera Cable Assembly

If you are looking for a 42AWG HRS DF36 30P/40P camera micro coaxial cable assembly, please send us your connector model, pin assignment, cable length, drawing and estimated quantity.

HOTTEN can evaluate your requirements and provide a customized cable assembly solution for prototype development or volume production.

Request a Quote | Contact HOTTEN
