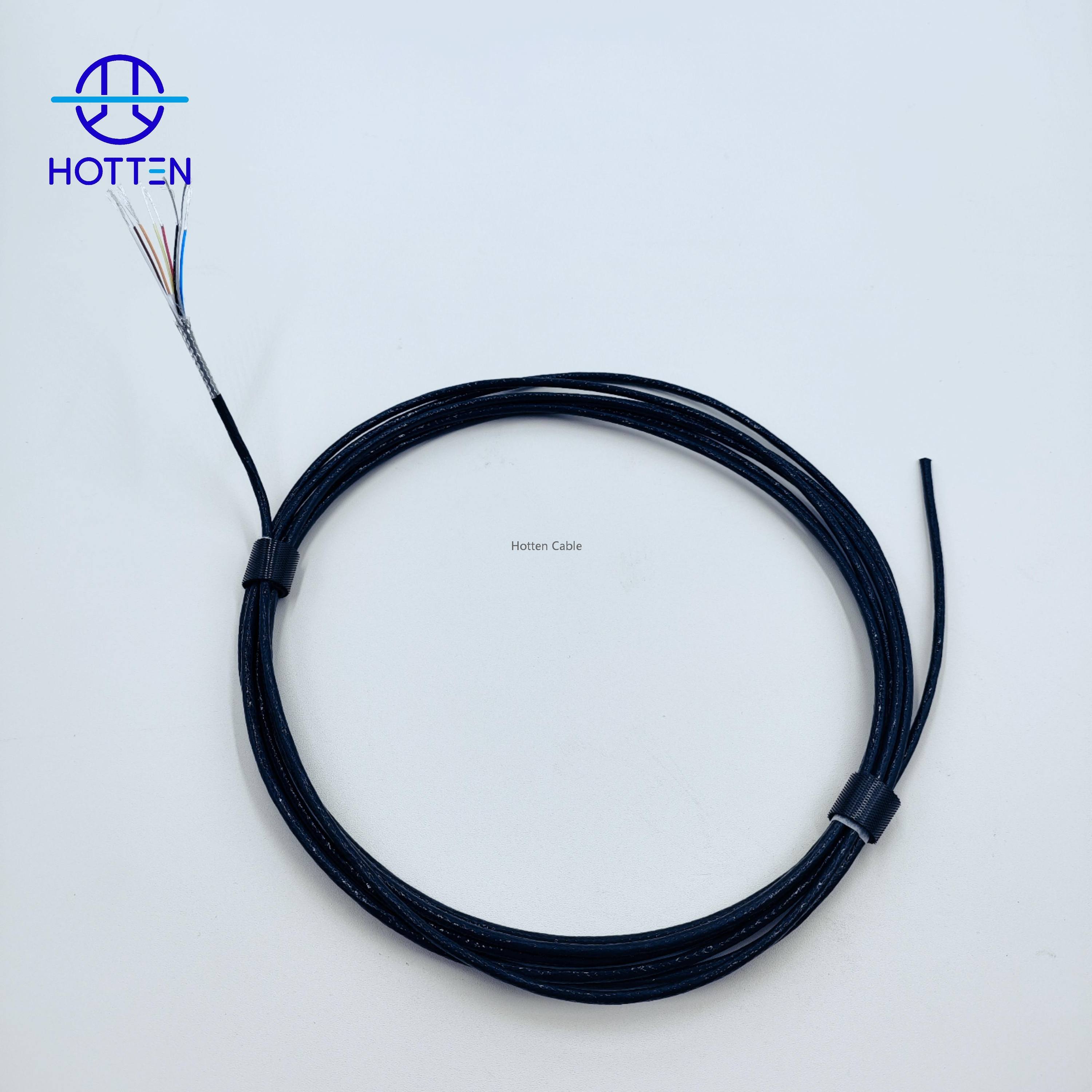

SP30-212-1 Customized Endoscope Cable with PET/PFA Insulation

SP30-212-1 Customized Endoscope Cable with PET/PFA Insulation

Product Overview

HOTTEN's SP30-212-1 customized endoscope cable is designed for endoscopic imaging equipment and medical device applications requiring a dedicated cable connection between internal components.

The cable uses a silver-plated copper conductor with PET/PFA insulation and can be configured according to the requirements of the endoscope system, including cable length and connection configuration.

With its application-specific construction, the SP30-212-1 cable can be evaluated for endoscopic equipment where cable routing, insulation structure and reliable component connection are important.

Key Specifications

Key Features

• SP30-212-1 configuration — A defined cable configuration for endoscope connection applications.

• Silver-plated copper conductor — Provides a specialized conductor construction for the cable design.

• PET/PFA insulation — Uses PET/PFA insulation materials according to the listed cable configuration.

• Application-specific construction — Designed around the connection and routing requirements of endoscopic equipment.

• Custom cable length — Cable length can be specified according to the equipment design and installation requirements.

• Custom connection configuration — Termination and connection requirements can be evaluated according to customer drawings and interface specifications.

• Medical equipment application — Suitable for evaluation in endoscopic imaging and related medical device applications.

Applications

Endoscopic Imaging Equipment

For cable connections used within endoscopic imaging equipment and related assemblies.

Endoscope Systems

Suitable for internal cable routing and connection requirements in endoscope equipment.

Medical Imaging Devices

Can be evaluated for medical imaging systems requiring customized cable structures and connection configurations.

Endoscopic Camera Assemblies

For cable connections associated with camera and imaging components in endoscopic equipment.

Customization & Engineering Requirements

Endoscope cable requirements vary according to equipment construction, internal routing, connector configuration and electrical design.

HOTTEN can evaluate customized cable requirements based on the customer's technical information.

For RFQ evaluation, customers can provide drawings, BOM information, connector part numbers, cable length, pinout and other available technical specifications.

Engineering & Procurement Considerations

When sourcing an endoscope connection cable, engineers and procurement teams should evaluate the complete cable construction rather than selecting a cable only by its model number.

Important considerations include:

• Cable dimensions — Confirm the required overall diameter and available internal routing space.

• Conductor construction — Verify the required conductor material and configuration for the application.

• Insulation system — Confirm whether PET, PFA or another specified insulation structure is required.

• Connection compatibility — Provide connector and termination information to ensure compatibility with the endoscope assembly.

• Cable length — Specify the finished length required for installation.

• Mechanical routing — Consider how the cable will be routed and integrated into the endoscope equipment.

• Prototype validation — Prototype samples can be used to verify cable dimensions, connection and assembly compatibility before production.

• Production requirements — For repeat production, cable construction, assembly method and inspection requirements should be defined in the project specification.

• Supplier engineering support — A suitable supplier should be able to review drawings, BOMs, connector information and application requirements during RFQ and product development.

FAQ

What is the SP30-212-1 endoscope cable used for?

The SP30-212-1 cable is designed for endoscope connection applications and can be evaluated for endoscopic imaging equipment and related medical device assemblies.

What conductor is used in this cable?

The listed configuration uses a silver-plated copper conductor.

What insulation materials are used?

The listed configuration uses PET/PFA insulation.

What is the cable diameter?

The listed product configuration has an approximate diameter of 3.65mm. Final dimensional requirements should be confirmed for the specific project.

Can the cable length be customized?

Yes. Cable length can be specified according to the customer's equipment design and installation requirements.

Can the connection configuration be customized?

Yes. HOTTEN can evaluate customized connection and termination requirements based on customer drawings and interface information.

What information should be provided for an RFQ?

A drawing, cable length, connector part number, pinout, conductor requirements, insulation requirements, target quantity and application information can help HOTTEN evaluate the project.

Request a Custom Endoscope Cable

If you are developing an endoscope, endoscopic camera assembly or other medical imaging equipment, send HOTTEN your cable drawing, connector information, required length and target quantity.

HOTTEN can evaluate the cable construction and customization requirements for prototype development and production.

Request an RFQ for your custom endoscope cable.
