Super Soft Flexible Medical Endoscope HD Handle Connect Cable 4.5mm Medical Cable

Product Overview

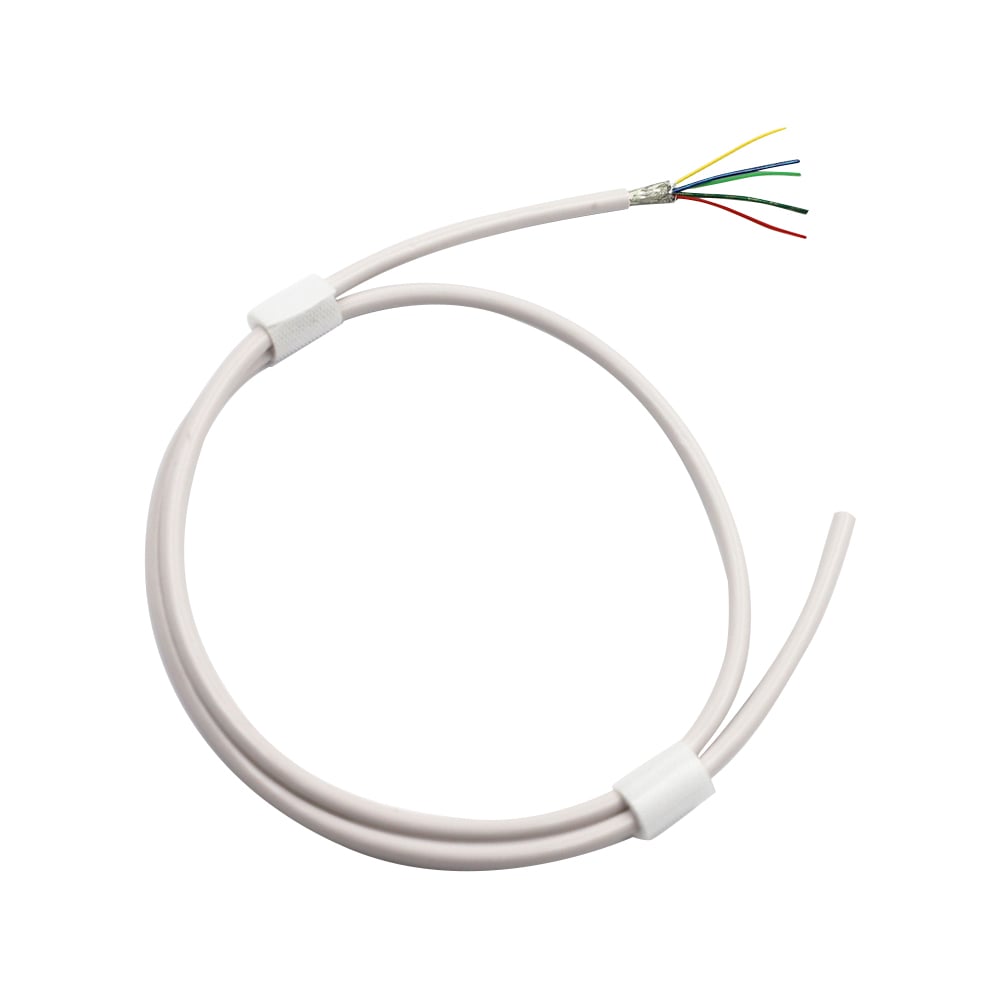

Super Soft Flexible Medical Endoscope Handle Cable

HOTTEN provides super soft flexible medical endoscope cable solutions designed for HD endoscope handle connection applications.

With excellent flexibility, compact structure and reliable signal transmission performance, this cable is suitable for medical imaging equipment requiring repeated movement and long-term operation.

HOTTEN supports customized endoscope cable manufacturing including conductor selection, core configuration, shielding design, jacket materials and cable dimensions.

Key Features

High Flexibility Endoscope Cable Solution

🔹 Super Soft Flexible Design

Optimized cable structure provides excellent bending performance for medical endoscope applications.

🔹 Stable HD Signal Transmission

Designed for reliable image and signal transmission between endoscope handles and medical systems.

🔹 Compact 4.5mm Diameter Structure

Space-saving design suitable for medical devices requiring compact cable routing.

🔹 Multiple Material Options

Supports PVC, TPU, TPE, Silicone, PFA and FEP jacket solutions.

🔹 Customized Medical Cable Manufacturing

Core count, conductor, shielding and cable length can be customized.

Cable Structure

Customized Endoscope Cable Configuration

Conductor

Available:

• Silver plated copper
• Tinned copper
• Silver plated copper alloy
• Tinned copper alloy

Insulation

Options:

• PTFE
• ePTFE
• FEP
• PFA

Shielding

Options:

• Tinned copper braid
• Silver plated copper braid
• CU/PET shielding
• AL/PET shielding

Jacket

Options:

• PVC
• TPU
• TPE
• Silicone
• PFA
• FEP

Applications

Medical Endoscope Applications

Suitable for:

🏥 HD Endoscope Systems

🔬 Surgical Imaging Equipment

🩺 Medical Diagnostic Devices

⚕️ Flexible Endoscope Instruments

🏭 OEM Medical Equipment

Customization Options

OEM Medical Cable Solutions

HOTTEN supports:

✔ Core number customization

✔ AWG selection

✔ Cable diameter adjustment

✔ Jacket material selection

✔ Shielding structure

✔ Connector assembly

✔ Cable length customization

✔ Prototype and mass production

Engineering & Procurement Considerations

What Engineers Should Consider When Selecting a 4.5mm Endoscope Handle Cable

A medical endoscope HD handle connection cable is used to connect the handle, imaging components and electronic system within an endoscope assembly. For compact HD endoscope designs, the cable needs to balance small outer diameter, flexibility, core configuration, signal transmission, connector integration and mechanical reliability.

A 4.5mm cable construction can be particularly useful when the available installation space and cable-routing path are constrained. The final construction should be selected according to the actual endoscope architecture rather than by outer diameter alone.

Key Engineering Requirements

Available Cable Configuration

HOTTEN's published product data identifies an 8C (4×32AWG + 4×30AWG) configuration for this 4.5mm medical endoscope handle cable. The same source indicates that core count and AWG can be customized for different applications.

Core Configuration and Signal Routing

For HD endoscope handle cables, engineers should identify the purpose of each conductor before selecting the final configuration.

Potential requirements may include:

• Image or data signal paths

• Power conductors

• Control or communication lines

• Ground connections

• Additional auxiliary channels

The exact conductor count should come from the equipment schematic or cable drawing. A multi-core configuration such as 4×32AWG + 4×30AWG can be adapted when different conductor sizes are required within the same cable structure.

Flexibility Considerations

The “super soft” requirement should be treated as an engineering requirement rather than only a marketing description.

Procurement teams should clarify:

• Required bending conditions

• Minimum preferred bending radius

• Frequency of cable movement

• Handle rotation or articulation requirements

• Internal routing path

• Expected assembly handling

• Long-term flexibility requirements

A softer cable construction may improve handling and routing, but conductor size, insulation, shielding and jacket materials must be considered together.

4.5mm Outer Diameter Considerations

A nominal 4.5mm OD provides a concrete dimensional entity for product selection, but the actual acceptable tolerance should be defined by the endoscope mechanical design.

Engineers should confirm:

• Target OD

• Maximum allowable OD

• OD tolerance

• Internal routing space

• Connector entry dimensions

• Strain-relief dimensions

• Clearance around adjacent components

The published HOTTEN configuration specifies 4.5mm OD with customized dimensions available.

Jacket and Material Selection

The published product data lists:

• PVC

• Silicone

• TPE

• TPU

as available jacket materials.

Selection should be based on:

Flexibility + Surface Requirements + Mechanical Handling + Cleaning Conditions + Equipment Integration

For a highly flexible endoscope handle cable, silicone, TPE or TPU may be considered where the application requires a softer construction, while the final material should be validated against the customer's actual operating and cleaning conditions.

OEM Customization

HOTTEN supports customization of the endoscope handle cable according to customer requirements.

Customization can include:

• Core count

• Core configuration

• AWG

• Conductor arrangement

• Cable diameter

• Jacket material

• Jacket color

• Cable length

• Connector configuration

• Pin assignment

• Termination method

• Prototype samples

• Mass-production configuration

The published product data specifically identifies customizable cores, AWG, outer diameter, color and length.

Connector and Termination Considerations

For an endoscope handle connection cable, the connector is part of the complete system rather than an isolated component.

Customers should provide:

• Connector brand

• Connector model

• Part number

• Number of contacts

• Pin assignment

• Contact termination method

• Connector orientation

• Mating interface

• Overmolding or strain-relief requirements

Providing the connector part number or drawing can significantly reduce errors during cable assembly development.

Key Procurement Parameters

Endoscope Cable Supplier Evaluation Checklist

When evaluating a supplier for a 4.5mm HD endoscope handle cable, procurement teams should consider:

① Miniature Cable Manufacturing
Can the supplier consistently manufacture the required outer diameter and core configuration?

② Super-Soft Flexible Construction
Can the supplier provide the flexibility required by the endoscope handle and internal routing?

③ Multi-Core Cable Capability
Can different conductor sizes and core configurations be integrated into the same cable?

④ Connector Assembly
Can the supplier handle the specified connector, pinout and termination requirements?

⑤ Medical Cable Quality
Can the supplier provide the documentation and quality control required for medical-device cable projects?

⑥ Prototype-to-Mass-Production Support
Can the supplier support both engineering samples and recurring production?

Recommended RFQ Information

For an accurate quotation, customers are recommended to provide:

• Endoscope model or application

• Cable drawing

• Target outer diameter

• Core count and configuration

• AWG for each conductor

• Conductor material

• Insulation requirements

• Shielding requirements

• Jacket material

• Cable length

• Flexibility requirements

• Connector model / part number

• Pinout

• Cable color

• Prototype quantity

• Expected annual or recurring volume

• Required testing

• Applicable quality or compliance requirements

An existing cable sample can also help the supplier verify dimensions, conductor arrangement and termination details before engineering samples are produced.

HOTTEN Endoscope Handle Cable Engineering Support

HOTTEN provides customized super-soft flexible medical endoscope handle cables for medical endoscopes, industrial endoscopes and related equipment. The published configuration supports 4.5mm outer diameter, multi-core construction, customized AWG, jacket material, cable length and cable color, providing a basis for customized OEM cable development.
