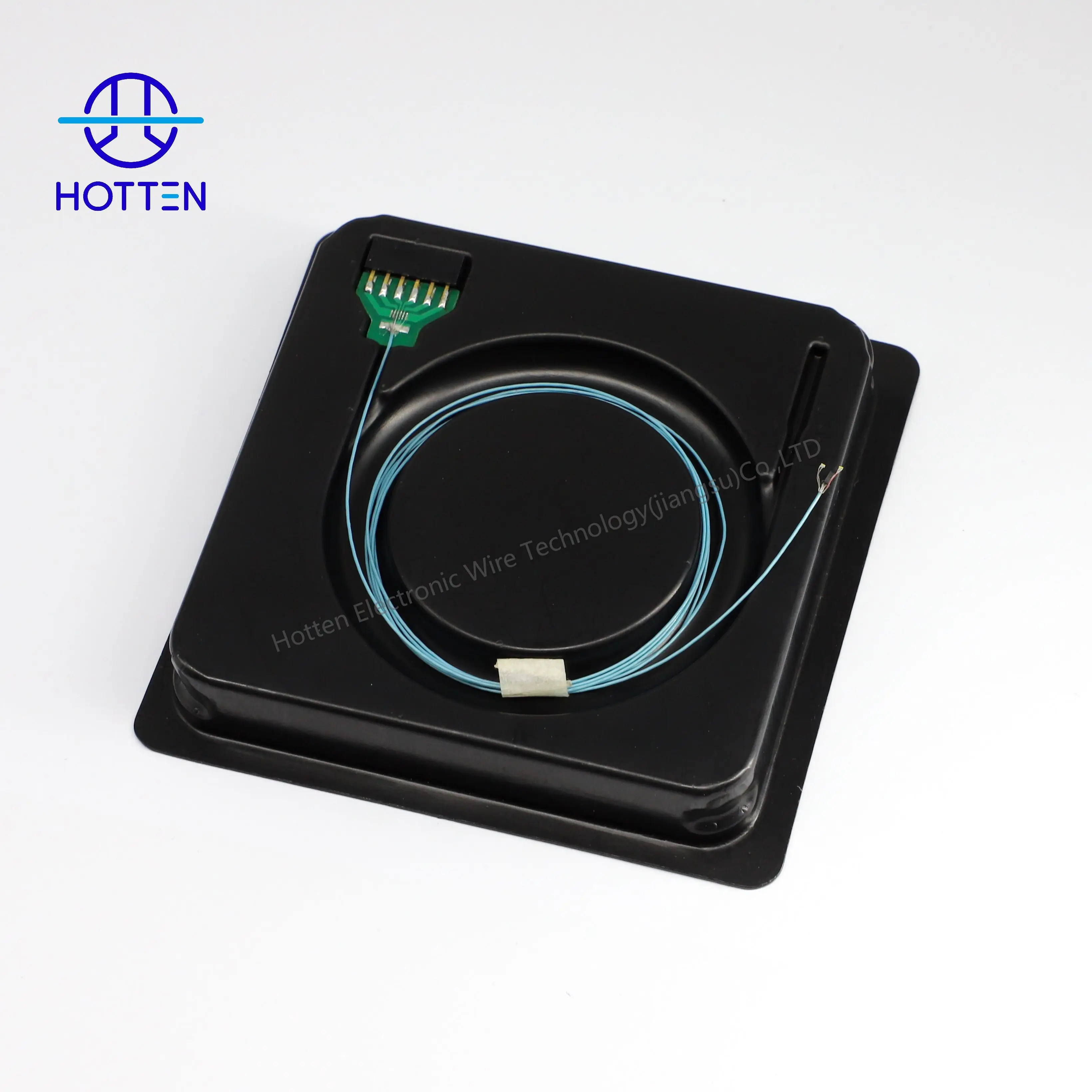

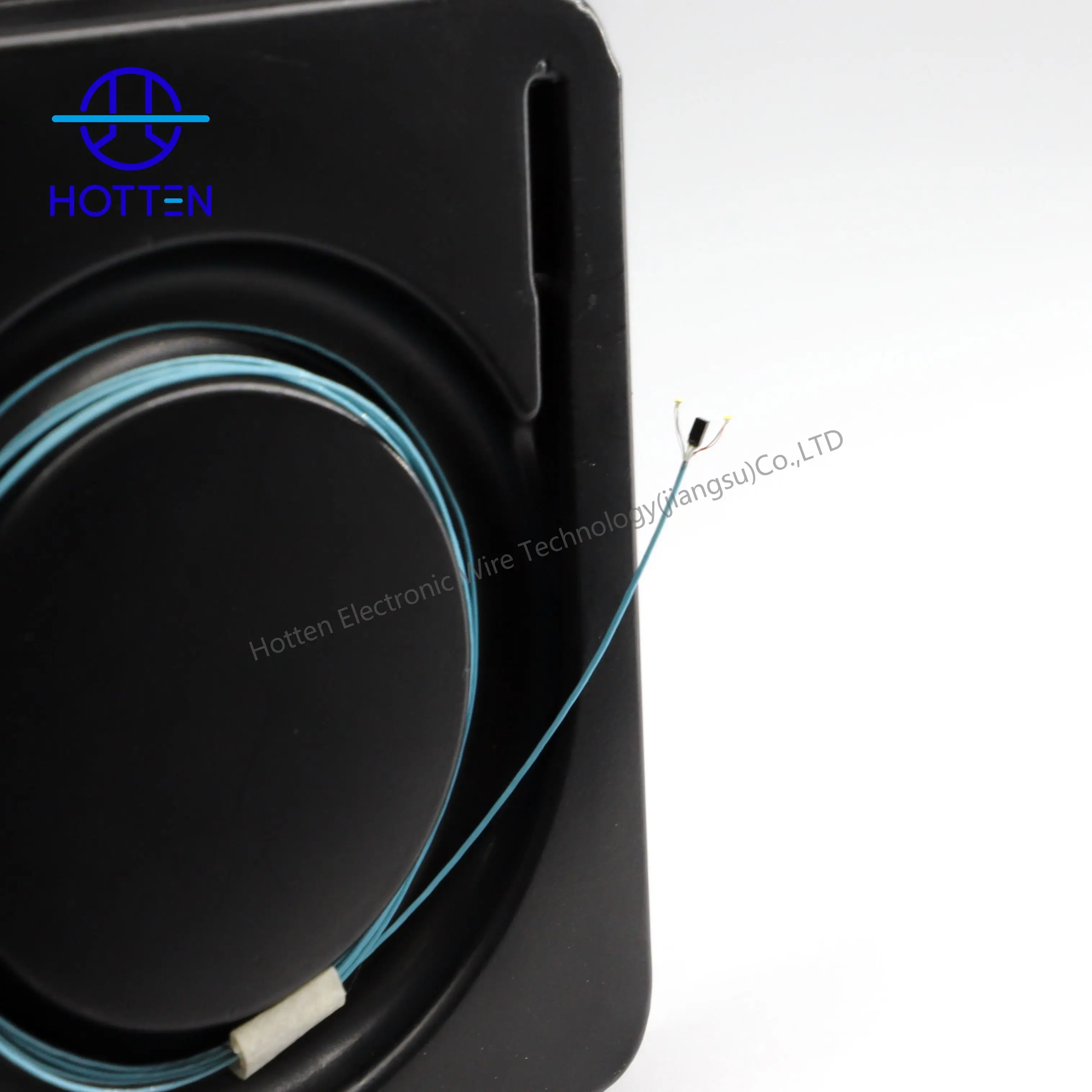

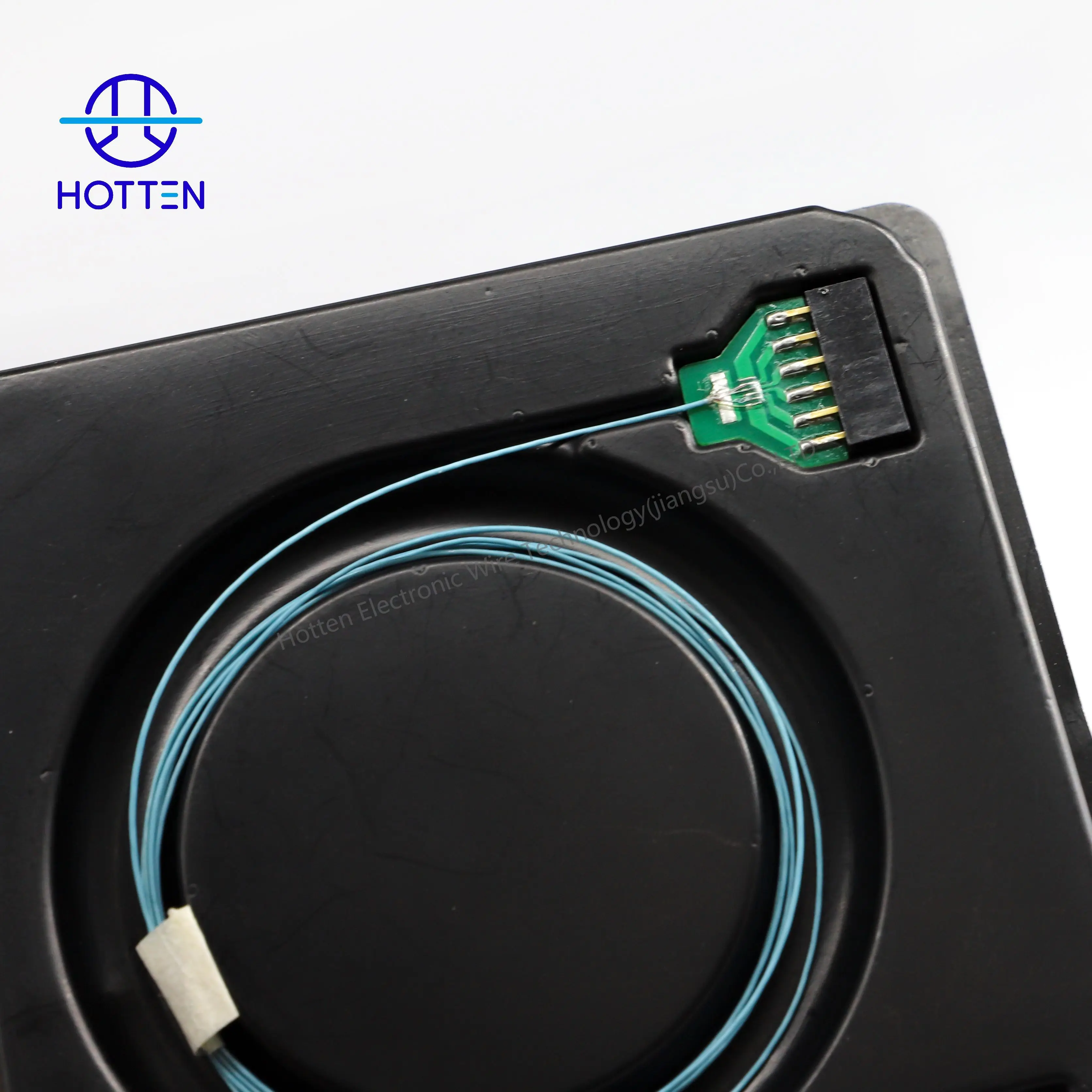

OV6946+2 X LED Coaxial 5C/3C/7C Micro Coaxial Cable Assembly for Medical Endoscope

Product Overview

The HOTTEN OV6946 2-LED Medical Endoscope Camera Cable Assembly is designed for compact endoscope imaging systems that require camera signal connections and LED illumination wiring within a space-constrained cable structure.

The assembly supports customized 3-core, 5-core and 7-core configurations using micro coaxial cables and electronic wires, depending on the camera module interface and illumination requirements. The 5-core reference configuration combines ultra-fine conductors, a coaxial signal path and signal wires, while the exact conductor arrangement should be confirmed against the selected model and wiring diagram.

Cable construction, insulation, protective covering, cable length and termination details can be customized according to customer drawings, reference samples and equipment interface requirements.

HOTTEN supports OEM cable development for medical and industrial endoscope equipment, including customized conductor configurations and cable integration for compact camera modules.

Key Features

OV6946 Camera Module Compatibility

Designed for cable interconnection with compatible OV6946-based endoscope camera modules. The final pin assignment, signal wiring and connector interface must match the specified camera module and host equipment.

2-LED Connection Configuration

The cable assembly can be configured for camera signal and LED connections according to the actual module design. LED wiring, polarity and electrical requirements should be specified in the project drawing.

3C / 5C / 7C Configurations

Different core configurations can be evaluated according to the interface requirements and available routing space. The required configuration should be selected before prototype development.

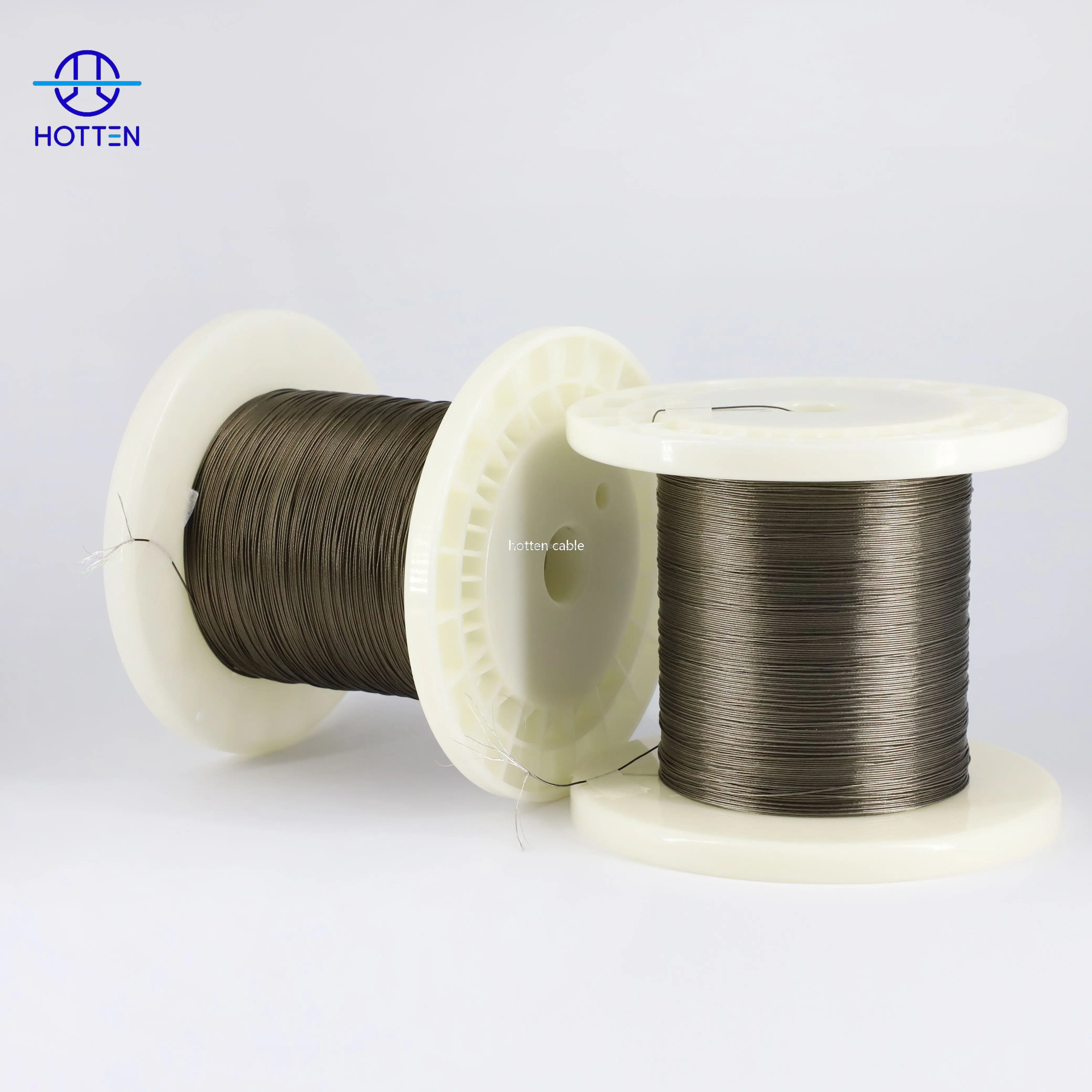

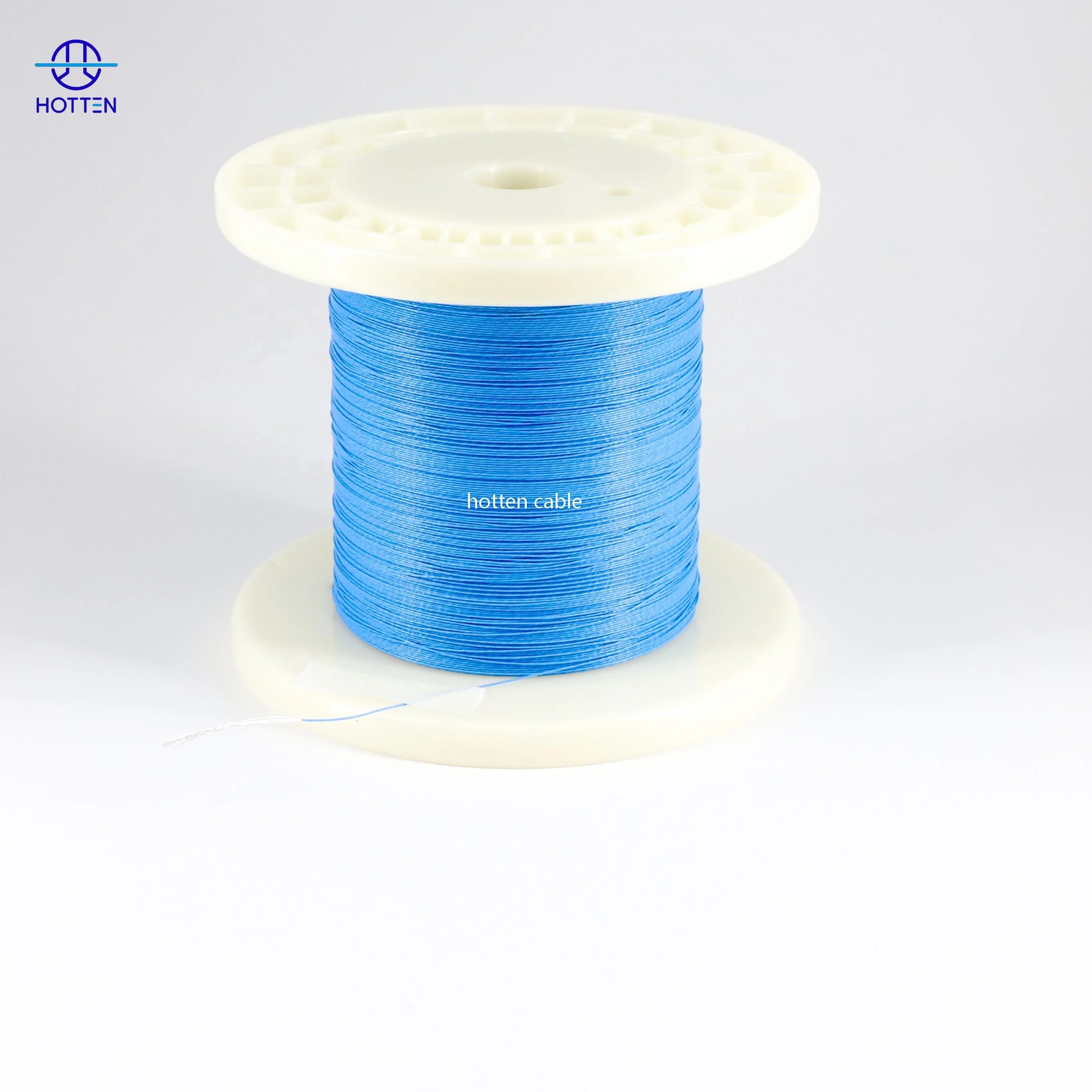

Micro Coaxial and Fine-Wire Construction

Micro coaxial cable and fine electronic wires can be combined within a compact interconnect design. The conductor arrangement, insulation and shielding should be selected according to the signal architecture and mechanical constraints.

Customizable Cable Construction

Insulation, protective covering, cable length, color and termination can be specified according to the project requirements. Available material options depend on the selected cable construction.

OEM Cable Assembly Development

HOTTEN supports customized cable development based on drawings, reference samples, connector details and wiring diagrams for endoscope camera and imaging equipment applications.

Technical Specifications

The listed 5C conductor arrangement is a reference configuration, not a specification for every 3C, 5C or 7C variant. Final materials, dimensions and wiring must be confirmed against the selected model.

Typical Applications

The OV6946 endoscope cable assembly can be customized for:

• Medical endoscope camera modules

• Compact endoscopic imaging systems

• Camera and LED interconnections

• Medical inspection equipment

• Industrial endoscopy systems

• Customized miniature imaging devices

The final application suitability depends on the camera module interface, signal requirements, illumination circuit and mechanical integration conditions.

Engineering & Procurement Considerations

When selecting an OV6946 camera cable assembly, engineers should confirm the camera interface, LED wiring, cable configuration and installation constraints together.

1. Camera Interface and Pin Assignment

Provide the camera module model, connector details and wiring diagram. Confirm which contacts are used for camera signals, power, grounding and other required connections.

2. LED Wiring Requirements

Specify the number of LEDs, supply voltage, current requirements, polarity and wiring arrangement. The “2-LED” designation alone does not define the electrical requirements of the illumination circuit.

3. Core Configuration

Choose the required 3C, 5C or 7C configuration according to the interface design. For the 5C version, confirm the conductor sizes and coaxial construction against the approved specification.

4. Cable Diameter and Routing

Define the target overall diameter, cable length, bend radius and available routing space. These parameters are particularly important for miniature endoscope camera assemblies.

5. Insulation and Protective Covering

Confirm the required insulation material and protective covering according to the selected construction. Material options should not be assumed interchangeable without checking the electrical, mechanical and environmental requirements.

6. Prototype and Quality Acceptance

Before production, confirm the connector interface, continuity, pin assignment, cable dimensions and relevant electrical test criteria. Approve the sample against the drawing before moving to production.

Custom OV6946 Endoscope Cable Assembly

HOTTEN supports customized cable assembly development for endoscope camera manufacturers based on drawings, reference samples and interface specifications.

For engineering review and quotation, please provide:

• OV6946 camera module and interface details

• Required core configuration: 3C, 5C or 7C

• LED quantity and electrical requirements

• Cable drawing or reference sample

• Required conductor sizes and cable dimensions

• Insulation and protective covering requirements

• Cable length and routing conditions

• Connector part numbers and pin assignment

• Prototype quantity and expected production volume

HOTTEN can review the proposed cable construction and assembly requirements to support customized endoscope camera interconnect projects.

Request a Custom Endoscope Cable Quote

Send your camera module details, drawing, wiring diagram or reference sample to discuss a customized OV6946 endoscope cable assembly for your imaging application.
