📡 I-PEX 45Ω Micro RF Cable Assembly

Compact Low-Loss RF Cable Solution for High-Frequency Applications

Modern RF and high-frequency electronic systems require compact cable assemblies capable of maintaining reliable signal transmission within limited installation spaces.

Hotten provides customized I-PEX 45Ω micro RF cable assemblies designed for compact RF interconnections, high-frequency signal transmission, wireless communication equipment, and other electronic systems.

The micro coaxial structure combines compact dimensions, shielding, and controlled impedance to support reliable RF signal transmission in space-constrained applications.

📶 High-Frequency RF Applications

Hotten micro RF cable assemblies can be used in:

Wireless Communication Equipment · RF Modules · Antenna Systems · IoT Devices · Test & Measurement Equipment · High-Frequency Electronic Devices · Compact RF Modules · Consumer Electronics

For applications where RF signals must be routed through limited installation space, micro coaxial RF cable assemblies provide a compact and flexible interconnection solution.

⚡ 45Ω Micro RF Coaxial Cable Technology

The 45Ω micro coaxial cable structure is designed for compact high-frequency signal routing and RF interconnection.

Key advantages include:

• 🔹 45Ω controlled impedance

• 🔹 Micro coaxial cable construction

• 🔹 Low signal loss

• 🔹 High-frequency signal transmission

• 🔹 Individual signal shielding

• 🔹 Reduced electromagnetic interference

• 🔹 Compact cable diameter

• 🔹 Flexible cable routing

The shielded coaxial construction helps maintain signal integrity and reduce unwanted interference in high-frequency electronic systems.

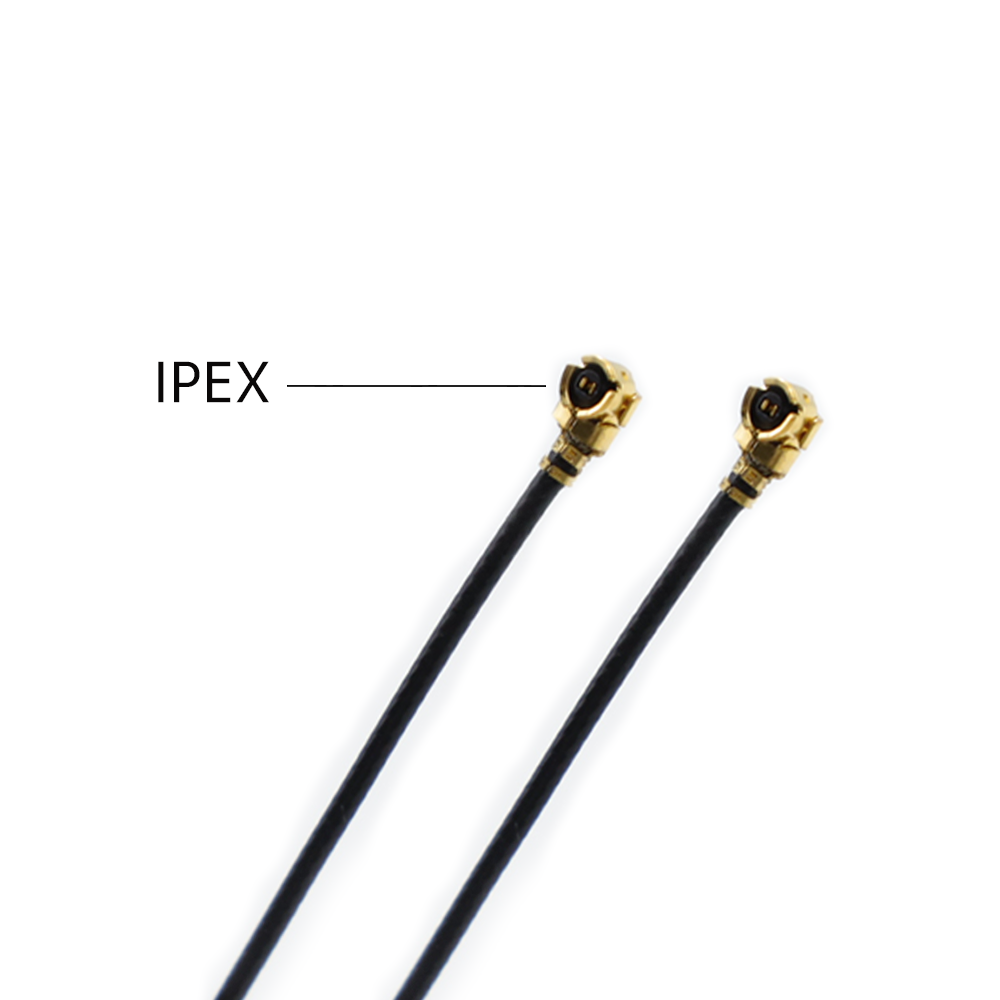

🔌 I-PEX Micro Connector Integration

Hotten supports customized RF cable assemblies using I-PEX and similar micro RF connectors.

Customization options include:

• I-PEX micro RF connectors

• 45Ω RF cable assemblies

• Custom cable length

• Custom connector configuration

• Custom termination

• Custom pin assignment

• PCB integration

• OEM cable assembly

Connector selection and cable configuration can be adapted to the customer's RF module and system interface.

🛠️ Customized RF Cable Manufacturing

Typical manufacturing process:

Micro Coaxial Cable → Cable Processing → Connector Termination → RF Cable Assembly → Electrical Testing → Finished RF Cable Assembly

Hotten can customize cable length, impedance, connector, cable structure, and termination according to customer drawings, samples, or RF system requirements.

📋 Technical Specifications

⭐ Why Choose Hotten

🔬 Micro Coaxial Cable Expertise

Hotten specializes in micro coaxial cables and ultra-fine electronic wires for compact and high-density electronic applications.

📡 RF Cable Capability

Our RF cable solutions support controlled impedance, shielding, compact routing, and high-frequency signal transmission.

📐 Compact RF Interconnection

Micro coaxial construction allows RF signals to be routed through limited installation spaces while maintaining a compact cable structure.

🔌 I-PEX Connector Integration

Hotten supports I-PEX and other micro RF connector configurations according to customer interface requirements.

🏭 OEM Customization

Cable diameter, impedance, connector, cable length, termination, and assembly structure can be customized according to customer specifications.

🔄 Prototype to Mass Production

Hotten supports prototype development, engineering validation, customized production, and volume manufacturing.

🔗 Related Cable Solutions

RF Cable · Micro Coaxial Cable · Micro Coaxial Cable Assembly · RF Coaxial Cable Assembly · LVDS Wire Harness · Custom Cable Assembly

🤝 Need a Custom Micro RF Cable Assembly?

If your RF system requires a 45Ω micro coaxial cable, I-PEX RF connector, low-loss RF cable assembly, or compact high-frequency interconnection, send Hotten your drawings, samples, connector specifications, or application requirements.

Hotten supports OEM customers from cable design and prototype development through mass production.
