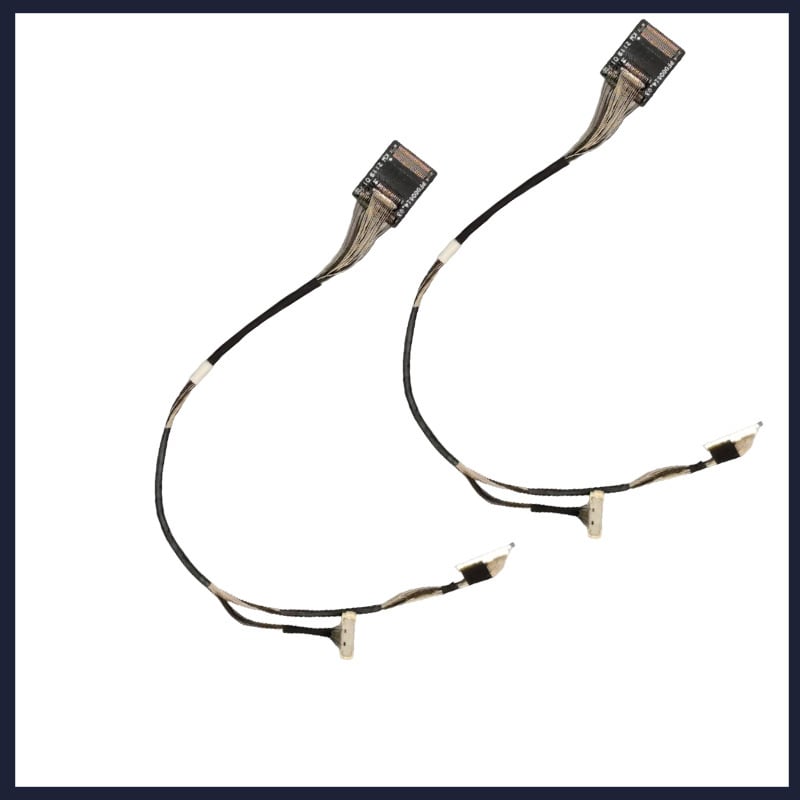

Gimbal Camera Cable | Flexible Cable Solution for UAV Imaging Systems

Flexible Cable Solutions for Drone Gimbal and Imaging Applications

Modern UAV imaging systems require lightweight and reliable cable solutions to maintain stable signal transmission while supporting continuous movement of camera gimbal systems.

Hotten provides customized gimbal camera cable solutions designed for UAV manufacturers, drone camera systems, and precision imaging applications.

Our flexible cable assemblies combine compact construction, excellent bending performance, and reliable signal transmission for applications requiring repeated motion and limited installation space.

🚁 UAV & Gimbal Camera Applications

Hotten gimbal camera cables are designed for:

Consumer Drones
Professional UAV Imaging Systems
Aerial Photography Platforms
Drone Camera Modules
Gimbal Stabilization Systems
Robotic Vision Equipment

Typical applications include:

• Camera signal transmission
• Gimbal control systems
• Image data communication
• Compact UAV electronics integration

🔬 Flexible Cable Technology for Moving Systems

Gimbal systems require cables that can withstand continuous bending and rotation during operation.

Hotten develops flexible cable structures optimized for:

• High bending cycle performance
• Lightweight construction
• Small installation space
• Stable signal transmission
• Reduced mechanical stress

Cable designs can be customized according to the movement range, installation structure, and electrical requirements of the UAV system.

⚙️ Customized Gimbal Camera Cable Assembly

Hotten supports OEM customization according to customer drawings, samples, and application requirements.

Customization options include:

Cable Structure

• Flexible flat cable (FFC/FPC)
• Micro coaxial cable assembly
• Multi-core signal cable
• Hybrid cable structure

Electrical Performance

• High-speed signal transmission
• EMI shielding
• Low signal loss
• Camera data transmission

Mechanical Design

• Ultra-thin cable structure
• Flexible bending performance
• Custom cable length
• Space-saving routing design

Connector Integration

• Customer specified connectors
• Board-to-board connection
• Custom termination
• Complete cable assembly

🧩 UAV Gimbal Cable Assembly Manufacturing

Typical structure:

Flexible Cable Material → Signal Wire Processing → Connector Assembly → Electrical Testing → Final UAV Cable Assembly

Hotten provides complete OEM cable manufacturing capability from prototype development to volume production.

📋 Typical Technical Specifications

⭐ Why Choose Hotten

Lightweight UAV Cable Manufacturing

Hotten specializes in lightweight, compact, and high-density cable solutions for UAV and robotics applications.

Flexible Cable Design Capability

Cable structures can be optimized for moving systems requiring repeated bending and mechanical reliability.

Customized OEM Cable Assembly

Support custom connectors, cable dimensions, electrical requirements, and assembly configurations.

Prototype to Mass Production

From engineering samples to large-volume production, Hotten supports UAV manufacturers with customized cable solutions.

Related UAV Cable Solutions

Explore Hotten UAV cable products:

Engineering & Procurement Considerations

A Gimbal Camera Cable is a flexible cable solution for UAV and drone imaging systems where the camera may move relative to the main electronic assembly. Cable selection should consider repeated movement, flexible routing, signal requirements, cable dimensions, connector configuration, and the mechanical integration of the gimbal system.

Engineering Considerations

Gimbal Movement and Flexibility
A gimbal camera cable may need to accommodate repeated movement as the camera changes orientation. Cable construction should therefore be evaluated according to the required bending path, movement range, flexibility, and installation conditions of the gimbal mechanism.

Compact UAV Routing
Drone and gimbal assemblies have limited internal space around motors, camera modules, and electronic boards. Cable diameter, cable length, exit direction, bend radius, and available mechanical clearance should be considered during system integration.

Camera Signal Requirements
The cable assembly should be selected according to the signals transmitted between the camera module and the connected electronics. Engineers should define the signal type, conductor configuration, shielding requirements, and cable length according to the target imaging system.

Mechanical Protection and Routing
The cable should be routed so that it does not interfere with gimbal movement or surrounding mechanical components. Engineers should evaluate cable exit position, bend direction, fixation method, and potential contact with moving parts.

Connector Compatibility
The cable assembly must match the camera, PCB, or control-unit interfaces used in the UAV system. Connector series, exact part number, mating interface, contact orientation, pinout, and termination method should be confirmed during engineering review.

Weight and Miniaturization
Cable dimensions and construction can affect the overall size and weight of a compact drone camera system. The cable should be designed to meet the required electrical and mechanical performance without unnecessary bulk.

Procurement Considerations

When sourcing a flexible gimbal camera cable for UAV imaging systems, OEM buyers should provide the available technical information:

OEM Customization

HOTTEN supports customized gimbal camera cable assemblies for UAV and drone imaging applications based on cable dimensions, conductor configuration, flexibility requirements, connector interfaces, pinout, shielding, cable length, drawings, samples, and mechanical constraints.

For UAV gimbal camera cable projects, customers can provide the camera or gimbal interface, movement requirements, connector part number, cable routing conditions, signal configuration, and production quantity for engineering evaluation and prototype-to-production sourcing.

Customized Gimbal Camera Cable?

If your UAV imaging system requires flexible gimbal cables, lightweight drone cable assemblies, or customized camera signal cables, contact Hotten with your drawings, samples, or technical requirements.

Hotten supports UAV OEM customers from cable design to mass production.

Request a Customized UAV Cable Solution →
