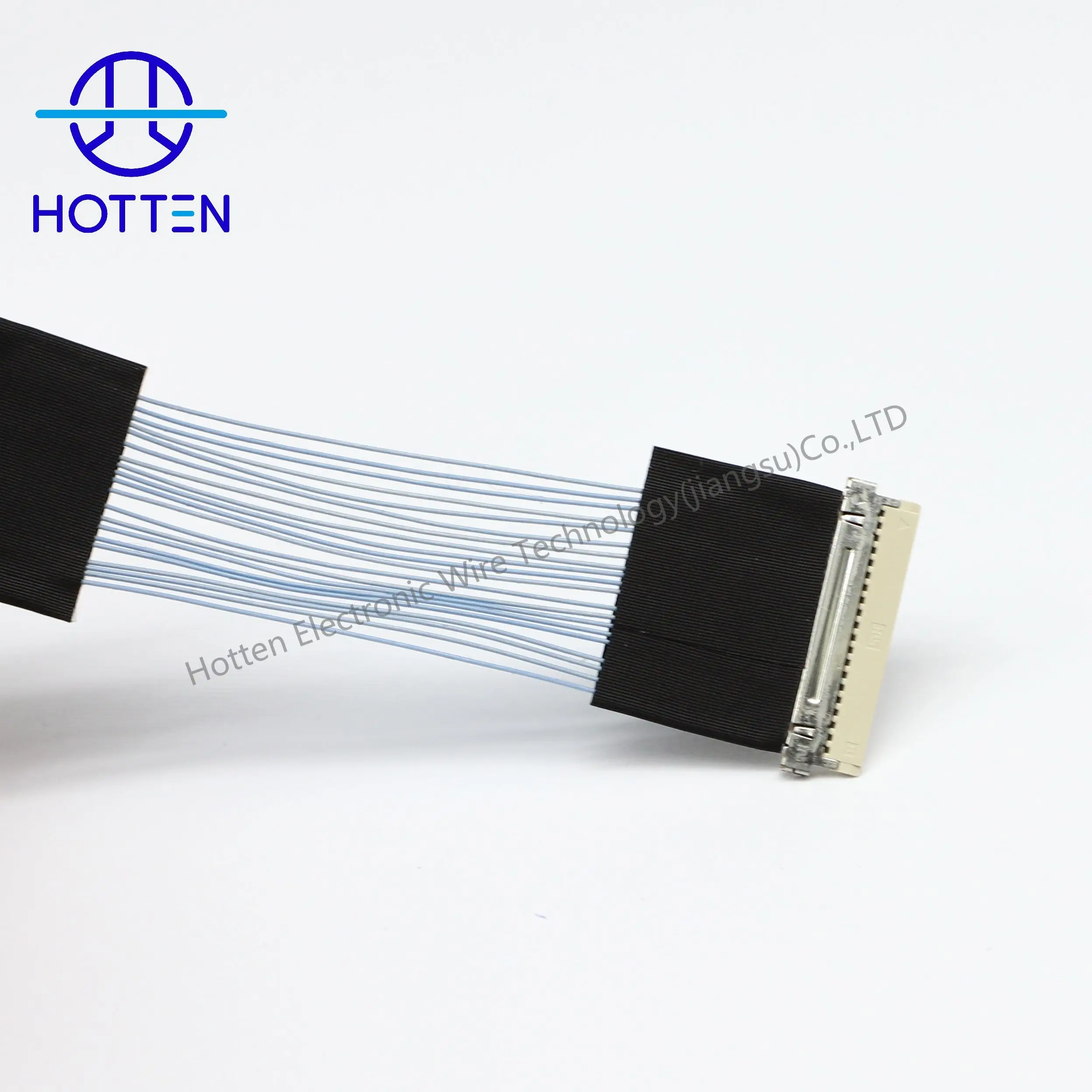

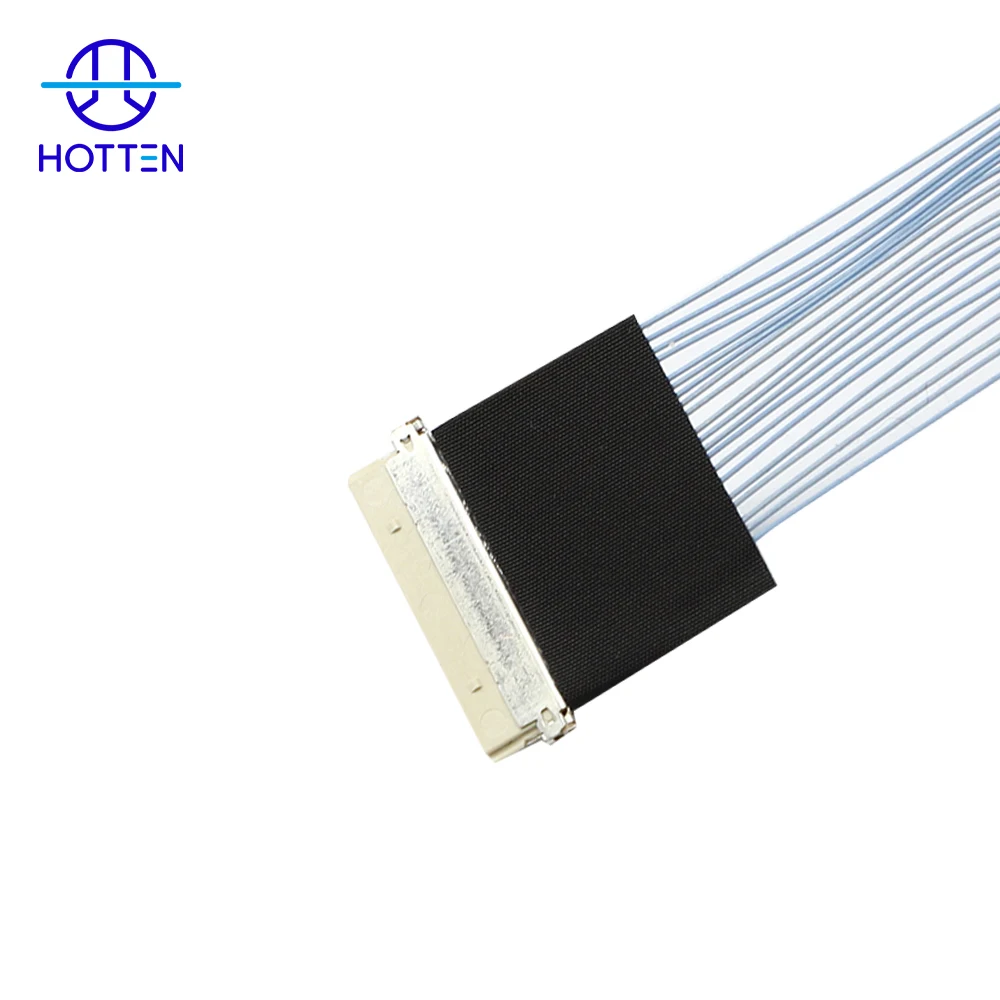

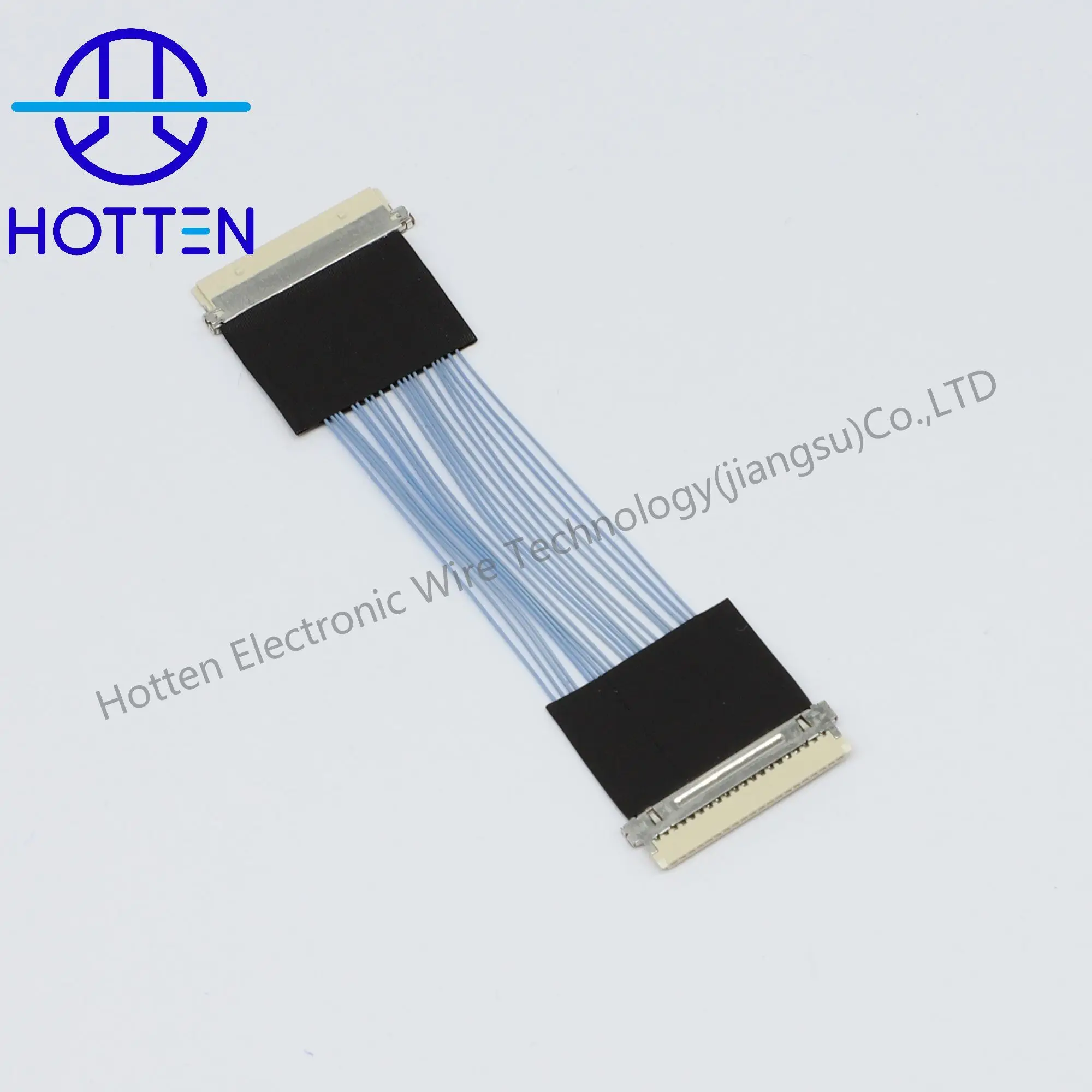

Hotten 42AWG Micro Coaxial Cable Line Harness 20 Pin Lvds Cable Lcd Panel Wire Harness Assembly Custom

Product Overview

The HOTTEN 20-Pin 42AWG Micro Coaxial Cable Assembly is designed for compatible LCD display interconnections in notebook computers, TVs and other electronic equipment.

Featuring a 20-pin connection configuration and fine-gauge 42AWG micro coaxial cable, this assembly supports compact cable routing where connector compatibility, electrical performance and installation space are important design considerations.

HOTTEN supports customized cable assembly development based on customer drawings, connector part numbers, wiring diagrams and reference samples. Cable length, conductor material, insulation, shielding, outer jacket and termination can be specified according to the target display interface.

The final configuration should match the actual display interface, connector footprint, pin assignment and electrical requirements of the host equipment and display panel.

Key Features

20-Pin Display Connection

The 20-pin configuration provides a defined connection layout for compatible display equipment. The connector model, pitch, pin assignment and mating interface should be confirmed against the customer's drawing or reference cable.

42AWG Micro Coaxial Cable

The 42AWG micro coaxial construction supports compact cable routing in space-constrained display systems. The selected conductor and dielectric geometry should meet the electrical and mechanical requirements of the intended application.

Configurable Conductor and Insulation Materials

Conductor options can include silver-plated copper, tinned copper and corresponding copper alloys. PTFE, ePTFE, FEP and PFA insulation options can be evaluated according to the approved construction.

Customized Shielding

Shielding options may include tinned copper, silver-plated copper, copper/polyester tape or aluminium/polyester tape, subject to the selected design. Shielding should be defined according to the signal interface and grounding requirements.

Custom Cable Length and Termination

Cable length, connector orientation, pin assignment and termination can be customized based on the display assembly drawing and installation requirements.

OEM Cable Assembly Development

HOTTEN supports custom micro coaxial cable assemblies based on drawings, BOMs, reference samples and connector specifications for display and other electronic equipment manufacturers.

Technical Specifications

Material options are configuration choices, not a list of materials used simultaneously in every product. Final connector, interface and electrical specifications must match the approved drawing and selected configuration.

Typical Applications

The 20-pin 42AWG micro coaxial cable assembly can be customized for:

• Compatible LVDS LCD display panels

• Notebook computer displays

• TV display systems

• Embedded display modules

• Other electronic equipment requiring compact display interconnections

The final application suitability depends on the display interface, connector configuration, pin assignment and required electrical performance.

Engineering & Procurement Considerations

When selecting a 20-pin micro coaxial cable assembly, engineers should confirm the display interface, connector compatibility, cable electrical characteristics and mechanical routing requirements together.

1. Connector Model and Pin Assignment

Provide the exact connector part number, mating interface drawing, contact arrangement and pinout. A 20-pin designation alone does not guarantee mechanical or electrical compatibility.

2. LVDS Interface Requirements

Confirm that the target panel uses LVDS and provide the relevant electrical requirements. Define the required impedance, tolerance and other electrical acceptance criteria according to the actual interface specification.

3. Cable Length and Routing

Specify the finished cable length, cable exit direction, bend radius and available installation space. These details help determine the appropriate cable geometry and connector orientation.

4. Shielding and Electrical Performance

Select the shielding construction and grounding arrangement according to the signal requirements. The cable structure should be evaluated against the intended system's electrical performance criteria.

5. Material and Jacket Selection

Specify the preferred conductor, insulation, shielding and jacket configuration. Check that the selected materials meet the mechanical and environmental requirements of the equipment.

6. Sample Approval and Testing

Before production, confirm the approved drawing, connector configuration, cable length, pin assignment, continuity requirements and applicable electrical tests. Document the acceptance criteria before approving the prototype.

Custom 20-Pin Display Cable Assembly

HOTTEN supports customized micro coaxial cable assemblies based on customer drawings, BOMs, connector specifications and reference samples.

For engineering review and quotation, please provide:

• Display model and interface specification

• Connector part number and mating interface

• Pin assignment and wiring diagram

• Required 42AWG cable construction

• Impedance and other electrical requirements

• Cable length and routing dimensions

• Insulation, shielding and jacket requirements

• Prototype quantity and estimated production volume

HOTTEN can review the specified cable construction and assembly requirements to support customized display interconnection projects.

Request a Custom Display Cable Quote

Send your drawing, connector part number, pinout or reference sample to discuss a customized 20-pin 42AWG micro coaxial cable assembly for your display application.
