40AWG Micro Coaxial Cable Cable Line Harness Assembly for EDP LVDS Screen Panel(NoteBook PC/TV) 20454 30P/40P
|
Product name
|
40AWG Coaxial Cable Line Harness Micro Coaxial Cable Assembly for EDP LVDS Screen Panel(NoteBook PC/TV)
|
|
Connector
|
20454 30P/40P
|
|
Conductor material
|
Silver plated Copper-Alloy
|
|
Sheath material
|
PFA
|
| Name | Material |
| Conductor | Silver plated copper |
| Tinned copper | |
| Silver plated copper alloy | |
| Tinned copper alloy | |
| Insulation | Teflon:PTFE/ePTFE/FEP/PFA |
| Shield | Tinned copper/Silver plated copper |
| CU/PET、 AL/PET | |
| Sheath | PFA/FEP/PTFE |
| Jacket | PVC/TPU/TPE/Silicone/PFA/FEP |
- Overview
- Recommended Products
Model and interface: 30P or 40P, and the target eDP or LVDS application.
Connector details: Exact part numbers, mating interfaces and connector orientation.
Electrical requirements: Required impedance, tolerances and applicable electrical acceptance criteria.
Cable construction: Conductor material, insulation, shielding and outer jacket requirements.
Dimensions: Finished length, cable OD, routing requirements and dimensional tolerances.
Order requirements: Prototype quantity, expected production volume and inspection documentation.
Product Overview

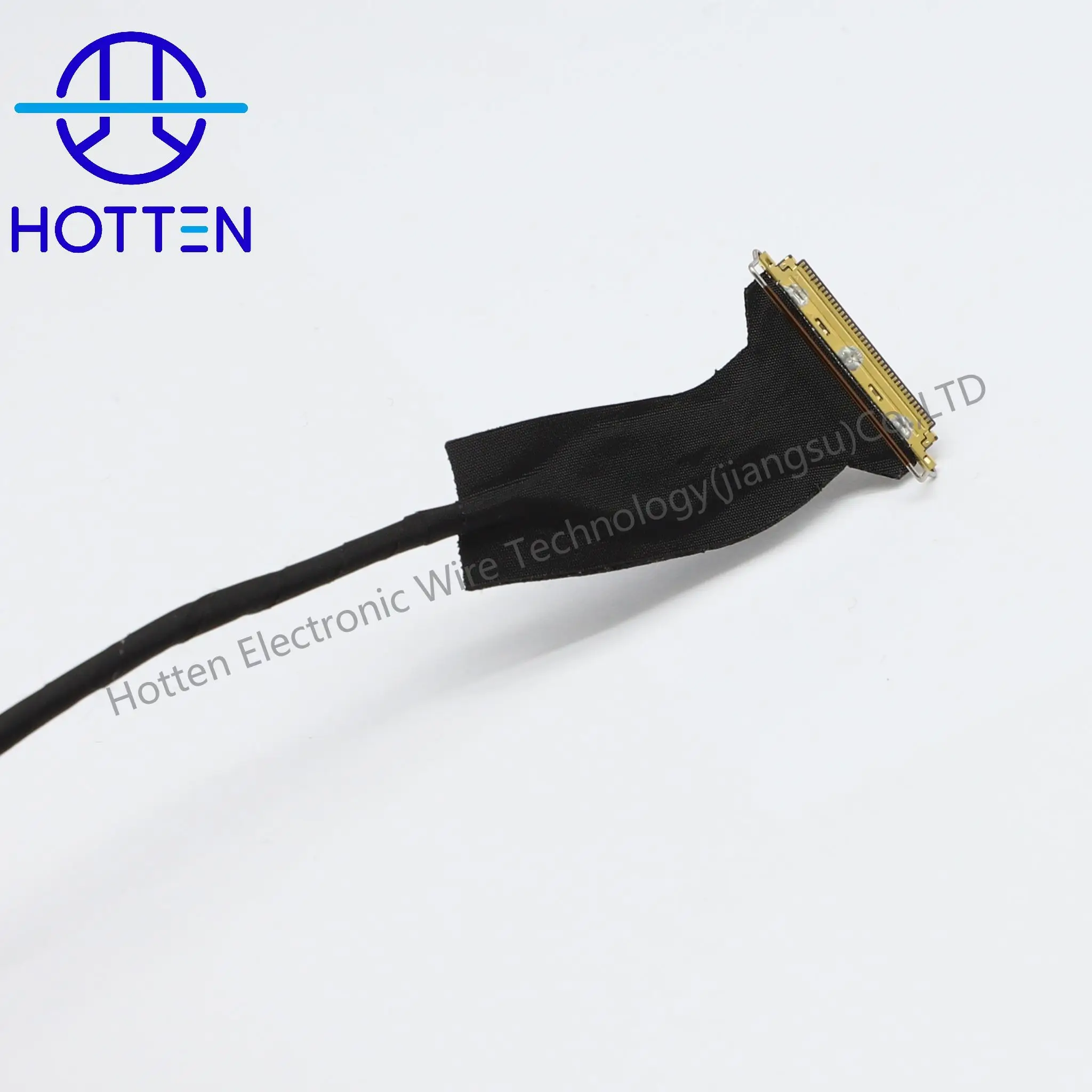

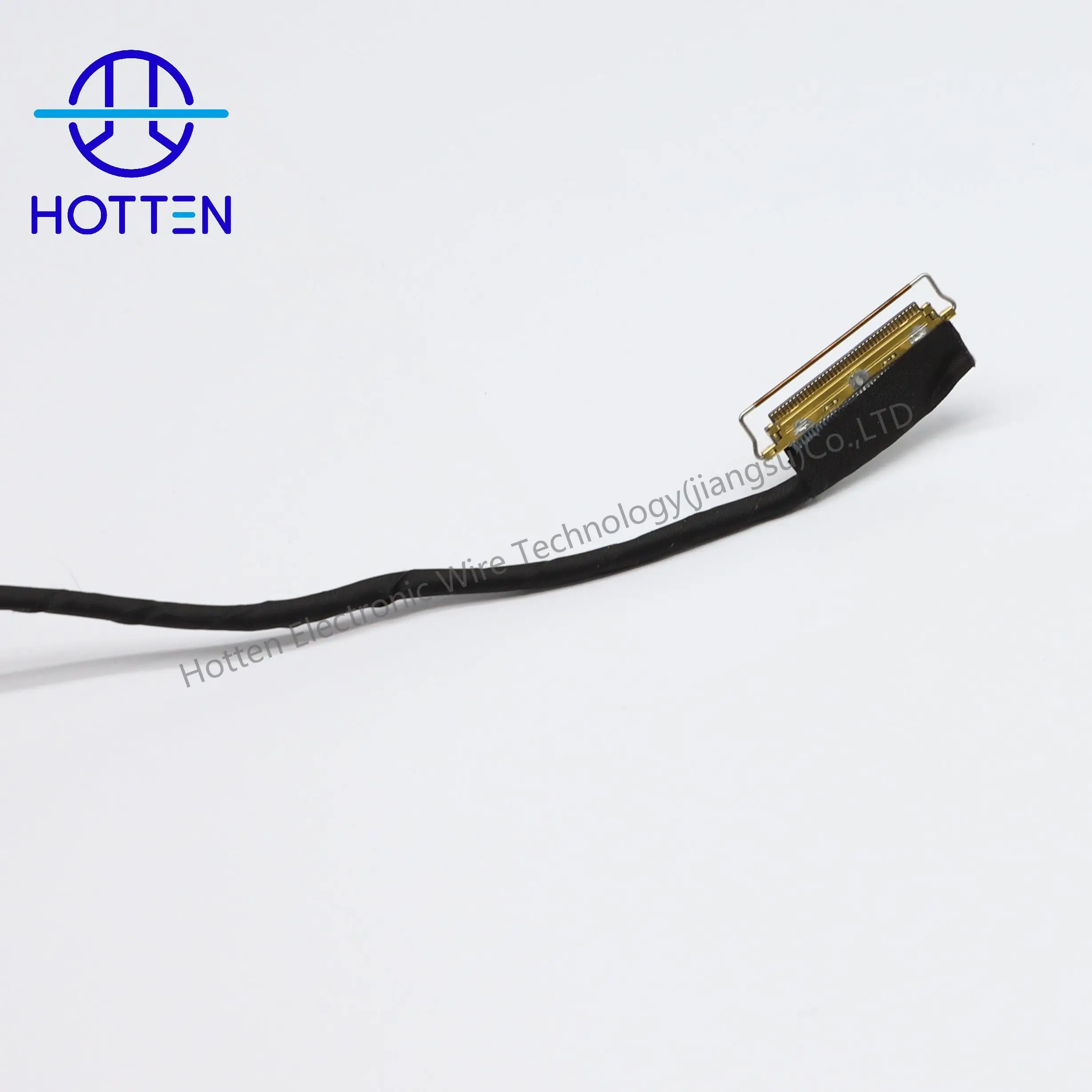

HOTTEN 20454 30P/40P 40AWG Micro Coaxial Cable Assembly is designed for compatible eDP and LVDS display interconnections in notebook computers, TVs, LCD panels and other electronic equipment.
Available in 30-pin and 40-pin configurations, this cable assembly uses 40AWG micro coaxial cables with configurable conductor materials, dielectric insulation, shielding and outer protection. The selected configuration depends on the target display interface, connector part number, pin assignment and electrical requirements.
HOTTEN supports OEM and build-to-print cable assembly projects based on customer drawings, BOMs, connector specifications and reference samples. Cable length, connector orientation, shielding construction and termination can be defined according to the approved assembly drawing.
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | 20454 |
| Product Type | Micro Coaxial Cable Assembly |
| Available Pin Configurations | 30P / 40P |
| Conductor Size | 40AWG |
| Signal Interface | eDP / LVDS, according to the selected configuration |
| Connector Options | HRS / FPC / FPCA / JAE / KEL / HONDA and other compatible coaxial cable connectors; exact part number to be confirmed |
| Conductor Material Options | Silver-Plated Copper / Tinned Copper / Silver-Plated Copper Alloy / Tinned Copper Alloy |
| Insulation Options | PTFE / ePTFE / FEP / PFA |
| Shielding Options | Tinned Copper / Silver-Plated Copper / CU/PET / AL/PET |
| Sheath Options | PFA / FEP / PTFE |
| Outer Jacket Options | PVC / TPU / TPE / Silicone / PFA / FEP |
| Micro Coaxial Cable OD Range | 0.1–2.0mm, subject to selected cable construction |
| Finished Assembly Dimensions | According to approved drawing |
| Rated Voltage | 30V, as listed in the product reference; confirm the selected configuration |
| Rated Temperature | 80°C, as listed in the product reference; confirm the selected construction |
| Characteristic Impedance Options | 42.5Ω / 45Ω / 50Ω, select according to the applicable interface |
| Cable Length | Customized |
| Pin Assignment | According to customer wiring diagram |
| Connector Orientation | According to assembly drawing |
| Termination | According to approved specification |
| Manufacturing Type | Custom Micro Coaxial Cable Assembly / OEM |
The listed materials, impedance values and connector options are configuration choices, not specifications that necessarily apply simultaneously to every assembly. The exact connector, cable OD, interface, electrical limits and dimensional tolerances must be confirmed for the selected 30P or 40P model.
Connector and Interface Configuration
The 20454 series supports 30-pin and 40-pin assembly options. The connector manufacturer, exact part number, pitch, mating interface and pin assignment should be specified in the RFQ.
For eDP and LVDS applications, the selected cable assembly must match the target panel and host interface. The 30P and 40P versions should not be treated as interchangeable solely because they belong to the same connector family.
HOTTEN can review the customer's drawing or reference cable to determine the required connector arrangement, cable length, shielding construction and termination requirements.
Customization and Manufacturing Scope
| Customization Item | Required Information |
|---|---|
| Pin Configuration | 30P or 40P |
| Display Interface | eDP or LVDS, as specified by the equipment design |
| Connector | Manufacturer, part number and mating interface |
| Conductor Gauge | 40AWG for the specified model |
| Conductor Material | Required material and plating |
| Insulation | PTFE / ePTFE / FEP / PFA, subject to design |
| Shielding | Required shield material and grounding arrangement |
| Impedance | Target value and tolerance, where applicable |
| Cable Length | Finished length and permissible tolerance |
| Cable Dimensions | Required coaxial OD and finished assembly dimensions |
| Connector Orientation | According to drawing |
| Pin Assignment | Signal and ground mapping |
| Termination | Required termination method |
| Prototype Quantity | Engineering sample quantity |
| Production Volume | Estimated recurring order volume |
HOTTEN supports cable preparation, connector integration and cable assembly according to the agreed product specification. Connector models and related components are selected based on the approved BOM and interface requirements.
Quality Inspection and Acceptance
The inspection plan should be confirmed before prototype approval and production release.
| Inspection Item | Purpose |
|---|---|
| Connector Verification | Confirm connector model, pin count and orientation |
| Pinout Verification | Check signal and ground assignment against the wiring diagram |
| Continuity Test | Verify conductor paths |
| Dimensional Inspection | Check cable length, coaxial OD and assembly dimensions |
| Termination Inspection | Check connector termination and assembly condition |
| Electrical Testing | Perform specified impedance or other electrical tests where required |
| Compliance Documentation | Provide applicable declarations or test reports according to the selected product and customer requirements |
Test methods, acceptance limits, sample quantities and documentation requirements should be defined in the purchase specification or quality agreement. RoHS, REACH or UL documentation should be confirmed for the specific product configuration rather than assumed from a general materials list.
RFQ Requirements for 20454 30P/40P Cable Assembly
For an accurate quotation, please provide:
HOTTEN can review the drawing, BOM or reference cable to confirm the selected cable construction and assembly requirements before quotation.
Request a Custom 20454 Cable Quote
Send your connector part numbers, pinout, cable drawing, required length and quantity for an engineering review and quotation.
