40AWG Coaxial Cable Harness EDP LCD Screen Cable LVDS Screen Panel Coaxial Cable (NoteBook PC/TV) 20454 30P

Product Overview

The HOTTEN 20454 30P 40AWG Micro Coaxial Cable Assembly is designed for LVDS LCD display panel connections in notebook computers, TVs and other compatible electronic equipment.

Featuring a 30-pin configuration and 40AWG micro coaxial cable construction, this assembly supports compact display interconnections where connector compatibility, signal integrity and cable routing space are important design considerations.

HOTTEN supports customized cable assemblies based on customer drawings, connector part numbers, pin assignments and reference samples. Cable length, conductor material, insulation, shielding, jacket and connector orientation can be specified according to the target display interface.

Before production, the exact 20454 connector configuration, mating interface, pinout and LVDS electrical requirements should be confirmed against the customer's drawing or reference assembly.

Key Features

20454 30-Pin Configuration

The 30-pin configuration provides a defined connection layout for compatible display assemblies. Connector pitch, mating interface, orientation and pin assignment should be verified against the target LCD panel and host device.

40AWG Micro Coaxial Cable

The fine-gauge micro coaxial construction supports compact routing in space-constrained display systems. The final conductor and dielectric geometry should be selected according to the application's electrical and mechanical requirements.

Configurable Shielding and Insulation

Different conductor, insulation and shielding options can be specified according to the approved cable design. These construction choices should be evaluated together with impedance, grounding and signal-integrity requirements.

Custom Cable Dimensions and Termination

Cable length, overall dimensions, connector orientation and termination details can be customized based on the panel design, host interface and available routing space.

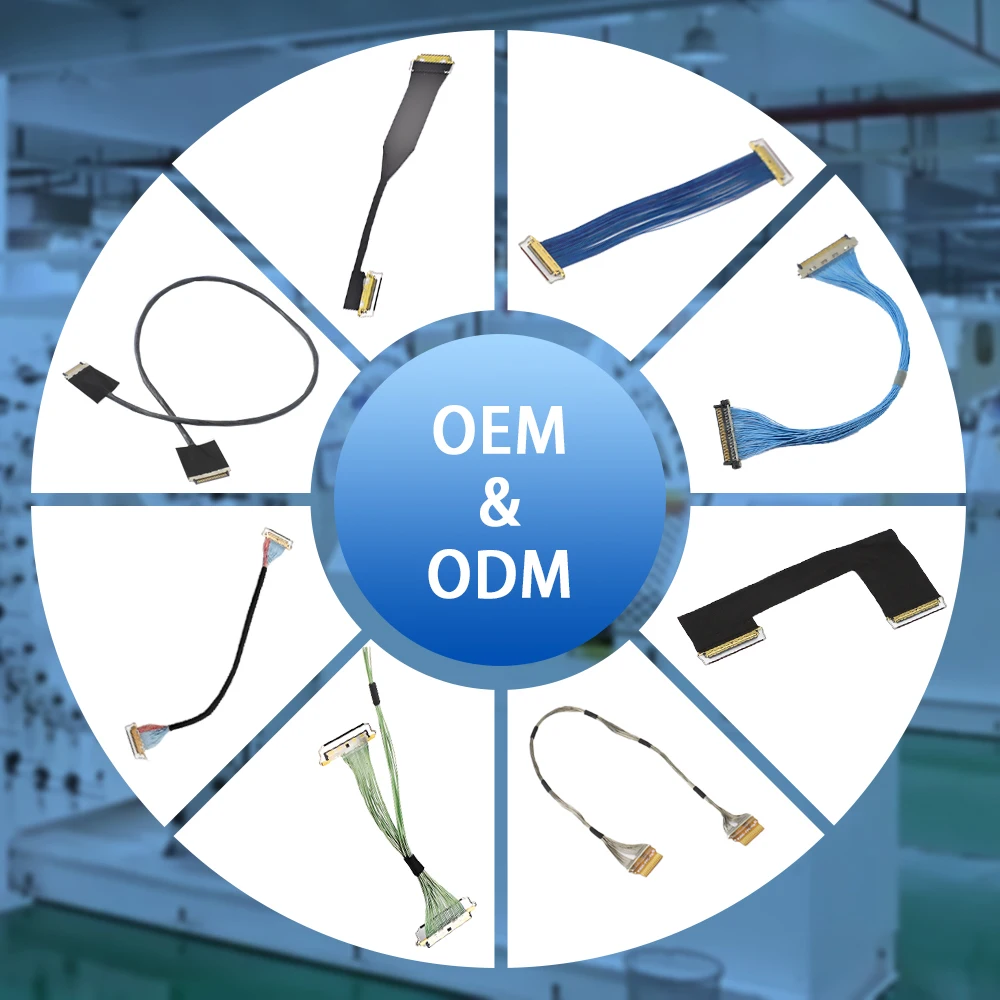

OEM Cable Assembly Support

HOTTEN supports customized cable assemblies based on drawings, samples and BOM requirements for display and other electronic equipment manufacturers.

Technical Specifications

Material options are configurable and should not be interpreted as features used simultaneously in every assembly. Final electrical and mechanical specifications must match the approved drawing and selected configuration.

Typical Applications

The 20454 30P 40AWG micro coaxial cable assembly can be configured for:

• LVDS LCD display panels

• Notebook computer displays

• TV display systems

• Industrial display modules

• Embedded electronic displays

• Other compatible LCD panel interconnections

The final application suitability depends on the display interface, connector footprint, pin assignment and required electrical performance.

Engineering & Procurement Considerations

When selecting a 20454 30P display cable assembly, engineers should evaluate connector compatibility, signal requirements and mechanical routing as one complete interconnection.

1. Connector and Pin Assignment

Provide the exact connector part number, mating interface, contact arrangement and pinout. A 30-pin designation alone does not guarantee mechanical or electrical compatibility.

2. LVDS Electrical Requirements

Confirm the required impedance and signal-integrity criteria for the target LVDS interface. The cable structure, shielding, grounding, length and connector termination should be evaluated together.

3. Cable Length and Routing

Define the finished length, cable exit direction, bend radius and available installation space. These requirements help determine the appropriate cable geometry and connector orientation.

4. Conductor, Insulation and Shielding

Choose the material combination according to electrical and mechanical requirements. Specify conductor plating, insulation, shield material and shield termination in the drawing or RFQ.

5. Sample Approval and Testing

Before production, confirm the drawing, connector configuration, cable length, pin assignment, continuity requirements and applicable electrical tests. The acceptance criteria should be documented before prototype approval.

Custom 20454 30P LVDS Cable Assembly

HOTTEN supports customized display cable assemblies based on customer drawings, connector specifications, BOMs and reference samples.

For engineering review and quotation, please provide:

• Target display model and interface

• Connector part number and mating interface

• Pin assignment and wiring diagram

• Required 40AWG cable construction

• Impedance and other electrical requirements

• Cable length, dimensions and routing conditions

• Shielding, jacket and termination requirements

• Prototype quantity and expected production volume

HOTTEN can review the specified cable construction and assembly requirements to support customized LVDS display cable projects.

Request a Custom LVDS Cable Quote

Send your drawing, connector part number, pinout or reference sample to discuss a customized 20454 30P 40AWG micro coaxial cable assembly for your display application.
