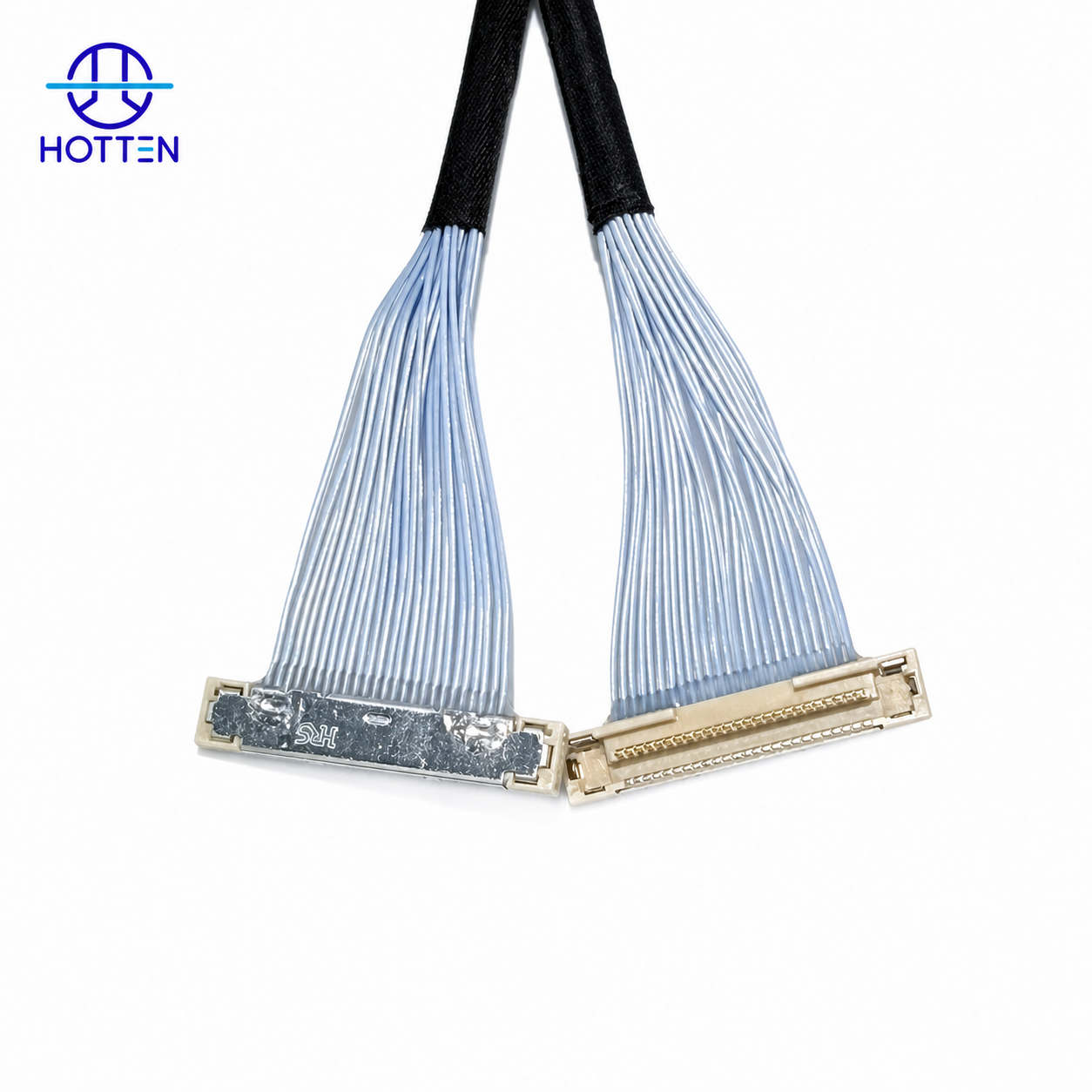

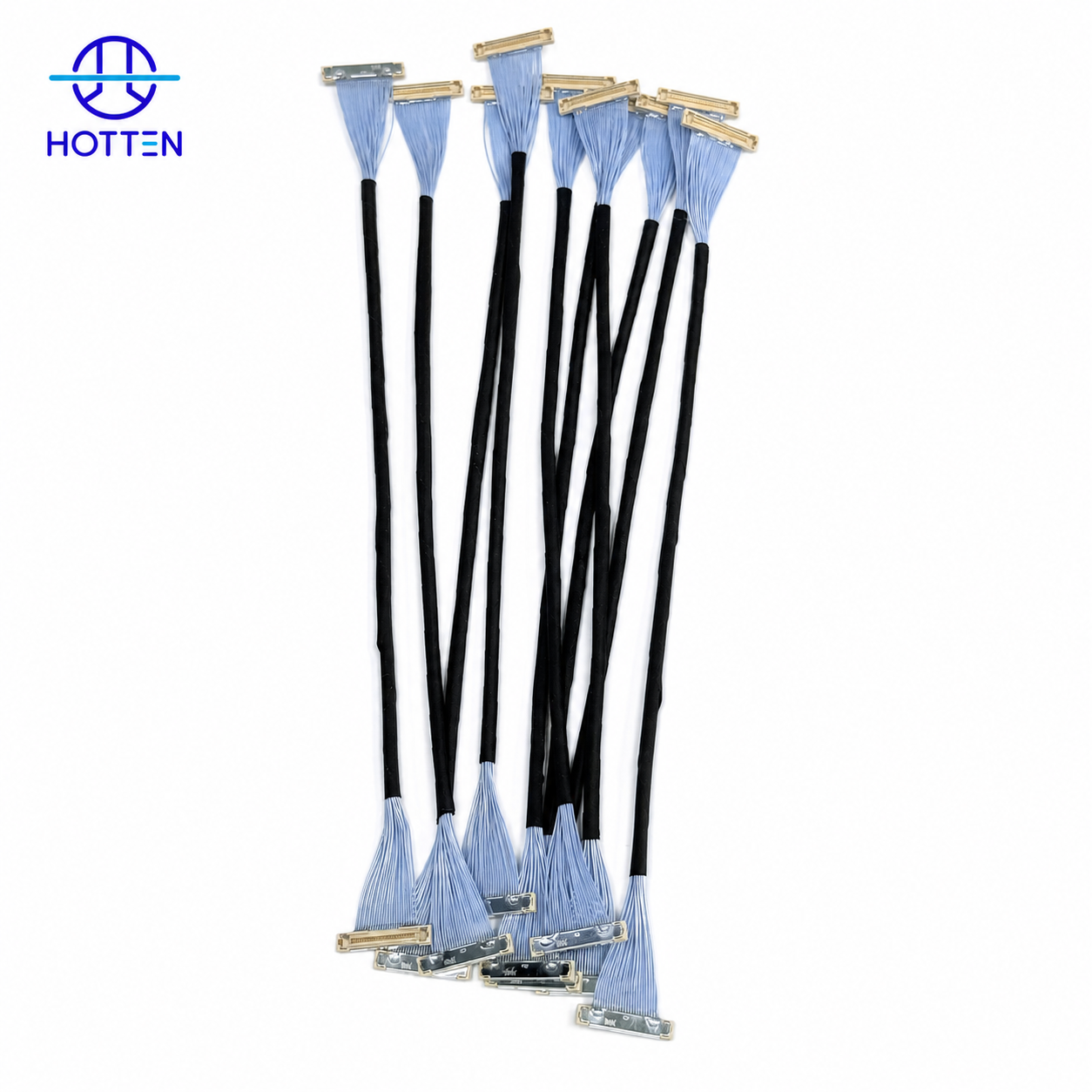

HRS DF36 50Pin 0.4mm Pitch 42AWG Micro Coaxial Cable Assembly

Product Details

The HRS DF36 50Pin 0.4mm Pitch 42AWG Micro Coaxial Cable Assembly is a compact high-density cable solution for LVDS and other high-speed signal interconnections in UAV, drone and consumer electronic equipment. The DF36 50-pin configuration and fine 42AWG micro coaxial construction are suitable for applications where compact connector interfaces and dense cable routing are required.

HOTTEN supports OEM and ODM customization based on customer drawings, connector part numbers, pin assignments and mechanical requirements. Cable length, routing, connector orientation and other assembly parameters can be customized for prototype development and volume production.

Technical Specifications

Key Features

• HRS DF36 50-pin connector configuration
• 0.4mm pitch compact connector interface
• Fine 42AWG micro coaxial cable construction
• Suitable for LVDS and high-speed signal applications
• Designed for dense internal cable routing
• Suitable for UAV, drone and consumer electronics
• Custom pinout, cable length and connector orientation
• Supports OEM, ODM and build-to-print manufacturing

Typical Applications

• UAV and drone electronics
• Drone camera and imaging systems
• Consumer electronics
• Display systems
• LVDS signal interconnections
• Embedded vision equipment
• Compact computing equipment
• Portable electronic devices
• High-density internal signal connections

Customization Options

HOTTEN can customize the DF36 50-pin micro coaxial cable assembly according to customer electrical and mechanical requirements, including:

• HRS DF36 connector configuration
• 50-pin wiring and pin assignment
• 0.4mm pitch interface
• 42AWG cable configuration
• Cable length
• Cable routing
• Connector orientation
• Bend direction
• Cable outer diameter
• Shielding configuration
• Termination requirements
• Labeling and identification
• Prototype and production packaging

For RFQ evaluation, customers can provide the HRS DF36 connector part number, pinout, cable length, wiring diagram, mechanical drawing and signal requirements.

Engineering & Procurement Considerations

For LVDS and high-speed applications, the cable assembly should be evaluated according to the complete system interface rather than connector compatibility alone.

Important procurement parameters include:

For quotation, customers can provide an RFQ drawing, BOM, connector PN, pinout, cable length and mechanical requirements for engineering review.

Prototype to Mass Production

HOTTEN supports the complete development process:

RFQ & Engineering Review → Prototype Sample → Electrical / Mechanical Validation → Design Confirmation → Pilot Production → Mass Production

Prototype samples can be used to verify connector mating, pin assignment, cable routing, cable dimensions and system integration.

After design approval, the confirmed drawing, BOM and inspection requirements can be used as the manufacturing reference for repeat and volume production.

Quality & Testing

Depending on customer requirements, inspection and testing can include:

• Pin-to-pin continuity testing
• Open and short circuit testing
• Pinout verification
• Electrical performance verification
• Connector appearance inspection
• Connector mating inspection
• Cable length and dimensional inspection
• Connector orientation inspection
• Workmanship inspection
• First Article Inspection (FAI)
• RoHS / REACH compliance documentation where required

For LVDS or other high-speed applications, additional electrical validation can be specified according to the customer's system requirements.

FAQ

Q1: Can HOTTEN manufacture an HRS DF36 50-pin cable assembly according to our drawing?
Yes. HOTTEN supports OEM, ODM and build-to-print manufacturing based on customer drawings and connector specifications.

Q2: What is the connector pitch of this DF36 cable?
The product is specified with a 0.4mm pitch HRS DF36 50-pin connector configuration.

Q3: Is the cable 42AWG?
Yes. This product is based on a 42AWG micro coaxial cable configuration.

Q4: Can the 50-pin pinout be customized?
Yes. The pin assignment and wiring configuration can be customized according to the customer's electrical specification.

Q5: Can this cable be used for UAV and drone applications?
Yes. The product is positioned for UAV, drone and consumer electronics applications requiring compact, high-density LVDS or high-speed signal interconnection.

Q6: Can the cable length and connector orientation be customized?
Yes. Cable length, routing direction and connector orientation can be customized according to the equipment's mechanical requirements.

Q7: What information should we provide for an RFQ?
The recommended information includes the HRS DF36 connector part number, 50-pin pinout, cable length, wiring diagram, mechanical drawing, signal requirements and expected quantity.

Q8: Can HOTTEN provide prototype samples before mass production?
Yes. Prototype samples can be produced for electrical and mechanical validation before pilot and volume production.
