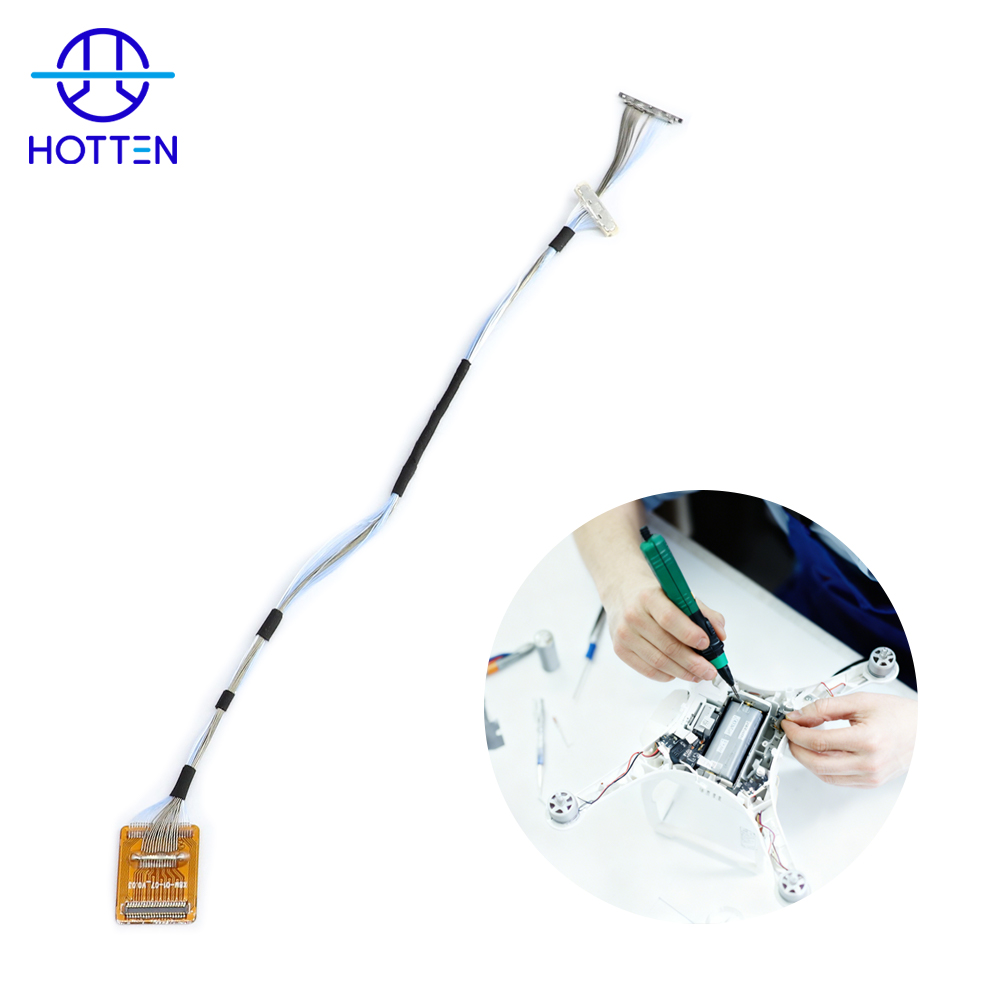

Hotten Flexible Customization Uav Pan Tilt Image Transmission Cable for Uav 46AWG Micro Coaxial Cable Assembly
|
Cable AWG: |
46AWG |
|
|
Number of cores: |
7 |
|
|
Application: |
Application |
UAV / Drone Gimbal Camera |
|
Compatible Mode |
FIMI X8M |
|
|
Connector Brand: HRS (Hirose) |
Connector 1 |

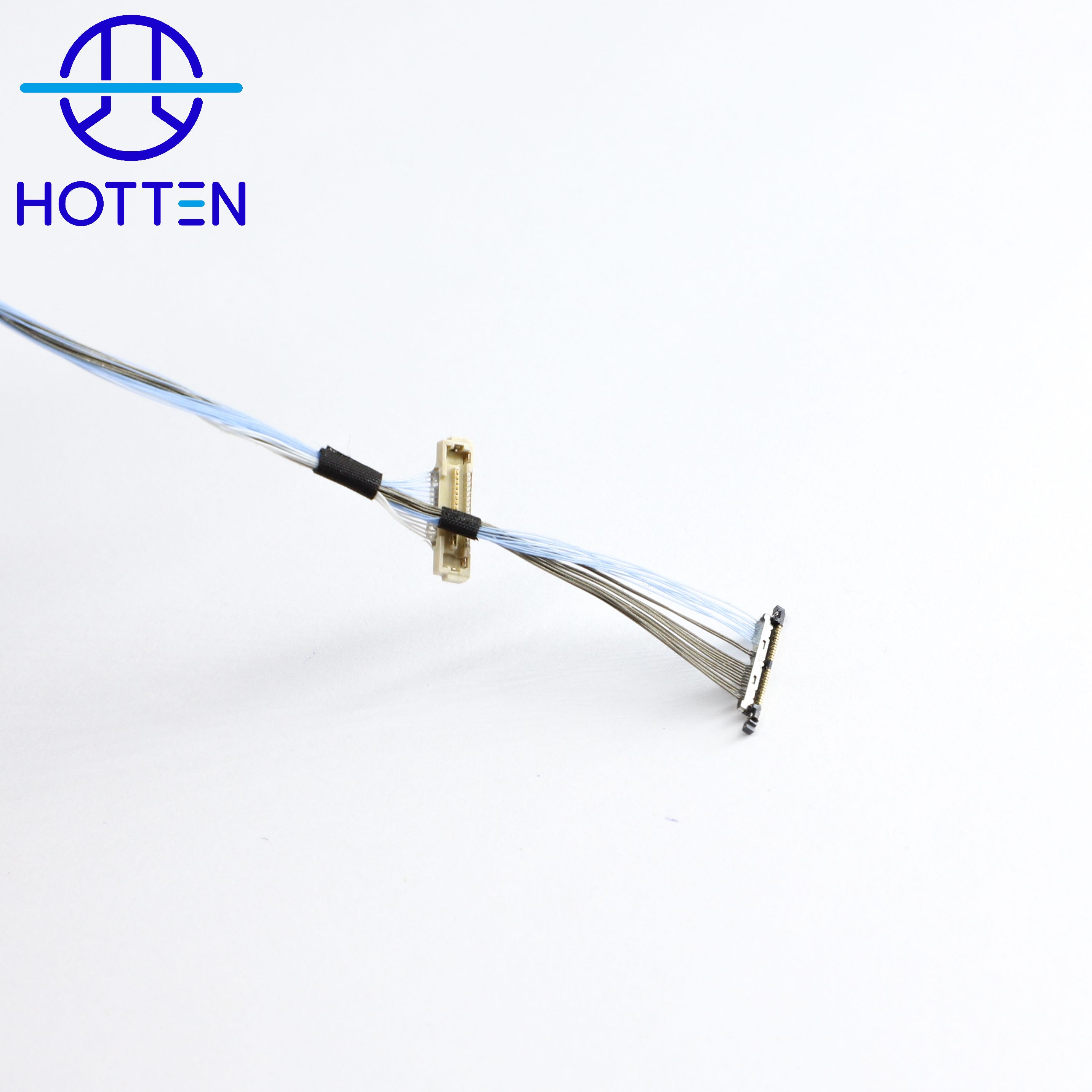

DF56 26P Micro Coaxial Connector |
|
Connector 2 |
DF36 15P Micro Coaxial Connector |
|
|
Connector 3 |

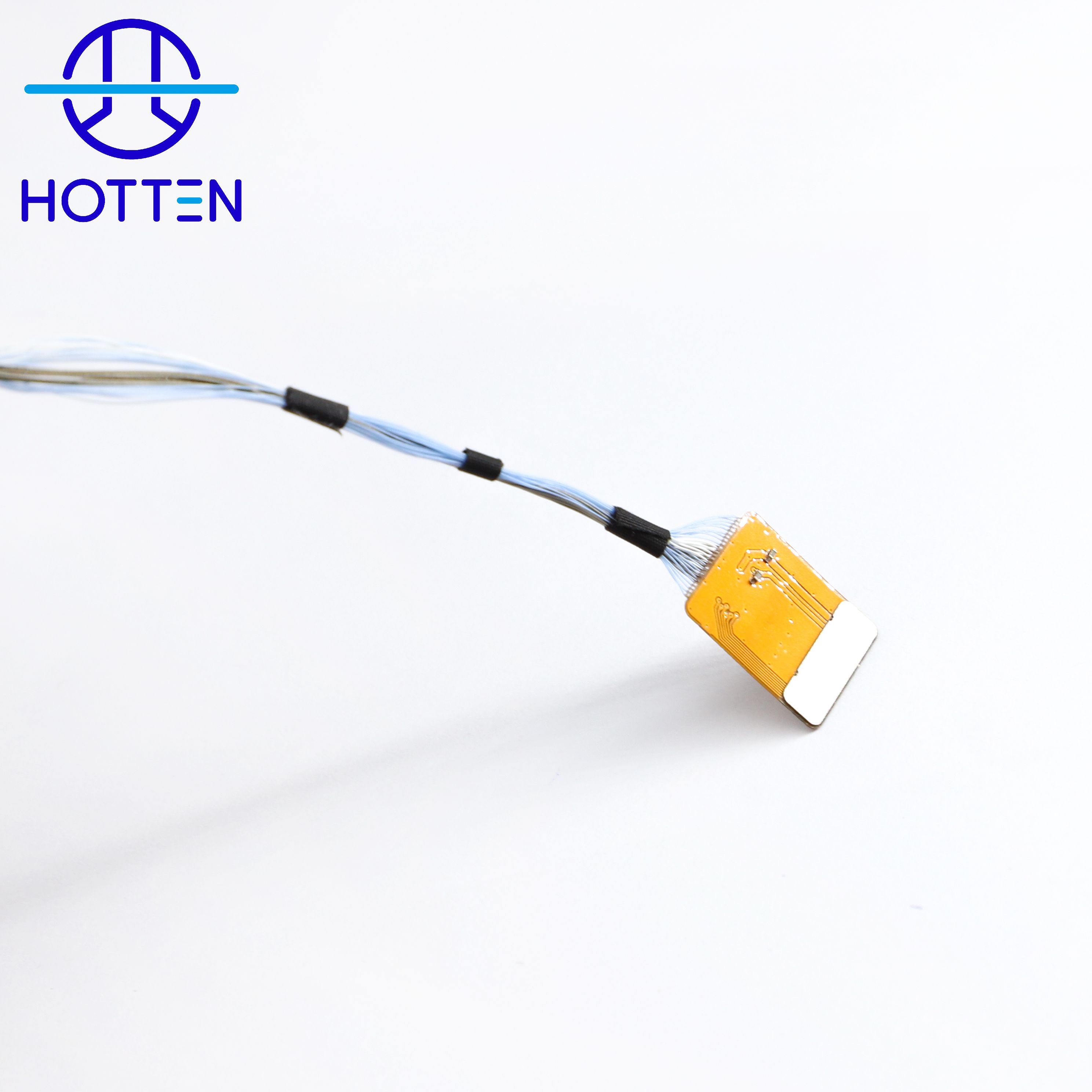

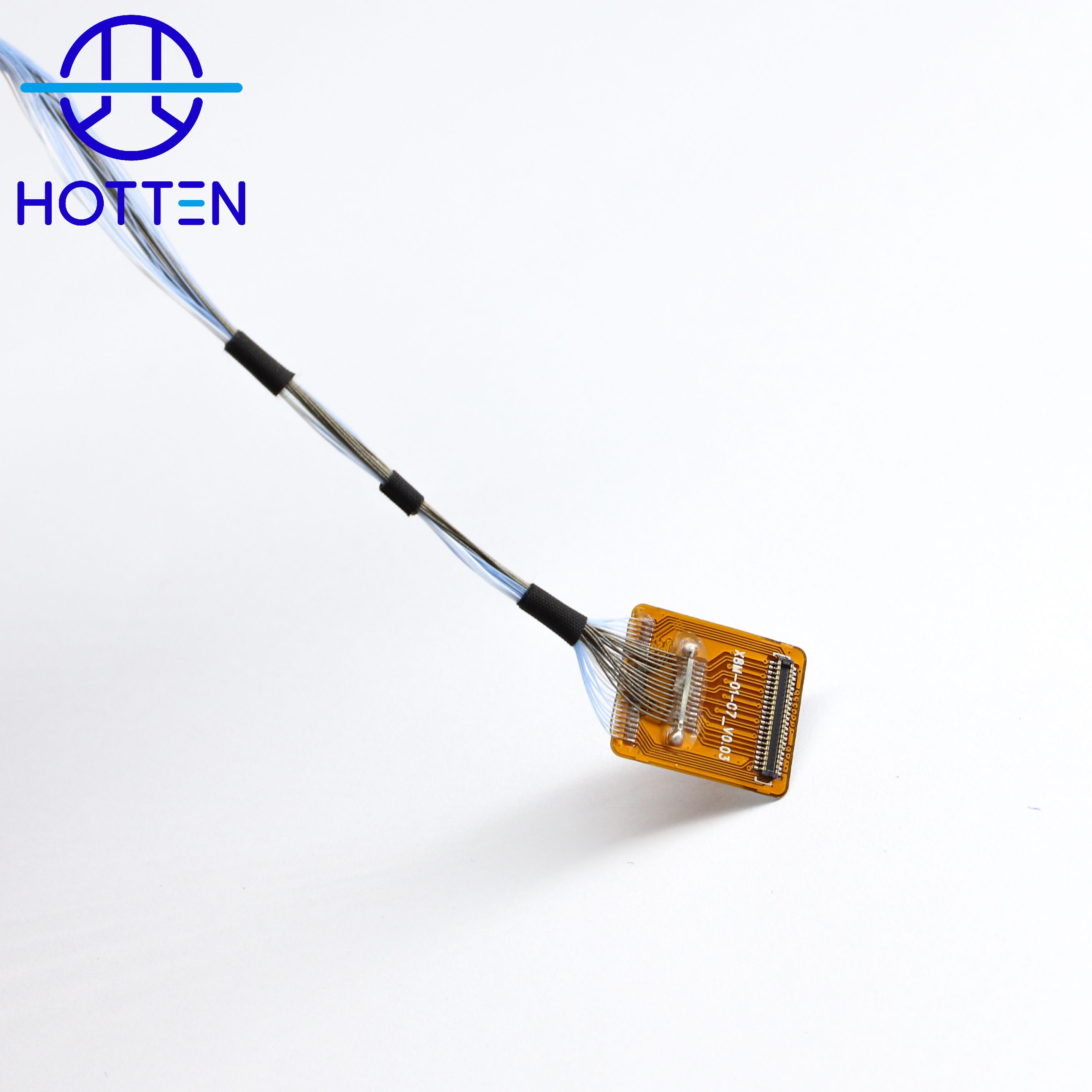

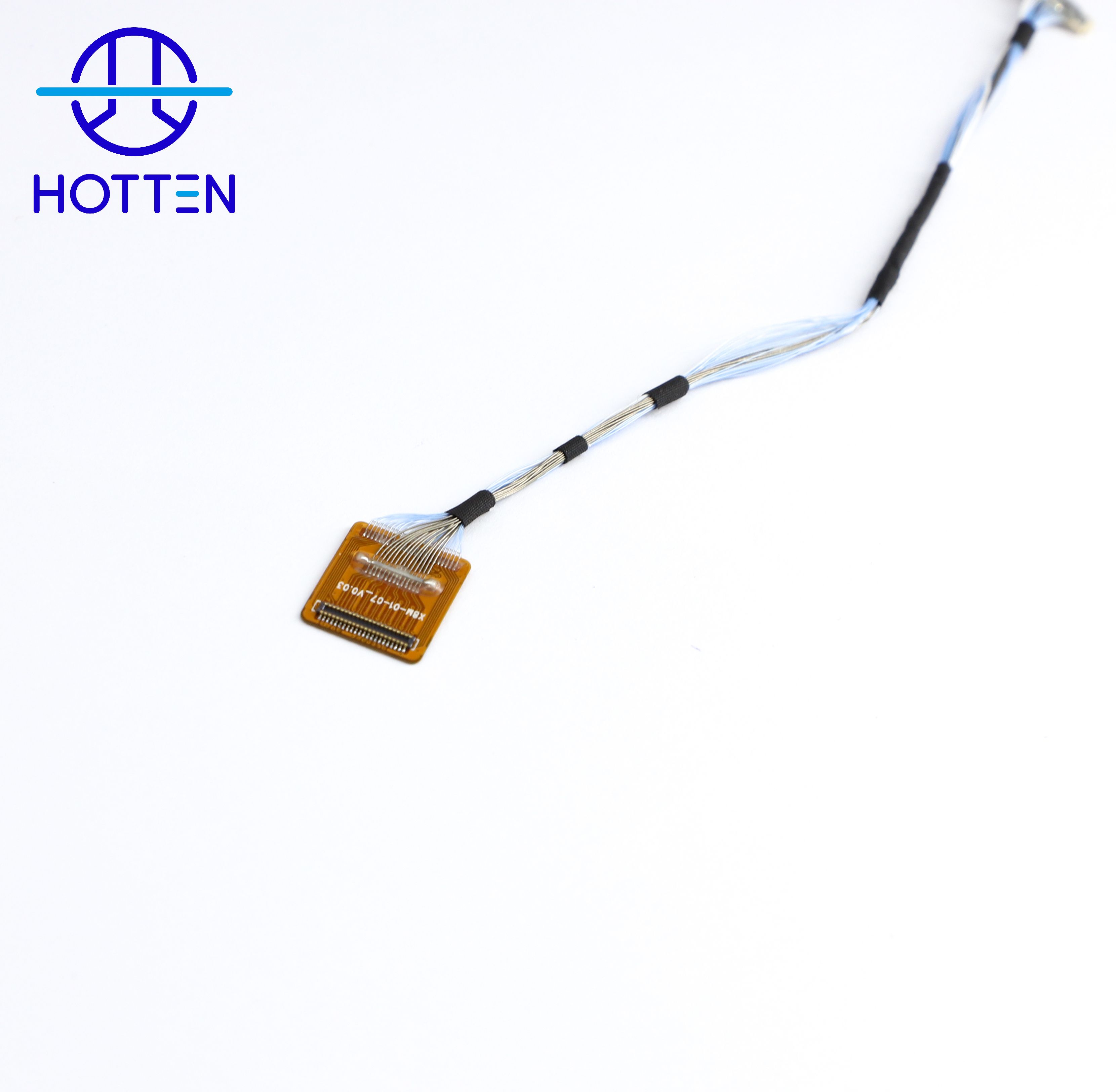

FPCA (FPC Tail) |
|
|
MOQ: |
1 Piece |
|
Product: Uav 46AWG Micro Coaxial Cable Assembly
Certifications: Rohs,Reach compliant;ISO9001/ ISO13485 factory management
Applications: FIMI X8 Mini Drone
Customization: Cable length & core count, Connector type (JAE / I-PEX / Customized)
MOQ: 1 pcs
Trade terms: FOB Shanghai / Ningbo, EXW Suzhou, etc.
- Overview
- Recommended Products
Specifications:
46AWG Micro Coaxial Cable Assembly for UAV Gimbal Camera Image Transmission
Product Overview
🚁 HOTTEN 46AWG Micro Coaxial Cable Assembly is designed for UAV image transmission systems, drone gimbal cameras and compact electronic modules requiring high-speed signal transmission with lightweight and flexible cable structures.
With ultra-fine micro coaxial cables, precision connectors and customized assembly capability, this cable solution provides reliable signal performance, excellent flexibility and space-saving design for advanced UAV applications.
HOTTEN supports OEM customization including cable length, connector type, pin assignment, core configuration and cable structure.
✨ Key Features
🔹 Ultra-Fine Micro Coaxial Cable Design
Designed for compact UAV systems:
✓ 46AWG micro coaxial cable
✓ Lightweight structure
✓ Small bending radius
✓ Space-saving internal routing
🔹 High-Speed Image Transmission
Provides:
✓ Stable HD signal transmission
✓ Low signal interference
✓ Excellent EMI shielding
✓ Reliable communication performance
🔹 UAV Gimbal Application Design
Suitable for:
✓ 3-axis gimbal systems
✓ Drone cameras
✓ Image transmission modules
✓ Compact aerial equipment
🔹 Custom Connector Solutions
Support:
✓ HRS connectors
✓ I-PEX connectors
✓ JAE connectors
✓ Customized connector requirements
Applications
Used in:
🚁 UAV / Drone Systems
📷 Gimbal Camera Modules
🤖 Robotics Vision Systems
🎥 Industrial Inspection Equipment
🛰 Compact Imaging Devices
Customization Capability
HOTTEN provides:
✓ Custom AWG size
✓ Custom cable length
✓ Custom core number
✓ Custom pin assignment
✓ Connector matching
✓ Prototype development
Manufacturing Capability
HOTTEN provides complete cable assembly solutions:
✓ Micro coaxial extrusion
✓ Shielding processing
✓ Precision assembly
✓ Electrical testing
✓ OEM mass production
Applications:
Advantages:
Ultra-fine 46AWG Micro Coax for HD Signals
Original HRS DF56 26P + DF36 15P + FPCA Design
Lightweight & Flexible for 3-Axis Gimbal Routing
Customizable Length & Pin Assignment
FAQ:
hy Choose HOTTEN
✓ Experienced micro coaxial cable manufacturer
✓ Support customized UAV cable solutions
✓ ISO9001 / ISO13485 manufacturing system
✓ Prototype and mass production support
✓ Professional engineering team
FAQ
Q1: What cable is used for UAV gimbal cameras?
UAV gimbal cameras commonly use lightweight micro coaxial cable assemblies because they require high-speed signal transmission, flexibility and compact installation.
Q2: Can HOTTEN customize drone cables?
Yes. HOTTEN supports customized cable length, connector types, pin assignment and electrical specifications.
Q3: What connectors can be used for UAV cables?
HOTTEN supports connectors from brands such as HRS, I-PEX, JAE and customized connector solutions.
Q4: Can you provide samples before mass production?
Yes. HOTTEN supports prototype samples and engineering validation before mass production.
Q5: What other applications use micro coaxial cable assemblies?
Micro coaxial assemblies are also widely used in medical imaging, AR/VR devices, robotics and high-speed electronic systems.
