8 Core Hybrid Medical Cable Assembly | Custom Medical Signal Cable | HOTTEN
| Item | Specification |
|---|---|
| Product Type | Hybrid Medical Cable Assembly |
| Core / Conductors | 8 Core |
| Cable Structure | Hybrid / Twisted-Pair Configuration |
| Signal Type | Medical Signal Transmission |
| Application | Medical Equipment & Medical Electronics |
| Cable Color | Ivory White |
| Model | MC-1 |
| Customization | Custom Cable Design |
| Assembly Type | Custom Cable Assembly |
| Quality System | ISO 13485 Certified Manufacturing |
| Manufacturer | HOTTEN |
- Overview
- Recommended Products
- 8-core configuration for multiple electrical signal paths
- Hybrid cable structure for integrated medical equipment interconnection
- Twisted-pair construction for application-specific signal transmission
- Custom cable assembly based on customer requirements
- Compact cable integration for medical and precision electronic equipment
- Ivory-white cable construction for the MC-1 configuration
- Manufactured under an ISO 13485 certified quality system
- Number of conductors
- Signal configuration
- Conductor size
- Cable outer diameter
- Flexibility requirements
- Shielding requirements
- Connector and termination requirements
- Cable routing space
- Mechanical bending requirements
- Sterilization or environmental requirements where applicable
- Core and conductor configuration
- Cable structure
- Twisted-pair configuration
- Cable dimensions
- Cable length
- Connector and terminal selection
- Termination and assembly
- Jacket and insulation requirements
- Identification and labeling
- Other application-specific mechanical requirements
- Medical equipment
- Medical electronic systems
- Diagnostic equipment
- Medical signal interconnection
- Monitoring equipment
- Precision medical instruments
- Custom medical devices
- Other medical applications requiring multi-core signal cables

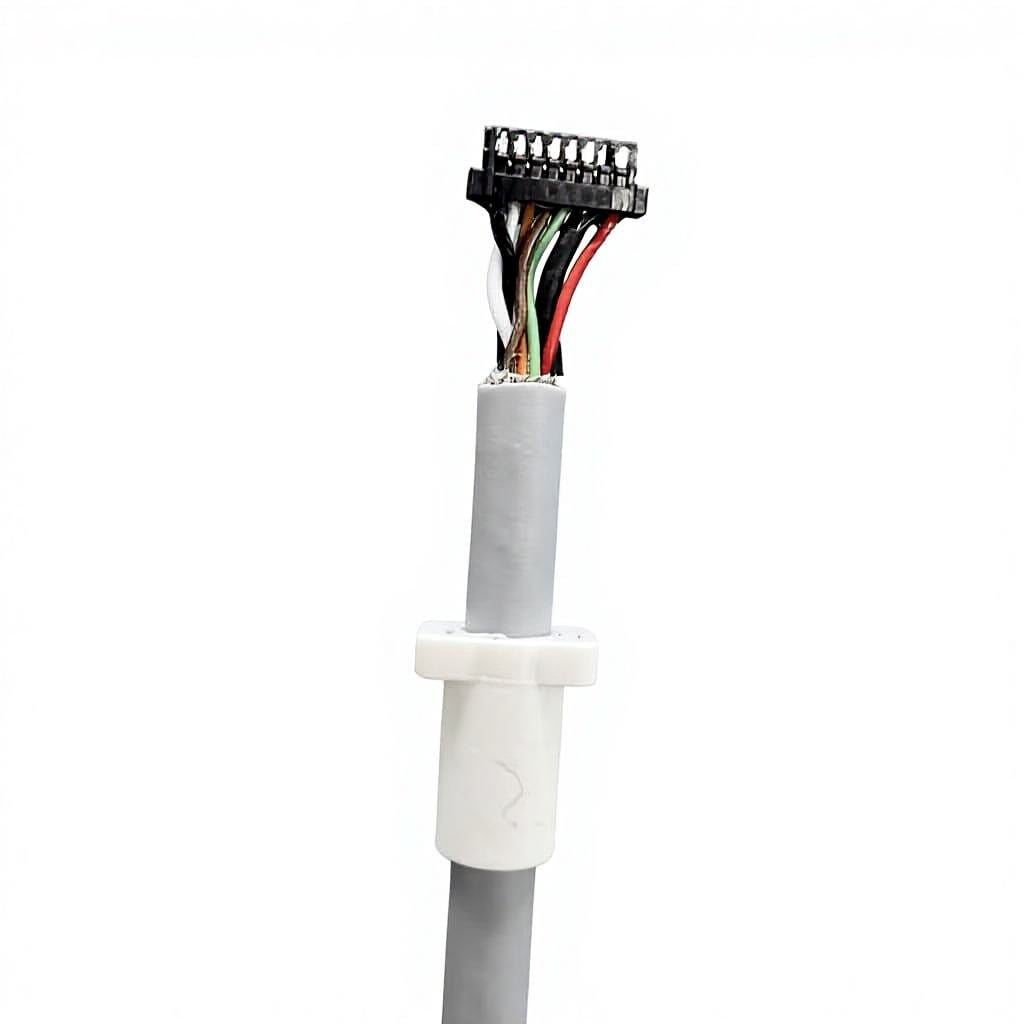

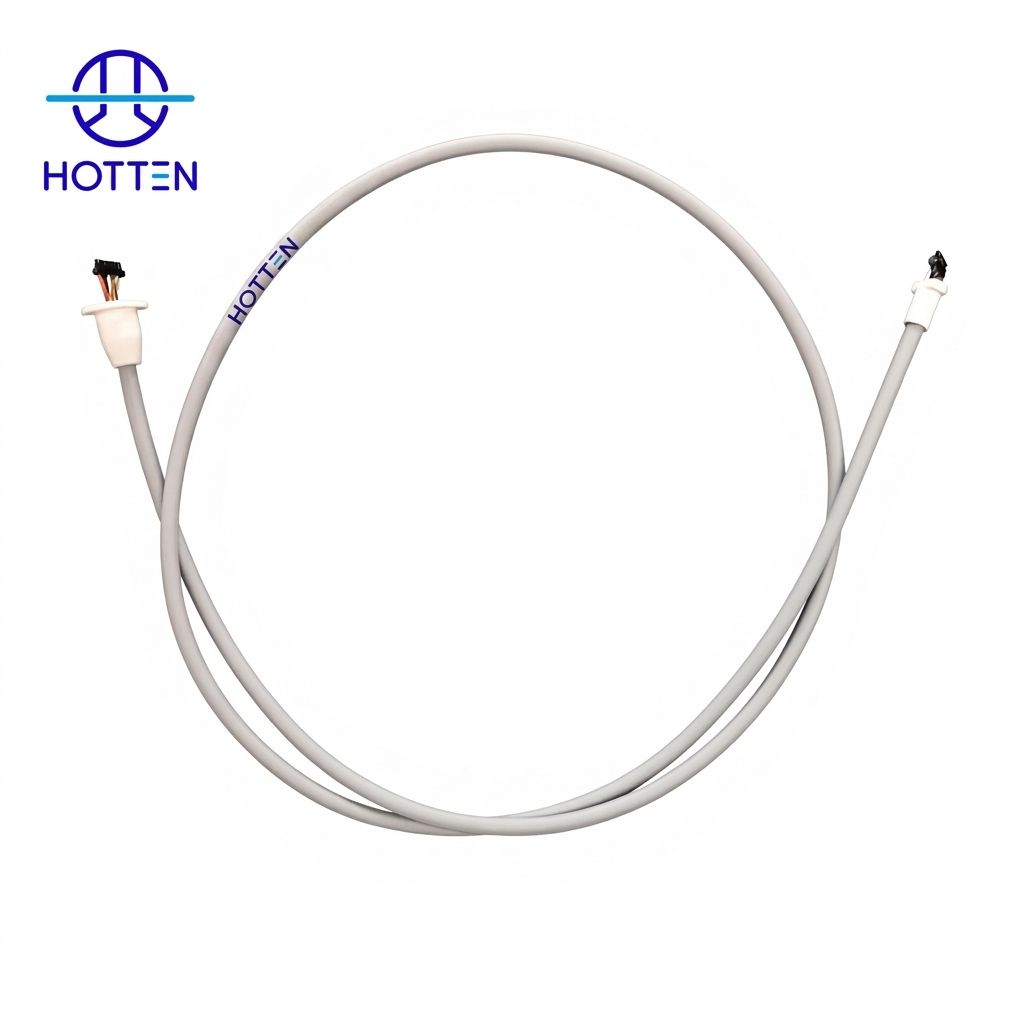

8 Core Hybrid Medical Cable Assembly
The HOTTEN 8 Core Hybrid Medical Cable Assembly is a custom medical signal cable designed for medical equipment and precision electronic systems that require multiple conductors within a compact cable structure.
The cable uses an application-specific hybrid and twisted-pair configuration to support medical signal transmission and equipment interconnection. With eight cores, the cable can integrate multiple electrical paths into a single custom cable assembly, helping simplify cable routing and system integration.
HOTTEN provides custom medical cable assemblies based on application requirements, customer drawings and engineering specifications. Cable construction, conductor configuration, dimensions, termination and assembly details can be adapted to the requirements of the target medical device.
Key Features
What Is a Hybrid Medical Cable?
A hybrid medical cable combines multiple conductor or signal configurations within a single cable assembly. This structure allows different electrical functions to be integrated into one cable instead of using several separate cables.
For medical equipment manufacturers, a hybrid cable can simplify internal cable routing and equipment integration while providing a customized combination of conductors and signal paths.
The exact cable construction depends on the electrical, mechanical and integration requirements of the medical device.
Why Use an 8 Core Medical Cable?
An 8 core medical cable provides multiple conductors within one cable structure. This can be useful when a medical device requires several electrical connections while maintaining a consolidated cable assembly.
Depending on the application, the individual cores can be configured to support different signal or electrical functions. The final conductor structure should be selected according to the device's electrical requirements, available installation space and mechanical requirements.
Medical Signal Cable for Custom Equipment
Medical signal cables must be designed around the requirements of the equipment rather than treated as generic electrical cables.
Important engineering factors can include:
For this reason, custom medical cable assemblies are commonly developed from customer drawings, specifications, samples or application requirements.
Custom Hybrid Medical Cable Assembly
HOTTEN can develop custom medical cable assemblies according to customer engineering requirements.
Depending on the project, customization can include:
For build-to-print projects, customers can provide drawings, specifications, samples or connector requirements for engineering evaluation.
Engineering & Procurement Considerations
When selecting an 8 core hybrid medical cable, procurement and engineering teams should confirm the electrical and mechanical requirements before production.
| Requirement | Why It Matters |
|---|---|
| Core count | Determines the number of available electrical paths |
| Conductor size | Affects current capacity, resistance and cable dimensions |
| Signal configuration | Determines whether twisted pairs, shielding or other structures are required |
| Cable OD | Must fit the available routing and installation space |
| Flexibility | Important for cables exposed to repeated movement |
| Connector / termination | Must match the mating interface of the medical equipment |
| Cable length | Affects routing, assembly and system integration |
| Shielding | May be required for sensitive signal environments |
| Quality requirements | Medical equipment projects may require controlled manufacturing and documented quality processes |
Typical Applications
The 8 Core Hybrid Medical Cable Assembly can be considered for:
The final cable construction should be selected according to the electrical, mechanical and environmental requirements of the specific device.
Custom Medical Cable Manufacturer
HOTTEN provides custom medical cable assemblies for medical equipment manufacturers and precision electronic applications.
Customers can work with HOTTEN based on drawings, specifications, samples or application requirements. The cable structure and assembly configuration can then be developed around the required electrical and mechanical interfaces.
For projects requiring an 8 core hybrid medical cable, medical signal cable or other custom medical cable assembly, the required core configuration, cable dimensions, termination and application requirements can be evaluated during the engineering stage.
Frequently Asked Questions
What is an 8 core hybrid medical cable?
An 8 core hybrid medical cable is a custom cable assembly containing eight conductors arranged in a hybrid cable structure for medical equipment and signal interconnection applications.
What is a hybrid medical cable used for?
A hybrid medical cable is used when multiple electrical or signal paths need to be integrated into one cable assembly. This can help simplify cable routing and equipment integration.
Can an 8 core medical cable be customized?
Yes. The cable structure, conductor configuration, dimensions, termination and other assembly requirements can be customized according to customer drawings, specifications or application requirements.
What is the difference between a medical signal cable and a standard cable?
A medical signal cable is designed around the electrical, mechanical and integration requirements of medical equipment. Depending on the application, factors such as signal configuration, flexibility, shielding, size and termination can be important.
Can HOTTEN manufacture custom medical cable assemblies?
Yes. HOTTEN manufactures custom medical cable assemblies based on customer drawings, samples, specifications and application requirements.
Is the 8 core hybrid medical cable suitable for medical equipment?
It can be used for medical equipment and precision medical electronics where an application-specific multi-core cable assembly is required. The final construction should be selected according to the electrical and mechanical requirements of the equipment.
