Custom OD 0.165mm 11-Core Endoscope Camera Module Cable

Custom OD 0.165mm 11-Core Endoscope Camera Module Cable

Product Overview

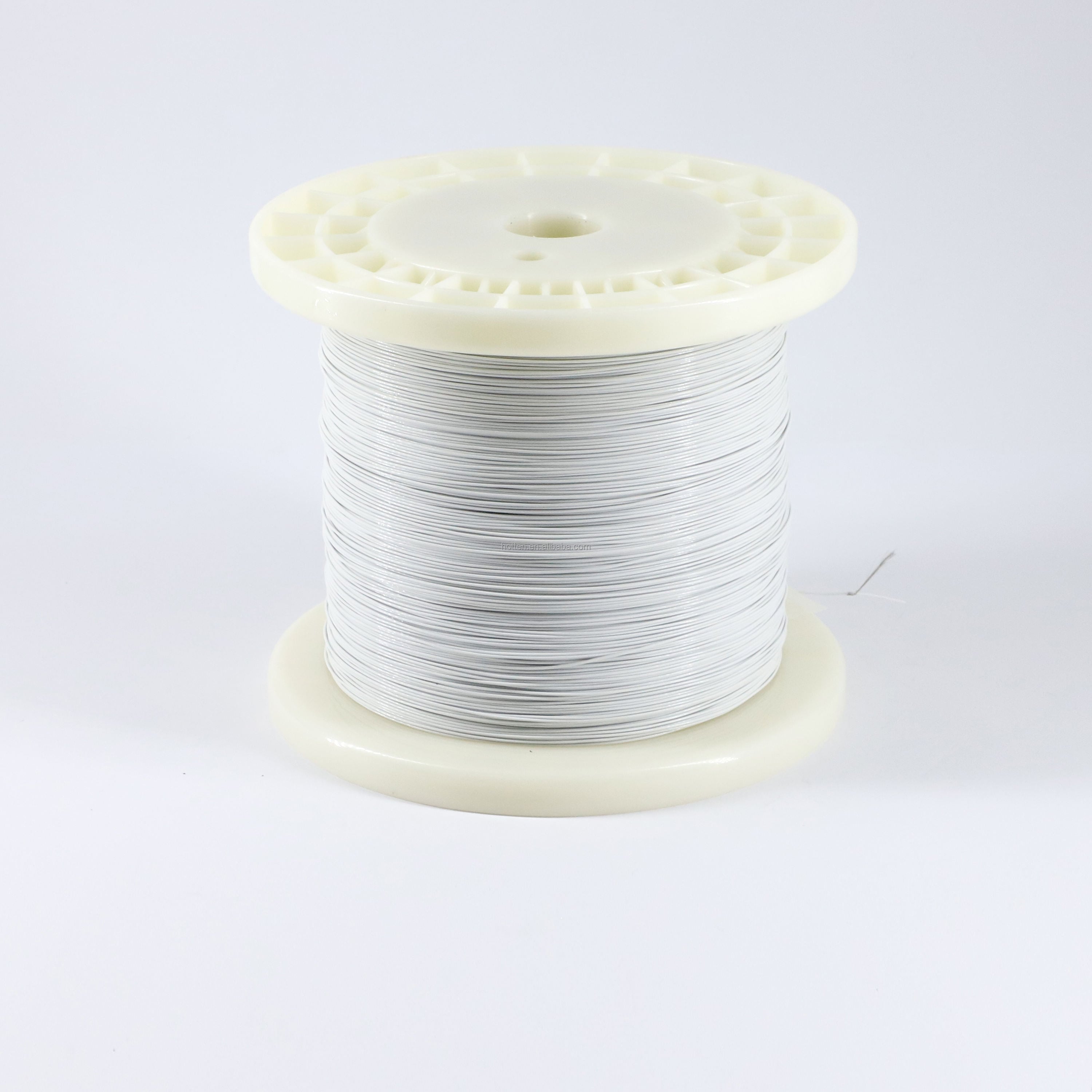

HOTTEN's custom OD 0.165mm 11-core endoscope camera module cable is designed for highly compact imaging systems where cable diameter, routing space and multi-channel integration are critical.

With an overall diameter of approximately 0.165mm and an 11-core configuration, this miniature cable is suitable for compact endoscope camera modules and other space-constrained imaging applications.

The cable structure can be customized according to the customer's mechanical layout, electrical requirements, termination method and assembly configuration.

Typical customization options include cable length, core configuration, termination and connector arrangement, depending on project requirements.

Key Specifications

Key Features

• Ultra-small cable diameter — Approx. 0.165mm OD helps address highly space-constrained cable routing requirements.

• 11-core configuration — Supports multi-channel integration within compact camera module designs.

• Flexible cable structure — Designed for compact routing and integration around miniature imaging assemblies.

• Endoscope camera module application — Developed for miniature imaging and endoscopic equipment where conventional cable dimensions may be difficult to accommodate.

• Custom cable configuration — Cable length, termination and interface configuration can be adapted to customer drawings and assembly requirements.

• Application-specific engineering — HOTTEN can evaluate cable construction and termination requirements according to the customer's mechanical and electrical design.

Applications

Endoscope Camera Modules

For miniature camera modules where extremely limited internal space requires a small-diameter multi-core cable.

Flexible Endoscope Systems

Suitable for compact internal cable routing within endoscopic imaging assemblies.

Miniature Medical Imaging Devices

For imaging equipment requiring small, flexible interconnects around compact sensing or camera modules.

Compact Camera Systems

The miniature cable structure can also be evaluated for other camera and imaging applications with demanding space constraints.

Customization & Engineering Requirements

For miniature endoscope and camera module projects, cable selection should be based on the complete mechanical and electrical design rather than cable diameter alone.

HOTTEN can review the following project information during RFQ and engineering evaluation:

Customers can provide a drawing, BOM, connector part number, pinout, cable length and other available technical information for project evaluation and quotation.

Engineering & Procurement Considerations

When sourcing an ultra-small endoscope camera cable, procurement teams and engineers should evaluate more than the nominal cable diameter.

Important considerations include:

• Dimensional compatibility — Confirm the cable OD and routing space available inside the endoscope or camera assembly.

• Core configuration — Confirm the number of conductors and required wiring arrangement.

• Termination requirements — Specify the connector, contact or termination method where applicable.

• Mechanical requirements — Consider how the cable will be routed, installed and integrated into the finished device.

• Prototype development — For new camera module designs, prototype samples can be used to verify mechanical fit and assembly compatibility.

• Production consistency — Once the design is validated, the manufacturing process should maintain consistent cable dimensions and termination quality.

• Supplier capability — For miniature medical and imaging cables, evaluate the supplier's ability to support custom drawings, samples, engineering communication and production requirements.

For an RFQ, customers can provide the cable drawing, BOM, connector part number, pinout, required length and target application.

FAQ

What is the outer diameter of this endoscope camera cable?

The listed cable has an approximate outer diameter of 0.165mm. Final dimensional requirements should be confirmed according to the specific project configuration.

How many cores does the cable have?

The listed configuration contains 11 cores. Other configurations may be evaluated according to application requirements.

Can the cable length be customized?

Yes. Cable length can be specified according to the customer's camera module or endoscope assembly requirements.

Can the termination or connector be customized?

Yes. HOTTEN can evaluate customized termination and connector configurations based on customer drawings and interface requirements.

Is this cable suitable for endoscope camera modules?

The product is designed for endoscope camera module applications and other compact imaging systems where very small cable dimensions are important.

What information is needed for an RFQ?

A cable drawing, required length, core configuration, connector or termination information, pinout and application details are useful for engineering evaluation and quotation.

Request a Custom Cable

If your endoscope or camera module has strict space constraints, send HOTTEN your cable drawing, required dimensions, core configuration, connector information and target quantity.

Our engineering team can review the cable structure and customization requirements for prototype development and production.

Request an RFQ for your miniature cable project.
