RF Coaxial Cable Assembly

Custom 50 Ohm RF Cable Solutions for High-Frequency Signal Transmission

📡 High-frequency electronic systems require coaxial cable assemblies with stable impedance, low signal loss, and reliable shielding performance.

Hotten provides customized 50 Ohm RF coaxial cable assemblies designed for RF communication equipment, wireless systems, antennas, test equipment, and high-speed electronic applications.

By combining precision coaxial cable manufacturing, shielding technology, and customized connector assembly, Hotten delivers reliable RF cable solutions for demanding signal transmission environments.

📡 RF Cable Applications

Hotten RF coaxial cable assemblies are widely used in:

• RF Communication Systems
• Wireless Equipment
• Antenna Connections
• Drone Communication Systems
• Test & Measurement Equipment
• High-Frequency Electronic Devices
• IoT Communication Modules
• Industrial RF Applications

50 Ohm impedance design is commonly used in RF systems requiring stable signal transmission and minimized reflection loss.

🔬 50 Ohm RF Coaxial Cable Technology

The cable assembly uses a controlled impedance coaxial structure designed for high-frequency signal transmission.

Key advantages:

• 50 Ohm impedance matching
• Low insertion loss
• High-frequency performance
• Excellent EMI shielding
• Flexible cable routing
• Stable signal integrity
• Customized cable dimensions

The coaxial structure helps maintain signal quality by reducing electromagnetic interference and minimizing signal attenuation.

⚙️ Customized RF Cable Assembly

Hotten supports OEM customization according to customer drawings, electrical requirements, and application environments.

Cable Structure

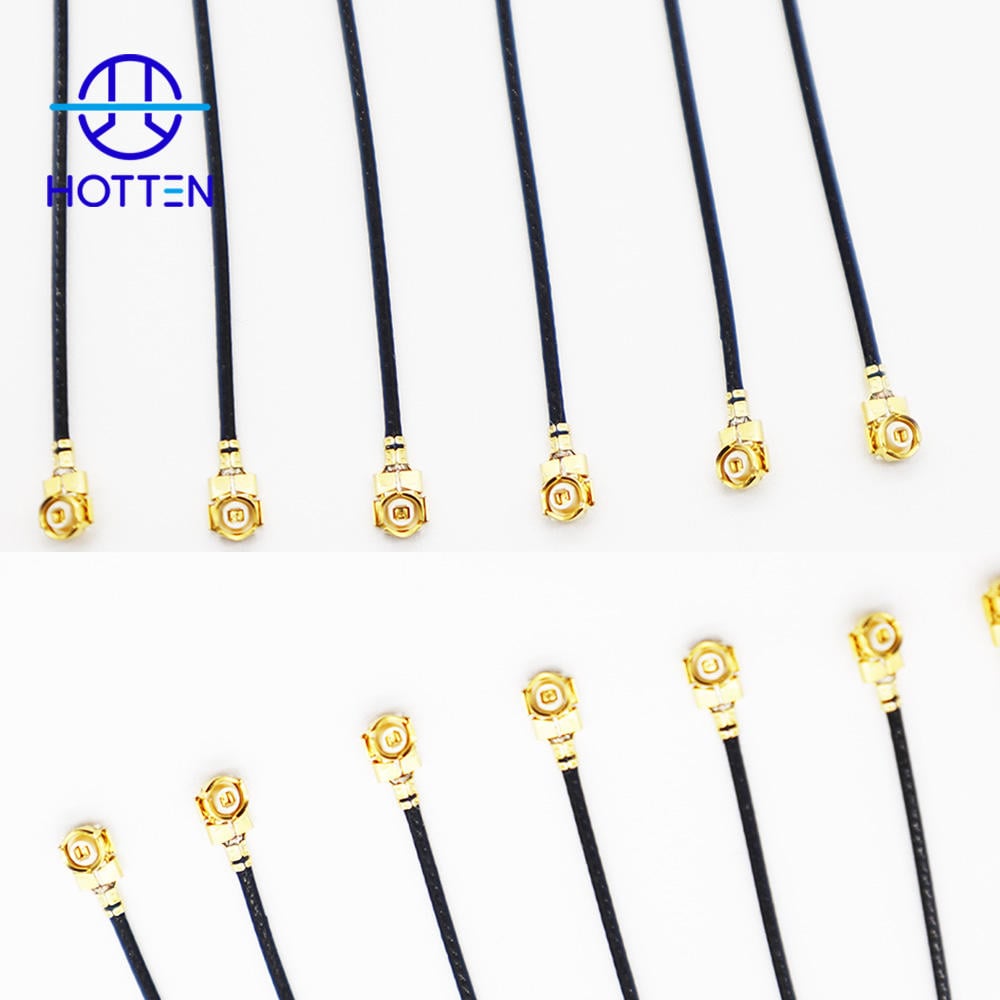

• 50 Ohm coaxial cable
• Ultra-thin RF cable
• Flexible coaxial cable
• Shielded coaxial structure
• Custom cable diameter

Electrical Performance

• Controlled impedance
• Low attenuation
• High-frequency transmission
• VSWR optimization
• Shielding effectiveness

Mechanical Design

• Flexible bending performance
• Compact routing
• Lightweight structure
• Custom cable length
• Space-saving installation

Connector & Assembly

• SMA connector
• SMB connector
• IPEX / MHF connector
• TNC connector
• N Type connector
• Custom RF termination

🏭 RF Cable Manufacturing Process

Hotten RF cable assembly process:

Coaxial Cable Selection

↓

Cable Cutting & Stripping

↓

Connector Termination

↓

Electrical Testing

↓

Finished RF Cable Assembly

Each assembly is tested for electrical continuity and signal reliability according to customer requirements.

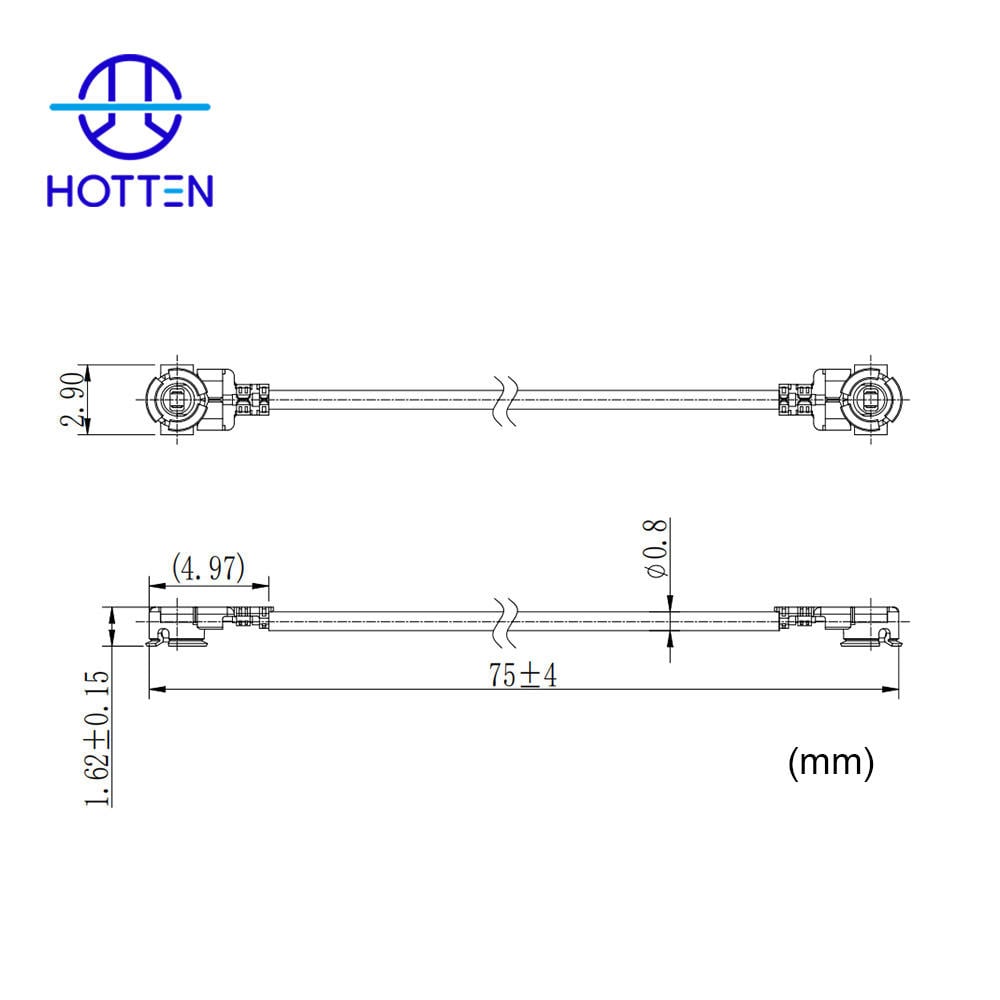

📋 Technical Specifications

⭐ Why Choose Hotten

High-Frequency Cable Expertise

Hotten provides customized coaxial cable solutions for RF and high-speed electronic applications.

Reliable Signal Performance

Controlled impedance and shielding structures help maintain stable RF signal transmission.

Flexible OEM Customization

Cable type, connector, length, shielding structure, and electrical parameters can be customized.

Prototype to Mass Production

Hotten supports customers from engineering samples to volume production.

🔗 Related Cable Solutions

Micro Coaxial Cable Assembly

UAV Micro Coaxial Cable Assembly

Camera Cable Assembly

High-Speed Signal Cable

Custom Cable Assembly

🤝 Need a Customized RF Coaxial Cable Assembly?

If your application requires 50 Ohm RF cables, low loss coaxial assemblies, or customized high-frequency cable solutions, send Hotten your drawings, samples, connector requirements, or technical specifications.

Hotten provides OEM RF cable customization from prototype development to mass production.

Request a Customized RF Cable Solution →
