46AWG HRS DF56/DF36 Micro Coaxial UAV Cable Assembly
| Item | Specification |
|---|---|
| Product Type | Micro Coaxial Cable Assembly |
| Conductor Size | 46AWG |
| Connector | HRS DF56 / DF36 |
| Application | Micro UAV, Camera and Compact Electronic Systems |
| Cable Length | Customized |
| Connector Configuration | Customized |
| Cable Routing | Customized according to application |
| Manufacturing | OEM / Custom |
| Prototype Support | Available for project evaluation |
- Overview
- Recommended Products
Micro UAV systems
Compact drone electronics
UAV camera modules
Gimbal and imaging assemblies
Miniature electronic modules
Space-constrained signal interconnections
Other compact electronic equipment
Connector part number and mating interface
Pin count and pinout
Finished cable length
Wire gauge and cable construction
Connector orientation
Cable routing and available installation space
Prototype quantity
Production quantity
Required inspection and testing
Drawing or sample approval requirements
UAV Cable Assembly Solutions
Custom Cable Engineering
Micro Coaxial Cable Solutions
Micro UAV Systems
Drone Camera Systems
Gimbal Systems
Compact Electronic Systems
42AWG HRS DF81 30-Pin Micro Coaxial Drone Cable Assembly
Custom UAV Cable Assembly for Compact Drone Systems
46AWG HRS DF56/DF36 Micro Coaxial UAV Cable Assembly
Product Overview

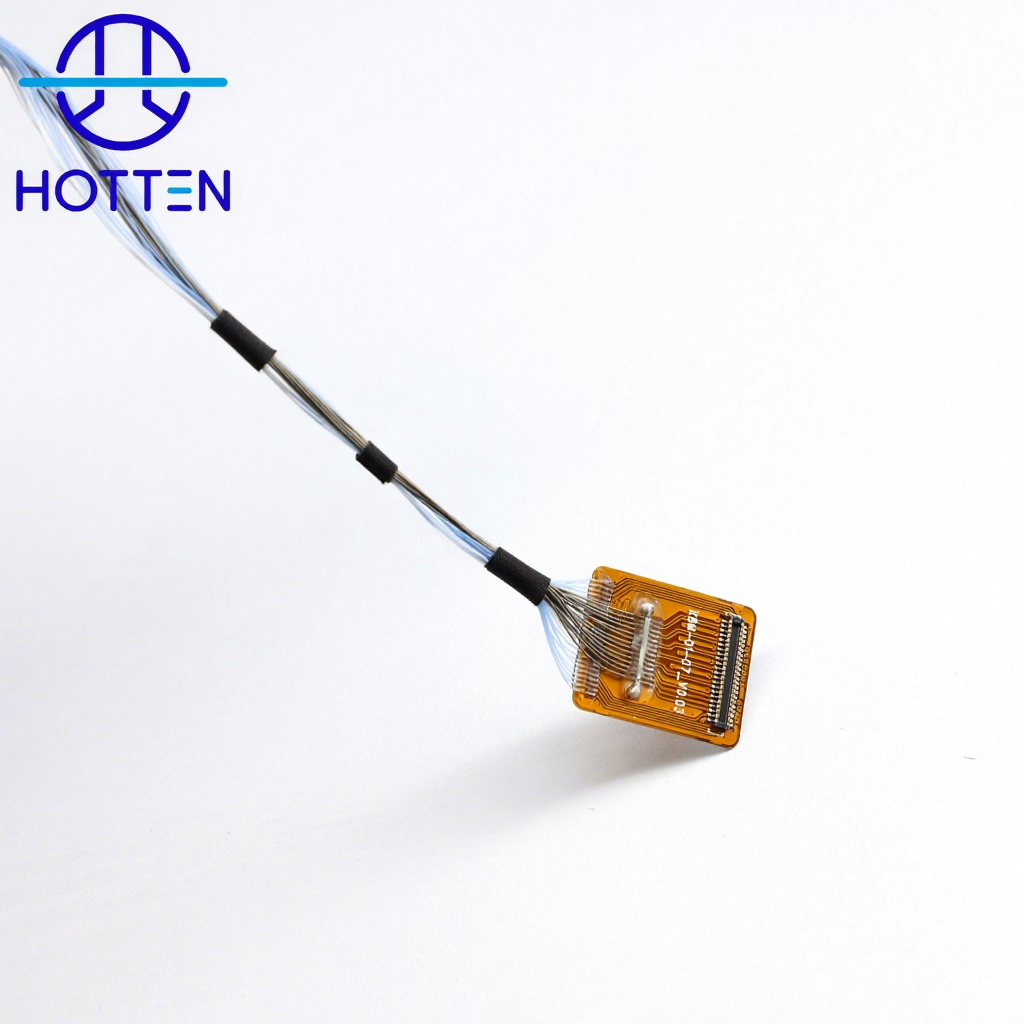

The HOTTEN 46AWG HRS DF56/DF36 Micro Coaxial UAV Cable Assembly is a compact interconnection solution designed for small unmanned aerial vehicles, camera modules and other space-constrained electronic systems.
Using 46AWG fine-gauge micro coaxial cable with HRS DF56/DF36 connector configurations, the assembly is designed for applications where small cable dimensions, flexible routing and compact connector interfaces are important to the overall system design.
Cable length, connector configuration and assembly requirements can be customized according to the customer's equipment design, drawing or sample.
Key Specifications
| Item | Specification |
|---|---|
| Product Type | Micro Coaxial Cable Assembly |
| Conductor Size | 46AWG |
| Connector | HRS DF56 / DF36 |
| Application | Micro UAV, Camera and Compact Electronic Systems |
| Cable Length | Customized |
| Connector Configuration | Customized |
| Cable Routing | Customized according to application |
| Manufacturing | OEM / Custom |
| Prototype Support | Available for project evaluation |
Key Features
46AWG Fine-Gauge Cable Construction
The 46AWG configuration is suited to miniature electronic assemblies where limited installation space requires a fine-gauge interconnection.
HRS DF56 / DF36 Connector Options
The assembly can be configured with compatible HRS DF56 or DF36 connector interfaces according to the customer's equipment design and mating requirements.
Designed for Compact UAV Systems
The compact cable structure is suitable for small UAV platforms where cable routing space and overall system size need to be considered during integration.
Flexible Routing for Miniature Assemblies
Cable length and routing can be customized to accommodate the internal layout of compact electronic equipment, camera modules and UAV systems.
Custom Cable Assembly Manufacturing
HOTTEN can manufacture cable assemblies according to customer drawings, connector specifications, samples and application requirements.
Applications
The 46AWG HRS DF56/DF36 cable assembly can be considered for miniature electronic systems requiring a fine-gauge multi-channel interconnection.
Typical applications include:
Customization & Engineering Requirements
For a custom DF56/DF36 cable assembly, customers can provide the following information for engineering evaluation:
| Requirement | Example Information |
|---|---|
| Connector | HRS DF56, DF36 or specified connector part number |
| Pin Configuration | Customer-specified configuration |
| Cable Length | Required finished length |
| Wire Gauge | 46AWG or specified wire size |
| Routing | Required cable path or assembly orientation |
| Drawing | 2D drawing, 3D model or technical specification |
| Sample | Existing cable or connector sample, if available |
| Quantity | Prototype or production quantity |
Providing the connector part number, pinout, cable length and drawing or sample can help accelerate technical evaluation and quotation.
Engineering & Procurement Considerations
When sourcing a custom DF56/DF36 cable assembly, the following information should be confirmed before production:
For UAV and camera applications, the available installation space and cable routing path should be considered together with connector orientation and finished cable length during the design stage.
Frequently Asked Questions
What is an HRS DF56/DF36 cable assembly?
An HRS DF56/DF36 cable assembly combines a compatible HRS DF56 or DF36 connector configuration with a customized fine-gauge cable structure for compact electronic systems.
What wire gauge is used in this UAV cable?
This product is configured with 46AWG micro coaxial cable.
Can HRS DF56 and DF36 connectors be customized?
Connector configuration can be specified according to the customer's equipment design and required mating interface.
Is this cable suitable for micro UAV applications?
Yes. The 46AWG configuration is intended for compact applications such as micro UAV systems, camera modules and other space-constrained electronic assemblies.
Can the cable length be customized?
Yes. Finished cable length can be customized according to the customer's equipment layout and installation requirements.
Can HOTTEN manufacture according to a drawing or sample?
Yes. Customers can provide a technical drawing, 3D model, connector part number, pinout or existing sample for engineering evaluation.
Can this cable assembly be supplied for prototype development?
Yes. Prototype requirements can be evaluated before production quantities are confirmed.
What information is needed for a DF56/DF36 cable quotation?
The most useful information includes the connector part number, pinout, cable length, wire gauge, routing requirements, drawing or sample, and estimated quantity.
Related Solutions
Related Applications
Related Products
Related Case Study
HOTTEN Engineering Capability
HOTTEN supports custom fine-wire and micro coaxial cable assembly projects for compact electronic applications, including UAV and camera systems.
Our engineering process can accommodate customer drawings, connector specifications, pinout requirements, cable dimensions and application-specific assembly requirements.
From prototype evaluation to production requirements, HOTTEN works with customers to develop cable configurations suited to the customer's equipment design and manufacturing process.
Need a Custom HRS DF56/DF36 Cable Assembly?
Send us your connector part number, pinout, cable length, drawing or sample requirements. HOTTEN can evaluate the cable configuration for prototype and production applications.
