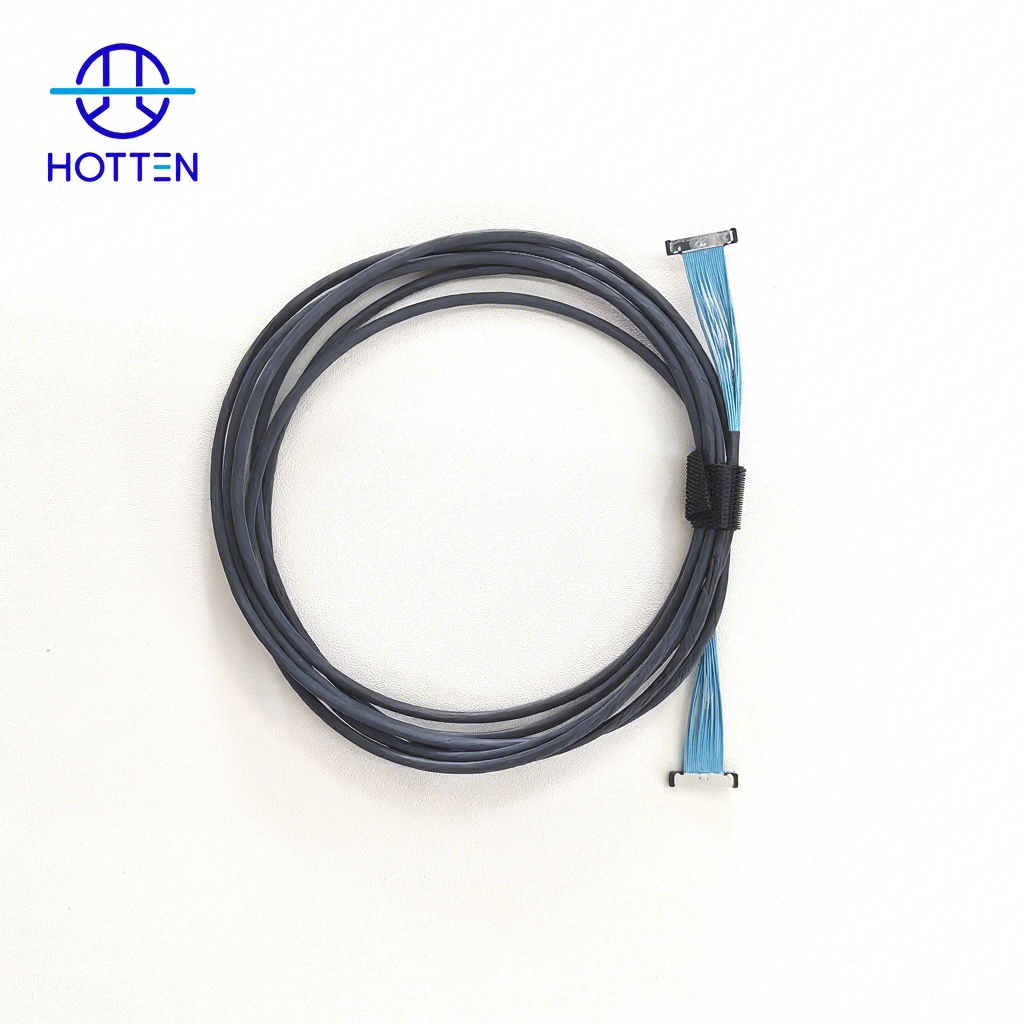

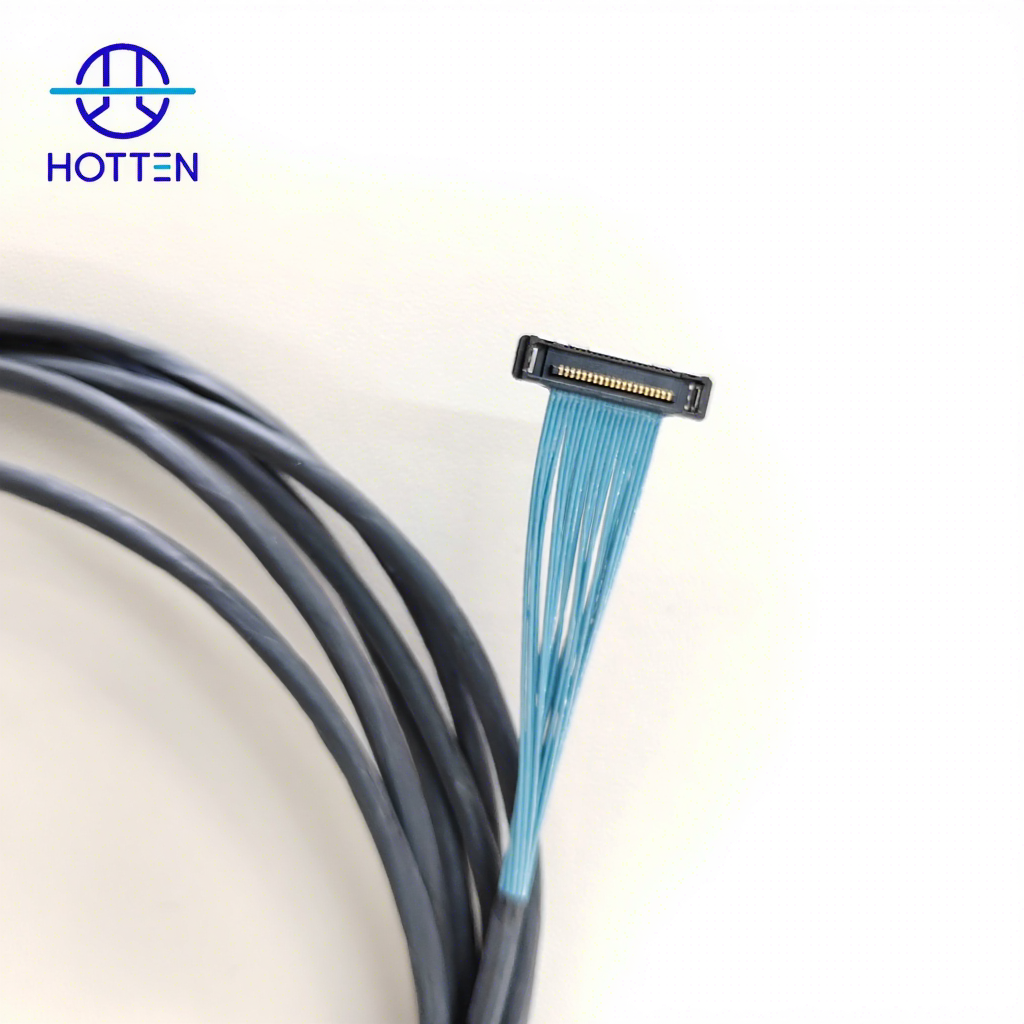

38AWG Micro Coaxial EDP Cable Assembly for Laptop Display

Product Details

Technical Specifications

Key Features

• Fine 38AWG micro coaxial construction
• Designed for compact EDP display interconnection
• Suitable for high-density high-speed signal routing
• Shielded micro coaxial signal paths
• Compact structure for space-constrained display systems
• Customized connector and pin assignment
• Customized cable length and routing configuration
• Suitable for laptop and other compact display applications
• Prototype and mass-production support

Typical Applications

• Laptop display systems
• Notebook computers
• Portable computing devices
• High-resolution display modules
• Compact display equipment
• Embedded display systems
• High-speed display interconnects
• Other space-constrained electronic devices

Customization Options

HOTTEN can manufacture the 38AWG micro coaxial EDP cable assembly based on customer drawings, specifications or existing samples.

Customization can include:

• Conductor gauge
• Core / channel count
• EDP configuration
• Connector brand and part number
• Connector orientation
• Pin assignment
• Cable length
• Cable exit direction
• Cable OD
• Shielding structure
• Insulation requirements
• Terminal configuration
• Overall cable routing configuration

Engineering & Procurement Considerations

For an EDP micro coaxial cable assembly, the display interface, connector specification and pin assignment should be confirmed before production.

The RFQ should ideally include the display interface type, connector PN, pinout, cable length, channel configuration and mechanical drawing.

For laptop and other compact display systems, the available routing space and connector orientation are particularly important because the cable must fit within a limited internal structure without interfering with surrounding components.

Customers should also provide the required signal performance and display interface specifications where applicable. This allows the cable construction and connector configuration to be evaluated during the engineering stage.

HOTTEN can review customer RFQ drawings, BOMs, connector part numbers, pinout files and existing display cable samples before prototype production.

Prototype to Mass Production

HOTTEN supports customized EDP and micro coaxial cable assembly projects from prototype development through volume production.

Drawing / BOM Review → Engineering Evaluation → Prototype → Testing & Verification → Production Approval → Mass Production

This process allows connector fit, pin assignment, cable dimensions and signal requirements to be verified before larger production quantities are released.

Quality & Testing

Depending on project requirements, inspection and testing can include:

• Continuity testing
• Pin-to-pin verification
• Electrical testing
• Connector inspection
• Dimensional inspection
• First Article Inspection (FAI)
• Cable assembly workmanship inspection
• RoHS / REACH compliance documentation

FAQ

What type of display is this cable designed for?

This cable assembly is designed primarily for laptop and notebook display interconnection using EDP or other compatible high-speed display interfaces.

What is the conductor gauge of this cable?

The product configuration uses 38AWG micro coaxial conductors. Other fine-gauge configurations can be evaluated according to the customer's electrical and mechanical requirements.

Can the connector be customized?

Yes. HOTTEN can manufacture the assembly according to the customer's specified connector manufacturer and part number.

Can the cable length be customized?

Yes. Cable length, connector orientation and cable exit direction can be customized according to the display system's internal routing requirements.

Can HOTTEN manufacture according to an existing laptop display cable sample?

Yes. An existing cable sample, drawing or BOM can be provided for engineering evaluation and prototype development.

What information is needed for an EDP cable quotation?

A drawing or BOM is preferred. Important information includes interface type, connector PN, pinout, conductor gauge, cable length, channel configuration and estimated quantity.

Can this cable be used for applications other than laptops?

Yes. The micro coaxial EDP structure can also be evaluated for other compact high-speed display and electronic systems where the electrical interface and mechanical requirements are compatible.
