36AWG 50Pin 0.5mm Pitch I-PEX 20454 Micro Coaxial Cable Assembly
| Attribute | Value |
|---|---|
| Product Type | Micro Coaxial Cable Assembly |
| Cable Type | High-Speed Differential Signal Cable |
| Application | Medical Equipment |
| Application Area | Medical Imaging / Electronic Medical Equipment |
| Conductor Size | 36AWG |
| Cable Type | Micro Coaxial |
| Number of Pins | 50 Pin |
| Pitch | 0.5mm |
| Connector | I-PEX 20454 |
| Signal Type | High-Speed Differential Signal |
| Conductor Material | Silver Plated Copper / Customized |
| Insulation Material | PTFE / FEP / PFA / Customized |
| Shielding | Customized |
| Cable Length | Customized |
| Pinout | Customized |
| Termination | Customized |
| Cable Structure | High-Density Micro Coaxial Cable Assembly |
| Application Environment | Medical / Electronic Equipment |
| Customization | OEM / ODM / Build-to-Print |
| Sample | Available |
| MOQ | Customized |
| Certification / Compliance | RoHS / REACH / Customer-Specified Requirements |
- Overview
- Recommended Products
Customer drawings
BOM
Connector part numbers
Pinout
Cable length
AWG
Shielding requirements
Termination requirements
Prototype samples
Medical Equipment
Medical Imaging Equipment
Diagnostic Electronics
High-Density Electronic Devices
High-Speed Differential Signal Systems
36AWG 50Pin 0.5mm Pitch I-PEX 20454 Micro Coaxial Cable Assembly

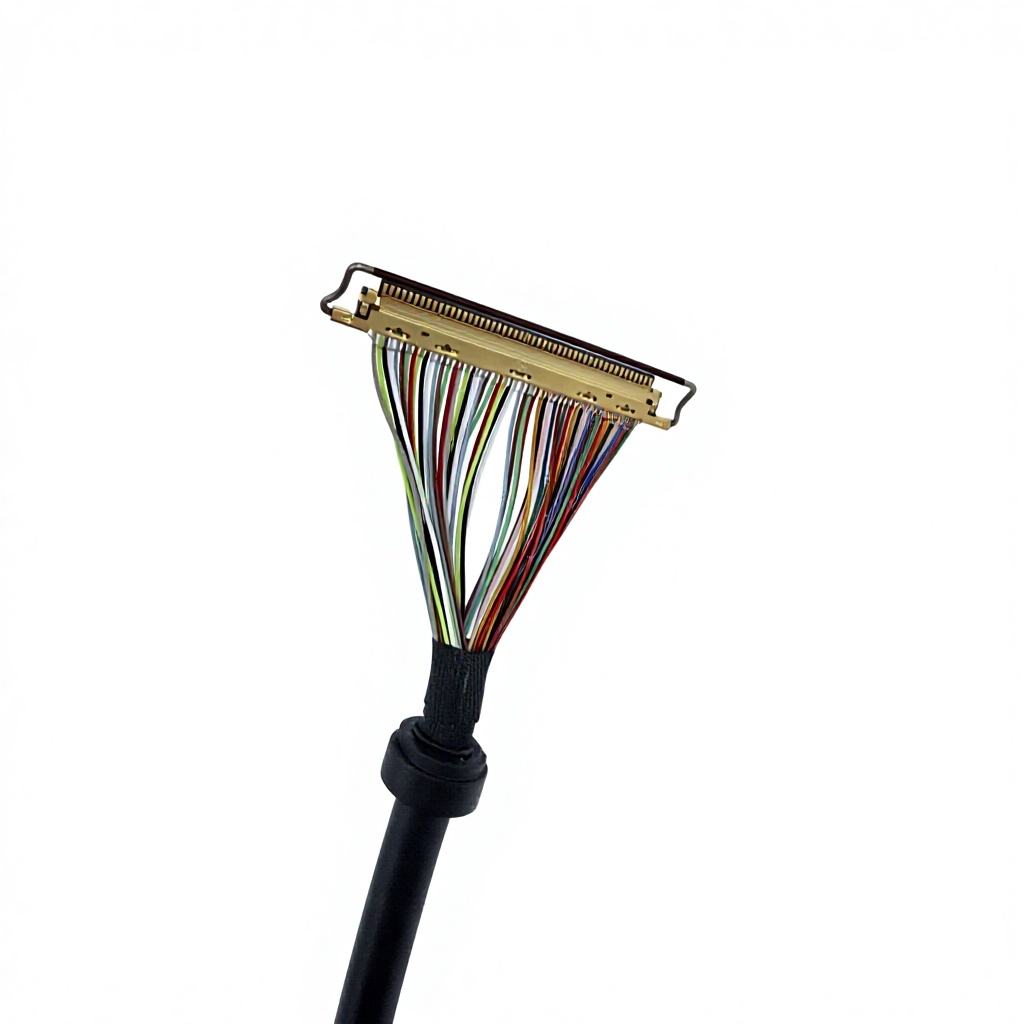

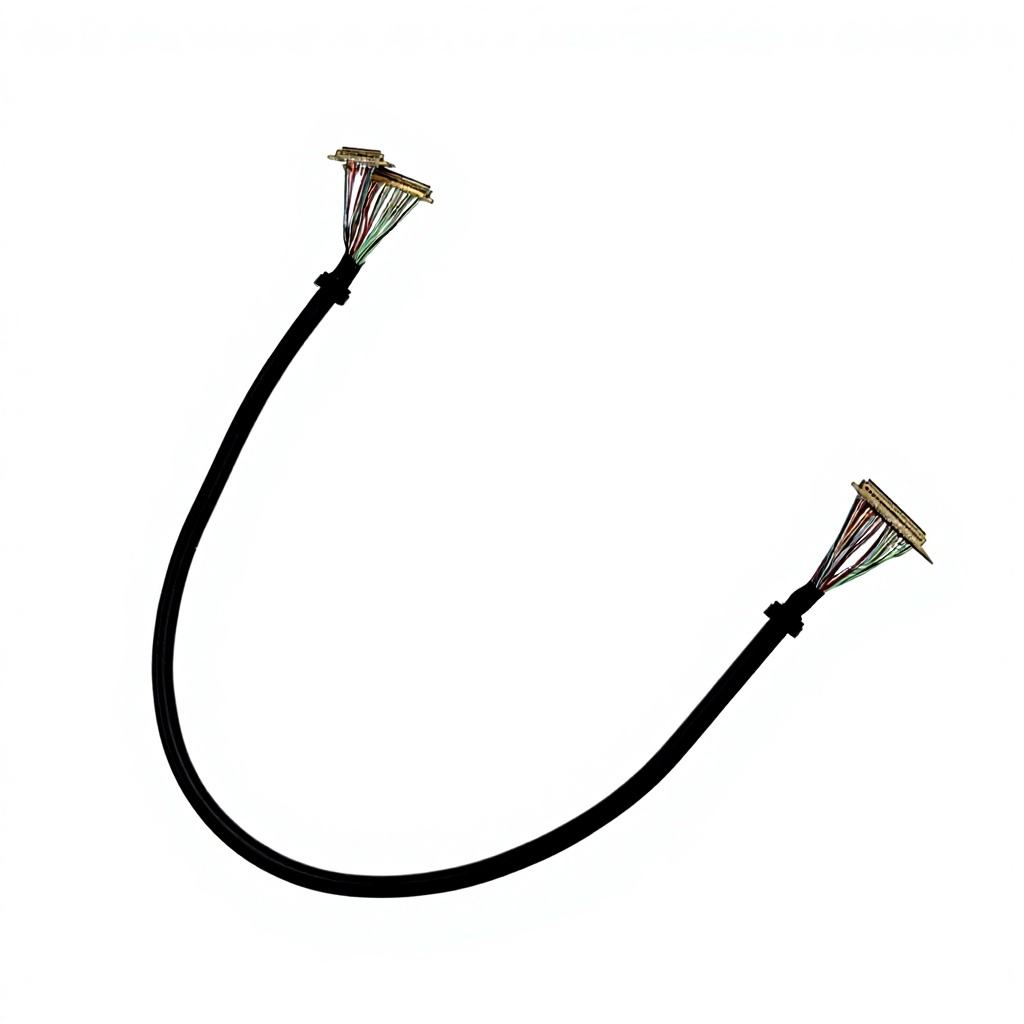

HOTTEN manufactures custom 36AWG 50Pin 0.5mm pitch micro coaxial cable assemblies for medical equipment and other high-speed electronic applications.
The cable assembly uses an I-PEX 20454 interface and is designed for high-density routing where compact dimensions and stable differential signal transmission are required.
Product Specifications
| Item | Specification |
|---|---|
| Product Type | Micro Coaxial Cable Assembly |
| Application | Medical Equipment |
| Conductor Size | 36AWG |
| Pin Count | 50 Pin |
| Pitch | 0.5mm |
| Connector | I-PEX 20454 |
| Signal Type | High-Speed Differential Signal |
| Conductor | Silver Plated Copper / Customized |
| Insulation | Customized |
| Shielding | Customized |
| Cable Length | Customized |
| Pinout | Customized |
| Termination | Customized |
| Manufacturing | OEM / ODM / Build-to-Print |
Engineering & Procurement Considerations
For high-density medical and electronic equipment, connector pitch, pin count, conductor size, cable routing and signal requirements should be evaluated together.
If the equipment requires a compact 0.5mm-pitch interface, then cable diameter, termination quality and routing space should be considered alongside the connector specification.
If high-speed differential signals are transmitted through a dense cable assembly, then cable construction and shielding should be matched to the required electrical performance.
Customization
HOTTEN supports customization based on:
Applications
OEM Manufacturing
HOTTEN provides custom micro coaxial cable assembly manufacturing from prototype development to volume production. Customer-specified connectors can be integrated into finished cable assemblies according to approved drawings and specifications.
Request a Quote
Please provide the connector part number, pinout, cable length, required AWG, drawing or sample and required quantity.
