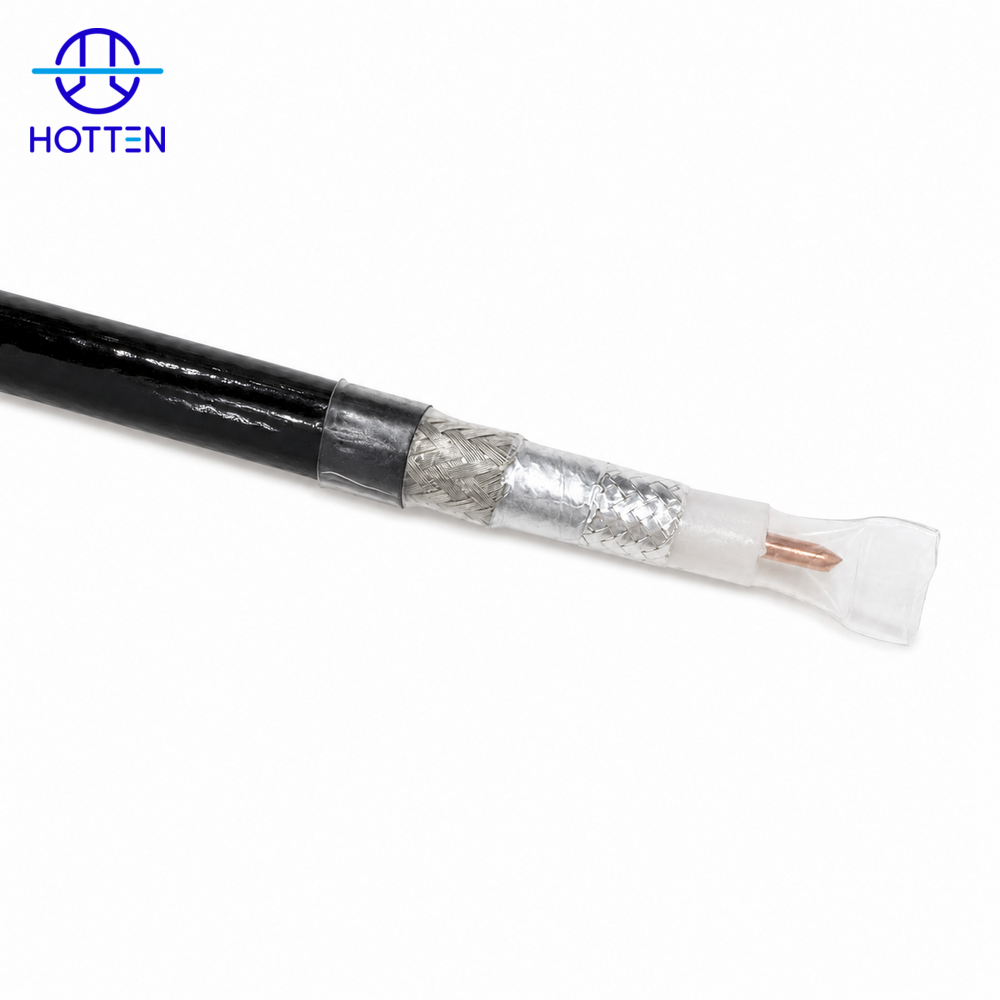

10GHz 50Ω Triple-Shield RF Coaxial Cable with 90dB Shielding
Technical Specifications
|
Item |
Specification |
|---|---|
|
Product Type |
RF Coaxial Communication Cable |
|
Characteristic Impedance |
50Ω |
|
Frequency Rating |
Up to 10GHz, according to product specification |
|
Shielding Structure |
Triple Shield |
|
Shielding Performance |
90dB, as specified; test conditions to be confirmed |
|
VSWR |
Low VSWR; maximum limit to be confirmed |
|
Inner Conductor |
To be confirmed |
|
Dielectric Material |
To be confirmed |
|
Shielding Materials |
To be confirmed |
|
Outer Jacket Material |
To be confirmed |
|
Attenuation |
Frequency-dependent values to be confirmed |
|
Cable Outer Diameter |
To be confirmed |
|
Minimum Bend Radius |
To be confirmed |
|
Operating Temperature |
To be confirmed |
|
Cable Length |
According to project requirements |
|
Application |
5G Base Stations / Vehicle Communication Systems |
|
Manufacturing Type |
RF Coaxial Cable / OEM Specification |
- Overview
- Recommended Products
Electrical performance: 50Ω impedance, operating-frequency range, attenuation limits and maximum VSWR.
Shielding performance: Triple-shield construction, the meaning of the 90dB value, test frequency range and acceptance limits.
Cable construction: Inner conductor, dielectric, shielding materials and outer jacket.
Mechanical requirements: Cable diameter, dimensional tolerances, minimum bend radius and operating environment.
Supply requirements: Required cable length, order quantity and inspection documentation.
Required frequency range and 50Ω impedance tolerance.
Maximum VSWR and attenuation limits at specified frequencies.
Shielding performance target, including the test method and frequency range for the 90dB requirement.
Required conductor, dielectric, shielding and jacket construction.
Cable dimensions, length and operating environment.
Required quantity and inspection documentation.
Product Overview
HOTTEN 10GHz 50Ω Triple-Shield RF Coaxial Cable is designed for RF communication links in 5G base stations, vehicle communication systems and compatible high-frequency electronic equipment.
The cable features a 50Ω characteristic impedance, a stated frequency rating up to 10GHz and a triple-shield construction with a specified 90dB shielding performance. The low-VSWR design positioning makes it suitable for RF interconnections where impedance matching, shielding and signal transmission requirements must be defined by the equipment specification.
HOTTEN supports RF cable supply according to customer technical requirements. The conductor, dielectric, shielding materials, jacket and dimensional requirements should be confirmed against the approved product datasheet before production or procurement.
Technical Specifications
| Item | Specification |
|---|---|
| Characteristic Impedance | 50Ω |
| Frequency Rating | Up to 10GHz |
| Shielding Construction | Triple Shield |
| Shielding Performance | 90dB, subject to confirmed test method and frequency range |
| VSWR | Low VSWR; limit to be specified |
| Cable Construction | RF Coaxial Communication Cable |
| Conductor Material | To be confirmed |
| Dielectric Material | To be confirmed |
| Shielding Material | To be confirmed |
| Outer Jacket | To be confirmed |
| Attenuation | To be specified by frequency |
| Cable Dimensions | To be confirmed |
| Application | 5G Base Stations / Vehicle Communication Systems |
Final construction details and electrical limits must match the approved product specification. The 90dB shielding figure and 10GHz rating should be supported by applicable technical data or test results.
Cable Configuration and OEM Requirements
For specification-based sourcing, define the following requirements:
The selected construction should meet the intended system's RF requirements. Unconfirmed conductor materials, dimensions and electrical performance should not be assumed from the product title alone.
Quality Inspection and Acceptance
The inspection plan should be agreed upon before order confirmation. Depending on the final specification, applicable checks may include:
| Inspection Item | Acceptance Requirement |
|---|---|
| Impedance | Verify 50Ω against the agreed test method and tolerance |
| VSWR | Verify the specified maximum value over the required frequency range |
| Attenuation | Measure cable loss at specified frequencies |
| Shielding Performance | Verify the 90dB requirement using the agreed test method |
| Cable Dimensions | Verify outer diameter and applicable dimensional tolerances |
| Construction | Check conductor, dielectric, shielding layers and jacket against the approved specification |
The test method, frequency range, limits and reporting requirements should be defined before production. A stated shielding value is meaningful for procurement only when its measurement conditions are clear.
RFQ Requirements for a 10GHz RF Coaxial Cable
For an accurate quotation, please provide:
HOTTEN can review the supplied drawing, datasheet or electrical requirements to confirm the cable configuration and supply scope before quotation.
Request a Custom RF Coaxial Cable Quote
Send your RF specification, target electrical limits, cable construction requirements and order quantity for technical review and quotation.
