SR-024 / SR-031 / SR-043 50Ω Semi-Rigid RF Coaxial Cables
Product Overview

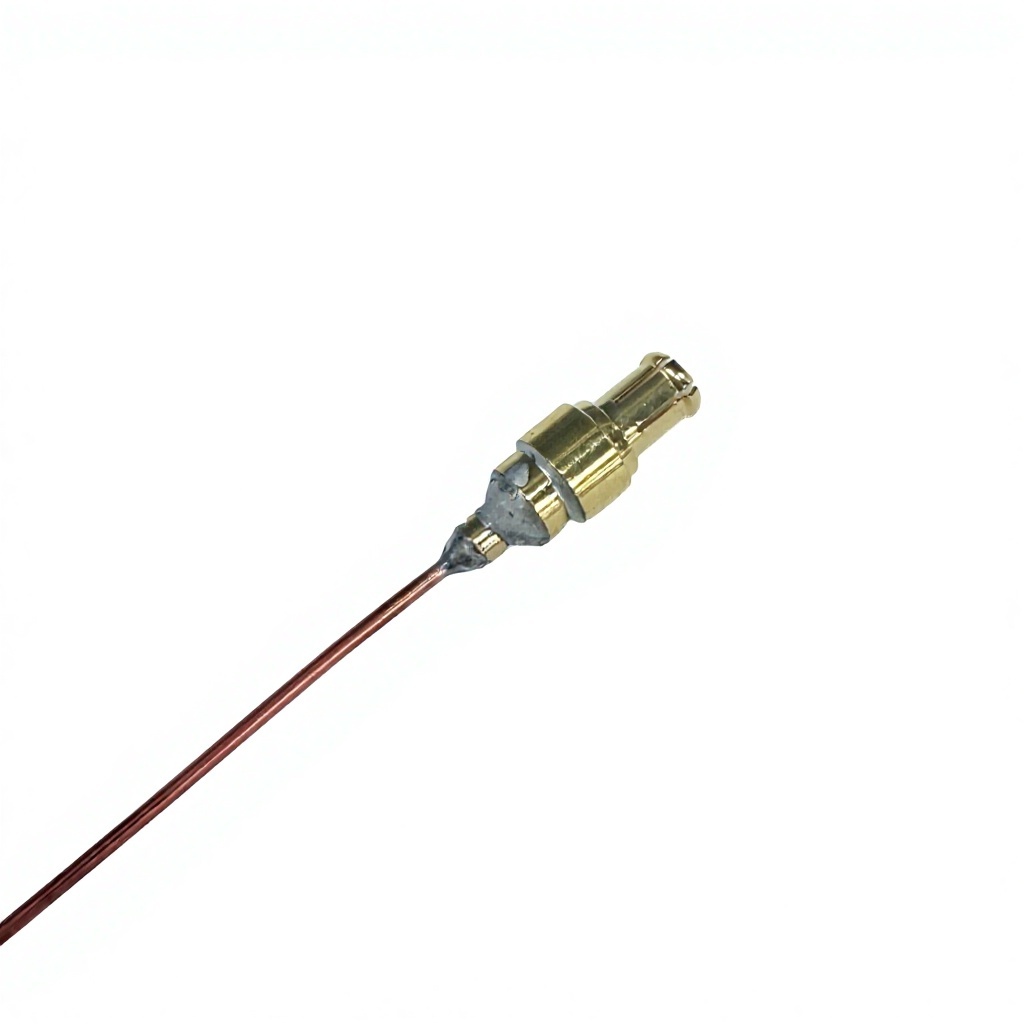

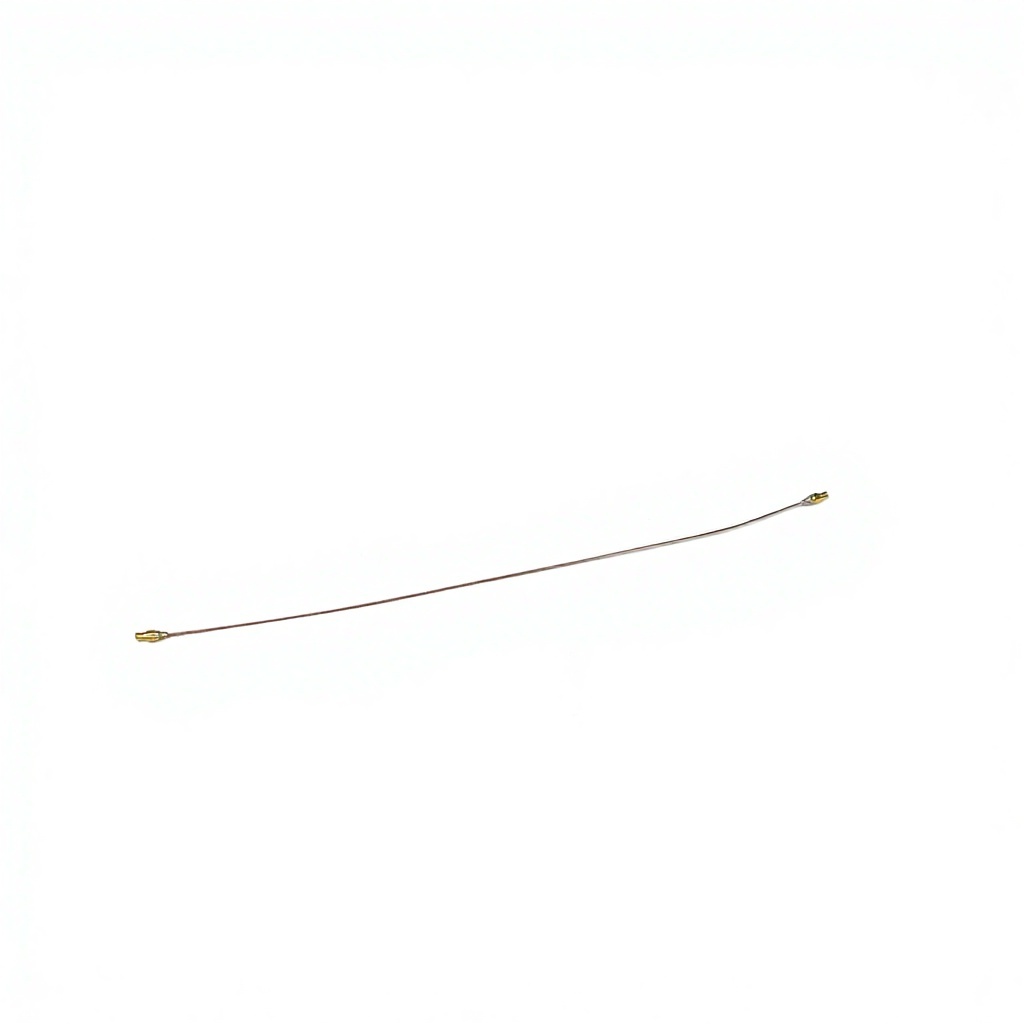

HOTTEN SR-024, SR-031 and SR-043 are 50Ω semi-rigid RF coaxial cable options designed for medical RF and microwave equipment applications.
The product series offers three nominal outer diameter options: 0.6mm, 0.79mm and 1.1mm. These options allow equipment designers to evaluate cable dimensions against available installation space and the electrical requirements of the intended RF transmission path.
The appropriate model should be selected according to the required operating frequency, cable dimensions, routing conditions and system interface specifications.
Technical Specifications
| Parameter | SR-024 | SR-031 | SR-043 |
|---|---|---|---|
| Product Type | Semi-Rigid RF Coaxial Cable | Semi-Rigid RF Coaxial Cable | Semi-Rigid RF Coaxial Cable |
| Outer Diameter | 0.6 mm | 0.79 mm | 1.1 mm |
| Characteristic Impedance | 50 Ω | 50 Ω | 50 Ω |
| Application | Medical RF / Microwave Equipment | Medical RF / Microwave Equipment | Medical RF / Microwave Equipment |
| Operating Frequency | To be confirmed | To be confirmed | To be confirmed |
| Cable Construction Details | To be confirmed | To be confirmed | To be confirmed |
Applications
These semi-rigid coaxial cables are intended for RF interconnections in medical and microwave equipment where cable dimensions and characteristic impedance are important design parameters.
For medical microwave systems, cable selection should account for the equipment's operating frequency, transmission requirements, mechanical routing and connector interface.
The final model should be selected using the applicable technical specifications rather than outer diameter alone.
Model Selection
SR-024, SR-031 and SR-043 provide three different outer diameter options within this product series.
If installation space is restricted, the 0.6mm SR-024 or 0.79mm SR-031 may be considered for evaluation, subject to their confirmed electrical and mechanical specifications. Where a larger cable diameter is compatible with the system design, the 1.1mm SR-043 can also be evaluated.
The three models should not be treated as electrically interchangeable based on diameter and impedance alone. The operating frequency, attenuation, conductor and dielectric construction, and applicable performance requirements must be confirmed for the intended application.
Product Specifications and RFQ
For model selection and quotation, please specify the required model, cable length, operating frequency range and any applicable electrical or mechanical requirements.
If connectors or terminated cable assemblies are required, provide the connector part numbers and assembly drawings for review.
The final cable configuration and acceptance criteria should be confirmed against the approved technical specification before production.
