Industrial 132 Cores Ultrasound Cable Wires Cables & Cable Assemblies for Medical Applications Tinned Copper Conductor

Product Overview

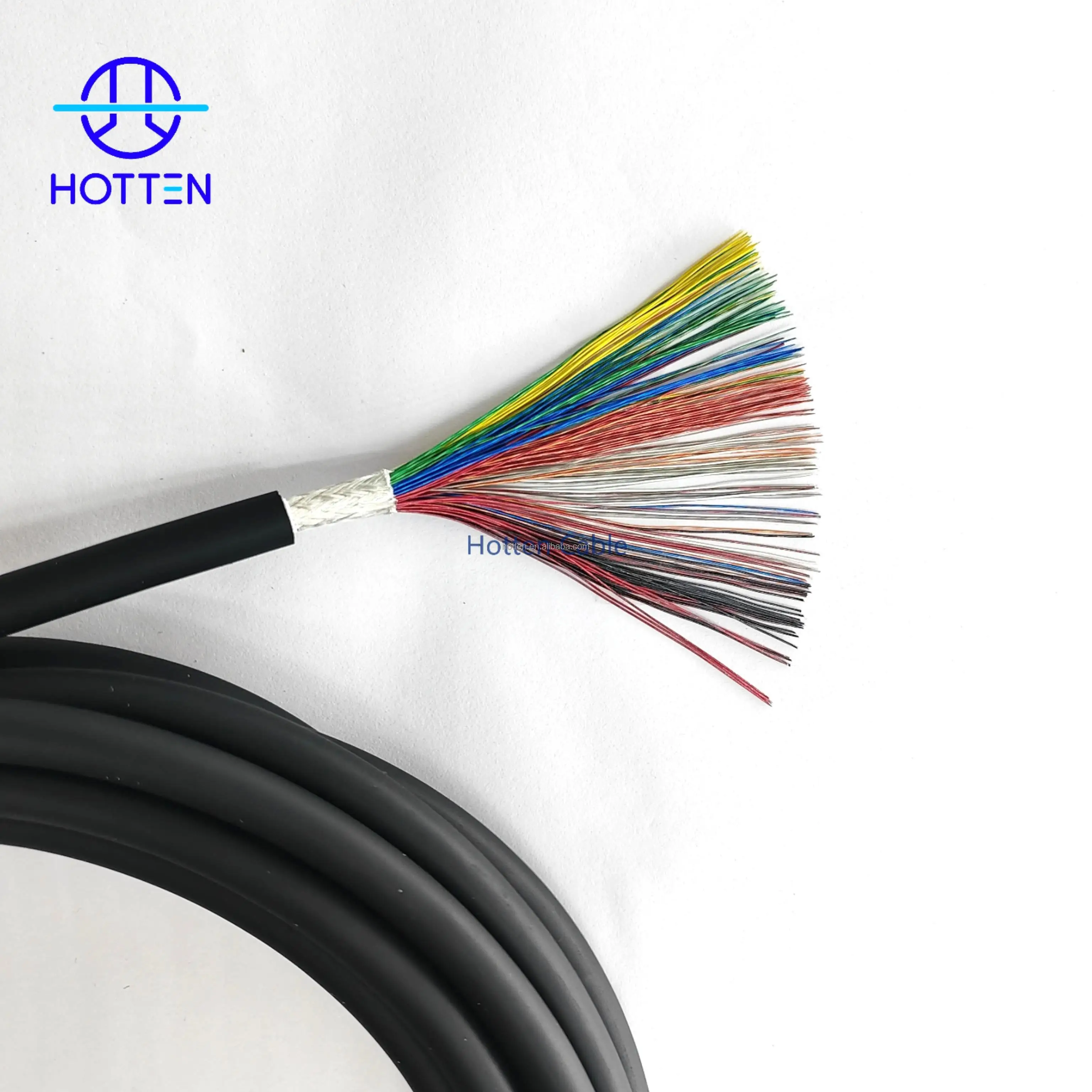

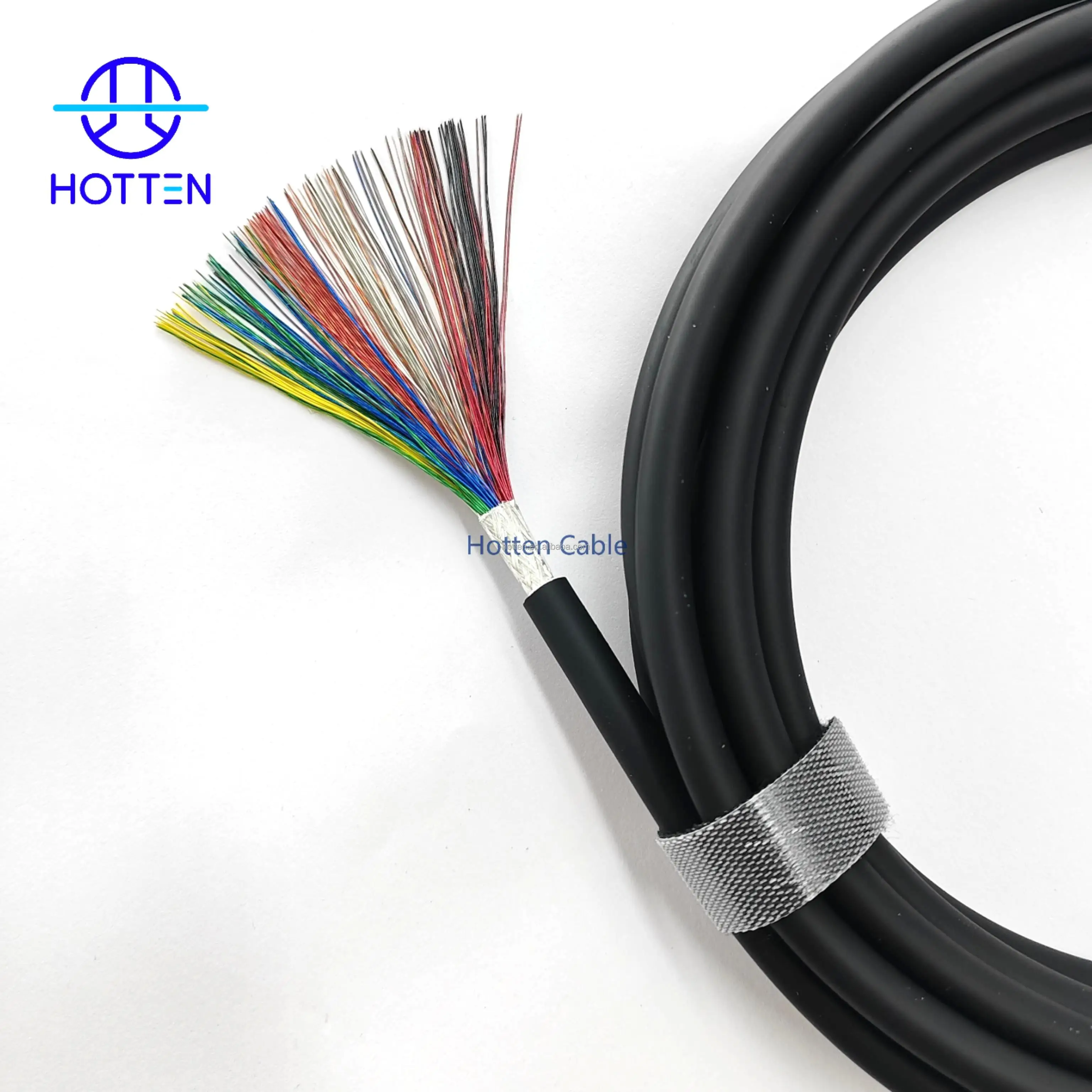

The HOTTEN 132 Core 42AWG Low-Capacitance Ultrasound Probe Cable is designed for medical ultrasound probes and diagnostic imaging equipment requiring high-density signal connections in a compact cable structure.

Configured with 132 cores and 42AWG fine conductors, this cable supports dense conductor routing for ultrasound probe and handle connection applications. Tinned copper conductors are available for the specified cable configuration, while insulation, shielding and outer jacket materials can be selected according to the electrical and mechanical requirements of the project.

HOTTEN supports customized ultrasound cable development based on customer drawings, cable samples, conductor specifications and connector requirements.

Key Features

• 132-Core Configuration: High conductor density for multi-channel ultrasound probe connections.

• 42AWG Fine Conductors: Suitable for compact cable routing in space-constrained medical equipment.

• Tinned Copper Conductors: Available according to the specified conductor construction.

• Low-Capacitance Design: Electrical characteristics can be defined according to the ultrasound system requirements.

• Customizable Cable Construction: Insulation, shielding, outer jacket, cable diameter and length can be specified for the application.

• OEM Cable Development: Connector configuration, pin assignment and termination can be customized according to customer drawings.

Technical Specifications

Final specifications depend on the confirmed product configuration and customer requirements.

Applications

The 132-core ultrasound probe cable can be used in:

• Medical ultrasound probes

• B-ultrasound diagnostic equipment

• Ultrasound probe handle connections

• Medical imaging equipment

• High-channel-count ultrasound systems

• Customized medical diagnostic devices

Engineering & Procurement Considerations

When selecting a 132-core ultrasound probe cable, engineers should evaluate conductor size, capacitance, cable diameter, shielding and mechanical flexibility together.

A high core count requires a clearly defined conductor map and pin assignment. The cable structure should also fit the available routing space within the probe and handle while meeting the system's electrical requirements.

Before placing an order, the buyer should confirm:

• Required capacitance and tolerance

• Conductor material and plating

• Insulation and shielding construction

• Target cable diameter and length

• Bending and routing requirements

• Connector part numbers and pin assignment

• Electrical testing and acceptance criteria

These parameters should be documented in the cable drawing, wiring diagram or technical specification before sample approval.

Custom Cable Development for Medical OEMs

HOTTEN supports customized medical cable development according to drawings, samples and project specifications. Customers can provide an existing cable sample, connector part numbers, pin assignment, cable dimensions or electrical requirements for engineering review.

For a quotation, please provide the core count, conductor size, target capacitance, cable length, outer diameter, material requirements, connector details and estimated order quantity.

Request a Custom Ultrasound Cable Quote

Contact HOTTEN with your cable drawing, sample or technical requirements to discuss a customized 132-core ultrasound probe cable for your medical imaging application.
