Hotten Display Lvds Cable 40 Pin Lvds Cable for Lcd Panel Wire Harness Assembly Board

Product Overview

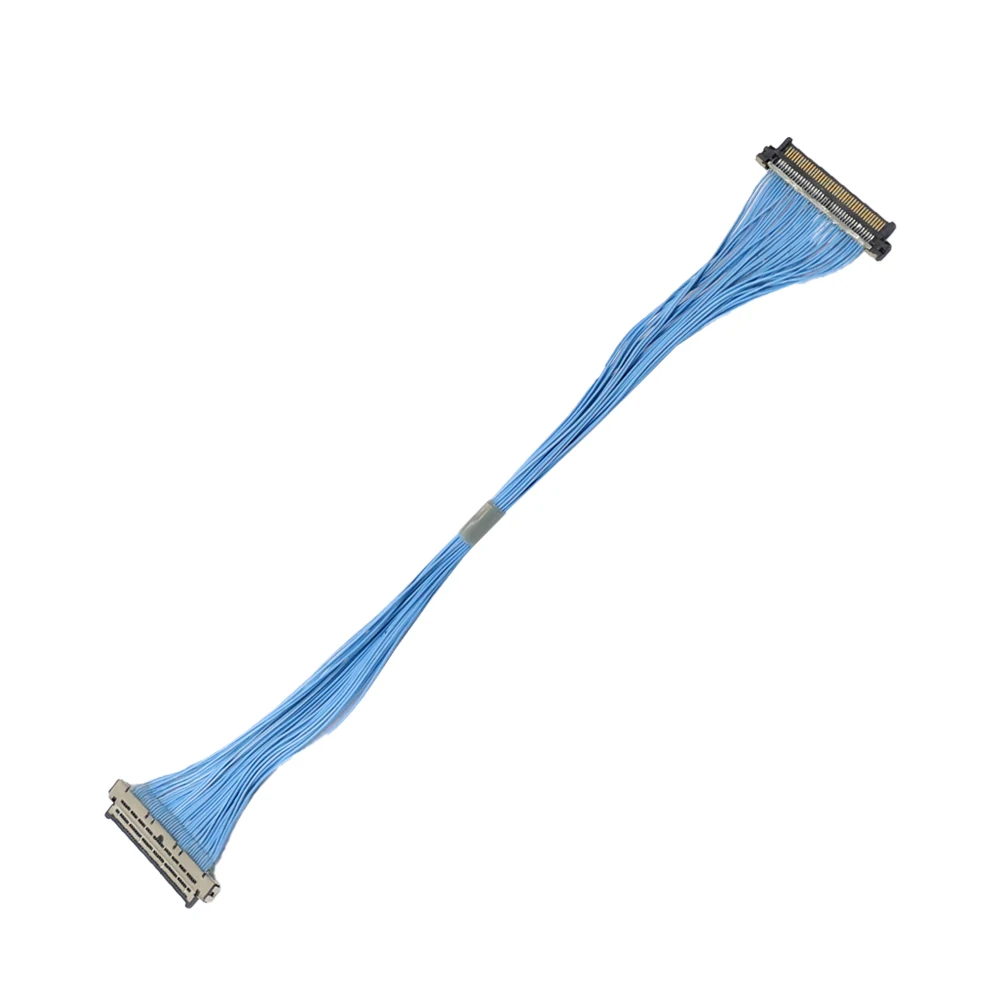

HOTTEN supplies customized 40-pin LVDS display cable assemblies for LCD panels, notebook computers, embedded displays and compatible electronic equipment.

The assembly is configured according to the required display interface, connector arrangement and cable construction. Depending on the approved design, the cable may use micro coaxial conductors or a customized shielded cable structure.

HOTTEN supports OEM and build-to-print projects using customer drawings, BOMs, connector part numbers, pin assignments and reference samples. Cable gauge, insulation, shielding, cable length, connector orientation and termination requirements are defined for the specific application.

Product Configuration

The 40-pin LVDS cable assembly can be specified according to the following requirements:

• Interface: 40-pin LVDS display connection, subject to confirmation against the target panel and host interface.

• Cable construction: Micro coaxial or customized shielded cable structure, according to the approved design.

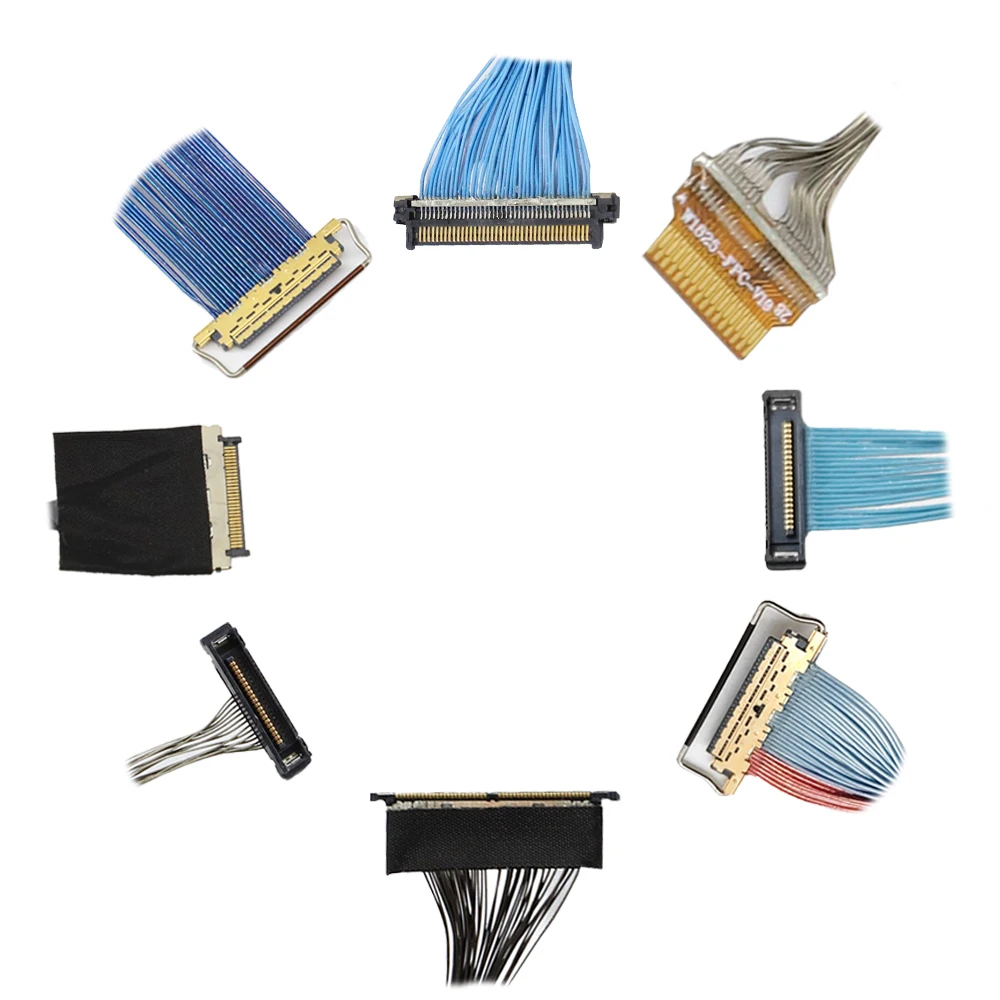

• Connector configuration: Connector models, mating interfaces, pin assignment and orientation specified by the customer.

• Cable dimensions: Length, overall diameter, branch dimensions and routing requirements defined by drawing.

• Material selection: Conductor, insulation, shielding and outer jacket selected according to electrical and mechanical requirements.

• Assembly scope: Cable preparation, connector termination, harness assembly and applicable inspection according to the agreed specification.

Technical Specifications

The materials shown are selectable options, not a claim that every option is used in one assembly. Final connector models, wire gauges, electrical values and dimensions must be confirmed for the selected product configuration.

Customization and Manufacturing Scope

HOTTEN supports customization based on customer drawings, BOMs, connector specifications and reference samples.

HOTTEN can process and assemble the specified cable construction and integrate customer-specified connectors into a finished cable assembly. Connector models and other externally sourced components are selected according to the approved BOM and interface requirements.

Quality Inspection and Acceptance

Inspection requirements should be agreed upon before sample approval and mass production. Depending on the assembly design, applicable checks may include:

The applicable test method, sample size, acceptance limits and reporting requirements should be defined in the customer's drawing, quality agreement or purchase specification.

RFQ Requirements for a 40-Pin LVDS Cable Assembly

For a quotation, please provide:

1. LCD panel and host equipment model, or the target display interface specification.

2. Connector part numbers, mating drawings and the required 40-pin wiring diagram.

3. Cable structure, wire gauge, shielding and insulation requirements.

4. Cable length, outer diameter, connector orientation and routing dimensions.

5. Required electrical parameters and acceptance criteria.

6. Prototype quantity, estimated production volume and requested inspection documentation.

HOTTEN can review the supplied drawing, BOM or sample and assess the cable configuration, connector integration and manufacturing requirements for a customized LVDS display cable assembly.

Request a 40-Pin LVDS Cable Quote

Submit your drawing, BOM, connector part numbers, pinout, cable length and required quantity for an engineering review and quotation.
