40AWG 12Pin FPC Micro Coaxial Cable Assembly for Surveillance Cameras
| Attribute | Value |
|---|---|
| Product Type | Micro Coaxial Cable Assembly |
| Application | Surveillance Camera / IP Camera |
| Application Area | Camera and Video Electronics |
| Conductor Size | 40AWG |
| Cable Type | Micro Coaxial Cable |
| Connector Configuration | FPC 12Pin |
| Number of Pins | 12 Pin |
| Conductor Material | Silver-Plated Copper |
| Insulation Material | PTFE |
| Shielding | Customized |
| Signal Type | Camera / High-Speed Signal |
| Cable Length | Customized |
| Pinout | Customized |
| Termination | Customized |
| Cable Structure | Fine Micro Coaxial Cable Assembly |
| Cable Color | Customized |
| Operating Temperature | Customized According to Application |
| Customization | OEM / ODM / Build-to-Print |
| Sample | Available |
| MOQ | Customized |
| Compliance | RoHS / REACH / Customer-Specified Requirements |
- Overview
- Recommended Products
- Customer drawings
- Connector part numbers
- FPC interface specifications
- Pinout
- Cable length
- 40AWG or other specified AWG
- Conductor material
- Insulation material
- Shielding structure
- Termination requirements
- Cable routing requirements
- Prototype samples
- Surveillance Cameras
- IP Cameras
- Security Cameras
- Camera Modules
- Compact Imaging Devices
- Video Electronics
- High-Density Camera Systems

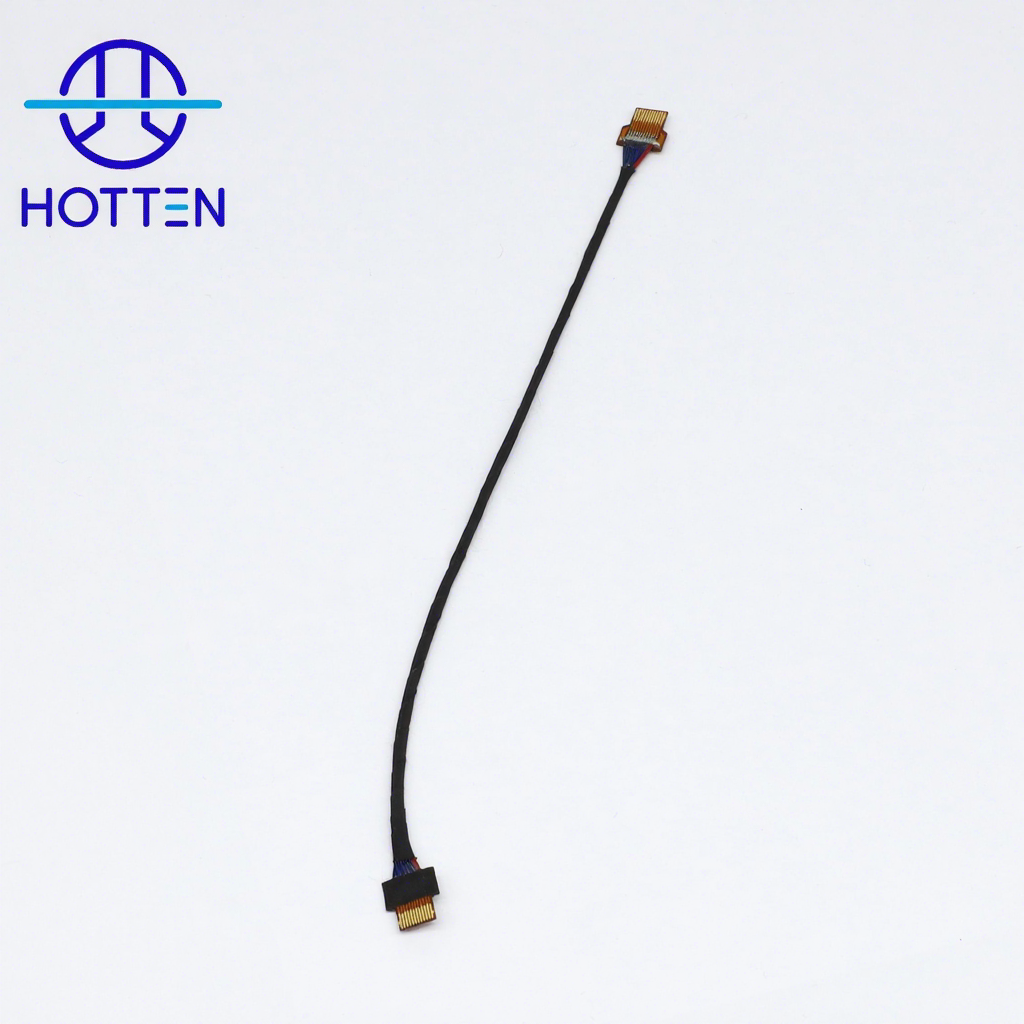

40AWG 12Pin FPC Micro Coaxial Cable Assembly for Surveillance Cameras
HOTTEN manufactures custom 40AWG micro coaxial cable assemblies for surveillance cameras, IP cameras and compact camera electronics.
This cable assembly uses a 40AWG micro coaxial cable with silver-plated copper conductor and PTFE insulation, combined with a customized 12Pin FPC connector configuration for compact electronic equipment.
The compact cable construction is suitable for applications where limited routing space, connector compatibility and stable signal transmission need to be considered together.
Product Specifications
| Item | Specification |
|---|---|
| Product Type | Micro Coaxial Cable Assembly |
| Application | Surveillance Camera / IP Camera |
| Conductor Size | 40AWG |
| Cable Type | Micro Coaxial Cable |
| Conductor | Silver-Plated Copper |
| Insulation | PTFE |
| Connector Configuration | FPC 12Pin |
| Pin Count | 12 Pin |
| Shielding | Customized |
| Cable Length | Customized |
| Pinout | Customized |
| Termination | Customized |
| Cable Structure | Compact Micro Coaxial Assembly |
| Manufacturing | OEM / ODM / Build-to-Print |
Engineering & Procurement Considerations
For compact surveillance and IP camera electronics, cable selection should consider conductor size, cable OD, connector configuration, pin assignment, routing space and signal requirements together.
If the camera module has limited internal routing space, then 40AWG micro coaxial construction can be evaluated for a compact cable assembly.
If a 12Pin FPC interface is specified, then the connector part number, pinout, mating interface and termination method should be confirmed before production.
If the cable carries high-speed camera signals, then the required electrical performance should be confirmed together with cable construction, shielding and termination design rather than selecting the cable only by AWG.
Customization
HOTTEN supports customization based on:
Typical Applications
OEM / ODM Manufacturing
HOTTEN provides customized micro coaxial cable assembly manufacturing based on customer drawings, samples, BOMs and connector specifications.
For existing designs, customers can provide the connector part number, drawing or physical sample, pinout and cable length for quotation and production evaluation.
For new designs, HOTTEN can evaluate the cable construction, connector configuration and termination requirements based on the application and available mechanical space.
Request a Quote
Please provide the connector part number, 12Pin configuration, pinout, cable length, AWG requirement, drawing or sample and estimated quantity for a customized quotation.
