5.0mm 50Ω 26.5GHz Ultra-Flexible Low-Loss RF Coaxial Cable
Technical Specifications
| Item | Specification |
|---|---|
| Nominal Outer Diameter | 5.0mm |
| Characteristic Impedance | 50Ω |
| Frequency Capability | Up to 26.5GHz, subject to test verification |
| Cable Type | Ultra-Flexible RF Coaxial Cable |
| Shielding | Shielded Construction |
| Attenuation | To be specified by frequency |
| Inner Conductor | To be confirmed |
| Dielectric | To be confirmed |
| Shielding Structure | To be confirmed |
| Outer Jacket | To be confirmed |
| VSWR / Return Loss | To be confirmed |
| Minimum Bend Radius | To be confirmed |
| Cable Length | Customized |
| Dimensional Tolerance | To be confirmed |
| Typical Application | Antenna Interconnections / RF Test Cable Assemblies |
- Overview
- Recommended Products
Required operating-frequency range and RF interface.
Characteristic impedance and permitted tolerance.
Attenuation limits at specified frequencies, plus VSWR or return-loss requirements where applicable.
Required conductor, dielectric, shielding and outer jacket construction.
Minimum bend radius, cable length and dimensional tolerance.
Required order quantity, packaging and inspection documentation.
Product Overview

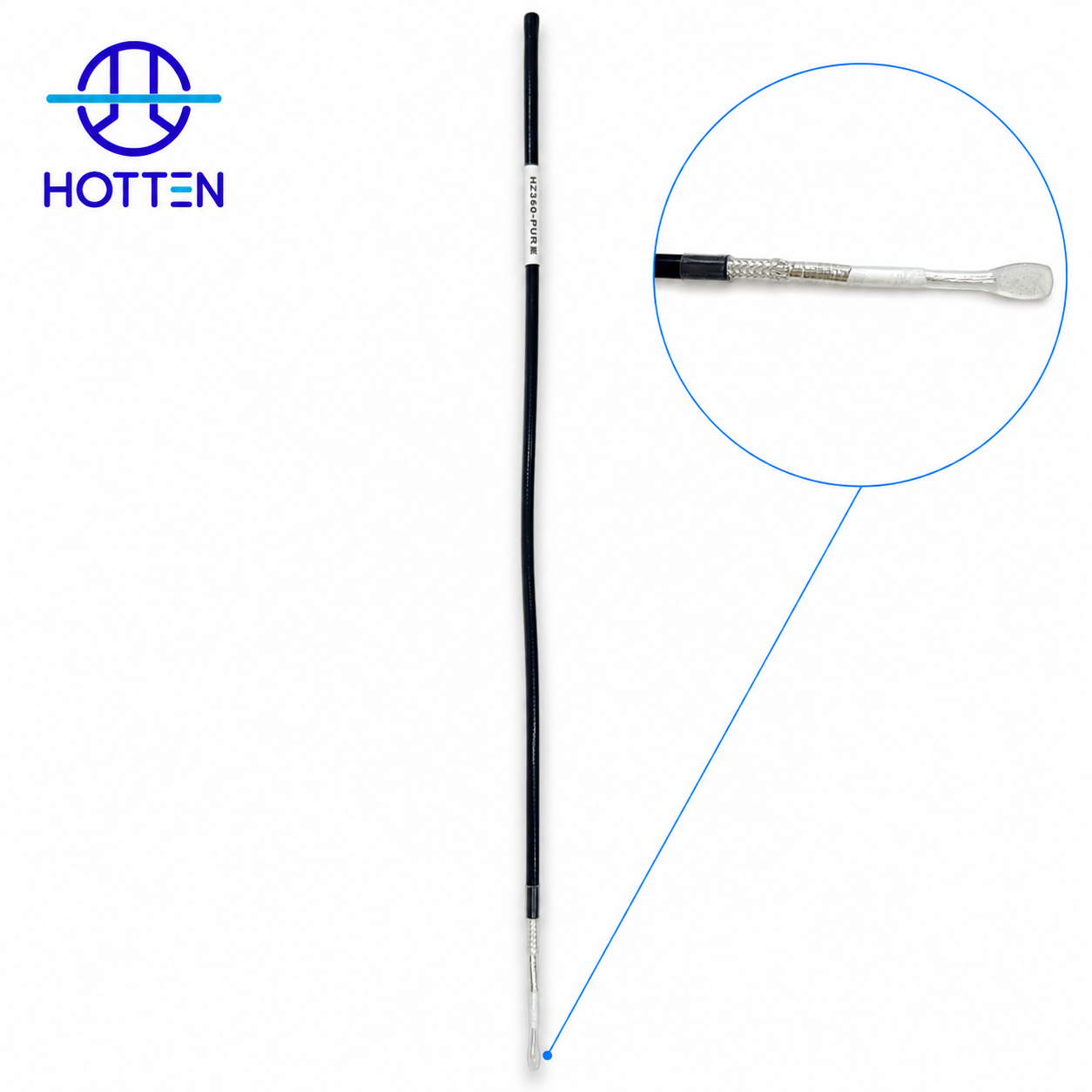

HOTTEN 5.0mm 50Ω Ultra-Flexible Low-Loss RF Coaxial Cable is designed for antenna interconnections, RF test cable assemblies and compatible high-frequency electronic systems.
The cable features a nominal outer diameter of 5.0mm, a 50Ω characteristic impedance and a stated frequency capability up to 26.5GHz. Its flexible, shielded construction is intended for RF applications where cable routing, impedance matching and frequency-dependent attenuation must meet the equipment specification.
HOTTEN supports specification-based RF cable supply. Conductor construction, dielectric material, shielding layers, outer jacket and mechanical requirements should be confirmed against the approved product drawing or datasheet.
Technical Specifications
| Item | Specification |
|---|---|
| Nominal Outer Diameter | 5.0mm |
| Characteristic Impedance | 50Ω |
| Frequency Capability | Up to 26.5GHz, subject to test verification |
| Cable Type | Ultra-Flexible RF Coaxial Cable |
| Shielding | Shielded Construction |
| Attenuation | To be specified by frequency |
| Inner Conductor | To be confirmed |
| Dielectric | To be confirmed |
| Shielding Structure | To be confirmed |
| Outer Jacket | To be confirmed |
| VSWR / Return Loss | To be confirmed |
| Minimum Bend Radius | To be confirmed |
| Cable Length | Customized |
| Dimensional Tolerance | To be confirmed |
| Typical Application | Antenna Interconnections / RF Test Cable Assemblies |
Final electrical and mechanical specifications must be confirmed for the selected cable construction.
Cable Configuration and Customization
For OEM purchasing, the cable should be specified by the required electrical, structural and mechanical parameters.
| Customization Item | Required Information |
|---|---|
| Outer Diameter | Nominal 5.0mm and permitted tolerance |
| Impedance | 50Ω and required tolerance |
| Frequency Range | Required operating band and test conditions |
| Attenuation | Maximum attenuation at specified frequencies |
| Conductor | Material, construction and diameter |
| Dielectric | Material and dimensional requirements |
| Shielding | Shield material, number of layers and structure |
| Outer Jacket | Material, temperature range and environmental requirements |
| Flexibility | Minimum bend radius and installation conditions |
| Cable Length | Cut length, tolerance and packaging |
| RF Test Assembly | Connector part numbers and termination drawing, if required |
The above items define the configuration for quotation. Any connectorized assembly should be specified separately from the cable-only product.
Quality Inspection and Acceptance
The inspection plan should be agreed upon before order confirmation. Applicable checks may include:
| Inspection Item | Purpose |
|---|---|
| Outer Diameter | Verify nominal 5.0mm OD and specified tolerance |
| Impedance | Confirm 50Ω within the agreed limits |
| Attenuation | Verify performance at specified frequencies |
| VSWR / Return Loss | Test where required by the project |
| Shielding Construction | Verify materials and structure against the approved specification |
| Flexibility | Check bend requirements where applicable |
| Cable Length | Verify cut length and tolerance |
Electrical test frequency, test method, equipment, acceptance limits and reporting requirements should be agreed in the purchase specification. The stated 26.5GHz capability should be supported by applicable product data or test results.
RFQ Requirements for a 5.0mm RF Coaxial Cable
For an accurate quotation, please provide:
For a connectorized test cable assembly, please also provide connector part numbers, connector orientation and the assembly drawing.
HOTTEN can review your drawing, datasheet or RF requirements to confirm the required cable construction and supply scope before quotation.
Request a 5.0mm RF Cable Quote
Send your RF specification, required cable length, electrical requirements and purchase quantity for engineering review and quotation.
