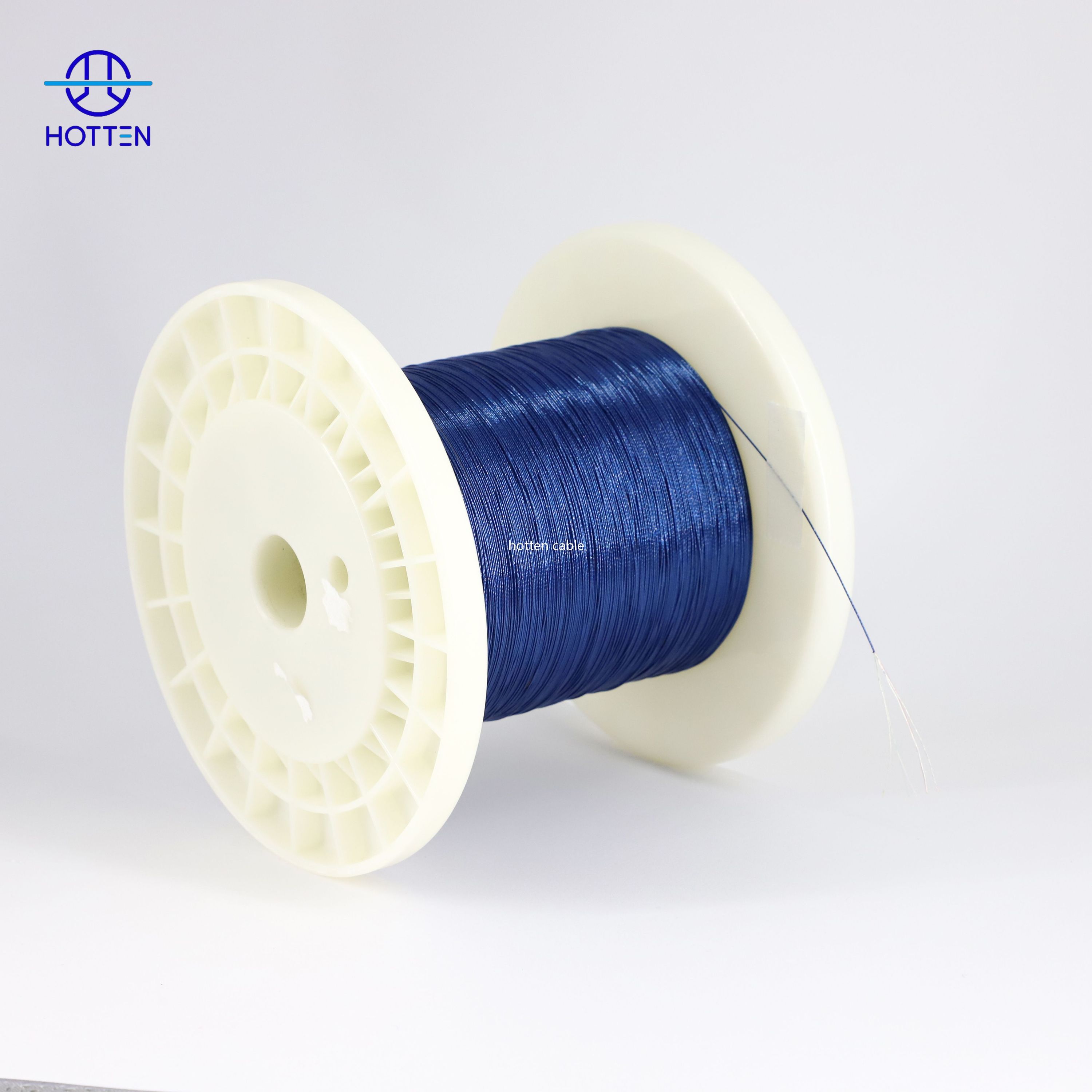

OV6946 Medical Endoscope Camera Module Cable
| Item | Specification |
|---|---|
| Cable Type | Medical Endoscope Camera Module Cable |
| Camera Module | OV6946 |
| Construction | 5C |
| Conductors | 2 × 48AWG + 1 × 46AWG coaxial + 2 × 49AWG signal wires |
| Insulation | PFA |
| Application | Endoscope camera module and medical imaging applications |
| Customization | Cable configuration and length can be customized |
- Overview
- Recommended Products
Designed for compact endoscope camera module applications
5C cable construction combining coaxial and signal conductors
Ultra-fine 48AWG and 49AWG signal conductors
46AWG coaxial conductor for camera-related signal transmission
PFA insulation for compact medical cable applications
Suitable for integration into space-constrained medical imaging systems
Custom cable configurations available for OEM and engineering projects
Medical endoscope camera modules
Endoscopic imaging systems
Compact medical imaging equipment
Medical camera interconnects
Miniature medical devices
Custom medical imaging cable assemblies
Camera module and interface requirements
Required conductor configuration
Cable length and routing path
Available installation space
Flexibility and mechanical routing requirements
Insulation material requirements
Connector or termination requirements
Prototype and production quantities
Required inspection and validation procedures
Product Overview
The OV6946 Medical Endoscope Camera Module Cable is a compact medical cable designed for endoscope camera module and imaging applications. The cable uses a 5C construction combining ultra-fine conductors, including 2 × 48AWG conductors, 1 × 46AWG coaxial conductor, and 2 × 49AWG signal wires, with PFA insulation.
HOTTEN supports customized cable configurations for compact medical imaging and endoscopic equipment.
Key Specifications
| Item | Specification |
|---|---|
| Cable Type | Medical Endoscope Camera Module Cable |
| Camera Module | OV6946 |
| Construction | 5C |
| Conductors | 2 × 48AWG + 1 × 46AWG coaxial + 2 × 49AWG signal wires |
| Insulation | PFA |
| Application | Endoscope camera module and medical imaging applications |
| Customization | Cable configuration and length can be customized |
Key Features
Applications
Customization & Engineering Requirements
HOTTEN can customize cable length, conductor configuration and cable construction according to the requirements of the target endoscope or camera module.
For an RFQ, customers can provide the camera module model, cable drawing, required length, conductor configuration, connector requirements and other available interface information.
For prototype and production projects, HOTTEN can support cable development based on the customer's application and assembly requirements.
Engineering & Procurement Considerations
For an OV6946-related cable project, customers should confirm:
Providing a drawing, BOM, interface specification or existing sample can help accelerate engineering evaluation.
FAQ
What is the OV6946 cable used for?
It is designed for cable interconnection between OV6946 camera modules and compact endoscope or medical imaging systems.
What is the conductor configuration?
The listed configuration is 5C, including 2 × 48AWG conductors, 1 × 46AWG coaxial conductor and 2 × 49AWG signal wires.
What insulation is used?
The listed product uses PFA insulation.
Can the cable length be customized?
Yes. HOTTEN supports customized cable lengths and cable configurations according to project requirements.
Can HOTTEN develop a cable based on a customer drawing?
Yes. Customers can provide drawings, specifications, samples or interface requirements for engineering evaluation and customized cable development.
Request a Custom Cable
Send us your OV6946 camera module requirements, cable drawing, target length or existing sample. HOTTEN can evaluate the cable construction and provide a customized solution for your endoscope imaging project.
