192-Core 42AWG Medical Ultrasound Probe Cable with 7.1mm OD
Product Overview

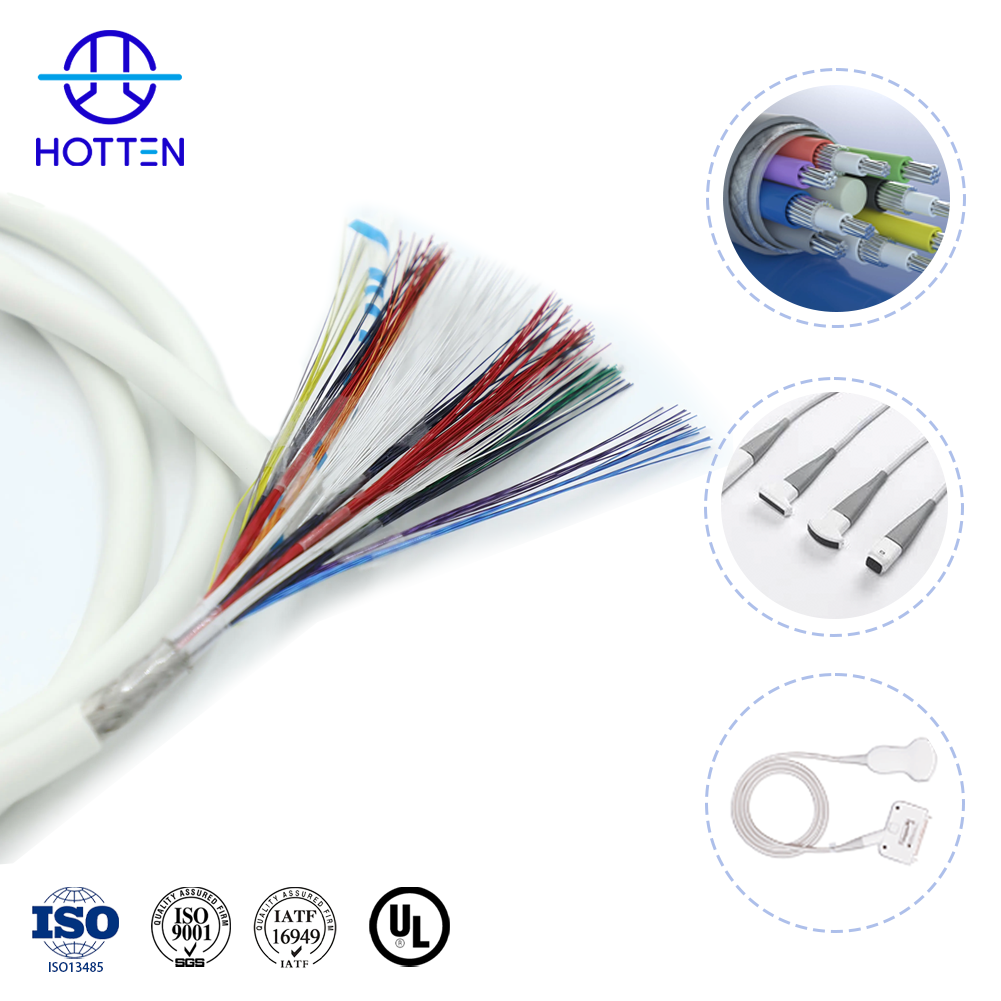

The HOTTEN 192-Core 42AWG Medical Ultrasound Probe Cable is designed for high-channel-count ultrasound probe and transducer applications requiring a compact cable structure.
This micro coaxial cable features a 192-core configuration using 42 AWG conductors, a nominal overall diameter of 7.1mm, foamed PFA insulation and a PVC outer jacket. The cable construction is intended for medical ultrasound equipment where conductor density, cable dimensions and electrical characteristics must be considered together.
The final cable specification should be confirmed against the target probe design, including the required channel configuration, insulation structure, shielding, capacitance and connection requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Medical Ultrasound Probe Cable |
| Core Configuration | 192 × 42 AWG |
| Conductor Gauge | 42 AWG |
| Nominal Overall Diameter | 7.1 mm |
| Insulation Material | Foamed PFA |
| Outer Jacket Material | PVC |
| Cable Construction | Micro Coaxial Cable |
| Insulation Structure | Lotus-shaped structure, subject to design confirmation |
| Capacitance | To be confirmed |
| Characteristic Impedance | To be confirmed |
| Shielding Structure | To be confirmed |
| Cable Length | Project-specific |
Application
This cable is intended for medical ultrasound probe and transducer equipment requiring a high-density cable configuration.
For high-channel-count probe designs, the cable must be evaluated according to the required conductor arrangement, available routing space and electrical performance requirements. The final construction should match the approved equipment design rather than being selected by core count alone.
Cable Construction and Electrical Requirements
The 192-core configuration and 42 AWG conductor size are key identification parameters for this cable. The foamed PFA insulation and PVC outer jacket define additional construction requirements.
For ultrasound applications, capacitance, impedance consistency, shielding construction and dimensional tolerances may affect the suitability of the cable for the intended signal transmission system. These parameters should be specified and verified according to the customer's requirements.
The nominal outer diameter of 7.1mm should also be checked against the available space in the probe assembly and its intended cable routing path.
The term "lotus-shaped" should be defined in the approved technical documentation if it refers to a specific internal insulation or cable-bundle geometry.
Product Specifications and RFQ
For quotation and engineering review, please provide the required cable length, drawing or sample, channel configuration and applicable electrical requirements.
Where specified, the technical documentation should also identify the required capacitance, characteristic impedance, shielding structure, dimensional tolerances and inspection criteria.
The final cable construction and acceptance requirements should be confirmed before production.
